IntraCore®35516 Series

Layer 2/3/4 Gigabit Switches

Setup Guide

2 Setup Guide 39

Asanté IntraCore 35516 Series Switches

38 Setup Guide 3

Asanté IntraCore 35516 Series Switches

Table of Contents

1. Introduction 5

1.1 Features 6

1.2 Package Contents 6

1.3 LEDs 7

1.4 Front and Back Panel Descriptions 8

1.5 Management and Configuration 10

2. Installation and Setup 11

2.1 Safety Overview 11

2.2 Recommended Installation Tools 12

2.3 Power Requirements 12

2.4 Environmental Requirements 12

2.5 Cooling and Airflow 13

2.6 Installation Overview 13

2.7 Chassis Installation/Placement 13

2.8 Installing GBIC Interfaces 15

2.9 Installing Optional Emergency Power 16

Supply

2.10 Connecting Power 17

2.11 Connecting to the Network 17

2.12 Connecting to a Console 19

2.13 Configuring an IP Address 21

2.14 Restoring Factory Defaults 23

Appendix A Troubleshooting 25

Appendix B Safety and Regulatory Compliance 27

Appendix C Specifications 29

Appendix D Serial Port Pin Outs 31

Appendix E Warranty and Support 33

4 Setup Guide 37

Asanté IntraCore 35516 Series Switches

36 Setup Guide 5

Asanté IntraCore 35516 Series Switches

1 Introduction

Thank you for purchasing the Asanté IntraCore 35516 Series Giga-

bit switch. The IC35516 is from a family of multi-media and multi-

protocol switches capable of supporting Layer 2 switching and

Layer 3 and Layer 4 protocols. They are designed to offer industry-

leading performance at a very competitive cost of ownership.

Each IntraCore 35516 switch is a 16-port solution for Gigabit

Ethernet switching using shared-memory architecture to achieve

Gigabit switching on all ports. The highly integrated system includes

MACs, address look-up, content addressable memory (CAM),

switch engine, primary buffer memory, and programmable quality of

service (QoS).

Two models in the IntraCore 35516 series cover different customer

applications.

The IC35516-T is a 16-port switch that has 12 10/100/1000BaseT

ports and 4 dual-function Gigabit ports that support either

1000BaseT RJ-45 Gigabit ports or GBIC Gigabit ports.

The IC35516-G is a 16-port switch that has 12 GBIC style Gigabit

Ethernet ports and 4 dual-function Gigabit ports that support either

1000BaseT RJ-45 Gigabit ports or GBIC Gigabit ports.

The following types of GBIC modules are supported on the IC

35516 switches:

• 1000SX multi-mode fiber for 500 m applications

• 1000LX single-mode fiber for 2 km applications

• 1000LH single-mode fiber for 20 km applications

• 1000LZ single-mode fiber for ultra distance (120 km) appli-

cations

• 1000BaseT copper gigabit for low-cost 100 m applications

The system can operate as a stand alone network or be used in

combination with other IntraCore switches in the backbone.

6 Setup Guide

1.1 Features

The IC35516 is a high-performance, compact switch that is also a

multi-media, multi-protocol (Ethernet, L2/L3/L4) router. The follow-

ing is a partial list of the switch’s features (please refer to the User’s

Manual on the CD-ROM for a complete list of features):

• Supports SNMP and RMON

• Advanced VLSI switch engine

• IEEE 802.1Q VLAN and 802.1p 8-level class of service

• Layer 2,3,4 and 4 software enhancement

• Sophisticated filtering

• Large address table

• Jumbo packet support (up to 32 KB in size)

1.2 Package Contents

The following items are included in your package:

• Switch

• AC power cord

• Rack mount brackets with screws

• Rubber feet

• User’s Manual (on CD-ROM)

• Setup Guide (this document)

• IC35516 CD-ROM

Contact your dealer immediately if any of these items is missing.

Tip! For your convenience, the User's Manual is on the IC35516

CD-ROM. As an Adobe PDF document, you can search or print

specific pages. The most recent version of the User's Guide

can also be found on the Asanté website: http://

www.asante.com.

Asanté IntraCore 35516 Series Switches

Asanté Technologies, Inc. Technical Support (801-566-8991 or

www.asante.com/support).

Before contacting Technical Support, however, please register your

switch online at www.asante.com/support/registration.html, or by

returning the warranty card by mail. In doing so, you’ll be entitled to

special offers, up-to-date information, and important product bulle-

tins.

Asanté IntraCore 35516 Series Switches

1.3 LEDs

The system’s front panel LED display allows the manager to moni-

tor the status of the switch. Refer to the following sections for LED

information specific to the switch’s model.

1.3.1 IC35516-T

The IC35516-T has one power LED indicator, one (optional) emer-

gency power LED, and two LED indicators for each of the 16 ports.

See the table below for a complete LED description.

1.3.2 IC35516-G

The IC35516-G has one power LED, one (optional) emergency

power LED, two LED indicators for 10/100/1000BaseT status, and

one LED for GBIC status. See the following table for a complete

LED description.

LED Color Description

Power Green

Off

Power is on.

Power is off, or main power has failed.

Emergency

Power

Green

Off

Primary power has failed and optional power supply

is powering the switch.

Optional power supply is in standby mode and pri-

mary power is working.

Link/Speed Green

Yellow

Off

A valid 1000 Mbps link has been established.

A valid 10/100 Mbps link has been established.

No link has been established.

Duplex/Activity Blinking Green

Blinking Yellow

Off

Activity is detected in full-duplex mode.

Activity is detected in half-duplex mode.

No traffic has been detected, or no link has been

established.

8 Setup Guide

1.4 Front and Back Panel Descriptions

Refer to the following sections for detailed descriptions of the front

and back panels of the IC35516 series switches.

1.4.1 IC35516-T

The front panel of the IC35516-T contains the following: power and

port LEDs; 12 10/100/1000BaseT ports; 4 dual-function Gigabit

ports that support either 1000BaseT or GBIC-style Gigabit Ethernet

ports; and a console port.

LED Color Description

Power Green

Off

Power is on.

Power is off, or main power supply has failed.

Emergency Power Green

Off

Primary power has failed and optional power supply

is powering the switch.

Optional power supply is in standby mode and

primary power is working.

BaseT

10/100/1000

Link/Speed

Green

Yellow

Off

A valid 1000 Mbps link has been established.

A valid 10/100 Mbps link has been established.

No link has been established.

BaseT

10/100/1000

Duplex/Activity

Blinking Green

Blinking Yellow

Off

Activity is detected in full-duplex mode.

Activity is detected in half-duplex mode.

No traffic has been detected, or no link has been

established.

GBIC

Link

Green

Off

A valid 1000 Mbps link has been established.

No link has been established.

Appendix E Warranty and Support

The IntraCore switch is covered by Asanté’s 3-year IntraCare™

product warranty and advanced technical support. An additional 2-

year warranty is available through AsantéCare™. See the User’s

Manual for more detailed information.

If, after attempting the troubleshooting tips found here and in the

User’s Manual, your switch is still not operating properly, contact

32 Setup Guide 9

Asanté IntraCore 35516 Series Switches

The back panel, shown below, contains a 12 VDC jack for (optional)

emergency power; the primary power bay cover plate; the primary

power outlet; and the on/off switch.

1.4.2 IC3516-G

The front panel of the IC35516-G contains the following: power and

port LEDs; 12 GBIC ports; 4 dual-function Gigabit ports that support

either 1000BaseT or GBIC-style Gigabit Ethernet ports; and a con-

sole port.

The back panel, shown below, contains a 12 VDC jack for (optional)

emergency power; the primary power bay cover plate; the on/off

switch; and the primary power outlet.

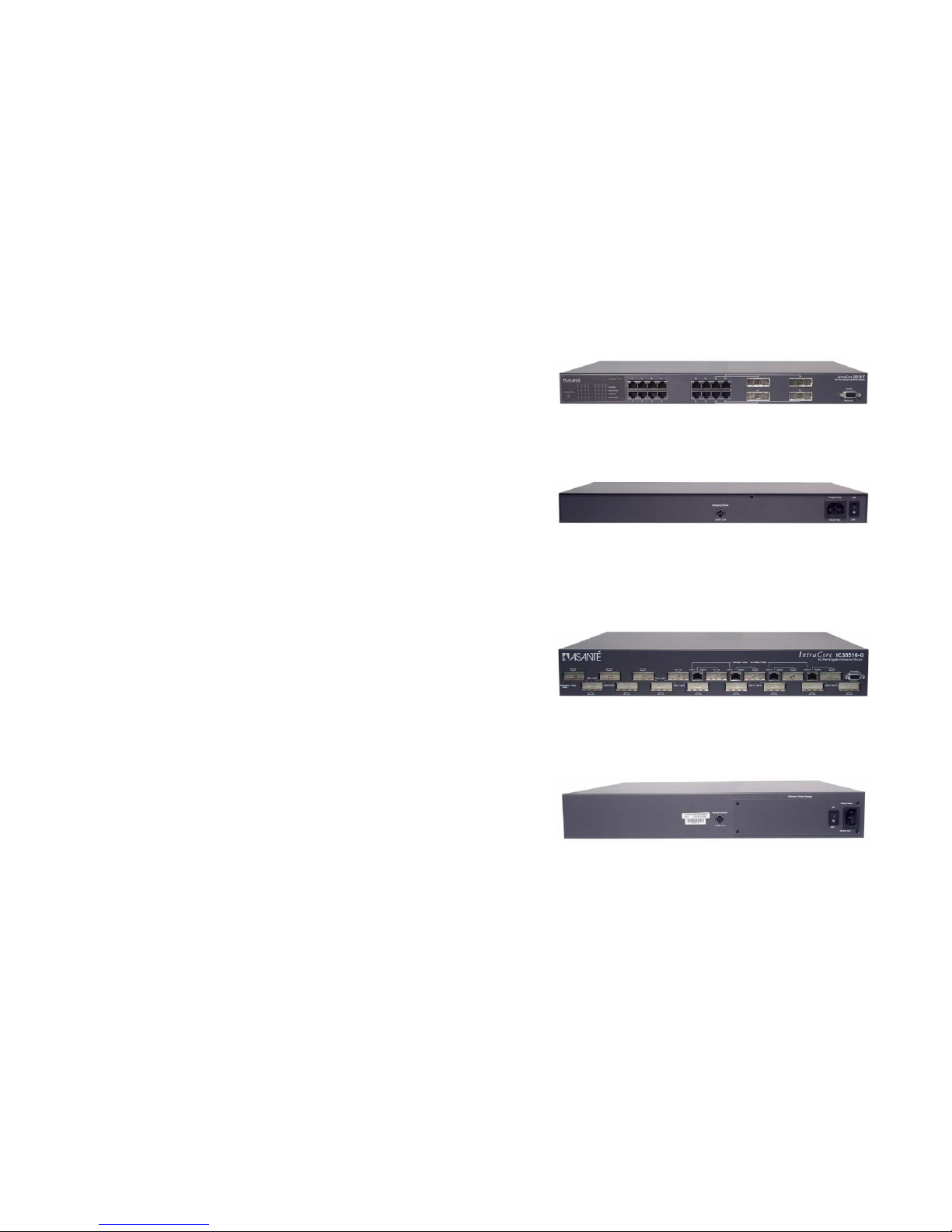

IC35516-T Front Panel

IC35516-T Back Panel

IC35516-G Front Panel

IC35516-G Back Panel

10 Setup Guide

1.5 Management and Configuration

The switch is managed using Command Line Interface (CLI) in or-

der to access several different command modes. Each command

mode provides a group of related commands. Refer to the User’s

Manual on the accompanying CD-ROM for more information.

Console Interface

Support for local, out-of-band management is delivered through a

terminal or modem attached to the EIA/TIA-232 interface. Users can

access the switch by connecting a PC or terminal to the console

port of the switch, via a serial cable. The switch is shipped with a

default password Asante set on the console line (the password is

case-sensitive), and a default IP address of 192.168.0.1/24. The

default settings for the terminal emulation program are as follows:

9600-8-N-1

Remote in-band management is available through Simple Network

Management Protocol (SNMP) and Telnet client. When connecting

via a Telnet session (line vty0) the default password is also Asante

(case-sensitive).

See the User’s Manual for configuration information.

Asanté IntraCore 35516 Series Switches

Appendix D Serial Port Pin Outs

The console port is used to connect with a terminal using a DB-9

female connector. The setting is 9600-8-N-1. See the table below

for a list of pin outs.

Pin Number Signal Name

1 CD Carrier Detect

2 RD Receive Data

3 TD Transmit Data

4 DTR Data Terminal Ready

5 SG Signal Ground

6 DSR Data Set Ready

7 RTS Request to Send

8 CD Carrier Detect

9 RI Ring Indicator

Other manuals for IntraCore 35516 Series

Table of contents

Other Asante Switch manuals

Asante

Asante FriendlyNET FM2008 User manual

Asante

Asante FriendlyNet FH208B User manual

Asante

Asante IntraCore IC3648 User manual

Asante

Asante FriendlyNET Wireless USB Adapter User manual

Asante

Asante FriendlyNET Wireless USB Adapter User manual

Asante

Asante IntraCore IC3624PWR User manual

Asante

Asante Intrachassis 9000 User manual

Asante

Asante IntraCore IC36240 Series User manual

Asante

Asante 5308F User manual

Asante

Asante FriendlyNet FH100TX16 User manual

Asante

Asante IC35516 IC35516G User manual

Asante

Asante IntraCore 35516 Series User manual

Asante

Asante IntraCore IC35160-G User manual

Asante

Asante IntraCore 3624PWR User manual

Asante

Asante FriendlyNET GX5-2400W User manual

Asante

Asante IntraCore 3624PWR User manual

Asante

Asante IntraCore IC3624 User manual

Asante

Asante FriendlyNET 2024P User manual

Asante

Asante NetStacker II User manual

Asante

Asante IntraCore GBIC 1000LX Manual

Asante

Asante IntraCore 35160 Series User manual

Asante

Asante INTRACORE 3724PWR User manual

Asante

Asante FriendlyNET 7000 Series User manual

Asante

Asante IntraCore 35160 Series User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
