Asante 3500 User manual

IntraCore™3500 Series

Gigabit Ethernet Switches

User’s Manual

Quick Start Guide

Follow these steps to install your IntraCore switch:

1. Open the box and check the contents. See Chapter 1.1 Package Contents for a complete list of the

items included with your IntraCore switch.

2. Install the switch in an equipment or wall rack, or prepare it for desktop placement.

3. Connect the power cord to the unit and to an appropriate power source.

4. Connect network devices to the switch.

5. Refer to Chapters 3-5 to configure the IntraCore for configuration and management capabilities.

For more information on installing the switch, please refer to Chapter 2 Installation and Setup.

IC3524, IC3524-2T and IC3524-2G Models

IC3548-2GT

IntraCore 3500 Series

Gigabit Ethernet Switches

User’s Manual

Asanté Technologies, Inc.

821 Fox Lane

San Jose, CA 95131

USA

SALES

800-662-9686 Home/Office Solutions

800-303-9121 Enterprise Solutions

408-435-8388

TECHNICAL SUPPORT

801-566-8991: Worldwide

801-303-3787: FAX

www.asante.com

support@asante.com

product design, or design concept may be copied or reproduced in whole or in part by any means without the express

written consent of Asanté Technologies, Inc. Asanté is a registered trademark and the Asanté logo, IntraCore, IntraCare

and AsantéCare are trademarks of Asanté Technologies, Inc. All other brand names or product names are trademarks or

registered trademarks of their respective holders. All features and specifications are subject to change without prior

notice.

Rev. A

Table of Contents

Quick Start Guide 2

Chapter 1. Introduction 6

1.1 Package Contents 6

1.2 LEDs 7

1.3 Front and Back Panel Descriptions 9

1.4 Management and Configuration 10

Chapter 2. Hardware Installation and Setup 12

2.1 Installation Overview 12

2.2 Installation into an Equipment Rack 13

2.3 GBIC Interfaces 14

2.4 Installing Optional Hardware Modules 15

2.5 Connecting Power 15

2.6 Connecting to the Network 16

2.7 Setup 17

2.8 Changing the Password 18

2.9 IP Assignment 19

2.10 SNMP Management 19

2.11 Using the Stacking Feature 20

Chapter 3. Configuration 22

3.1 General Information 23

3.2 Configuration Menu 23

3.3 System Administration Configuration 24

3.4 System IP Configuration 25

3.5 Bootstrap Configuration 25

3.6 SNMP Configuration 26

3.7 Port Configuration 28

3.8 Advanced Port Configuration 31

3.9 Unicast Forwarding Database Configuration 33

3.10 Security Management 35

3.11 VLAN Management 35

3.12 IP Multicast Traffic Management 35

3.13 Port Mirroring Configuration 35

3.14 File Up/Downloading Configuration 36

3.15 System Reset Configuration 38

3.16 System Log 39

3.17 User Interface Configuration 40

3.18 System Utility 42

3.19 Viewing Statistics 43

Chapter 4. Advanced Management 44

4.1 Spanning Tree Protocol 44

4.2 SNMP and RMON Management 46

4.3 Security Management 46

4.4 VLAN Management 50

4.5 IP Multicast Traffic Management 55

Chapter 5. Web-Based Management 58

5.1 Front Panel Button 59

5.2 Genl Info (General Information) Button 59

5.3 Statistics Button 60

5.4 Port Config (Port Configuration) Button 61

5.5 Span Tree (Spanning Tree) Button 62

5.6 SNMP Button 63

5.7 Addr (Address) Table Button 63

5.8 VLAN Button 64

5.9 Security Button 68

5.10 Duplicate IP Button 69

Chapter 6. SNMP Management 70

6.1 SNMP Management Operations 70

6.2 The SNMP Protocol 70

6.3 Community Name and Security 71

6.4 The MIB Tree 71

Chapter 7. Switching Concepts 73

7.1 VLANs 73

7.2 Spanning Tree Protocol 74

7.3 Full Duplex, Flow Control and Auto-negotiation 75

Appendix A. Troubleshooting 77

Appendix B. Features and Specifications 78

B.1 Features 78

B.2 Specifications 78

Appendix C. FCC Compliance and Warranty Statements 80

Appendix D. Console Port Pin Outs 82

Appendix E. Online Warranty Registration 83

Appendix F. BootP Configuration 84

Chapter 1. Introduction

Thank you for purchasing the Asanté IntraCore 3500 Series Gigabit switch. The IntraCore 3500 series

include 24- and 48-port 10/100 managed switches with a variety of hardware and software options.

The IntraCore 3524 is a 24-port 10/100 managed switch with several optional hardware modules. Hardware

expansion slots (two Type IC35) can accept a wide range of Gigabit and 10/100 Mbps media modules:

• 10/100/1000BaseT

• 1000BaseX GBIC

• 1000BaseSX

• 100BaseMMFX

• 100BaseSMFX

The IntraCore 3548-2GT is a 48-port 10/100 managed switch with integrated 10/100/1000BaseT Gigabit

Ethernet ports and 1000BaseX GBIC expansion ports.

See the table below for a description of the 3500 series models that are available.

Model 10/100

Ports Optional Media

Modules Description

IC 3524 Base 24 Two IC35 slots

available Managed 24-port 10/100 switch;

base

IC 3524-2G 24 Two 1000BaseX

GBIC slots

Integrated 1000BaseX GBIC

slots

IC 3524-2T 24 Two 10/100/1000

BaseT ports Integrated copper Gigabit ports

IC 3548-2GT 48 Managed 48-port 10/100 switch

with two integrated GBIC slots

or two integrated

10/100/1000BaseT Gigabit

Ethernet ports

Table 1-1 3500 Models

The system can operate as a stand-alone network or be used in combination with other IntraCore series

switches in the backbone.

1.1 Package Contents

The following items are included in your package:

• Switch

• AC power cord

• Rack mount brackets with screws

• Rubber feet

• Reference Guide

• Getting Started Guide

• User’s Manual (this document, on CD-ROM)

• IntraCore 3500 CD-ROM

Contact your dealer immediately if any of these items are missing.

1.2 LEDs

The system’s LED display allows you to monitor the status of your switch. Refer to the sections below for

LED information specific to your switch’s model.

1.2.1 IC3524 Models

The IntraCore 3524 model switches have two LED indicators for each of the 24 10/100 ports, and three LED

indicators for both of the optional Gigabit ports. See Tables 1-2 and 1-3 below for a complete LED

description.

Port # LED Color Description

N/A Power/System Green

Off

Power is on

Power is off

1-24(10/100) 10/100 Link Solid Green

Solid Amber

Off

A valid 100 Mbps link has

been established

A valid 10Mbps has been

established

No link has been established

1-24(10/100) Duplex Solid Green

Solid Amber

Full Duplex

Half Duplex

Table 1-2 IC3524 Models-- Ports 1-24

Port # LED Color Description

25, 26 Gigabit

(speed) Solid Green

Off

A valid 1000Mbps link has

been established

No link has been established,

or link is at 10/100Mbps rate

25, 26 10/100 Link Solid Green

Solid Amber

Off

A valid 100Mbps link has

been established

A valid 10Mbps link has been

established

No 10/100 link has been

established

25, 26 Duplex Solid Green

Solid Amber

Full Duplex

Half Duplex

Table 1-3 IC3524 Models--Ports 25 & 26

1.2.2 IC3548-2GT

The IntraCore 3548-2GT switch has two LED status indicators for each of the 48 10/100 ports and the 2

Gigabit ports. Using the Mode button on the lower left of the front panel allows the user to convert between

Link/Activity status and Duplex status displays. See the tables below for more information on the LED

functions of the 3548.

Table 1-4 IC3548 Model--Ports 1-48

Port # LED Color Description

N/A Power/System Green

Off

Power is on

Power is off

1-48(10/100) Link/Activity Solid Green

Blinking Green

Solid Amber

Blinking Amber

Off

A valid 100 Mbps link has

been established

Data transfer at 100Mbps

A valid 10Mbps has been

established

Data transfer at 10Mbps

No link has been established

1-48(10/100) Duplex Solid Green

Solid Amber

Blinking Amber

Off

Full Duplex

Half-Duplex

The switch is operating in

half-duplex

No full-duplex link has been

established, or no collisions

are occurring on the port

when operating at half-duplex

Port # LED Color Description

Gigabit Ports

#49, 50 Link/Activity Solid Green

Blinking Green

Solid Amber

Blinking Amber

Off

A valid 1000Mbps link has been

established

Data transfer at 1000Mbps

A 10/100Mbps link has been

established

Data transfer at 10/100Mbps

No Gigabit link has been

established

Gigabit Ports

#49, 50 Duplex Solid Green

Solid Amber

Blinking Amber

Off

Full Duplex

Half Duplex

The switch is operating in half-

duplex

No full-duplex link has been

established, or no collisions are

occurring on the port when

operating at half-duplex

Table 1-5 IC3548 Model—Ports 49 & 50

1.3 Front and Back Panel Descriptions

Refer to the following sections for detailed descriptions of the front and back panels of the IntraCore 3500

series switches.

1.3.1 IC3524 Models

From left to right, the front panel contains the following: Power and port LEDs; 24 10/100 ports; 2 optional

module slots; and a console port.

The switch is field upgradeable for use with 100BaseeFX, 1000BaseSX, 1000BaseX GBIC or

10/100/1000BaseT modules.

The back panel (not shown) has only the AC socket.

1.3.2 IC3548-2GT

From the left to the right, the 3548 switch’s front panel contains the power LED and 2 exchanging LEDs; a

push button display mode converter; 48 10/100 ports, each with its own indicator light; and 2 Gigabit ports

(capable of using either the GBIC expansion ports [for fiber and copper GBICs] OR the 10/100/1000BaseT

Gigabit Ethernet ports), each with its own indicator light.

From left to right, the back panel (shown below) contains: a console port; a 12V DC jack for an external

power supply (IC35-RPS12, US part number 99-00777-01, sold separately); an AC socket (for primary

power) and a power switch.

1.4 Management and Configuration

There are three different methods by which a user can manage the switch: web, console/telnet, or with

SNMP software. You may prefer using a web browser to be able to configure the switch from any local or

remote computer, via the network, or you may wish to use a console for out-of-band management. SNMP is

an advanced management application, and is mostly automatic, giving you the information without having to

go through an interface step by step (Note: The switch is shipped with BootP support. See Appendix F for

more information on setting up BootP).

Table 1-4 Out-of-Band and In-Band Management

Method Type Description

Console Out-of-Band

Management Local connection to the switch via the

console port

Telnet In-Band

Management Remote connection over the network to

the switch via the telnet session

HTTP Server In-Band

Management Remote connection over the network to

the switch via a Web browser

SNMP-Based

Network

Management

Software

In-Band

Management Remote connection over the network to

the switch via any SNMP-based network

management application

Other manuals for 3500

This manual suits for next models

Table of contents

Other Asante Switch manuals

Asante

Asante FriendlyNET FM2017 User manual

Asante

Asante GX6-500/800 User manual

Asante

Asante 5308F User manual

Asante

Asante IntraSwitch 6200 Series Manual

Asante

Asante IntraCore 3548-2GT Series User manual

Asante

Asante IntraCore IC3648 User manual

Asante

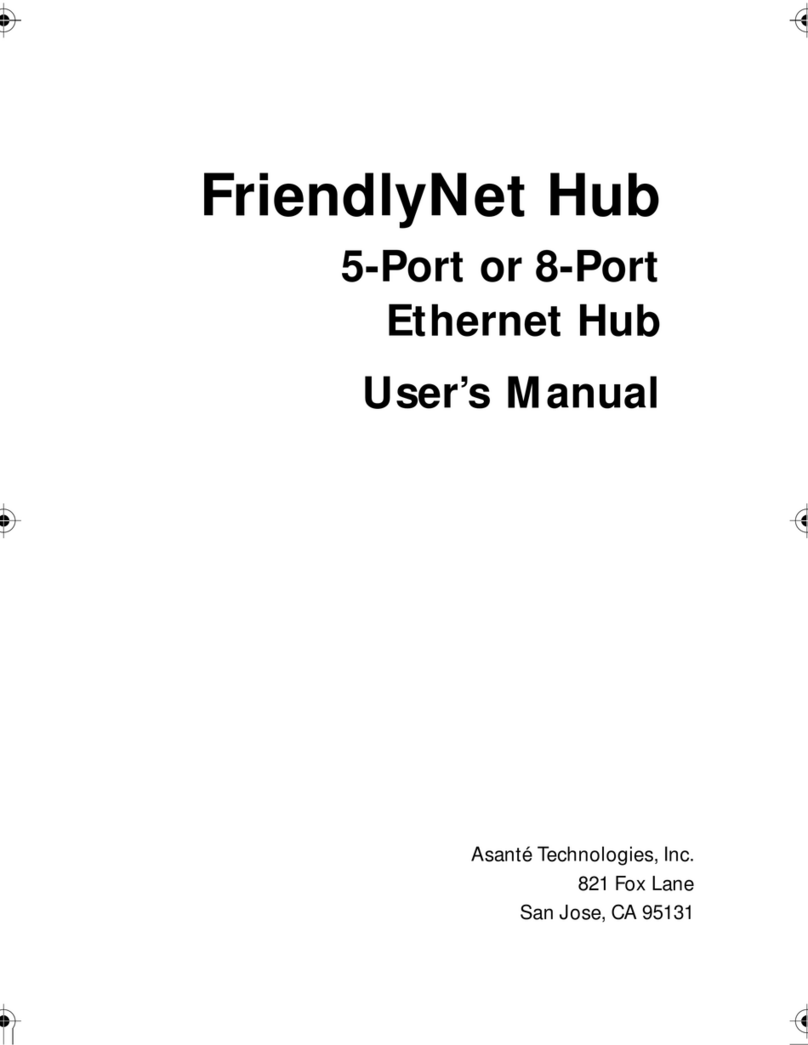

Asante FriendlyNET Wireless USB Adapter User manual

Asante

Asante NetStacker II User manual

Asante

Asante IntraSwitch 5324 User manual

Asante

Asante IntraCore 3624PWR Manual

Asante

Asante IntraCore 35160 Series User manual

Asante

Asante IntraCore 35516 Series User manual

Asante

Asante IntraCore 65120 Series User manual

Asante

Asante FriendlyNET GX4-224 Instruction Manual

Asante

Asante FriendlyNET GX6-2400W User manual

Asante

Asante IntraCore IC3624 User manual

Asante

Asante IntraCore 36000 Series User manual

Asante

Asante IntraCore 35160 Series User manual

Asante

Asante FriendlyNet FH100TX5 User manual

Asante

Asante FriendlyNet FH100TX16 User manual

Asante

Asante IntraCore IC36240 Series User manual

Asante

Asante IntraCore 3624PWR Instruction Manual

Asante

Asante Hub 1016-IQ User manual

Asante

Asante Universal Serial Bus Hub USB Hub-4 User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
