ARTHUR HOLM AH1 Series User manual
AH1
User Guide
AH12TX16GA
AH17TXHDGA
AH22TX16GA
Manually foldable professional monitors
Danish craftmanship
Mediterranean soul
Technology Serving Desing
3
TABLE OF CONTENTS
EC REGULATIONS & SECURITY 6
SAFETY INSTRUCTIONS 6
APPLICATIONS 8
FEATURES 8
BOX CONTENTS 8
CONNECTIONS 9
TROUBLE SHOOTING 9
CONTROLS 10
OSD MENU 11
PRODUCT HANDLING 14
INPUT CONNECTORS 15
INPUT SIGNALS 16
WARRANTY TERMS 18
5
WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed to create the perfect meeting
room, where the screens are a part of the interior design as well as an
essential communication tool.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager
6
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the monitor power connector.
• Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
EC REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
7
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
• Rain or water
• Excessive heat, cold or humidity
• Area exposed to direct sunlight
• Dirty areas
• Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/
or tropical climates, the equipment should be installed in a room
which ensures a reasonable level of temperature and humidity.
SAFETY INSTRUCTIONS
8
SYSTEM DESCRIPTION
Applications
The AH1 family consists of a manually foldable monitor in milled
aluminium with anodised nish and dark cast iron base. Flush antiglare
protection glass with elegant black marking.
This TFT-LCD product range is specially designed for desk integration at:
Conference rooms Meeting rooms Board rooms
Auditoriums Information desks Training rooms
Features
• TFT Active Matrix display
AH12TX 16GA 12" Widescreen
AH17TX HDGA 17" FULL HD
AH22BTX 16GA 22" FULL HD
• Manually foldable monitor.
• Low power consumption.
• Low radiation.
• Quick response time.
• Data inputs DVI-I & DVI-D. HDCP compliant.
• USB extended connector integrated on the lateral monitor housing.
• Optional: capacitive touch screen (no additional drivers needed).
Box Contents
Before the installation of your retractable monitor, please check the
contents of the shipping box, it must contain the following items:
• Monitor
• Power cord
• Power supply 100-240Vac, 50-60Hz. Output 12V
• User Manual
9
SYSTEM DESCRIPTION
Box Contents
Important Note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one
Connections
Power connection
1. Plug the power cable from the power supply into an AC
socket of 100-240 Vac, 50-60Hz.
2. Plug the 12Vdc cable into the socket on the unit
Signal connection
1. Use the DVI-I input to connect a DVI-D signal or an analog RGB
signal (VGA).
2. Plug the DVI-D connector to a DVI-D signal.
Use high quality DVI cables with 2m maximum length.
Trouble shooting
The monitor doesn’t turn on:
Check the power connections at the AC plug to the DC plug on the unit
No input signal:
Check the input signal cables
No image is displayed:
Check the status of the brightness, contrast and colour controls
Bad quality image:
Check the input signal cable
Try to auto adjust the image or reset the controller
Other problems:
Please, contact your distributor
10
MENU SELECT DOWN UP LEFT RIGHT SOURCE LED POWER
CONTROLS
OSD monitor control
The OSD buttons, to control or congure the monitor, are located on the
lower body housing of the system
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active
SELECT Selects the OSD menu function
DOWN Cursor control down on the OSD menu
UP Cursor control up on the OSD menu
LEFT Cursor control left on the OSD menu
RIGHT Cursor control right on the OSD menu
SOURCE Signal input selection (No function in this model)
LED Indicates operation status
POWER Monitor power ON/OFF
Other manuals for AH1 Series
1
This manual suits for next models
3
Table of contents
Other ARTHUR HOLM Monitor manuals
ARTHUR HOLM
ARTHUR HOLM AH22DRM User manual
ARTHUR HOLM
ARTHUR HOLM DB2Share User manual
ARTHUR HOLM
ARTHUR HOLM AH12D 2A User manual
ARTHUR HOLM
ARTHUR HOLM Gooseneck AH22NTT16 User manual
ARTHUR HOLM
ARTHUR HOLM Dynamic3Talk User manual
ARTHUR HOLM
ARTHUR HOLM AH17D1HDA2F User manual
ARTHUR HOLM
ARTHUR HOLM AH2 User manual
ARTHUR HOLM
ARTHUR HOLM DB2Twin User manual
ARTHUR HOLM
ARTHUR HOLM Dynamic3Reverse User manual
ARTHUR HOLM
ARTHUR HOLM DynamicX2 AH22DX216DGA User manual
ARTHUR HOLM
ARTHUR HOLM RISE AH12RI Wide User manual
ARTHUR HOLM
ARTHUR HOLM DB2Share User manual
ARTHUR HOLM
ARTHUR HOLM RISE AH10 RA User manual
ARTHUR HOLM

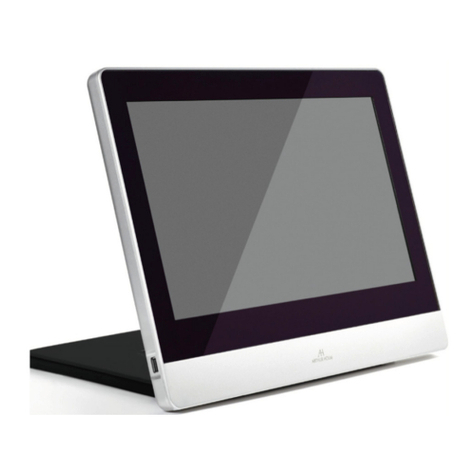

ARTHUR HOLM AH12TX16GA User manual
