Artel NCA115-2A User manual

1 of 36

Pellet insert

Cod. 001247

We thank you for having chosen one of our products, the fruit of technological experience and of

continual research for a superior quality product in terms of safety, dependability, and service.

In this manual you will nd all the information and useful suggestions to use your product with the

maximum safety and efciency.

• Incorrect installation, incorrectly performed maintenance, improper use of the product release the

manufacturer from every eventual damage derived from the use of the pellet insert.

• The unit cannot be used as an incinerator. Do not use fuels other than pellets.

• This manual has been realized by the manufacturer and constitutes an integral part of the product

and must remain with it during its entire lifetime. If the product is sold or transferred, be sure that

the booklet is present since the information contained in it are addressed to the buyer, and to all

those persons of various titles who complete the installation, use and maintenance.

• Carefully read the instructions and the technical information contained in this manual, before

proceeding with the installation, use, and any operation on the product.

• The observance of the indications contained in the present manual guarantees the safety of people

and the product, the economy of use and a longer functioning lifetime.

• Although the carefully studied design and the risk analysis done by our company has permitted

the realization of a safe product, in any case, before effecting any operation on the pellet insert,

it is recommended to keep said manual available and pay scrupulous attention to the instructions

written therein.

• Be very careful when moving the ceramic details where present.

• Check the precise atness of the pavement where the product will be installed

• The wall where the product will be placed must not be constructed in wood, or in any case, made

of an inammable material, and in addition it is necessary to maintain a safety distance.

• While the pellet insert is in operation, several parts of the pellet insert (door, handle, sides) can

reach high temperatures. Therefore pay attention and use the proper precautions, above all in the

presence of children, elderly or disabled persons, and animals.

• Assembly must be performed by authorized persons (Authorized Assistance Center).

• Diagrams and drawings are furnished for the purpose of illustration; the manufacturer, with the

intent of pursuing a policy of constant development and renewal of the product can, without any

notice, make any modications that are believed opportune.

• When the pellet insert is working at its maximum speed, it is strongly suggested to wear gloves while

handling with the door for pellets loading and the door handle.

• It is prohibited to install in bedrooms or in explosive environments.

• Only use replacement parts recommended by the supplier.

In the event of a re, disconnect the power supply, use an extinguisher and call the re ghters if

necessary. After that contact the Authorized Assistance Center.

Never cover the body of the pellet insert in any way or obstruct the openings

placed on the upper side when the device is operating. All our pellet inserts are

trial lighted on the construction line.

This instruction booklet is an integral part of the product: make sure that it always accompanies the

appliance, even in case of transfer to another owner or in the case of transfer to another place. In the

event of damage or loss, request a copy from the area technician.

These symbols indicate specic messages in this booklet:

We highly recommend to turn to our Authorized Service Centre for the installation

and the rst ignition of the device as it not only carries out the installation

perfectly but also veries the regular operation of it.

Dear Customer,

2 of 36

ATTENTION:

This warning sign indicates that the message to which it refers should be carefully read

and understood, because failure to comply with what these notices say can cause

serious damage to the pellet insert and put the user’s safety at risk.

INFORMATION:

This symbol is used to highlight information which is important for proper pellet insert

operation. Failure to comply with these provision will compromise use of the pellet insert

and its operation will not be satisfactory.

Our company declares that the pellet insert

conforms to the following norms for the EC

European Directive labelling:

• 2014/30 UE (regulation EMCD) and following

amendments;

• 2014/35UE(LowVoltageDirective)andfollowing

amendments;

• 2011/65 EU (RoHS 2 directive);

• 2015/863 EU (delegated directive recently

amended Annex II of the Directive 2011/65 EU);

• Ecodesign directive 2009/125/EC;

• The Rules of Construction Products (CPR-

Construction Products Regulation) No.

305/2011 regarding the construction world;

• For installations in Italy, please refer to UNI

10683/98 or following changes. While

installing the unit respect the local,

national and Europen rules;

• EN 55014-1; EN 55014-2; EN 61000-3-2; EN

61000-3-3; EN 60335-1; EN 60335-2-102; EN

62233, EN 50581. Regulation EU 2015/1185.

Safety information

Please carefully read this use and maintenance

manual before installing and operating the pellet

insert!

If clarication is needed, please contact the dealer

or the Authorized Assistance Center.

• The pellet pellet insert must only be operated

in living environments. This pellet insert, being

controlled by an electronic board, permits a

completely automatic and controlled combustion;

the exchange, in fact, regulates the lighting

phase, 5 power levels and the shut down stage,

guaranteeing the safe operation of the pellet

insert.

• The basket used for combustion allows most

of the ash produced by the combustion of the

pellets to fall into the collection compartment.

Nevertheless, check the basket daily, given that

not all pellets have high quality standards (use only

quality pellets recommended by the manufacturer)

Responsibility

With the delivery of the present manual, we

decline all responsibility, both civil and penal, for

accidents deriving from the partial or total lack of

observance of the instructions contained herein.

We decline every responsibility derived from

improper use of the pellet insert, from incorrect use

by the user, from unauthorized modications and/

or repairs, from the use of replacement parts that

are not original for this model. The manufacturer

declines every civil or penal, direct or indirect

responsibility due to:

• Lack of maintenance;

• Failure to observe the instructions contained in

the manual;

• Use in non-conformity with the safety directives;

• Installation in non-conformity with the norms in

force in the country;

• Installation by unqualied or untrained personnel;

• Modications and repairs not authorized by the

manufacturer;

• Use of non-original replacement parts;

• Exceptional events.

Norms and declarations of conformity

3 of 36

• Use only wood pellets;

• Keep / store the pellets in a cool dry place;

• Never pour pellets directly on the hearth;

• The pellet insert must only be fed with quality 6 mm diameter pellets, A1

certied according to the UNI EN ISO 17225-2 regulations;

• Before making the electrical connection of the pellet insert the discharge tubes must

be connected with the ue;

• The protective grill placed inside the pellet container must never be removed;

• The environment where the pellet insert is installed must have a sufcient exchange

of air;

• It is forbidden to operate the pellet insert with the door open or the glass broken;

• Do not use the pellet insert as an incinerator; the pellet insert should be used only for

the intended purpose;

• Any other use is considered improper and therefore dangerous. Do not put in the

hopper other than wood pellets;

• When the pellet insert is operating, the surfaces, glass, handle and tubes become very

hot: during operation do not touch these parts without adequate protection;

• Keep the fuel and other inammable materials off the pellet insert.

Pellets’ loading in the pellet tank

You can load the pellet in the pellet tank using the tray on the upper part of the pellet insert. You can load the

pellet in two ways:

• Remove the tray (Pict. 1); lift the supplied cab apron (shovel )(Pict. 2) so that you have a chute allowing

the pellet to slide into the tank (Pict. 3) . Load now the pellet (Pict. 4).

Pict. 1 Pict. 2 Pict. 3

Once you have loaded the pellets, lift the tray so that all the pellets go to the pellet tank (fig. 5).

Close the pellets tray (fig. 6).

Pict. 4 Pict.5 Pict. 6

4 of 36

Never turn off the heater by removing electricity. Let always complete the

shutdown cycle, otherwise you may damage the structure and have trouble

lighting in the future.

5 of 36

• The device can be used by children that are not

less than 8 years old and people with reduced

physical, sensory or mental capabilities, or lack

of experience or knowledge, provided being

under supervision of someone responsible

or after having received instructions relating

to the safe use of the device and to the

understanding of the dangers inherent to

it. Children should not play with the device.

Cleaning and maintenance to be performed

by the user should not be made by children

without supervision;

• Do not use the pellet insert as a ladder or

scaffold;

• Do not put clothes to dry on the pellet insert;

• Any clothes hangers and suchlike must be kept

a suitable distance from the pellet insert. - Risk

of re;

• Carefully explain that the pellet insert is made

from material subjected to high temperatures

for the elderly, the disabled, and in particular

for all children, keeping them away from the

pellet insert during operation;

• Do not touch the pellet insert with wet hands:

the pellet insert has electrical components that

could produce sparks if handled incorrectly;

• Never open the glass door of the pellet pellet

insert while the pellet insert is in operation;

• The pellet insert must be connected to an

electrical system equipped with an earthing

conductor in accordance with regulations

73/23 and 93/98 EEC;

• The system must be of adequate electrical

power declared the pellet insert;

• Do not wash the inside of the pellet insert with

water.

• The water could damage the electrical

insulation, causing electric shock;

• Donotexposeyourbodytohotairforalongtime.

Do not overheat the room you are in and where

the pellet insert is installed. This can damage the

physical conditions and cause health problems;

• Do not expose to direct the ow of hot air

plants or animals;

• The pellet pellet insert is not a cooking element;

• External surfaces during operation can become

very hot. Do not touch them except with the

appropriate protection;

• The plug of the device power cable must be

connected only after installation and assembly

of the device and must remain accessible after

installation, if the unit is not provided of a

double-pole switch suitable and accessible.

• Pay attention that the power cord (and any

other cables external to the appliance) do not

touch hot parts.

• Do not lay objects, glasses, infusers, room

perfumers on the pellet insert, they could be

damaged or to damage the pellet insert (in this

case de warranty does not respond).

• In the event of a start-up system, do not force

switch on;

• Unburnt pellet accumulation in the burner

following “no switch on” must be removed

before proceeding with new switch on. Before

each restart, ensure the grate is well positioned

and clean;

• It is forbidden to manually load the fuel in the

grate. Non-compliance with this warning can

generate dangerous situations;

• Evaluate the static conditions of the surface on

which the weight of the product gravitates;

• Extraordinary maintenance operations must be

carried out by authorised and qualied staff

only;

• Disconnect the electrical power supply of the

product before carrying out any maintenance

operation;

• On rst start-up, smoke may generate due to

initial heating of the paint. Keep the premises

well ventilated.

Instructions for safe and efcient use

The pellet insert is equipped with a safety device to prevent operation with

dangerous negative pressure in the combustion chamber caused for example by

unfavourable climatic situations or blockages in the ue. If intervening on this

device, do not tamper with it, clean the chimney if it is blocked and wait for the

climatic situation to allow the ue to return to a negative pressure that would guarantee

correct operation of the pellet insert. If the pellet insert is installed in particularly windy

situations for long periods of time which would prevent daily use of the pellet insert, the

smoke extractor speed can be increased to guarantee correct negative pressure in the

combustion chamber.

6 of 36

For proper functioning and a good temperature

distribution, the pellet insert shoul be positioned in

a location where it is able to take in the air necessary

for combustion of the pellet (about 40 m³/h

must be available), as laid down in the standard

governing the installation and in accordance with

local national standards. The volume of the room

must not be less than 20 m³. It is compulsory to

install an adequate outdoor air intake which would

allow oxidising air input necessary for correct

operation of the product. The air ow between

the outside and the installation premises can take

place directly, through an opening on an external

wall of the premises (preferred solution, see Figure

1a); or indirectly, through air intake from the

adjoining premises with air intake and permanently

communicating with the installation premises (see

Figure 1b). Adjoining premises excludes those

used as bedrooms, bathrooms, garages, common

areas of a building and, in general, premises in

danger of catching re. Consider the doors and

windows present which could interfere with

correct air ow to the pellet insert and maintain

1.5 metres from any smoke outlet. The air intake

must have a minimum total net surface of 100 cm2

protected by an external grate which must not be

obstructed and/or blocked and which should be

periodically cleaned: the aforementioned surface

should be increased as a result if there are other

active generators inside the premises (for example:

electric fans for stale air extraction, kitchen hood,

other pellet inserts, etc...), which could generate

a negative pressure environment. A check is

necessary, with all the equipment on, that the drop

in pressure between the room and the outdoors

does not exceed a value of 4 Pa.

You can connect the air necessary for combustion

directly to the external air intake, with a tube of at

least 40mm, with a maximum length of 2 linear

metres; each curve of the tube is equal to a loss of

one linear metre.

In the presence of wood oors,

install a oor protection surface

in compliance with the rules in

force in the country

FIGURA A- DIRETTAMENTE DALL’ESTERNO FIGURA B- PER VIA INDIRETTA DAL LOCALE ADIACENTE

FIGURE 1a- DIRECTLY FROM OUTSIDE FIGURE 1b- INDIRECTLY FROM ADJACENT PREMISES

The pellet insert may not be

installed in bedrooms, bathrooms

and where another heating

appliance without an independent air

supply (pellet insert, pellet insert, etc.) is

already installed. It is forbidden to install

the pellet insert in rooms with an explosive

atmosphere. The oor of the room in which

the pellet insert is to be installed must be

dimensioned appropriately to support the

weight of the replace insert. Maintain

a minimum distance of 50 mm between

cladding and chimney insert. In the case

of ammable walls in the vicinity of the

chimney keep a minimum distance of (A)

450 mm, rear (B) 300 mm, side (C) 400 mm,

front (D) 1000 mm and oor (E) 450 mm.

If there are particularly delicate objects

(furniture, curtains, sofas), the distance of

the insert must be increased considerably.

The two side walls of the pellet insert must

be accessible for maintenance by authorised

technicians.

300

450

1000

450

min.100 cm2

400

7 of 36

Pellet insert installation

A minimum lateral clearance of 50 mm must be ensured for proper functioning of the pellet insert. In

addition, air intakes and outlets must be provided to ensure proper ventilation within the structure. The

air inlets must have a section of 240 cm2at the entrance and 350 cm2at the exit. If a dedicated 100 cm2

combustion air inlet is not provided, increase the air inlet section to 340 cm2. The air ow entering from

below must not be obstructed by the base or other elements placed inside the installation niche. The air

ow must be free to circulate from the bottom to the top.

All openings must be protected by protective grilles that must be kept open and clean and must guarantee

the minimum required cross-section.

A : Air outlet. Minimum section 175 cmq.

B : Air intake. Minimum section 120 cmq

C : Air outlet. Minimum section 350 cmq.

D : Air intake. Minimum section 240 cmq.

100 cm

50 50

8 of 36

The following instructions have the purpose of

giving instructions on installation of a good ue,

however they do not replace in any way the

standards in force of which a qualied builder

must be aware. The pellet insert manufacturer

cannot be held in any way liable in civil or criminal

terms for poor operation of the pellet insert due to

a wrongly sized ue and/or non-compliance with

legislation in force, which must be complied with.

The ue must be built to standard and category ≥

T250 or higher, with a vertical progression without

choking, resistant to condensate and resistant

to re caused by soot. It must be externally

insulated to avoid smoke cooling and it must have

a condensate drain. If the ue is a cement shaft,

it must be ducted. The ue must be inspected

for cleaning and must also be distanced from

ammable and/or combustible materials.

The minimum distances to comply with from any

chimneys or reux zones are outlined below.

Check the negative pressure between the ue

and the environment installed comply with the

instructions in the technical characteristics. The

minimum height of the ue is 3.5 metres and must

have an internal section that allows compliance

with these requirements and however not over

100mm. Check the correct congurations using

UNI EN 13384-1.

The ue must always be clean. Any soot residue

reduces the section of the ue which would

compromise draught and the soot could catch

re. Have a professional chimney sweep clean

the ue and the chimney at least once a year and

before switching on the generator after periods of

inactivity. Lack of cleaning will negatively impact

correct operation of the equipment.

Installation of the ue is not

permitted shared with other

equipment.

Flue

Installation

Please follow the following procedure in order to

install the replace insert:

• Connect the “T” pipe to the support of the

gauge (Pict. 5).

• Insert the fastening gauge (Pict. 6) on the base

of the chimney. Fasten it with four screws and

proper plugs. The base of the chimney must be

completely at.

• Fasten the brackets to the wall behind the

chimney (Pict. 7).

• Install the smokes outlet pipe (Pict. 8).

• Install the air suction pipe.

• Lubricate the smoke outlet on the back of the

insert using a brush and some copper fat (or similar

fat suitable for high temperatures).

The lubrication of the smokes outlet makes the

removal of the pellet insert from the chimney

easier during the supplementary maintenance.

• Install the room sensor so that it is not inuenced

by the warmth produced by the pellet insert.

• Connect the control board to the PCB and the

plug of the power lead to the power supply.

• Push the ON button in the back of the pellet

insert;

• Lie the pellet insert on the gauge with caution

and push it in the chimney until it reaches its

correct position (Pict. 9).

According to the norm UNI 10683/98, the pellet

insert must not be in the same environment where

extractors, type B gas devices or in any case,

devices that create lower atmospheric pressure in

the locale are found.

9 of 36

The opening area for smoke evacuation must be at

least double the section of the ue and must prevent

snow and animals entering. The measurement of

the opening in the atmosphere must be outside

the backow zone caused by the shape of the roof

and/or any obstacles found nearby. Pay attention

to the presence of skylights and dormer windows.

30° ROOF

45° ROOF

60° ROOF15° ROOF

FLAT ROOF

A = MIN. 1,30 metri

B = DISTANZA > 1,50 metri

C = DISTANZA < 1,50 metri

D = 0,50 metri OLTRE IL COLMO

E = 0,80 metri

F = BACKFLOW ZONE

A = MIN. 0,50 m

B = DISTANCE > 2,00 m

C = DISTANCE < 2,00 m

D = 0,50 metri

E = TECHNICAL VOLUME

A = MIN. 2,00 m

B = DISTANZA > 1,30 metri

C = DISTANZA < 1,30 metri

D = 0,50 m OVER THE RIDGE

E = 1,50 metri

F = BACKFLOW ZONE

A = MIN. 1,00 m

B = DISTANCE > 1,85 m

C = DISTANCE < 1,85 m

D = 0,50 m OVER THE RIDGE

E = 0,50 metri

F = BACKFLOW ZONE

A = MIN. 2,60 m

B = DISTANZA > 1,20 m

C = DISTANZA < 1,20 m

D = 0,50 m OVER THE RIDGE

E = 2,10 m

F = BACKFLOW ZONE

Installation

Please follow the following procedure in order

to install the fireplace insert:

• Connect the “T” pipe to the support of the

gauge (Pict. 5).

• Insert the fastening gauge (Pict. 6) on the

base of the chimney. Fasten it with four

screws and proper plugs. The base of the

chimney must be completely flat.

• Fasten the brackets to the wall behind the

chimney (Pict. 7).

• Install the smokes outlet pipe (Pict. 8).

• Install the air suction pipe.

• Lubricate the smoke outlet on the back of

the insert using a brush and some copper

fat (or similar fat suitable for high tempera-

tures). The lubrication of the smokes outlet

makes the removal of the stove from the

chimney easier during the supplementary

maintenance.

• Install the room sensor so that it is not

influenced by the warmth produced by the

stove.

• Connect the control board to the PCB and

the plug of the power lead to the power

supply.

• Push the ON button in the back of the stove;

• Lie the stove on the gauge with caution and

push it in the chimney until it reaches its

correct position (Pict. 9).

Pict. 7

Pict. 5

Pict. 9 Pict. 8

According to the norm UNI 10683/98, the

stove must not be in the same environment

where extractors, type B gas devices or in any

case, devices that create lower atmospheric

pressure in the locale are found.

fastening pivot fastening

gauge

condensate

water tank

supporting

brackets

“T” pipe

Pict. 6

Installation

Please follow the following procedure in order

to install the fireplace insert:

• Connect the “T” pipe to the support of the

gauge (Pict. 5).

• Insert the fastening gauge (Pict. 6) on the

base of the chimney. Fasten it with four

screws and proper plugs. The base of the

chimney must be completely flat.

• Fasten the brackets to the wall behind the

chimney (Pict. 7).

• Install the smokes outlet pipe (Pict. 8).

• Install the air suction pipe.

• Lubricate the smoke outlet on the back of

the insert using a brush and some copper

fat (or similar fat suitable for high tempera-

tures). The lubrication of the smokes outlet

makes the removal of the stove from the

chimney easier during the supplementary

maintenance.

• Install the room sensor so that it is not

influenced by the warmth produced by the

stove.

• Connect the control board to the PCB and

the plug of the power lead to the power

supply.

• Push the ON button in the back of the stove;

• Lie the stove on the gauge with caution and

push it in the chimney until it reaches its

correct position (Pict. 9).

Pict. 7

Pict. 5

Pict. 9 Pict. 8

According to the norm UNI 10683/98, the

stove must not be in the same environment

where extractors, type B gas devices or in any

case, devices that create lower atmospheric

pressure in the locale are found.

fastening pivot fastening

gauge

condensate

water tank

supporting

brackets

“T” pipe

Pict. 6

Installation

Please follow the following procedure in order

to install the fireplace insert:

• Connect the “T” pipe to the support of the

gauge (Pict. 5).

• Insert the fastening gauge (Pict. 6) on the

base of the chimney. Fasten it with four

screws and proper plugs. The base of the

chimney must be completely flat.

• Fasten the brackets to the wall behind the

chimney (Pict. 7).

• Install the smokes outlet pipe (Pict. 8).

• Install the air suction pipe.

• Lubricate the smoke outlet on the back of

the insert using a brush and some copper

fat (or similar fat suitable for high tempera-

tures). The lubrication of the smokes outlet

makes the removal of the stove from the

chimney easier during the supplementary

maintenance.

• Install the room sensor so that it is not

influenced by the warmth produced by the

stove.

• Connect the control board to the PCB and

the plug of the power lead to the power

supply.

• Push the ON button in the back of the stove;

• Lie the stove on the gauge with caution and

push it in the chimney until it reaches its

correct position (Pict. 9).

Pict. 7

Pict. 5

Pict. 9

Pict. 8

According to the norm UNI 10683/98, the

stove must not be in the same environment

where extractors, type B gas devices or in any

case, devices that create lower atmospheric

pressure in the locale are found.

fastening pivot fastening

gauge

condensate

water tank

supporting

brackets

“T” pipe

Pict. 6

Installation

Please follow the following procedure in order

to install the fireplace insert:

• Connect the “T” pipe to the support of the

gauge (Pict. 5).

• Insert the fastening gauge (Pict. 6) on the

base of the chimney. Fasten it with four

screws and proper plugs. The base of the

chimney must be completely flat.

• Fasten the brackets to the wall behind the

chimney (Pict. 7).

• Install the smokes outlet pipe (Pict. 8).

• Install the air suction pipe.

• Lubricate the smoke outlet on the back of

the insert using a brush and some copper

fat (or similar fat suitable for high tempera-

tures). The lubrication of the smokes outlet

makes the removal of the stove from the

chimney easier during the supplementary

maintenance.

• Install the room sensor so that it is not

influenced by the warmth produced by the

stove.

• Connect the control board to the PCB and

the plug of the power lead to the power

supply.

• Push the ON button in the back of the stove;

• Lie the stove on the gauge with caution and

push it in the chimney until it reaches its

correct position (Pict. 9).

Pict. 7

Pict. 5

Pict. 9

Pict. 8

According to the norm UNI 10683/98, the

stove must not be in the same environment

where extractors, type B gas devices or in any

case, devices that create lower atmospheric

pressure in the locale are found.

fastening pivot fastening

gauge

condensate

water tank

supporting

brackets

“T” pipe

Pict. 6

Installation

Please follow the following procedure in order

to install the fireplace insert:

• Connect the “T” pipe to the support of the

gauge (Pict. 5).

• Insert the fastening gauge (Pict. 6) on the

base of the chimney. Fasten it with four

screws and proper plugs. The base of the

chimney must be completely flat.

• Fasten the brackets to the wall behind the

chimney (Pict. 7).

• Install the smokes outlet pipe (Pict. 8).

• Install the air suction pipe.

• Lubricate the smoke outlet on the back of

the insert using a brush and some copper

fat (or similar fat suitable for high tempera-

tures). The lubrication of the smokes outlet

makes the removal of the stove from the

chimney easier during the supplementary

maintenance.

• Install the room sensor so that it is not

influenced by the warmth produced by the

stove.

• Connect the control board to the PCB and

the plug of the power lead to the power

supply.

• Push the ON button in the back of the stove;

• Lie the stove on the gauge with caution and

push it in the chimney until it reaches its

correct position (Pict. 9).

Pict. 7

Pict. 5

Pict. 9 Pict. 8

According to the norm UNI 10683/98, the

stove must not be in the same environment

where extractors, type B gas devices or in any

case, devices that create lower atmospheric

pressure in the locale are found.

fastening pivot fastening

gauge

condensate

water tank

supporting

brackets

“T” pipe

Pict. 6

Chimney

10 of 36

Flue connection

The joint between the pellet insert and the ue

must be installed using suitable tubes (min. T250).

Use is forbidden of exible metal tubes, in cement

bre or aluminium. The slope of the smoke duct

must not have horizontal sections over 2 metres

and must have a minimum 3% inclination. The

rst change of direction must take place after at

least 1.5 metres of the vertical section. Inspect the

base of the smoke duct

with periodic controls. It is forbidden to connect

the same smoke duct on multiple equipment. Keep

the smoke duct an adequate distance from any

ammable parts or parts sensitive to heat. Refer to

the instructions given by the manufacturer of the

ue for the distances to respect.

Example of correct installation.

How to connect canalization (where present)

On the canalization outlet only, connect a tube

for each duct with a diameter of 80mm with a

maximum length of 8 linear metres. For each

45°curve, consider a loss of one metre of linear

section (e.g. maximum distance without curves

8 metres; maximum distance with a 45° curve

8-1=7 metres). You are advised to use tubes with

a diameter of 80mm and with a smooth internal

surface.

They must resist heat (you are advised to use at

least a T250). Keep a distance from ammable

and/or combustible objects (at least 50 cm) and

from curtains and furniture.

The pellets are cylinders of compressed wood, produced from sawdust and wood processing (chips and

sawdust), generally produced by sawmills and carpenters. The binding capacity of the lignin

contained in wood, allows to obtain a compact product without adding additives and

foreign chemicals to the wood, is therefore obtained a natural fuel with high yield.

The use of expired pellets or any other unsuitable material can damage parts

of the thermopellet insert and impair proper operation: this can lead to the

termination of the guarantee, and its producer responsibility. With obvious

oor capacity evaluation, in the installation premises, a maximum can be

deposited of fuel, which corresponds to approx. 975kg of pellets.

For our products use pellets diameter 6 mm, length 30 mm and a maximum of 8%

and A1 certied according to the UNI EN ISO 17225-2 standard. Keep the pellets away from heat

sources and not in humid environments or with explosive atmosphere.

Pellet

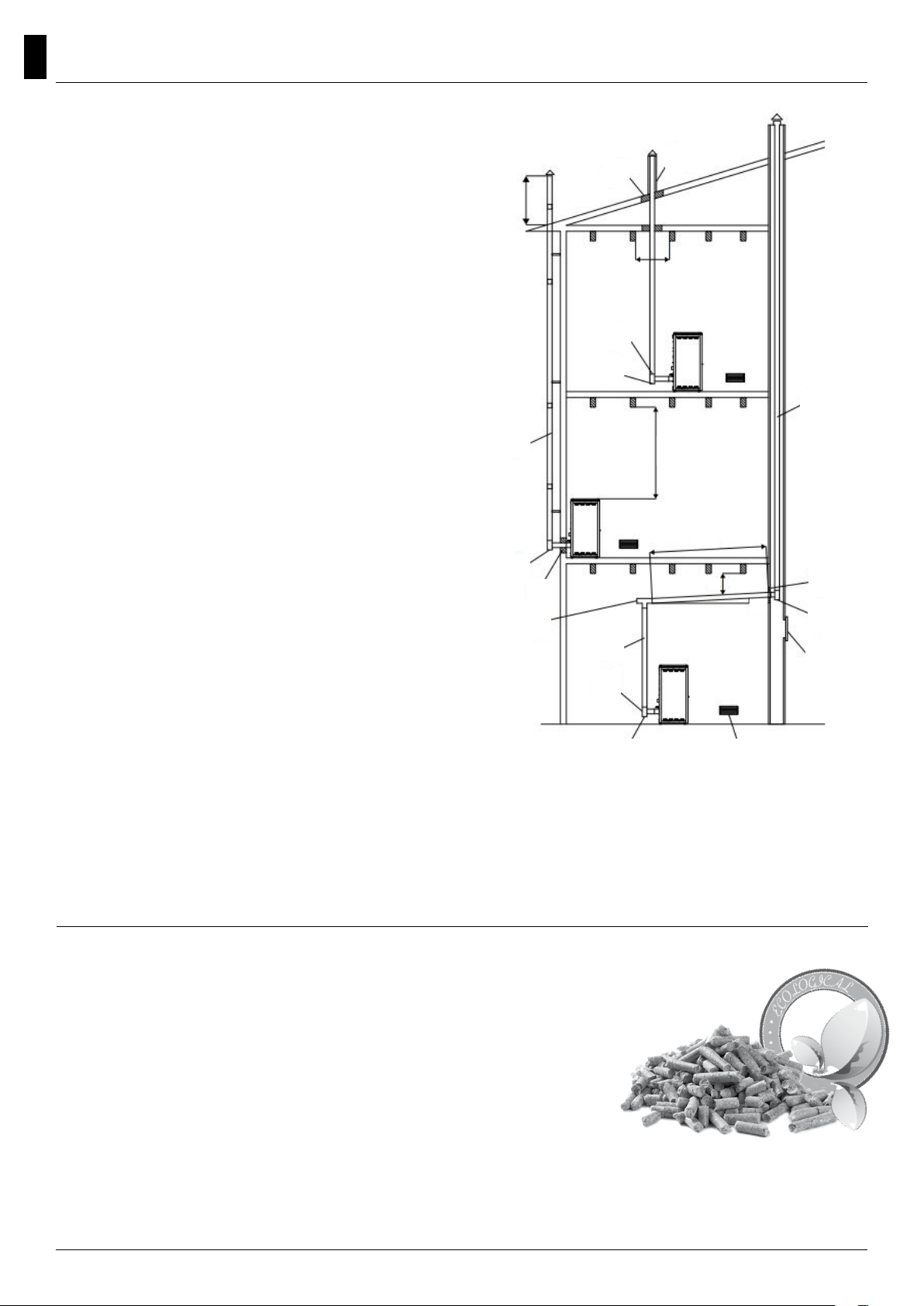

A= MINIMUM 40 MM

B=MASSIMUM 4 M

C= MINIMUM 3°

D= MINIMUM 400 MM

E= DIAMETER OF HOLE

F= SEE FIG. 2-3-4-5-6

U= INSULATION

V= POSSIBLE REDUCTION FROM 100 TO 80 MM

I= INSPECTION PLUG

S= INSPECTION DOOR

P= AIR INTAKE

T= T JOINT WITH INSPECTION PLUG

This manual suits for next models

Table of contents

Other Artel Stove manuals

Artel

Artel HERMETIC 6 User manual

Popular Stove manuals by other brands

Arada

Arada Cassette Stove installation guide

Parmco

Parmco FS 600 Installation and operating instructions

MCZ

MCZ SUITE AIR 10 M2 installation guide

HearthStone

HearthStone Stowe DV 8321 Owner's manual & installation guide

Cattara

Cattara FAMILY manual

Stanley

Stanley Argon F500 OVAL Installation and operating instructions

Avalon

Avalon B-VENT instructions

Nordpeis

Nordpeis Vega user manual

Exquisit

Exquisit EKC601-5 Instructions for use and installation

Stanley

Stanley Oisin Oil MK II Installation and operation instruction

Thermocet

Thermocet Brookfield S/CC Operating and installation instructions

HASE

HASE delhi operating instructions

Vermont Castings

Vermont Castings Intrepid 2 User instructions

Italiana Camini

Italiana Camini CLASSICA Installation, use and maintenance

Avalon

Avalon Vashon Avanti DVS FS manual

Spartherm

Spartherm ambiente a1 Installation and operating manual

Dimplex

Dimplex MCFSTV12AU manual

Warmlite

Warmlite WL46040 manual
