Arrow Antenna II Series User manual

Page 1

911 E. Fox Farm Rd. #2

Cheyenne, WY 82007

ArrowAntennas.com

Simply the Best

(307) 222-4712

[email protected]

3 Piece Boom

The Arrow II line of antennas has been engineered to provide maximum gain and efficiency in

the smallest practical size & weight. ONLY 20 oz.

Aluminum Arrow Shafts are used for elements.

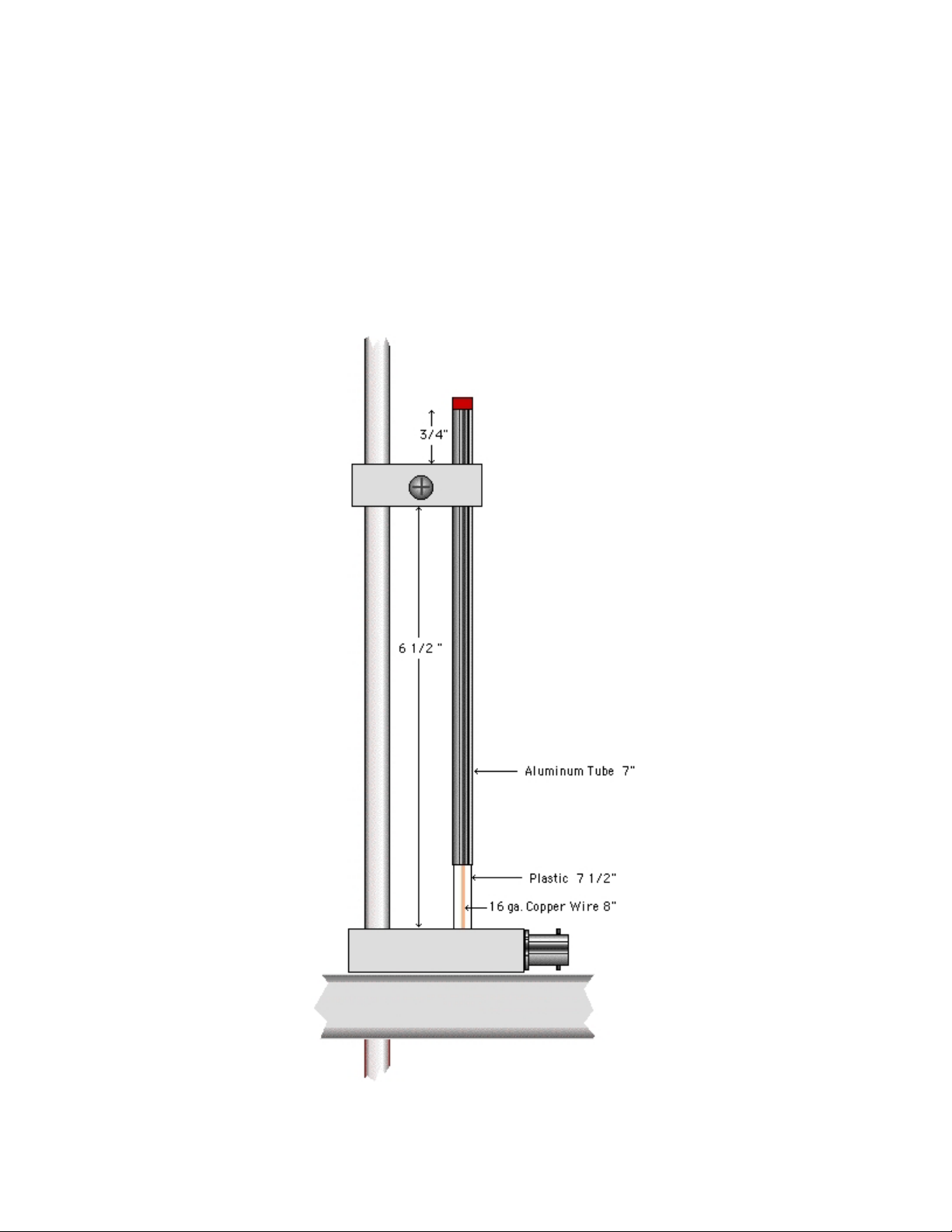

The in-line gamma match is pre-assembled & pre-tuned. BNC connector only.

The boom is ¾” square (with round corners) 48” long.

Boom & elements all have plastic tips for safety.

Model

146-4BP

4 Elements for the 2 meter band.

Guarantee

No hassle refund

If you are not completely

satisfied with any ARROW

ANTENNA Product it can

be returned for a FULL

refund less shipping and

handling within 90 DAYS

of purchase date.

SIMPLY THE BEST

We don’t invent antennas.

We simply build them better.

17 1/8” 18 1/4" 19 1/4" 20 1/4"

Page 2

Part # Price Model 146-4BP Parts List

14601BP $29.00 Three Piece Boom 3/4" X 48" (each piece aprox. 18" long)

146 19.250 $22.00 146 Driven Element Pair - with End Caps Inserts, & 2 1/2" Stud (19 1/4 ")

146 20.250 $ 8.00 Reflector Element Pair - with End Caps, Inserts, & 2 1/4 " Stud (20 1/4 ")

146 18.250 $ 8.00 1st. Director Element Pair - with End Caps, Inserts, & 2 1/4" Stud (18 1/4 ")

146 17.125 $ 8.00 2nd. Director Element Pair - with End Caps, Inserts, & 2 1/4" Stud (17 1/8 ")

2.250 $ 1.00 2 1/4 " All Thread Stud for all Elements (2 for $1.)

SC 9/32 $ 1.00 Red End Caps For Elements (10 for $1.)

FP 125 $ 1.00 Black End Caps for the Boom (4 for $1.)

(Please add $8.00 S & H per order. Thank you.)

Assembly Instructions

Assemble the boom. Attach the elements to the boom as shown above by screwing the elements together through holes in the boom.

Attach feed lines to the BNC connectors. That’s it. The antenna is pre-tuned and ready to go.

Boom Length 48” Element Spacing: 3/4” 16 3/16” 31 7/8” 47 1/4"

Page 3

ASSEMBLY CHECKLIST FOR OUR SHIPPING DEPARTMENT.

Circle Antenna Being Assembled:

146-4BP

___Split Boom

___4 element holes

___Hole are clear

___End Caps

___2 @ 20 1/4" elements

___2 @ 18 1/4" elements

___1 @ 19 1/4" driven element.

___1 @ 19 1/4" non-driven element

___2 @ 17 1/8" elements

___4 studs
