Aries 2081300 User manual
PAGE 1 • 2081300-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Level of Difficulty
Easy
Parts List
2D-ring
4Button head bolt,
M12 - 1.75mm x 25mm
2Neoprene rubber rod
2Back plate
Tools Required
Allen wrench, M8
Scan
for helpful
install tips
INSTALLATION MANUAL 2081300
Torque Specifications
METRIC
M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
SAE
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2081300-INS-RA • PAGE 2
Step 1
Locate the two slots on the driver-side
front face of the modular bumper.
Insert one back plate in through
the large slot below the two slots.
Step 2
Flip the D-ring over and insert one
rubber rod into the hole on the back
of the D-ring.
Step 3
Align the back plate with the slots.
Place the D-ring over the mounting slots.
Secure using two M12 button head bolts.
Snug the hardware,
but do not fully tighten.
Repeat steps 1 through 3 to install
the passenger side D-ring.
Step 4
Adjust and level the D-ring.
Tighten hardware to the
recommended torque specifications
listed on the first page.
Congratulations on the installation
of your new ARIES D-rings.
Table of contents
Other Aries Automobile Accessories manuals
Aries
Aries 205008-2 User manual
Aries
Aries 25630AB User manual
Aries
Aries 205041 User manual
Aries
Aries 203016 User manual
Aries
Aries 2074120 User manual
Aries
Aries 215039 User manual
Aries
Aries AL234045 User manual
Aries

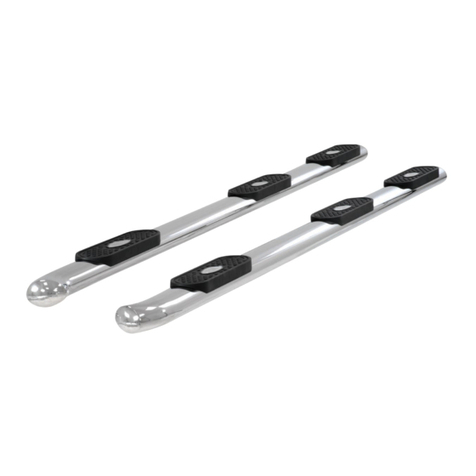

Aries 363006-2 User manual
