Ariens Path-Pro SS21 User manual

Quick Start Guide

Ariens Path-Pro SS21 (938031 s/n 000101 & up)

•Step 1: Assemble Handlebar

•Step 2: Attach Discharge Chute

•Step 3: Check Auger Control Bar

•Step 4: Add Oil

•Step 5: Fill Engine Fuel Tank

•Step 6: Starting Engine

•Step 7: Stopping the Engine

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

IMPORTANT: READ OPERATOR’S MANUAL AND ENGINE MANUAL

THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES

BEFORE OPERATING.

Step One:

Assemble Handlebar

1. Loosen knobs (#17) on each side of handlebar and rotate

handlebar to operating position.

2. Insert lower end of pivot bolt (#16) into handlebar holes.

3. Ensure auger control cable is not pinched and tighten knobs.

Do not over tighten.

Step Two:

Attach Discharge Chute

1. Place water guard ring (#18) on discharge chute hole.

2. Position discharge chute (#8) onto ring.

3. Position chute handle (#6) on top of discharge chute.

4. Ensure holes in all pieces align and secure with three screws

(#19). Do not over tighten.

5. Move chute handle to ensure proper operation of discharge

chute.

Step Four: Check Auger Control Bar

Engage auger control bar to

ensure proper operation.

There should be no

excessive tension on cable.

When auger control bar is

disengaged, there should

be slight slack in cable and

no tension.

NOTE: See Owner’s

Manual if adjustment is

necessary.

Step Five: Add Oil

1. Open fuel and oil door (#15) to access oil fill (#12).

2. Remove cap and add 16 oz. 5W-30 oil (#20). Check oil level

on dipstick to ensure proper operating level. See Owner’s

Manual for instructions.

3. Replace cap and close door.

Fill fuel tank. DO NOT

OVERFILL! See

FUEL TANK in Owners

Manual.

Step Six:

Fill Engine Fuel Tank

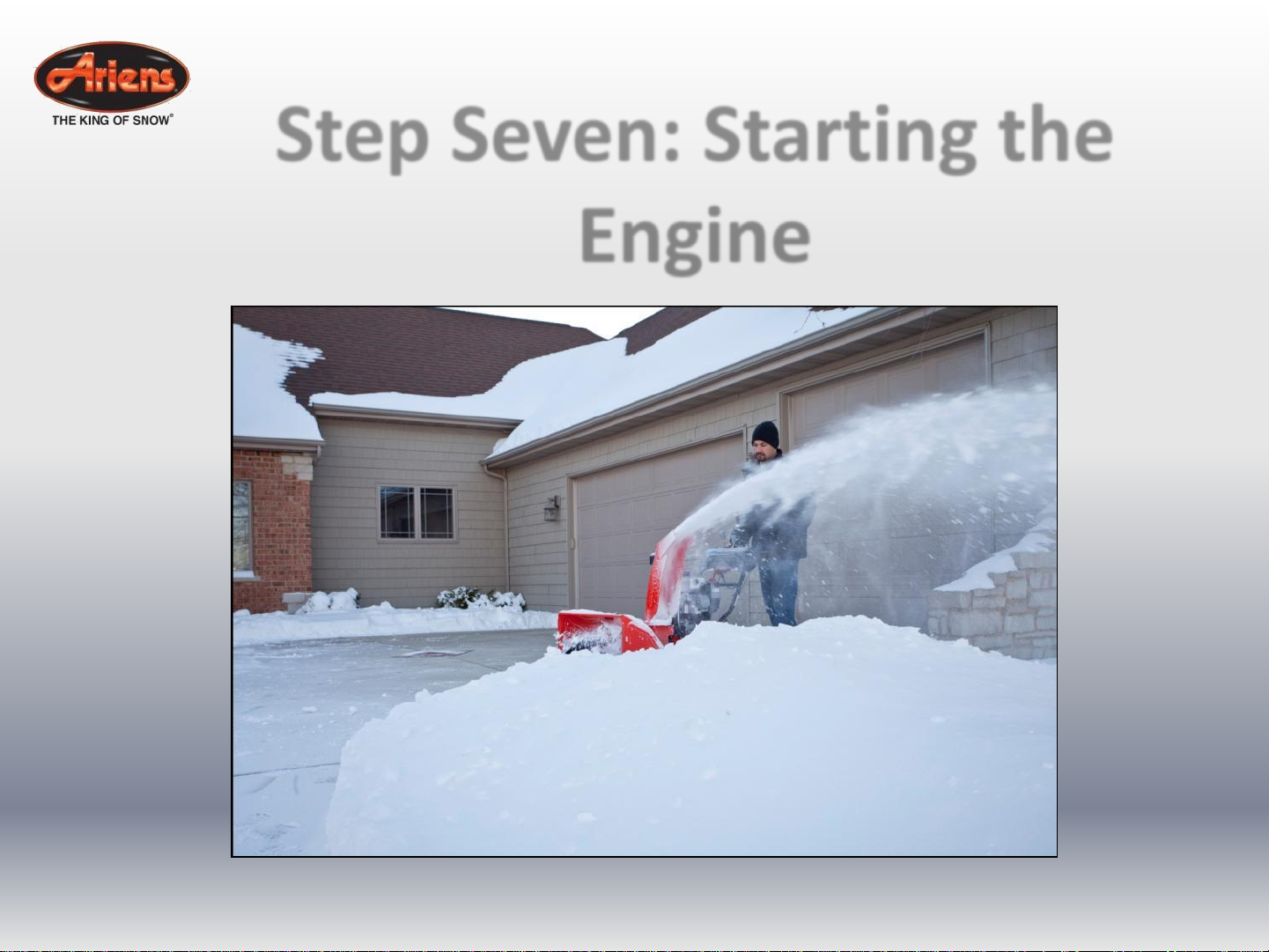

Step Seven: Starting the

Engine

Starting Engine / Step A:

Engine Switch

Move engine

switch to ON

position.

Starting Engine / Step B:

Fuel Shut-off Valve

Open fuel shut-off valve. The

fuel shut-off valve is open

when it is horizontal.

NOTE: When viewing the

Sno-Thro from the operating

position, the fuel shut-off

valve is located on the right

side of the engine, the fuel

and oil door must be open to

access it.

Starting Engine / Step C:

Choke

If engine is cold,

move choke to

FULL choke

position.

NOTE: Do not

apply choke to a

warm engine.
