Argo Flamenco User manual

V 09/16

OPERATING INSTRUCTIONS

Read the instructions carefully before installing and operating the appliance or performing

maintenance operations. Observe all the safety instructions; failure to observe the instructions may

cause accidents and/or damages. Store these instructions for future reference.

ELECTRIC FIREPLACE

V 09/16

GENERAL SAFETY INFORMATION

Use this electric fireplace only as outlined in this manual. Any other

use not recommended by the manufacturer may cause fire, electric

shock or injury to people.

Ensure that the mains power complies with the voltage specified on

the electric fireplace data plate (220-240V~/50Hz).

This appliance can be used by children aged from 8 years and

above and people with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children

without supervision.

This product is not a toy. Children of less than 3 years should be

kept away unless continuously supervised.

Children aged from 3 and less than 8 years shall only switch on/off

the appliance provided that it has been placed or installed in its

intended normal operating position and they have been given

instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children aged from 3 years and

les than 8 years shall not plug in, regulate and clean the appliance

or perform user maintenance.

CAUTION - Some parts of this product can become very hot

and cause burns. Particular attention has to be given where

children and vulnerable people are present.

WARNING: In order to avoid hazard due to inadvertent resetting of

the thermal cut-out, this appliance must not be supplied through and

external switching device, such as a timer, or connected to a circuit

that is regularly switched on and off by the utility.

WARNING: do not use the electric fireplace with a controller or

any other external device that activates the appliance

automatically, as there may be a risk of fire if the electric

fireplace is covered or incorrectly positioned.

V 09/16

Do not restrict the air inlet and outlet grilles.

The appliance heats up slightly when in use. In order to avoid burns,

do not let bare skin touch hot surfaces.

Ensure that all objects are at least 1 meter from the front and sides

of the appliance.

Disconnect the mains power when the appliance is not used or for

cleaning operations.

Avoid using the electric fireplace in dusty environments or in the

presence of inflammable vapors (e.g. in workshops or garages) or

paint vapors.

Do not place anything on the appliance, use the appliance to dry

clothing.

Use the appliance in a well-ventilated area.

Avoid placing fingers or foreign objects in the air inlet/outlet grilles,

as this may lead to electric shock or fire and may damage the

appliance.

To avoid the risk of fire, do not block the grilles or tamper with them

in any way while the electric fireplace operates.

Do not use the appliance if the cord or plug are damaged. If the

power supply cord is damaged, it must be replaced by the service

centre so as to avoid any safety risks.

Do not operate the appliance if it has fallen from a height or has

suffered damage in any way. Contact qualified technical personnel

to examine the appliance or perform any electrical or mechanical

repairs.

The most common cause of overheating is the build-up of dust in

the appliance. Remove dust deposits by unplugging the appliance

and cleaning the air outlets and grilles with the aid of a vacuum

cleaner.

Do not use abrasive detergents for cleaning this appliance. Clean

the appliance with the aid of a damp (not wet) cloth rinsed in hot

soapy water. Always remove the plug from the mains socket before

cleaning.

V 09/16

To disconnect the electric fireplace, push the switch to OFF and

remove the plug from the socket. Pull on the plug only. Avoid pulling

on the cord when disconnecting the electric fireplace.

Do not place any objects on the cord and do not bend it.

It is not advisable to use extension cords, as these may overheat

and cause the risk of fire. Do not use a single extension cord to

operate multiple appliances.

Do not immerse the cord, plug or any other element of the appliance

in water or other liquids.

Do not touch the plug with wet hands.

Do not place the fan heater above or near another heat source.

WARNING: AVOID COVERING THE ELECTRIC FIREPLACE TO

PREVENT IT FROM OVERHEATING.

The symbol below signals the above warning:

The electric fireplace may cause the risk of fire if, while in operation,

is covered by or comes into contact with inflammable material

including curtains, drapery, blankets, etc. KEEP THE ELECTRIC

FIREPLACE AWAY FROM THESE MATERIALS.

Do not connect the appliance to the mains power before it has been

properly assembled and positioned.

Do not run the cord under carpets. Do not cover the cord with

blankets, carpets or similar materials. Place the cord far away from

busy areas or where it cannot be accidentally pulled-out.

Do not operate the electric fireplace in close proximity to bathtubs,

showers, washbasins or pools.

Do not position the electric fireplace below a socket outlet.

Do not operate the appliance outdoors.

Upon initial start-up, the electric fireplace may emit a slight,

harmless smell. This smell is a normal effect of the initial heating up

of the internal heating elements, and should not recur later on.

V 09/16

WARNING: DO NOT DEPEND ON THE ON/OFF BUTTON

SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER.

WHEN SERVICING OR MOVING THE ELECTRIC FIREPLACE,

ALWAYS UNPLUG THE POWER CORD.

A electric fireplace has hot and arcing or sparkling parts inside. It

must not be used in potentially dangerous locations such as

flammable, explosive, chemical-laden or wet atmosphere.

Do not place the electric fireplace on soft surfaces, like a bed, where

openings may become blocked. Always place the electric fireplace

on a stable, flat, level surface when operating, to avoid the chance

of the electric fireplace overturning. Locate the power cord so the

electric fireplace or other objects are not resting on it.

Always unplug the electric fireplace when not in use.

In order to avoid accidents turn unit off if unattended.

In the event of any problems (abnormal noise or a strange smell)

switch off the appliance immediately, do not attempt to repair it and

take it to your local after sales service.

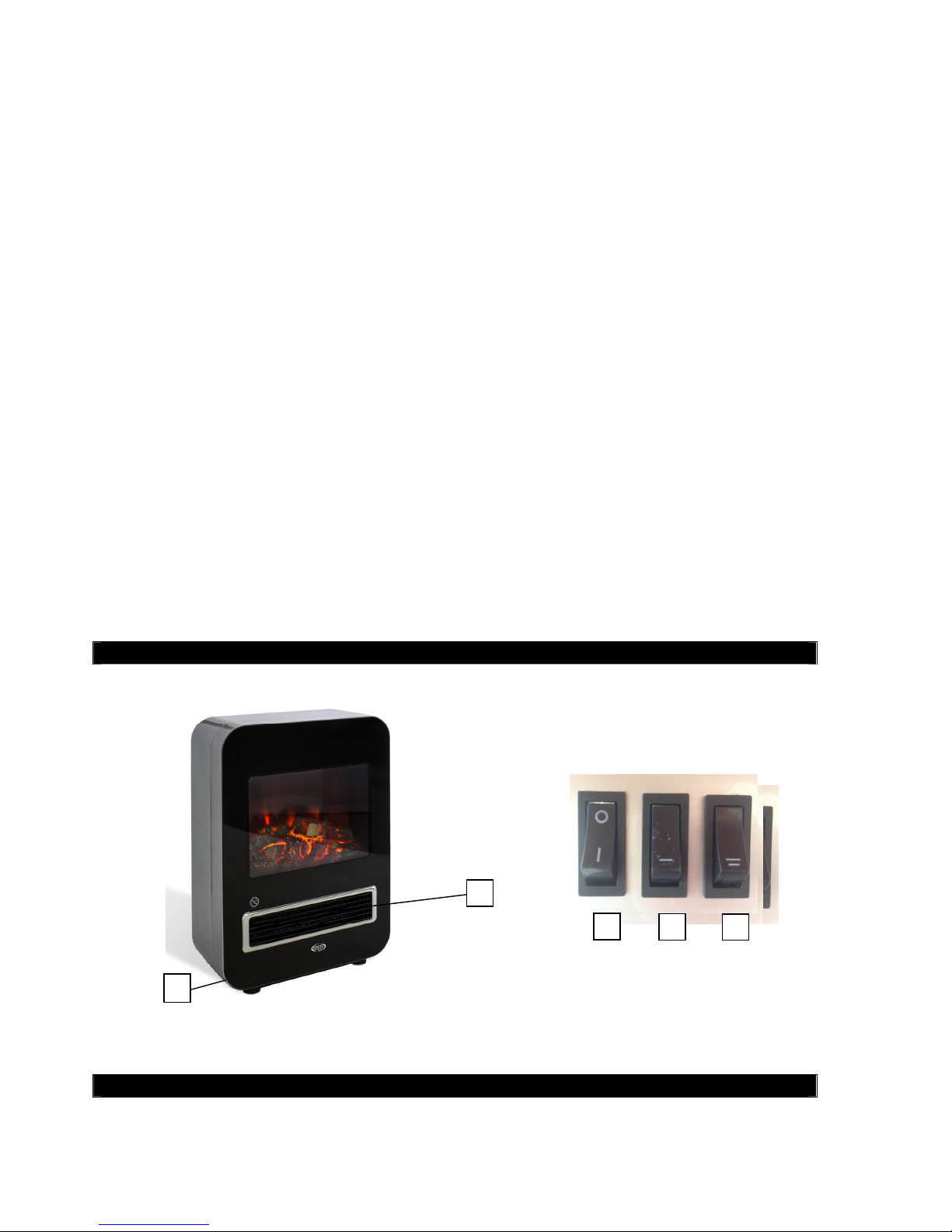

DESCRIPTION OF PARTS

1. Air outlet grille

2. Overheating safety device

3. ON/OFF switch

4. ECO mode

5. COMFORT mode (selecting both 4 e 5)

DESCRIPTION OF PARTS

Put the electric fireplace vertically on a flat and stable surface. Use the rear handle when you move the appliance.

Connect the power cord to a suitable electric socket (220-240V~/50Hz).

34 5

V 09/16

Turn on the On/off switch.

Select the desired mode:

(1) ECO mode: switch under ON/OFF button (1000W)

(2) COMFORT mode: switches (4) and (5) together (2000W)

CONTROL PANEL AND AVAILABLE FUNCTIONS

The appliance is fitted with an anti tip-up device that prevents it from operating when it detects that the product is inclined.

Do not position the appliance on its side or upside down.

OVERHEATING SAFETY DEVICE

In case of overheating the safety cut out protecting the heating element will automatically switch off the appliance.

In this case the appliance stops working. If this happens:

remove the causes of abnormal operation or overheating (i.e. obstacles in front of air inlet or air outlet grille);

leave the electric fireplace cool down for 15/20 minutes;

switch on again the fireplace.

MAINTENANCE AND STORAGE

ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE.

IMPORTANT: DO NOT SUBMERGE THE CERAMIC ELECTRIC FIREPLACE IN WATER

Cleaning the outside surface of the appliance

Turn the switch off and unplug before carrying out any maintenance work or moving the appliance.

Use a soft cloth to remove any dust from the electric fireplace.

If the electric fireplace is excessively dirty, use a soft cloth moistened with water and a mild detergent at a temperature lower

than 50°C. Let the fan heater dry completely before use.

Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils, chemical

substances or other items to clean that may damage the surface.

Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.

STORAGE

If the appliance is not used for prolonged periods, it must be stored together with this manual in its original packaging, in a

cool and dry place.

INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE

2012/19/EU

This appliance may not be scrapped with domestic waste at the end of its life cycle. We call your attention to the crucial role

played by the consumer in the re-use, recycling and other forms of recovery of such waste. The appliance must be scrapped

by a sorted waste disposal centre or by returning it to the retailer (no charge is levied for this service), when you purchase a

new equivalent appliance. Sorted disposal of electric and electronic equipment prevents the negative effects on the

environment and human health resulting from improper scrapping, and also allows the materials from which it is made to be

recovered and recycled, with significant savings in terms of energy and resources. The sorted disposal requirement is

indicated by the crossed wastebin label affixed to the appliance.

www.argoclima.com

ECO mode (I): (1)

(

1000W

)

ON/OFF

COMFORT mode (I + II):

(2) (2000 W)
