27-DVIM22N-2

GAS FIRED VENTED ROOM HEATER

(DIRECT VENT)

S/N 260110 AND UP

ARCHGARD FIREPLACE PRODUCTS

7116 Beatty Drive

Mission, BC V2V 6B4 Canada 200-1227-06

November 15, 2018

English and French Installation Manuals available through your

local dealer or visit our website at: www.archgard.com

Les manuels d'installation en anglais et en français son

disponibles chez votre détaillant local ou en visitant notre site

web: www.archgard.com

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE

This appliance may be installed in an aftermarket permanently

located, manufactured home (USA only) or mobile home where

not prohibited by local codes.

This appliance is only for use with the type of gas indicated on

the rating plate. This appliance is not convertible for use with

other gases, unless a certied kit is used.

WARNING: If the information in these instructions is not

followed exactly, a re or explosion may result, causing

property damage, personal injury or loss of life.

INSTALLATION, OPERATION, AND

MAINTENANCE MANUAL

Do not store or use gasoline or other ammable vapors or

liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

• Do not light any appliance

• Do not touch any electrical switch: do not use any phone in

your building.

• Immediately call your gas supplier from a neighbors phone.

• Follow the gas suppliers instructions.

• If you can not reach your gas supplier, call the re

department.

Installation and service must be performed by a qualied

installer, service agency or the gas supplier.

WARNING: If the information in this manual is not followed

exactly, a re or explosion may result causing property

damage, personal injury or loss of life.

Gas Fireplace Energy E󰀩ciency Rating

70.03%

Based on CSA P.4.1-09

TABLE OF CONTENTS

Introduction 3

Safety Information 4

Appliance Certication 5

Installation Codes 5

Specications 5

High Altitude Installation 5

Rating Plate Label 6

Installation Checklist 7

Appliance Overview 8

Rating Plate Location 8

Appliance Overview 8

Leveling the Appliance 9

Electrical Connections 9

Congure the Fireplace 10

Control Panel Locations 10

Minimum Fireplace Opening Dimensions

Factory Built Fireplaces 12

Refacing a Masonry Fireplace 13

Mantle Clearances 14

Sidewall Clearances 14

Clearances 15

Hearth Clearances 15

Gas Connections 16

Clocking Procedure 16

Conversion Kit Instructions 17

Prepare the Fireplace 17

Pilot Conversion 17

Convert the Gas Valve 18

Complete the Conversion 18

Venting Instructions 19

Sealing the Vent 20

Approved Terminations 20

Venting Instructions 999-INS-TK 22

Using a Co-linear to Coaxial Adapter 23

Barrier Screen Installation 24

Glass Door Installation 25

If Your Glass Breaks 25

Optional Wall Switch or Thermostat 26

Fan Wiring Diagram 26

Surround Installation 27

Firebox Liner Installation 28

Log Placement 30

Locator Pins 30

Ember Placement 33

Complete Log Set 35

Operation 36

Before Lighting 36

First Fire 36

Lighting Instructions on Rating Plate 37

Maintenance 38

Cleaning the Appliance 38

Servicing Under Warranty 39

Adjusting Primary Air 39

Checking Inlet / Outlet Gas Pressure 40

Checking and Adjusting Pilot 40

Replacing Comfort Blower 41

To Access From the Front 41

To Access From the Back 41

Troubleshooting 42

Replacement Parts List 43

Frequently Asked Questions 44

Archgard Limited Warranty 45

General Information

Introduction

Thank You and Congratulations for choosing an Archgard Gas Fireplace!

The 27-DVIM22-2 is one of the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest

technology and manufactured to the highest quality. It is our aim to provide you with an appliance that brings many trouble-free years of

reliable service.

Some of the many features of your 27-DVIM22N-2 are:

• Heater Classication The 27-DVIM22N-2 is classied as a heating appliance. Therefore, it uses Direct Vent safety

technology and it is suitable for continuously operated zone heating.

• High E󰀩ciency The 27-DVIM22N-2 has one of the highest e󰀩ciencies of any Direct Vent gas insert, which means

that it is less expensive to operate.

• Adjustable Fan Speed Each 27-DVIM22N-2 comes complete with an adjustable speed temperature controlled circulation

fan.

• Adjustable Flame The ame aesthetics and heat output can be adjusted to suit the owner’s liking and heating needs.

• Solid Construction The 27-DVIM22N-2 is mainly constructed of 16 and 18 gauge galvanized and aluminized coated

steel for long life and durability.

• Optional Accessories Check with your Authorized Archgard Dealer for a full complement of decorative accessories to suit

your home’s décor and your tastes.

• Millivolt Control System The gas control system is “thermostat” ready for any optional millivolt wall thermostat or wireless

remote control.

Please complete and submit the warranty registration card included in the back of this manual or by visiting us at:

www.archgard.com/warranty-registration

General Information

Safety Information

Caution

FOR YOUR SAFETY - Do not install or operate your 27-DVIM22N-2 without reading and understanding this manual. Any installation or

operational deviation from this instruction manual voids the warranty and may prove hazardous.

This appliance must be installed by a qualied gas installer and the installation must conform to the installation codes.

Provide adequate clearance around air openings into combustion chamber.

Never obstruct front openings.

Provide adequate clearances for proper operation and servicing of the appliance.

This appliance must be properly connected to an approved venting system and must not be connected to a chimney ue serving a

separate solid fuel burning appliance.

Flow of combustion and ventilation air must not be obstructed.

Always provide adequate clearance around the intake and exhaust openings.

Safety

Due to high temperatures, the appliance should be located out of tra󰀩c and away from furniture and draperies.

Children and adults should be alerted to the hazards of high surface temperature and stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others

may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To

restrict access to a replace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out

of the room and away from hot surfaces.

Do not store or place combustibles, gasoline, and other ammable vapors and liquids near the appliance.

Clothing or other ammable material should not be placed on or near the appliance.

Do not operate with cracked or broken glass. Do not to strike or slam the glass.

WARNING: Do not operate appliance with the glass front removed, cracked, or broken. Removal of the glass should be done by a

licensed or qualied service person.

Any safety screen or guard removed for servicing an appliance must be replaced prior to operating.

Installation and Repair should be done by a qualied service person. The appliance should be inspected before use and at least

annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding

materials, etc. It is imperative that the control compartments, burners and circulating air passageways of the appliance are kept clean.

Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance and

to replace any part of the control system and any gas control which has been under water.

Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and nally

installed in your home. Before leaving this unit with the customer, the installer must ensure that the appliance is ring correctly and that

the electrical system is in working order. The Installation Checklist on Page 7 should be used to ensure the proper installation of this

gas replace insert and to document any deviations from a typical install.

Any alteration to the product that causes carbon or soot deposits that results in any damage or requires

cleaning is not the responsibility of the manufacturer.

General Information

Appliance Certication

This appliance was listed by QAI Laboratories Inc to the following USA and Canadian gas appliance standards.

• ANSI Z21.88-2014/CSA 2.33-2014 Vented Gas Fireplace Heaters

• CAN/CGA-2.17-M91(R2009), Gas-Fired Appliances for Use at High Altitudes

• CSA P.4.1-09 testing method for measuring annual replace e󰀩ciency

CSA C22.2 No.3 - M1998(R.2014) - Electrical Features of Fuel-Burning Equipment

The listing label is attached to the appliance on the bottom right side of the appliance. A copy is shown on Page 6.

Commonwealth of Massachusetts: This appliance has been manufactured in accordance with Massachusetts code 248 CMR 5.00.

Approval Code: G1-0717-621. (http://license.reg.state.ma.us/public/licque.asp).

Please contact Archgard Industries Ltd., if you have any questions regarding the certication of this appliance.

Installation Codes

This appliance must be installed by a qualied gas appliance installer. The installation must conform with the local codes or, in

the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54 in the US, or Installation Code CAN/

CGA-B149.1 in Canada. Electrical connections and grounding must conform with local code, or current National Electrical code ANSI/

NFPA No. 70-1987 in the US, and in Canada the current Canadian Electrical Code CSA C22.1.

We recommend that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the

National Fireplace Institute® (NFI) as NFI Gas Specialists.

Specications

Natural Gas (NG) Propane (LP)

Manifold Pressure 1.6 - 3.5 in. W.C. (0.4 - 0.9 kPa) 6.4 - 10.0 in. W.C. (1.6 - 2.5 kPa)

Min. Supply Pressure

Max. Supply Pressure

5.0 in. W.C. (1.2 kPa)

14.0 in. W.C. (3.5 kPa)

11.0 in. W.C. (2.8 kPa)

14.0 in. W.C. (3.5 kPa)

Orice Size #43 DMS (2.25 mm dia) #54 DMS (1.36 mm dia)

Nominal Input Rating 15,000 - 22,400 BTU/h (4.5 - 6.56kW) 16,500 - 21,000 BTU/h (4.8 -6.15kW)

P.4 Fireplace E󰀩ciency (FE) 70.03% 70.03%

P.4 Steady State E󰀩ciency 74.55% 74.55%

Electrical Rating 120 VAC, 60Hz less than 2 A. 120 VAC, 60Hz less than 2 A.

Gas Control SIT 820 Nova SIT 820 Nova

Altitude 0 - 4,500 ft. (0 - 1372 M) 0 - 4,500 ft. (0 - 1372 M)

Primary Air Opening 1/4” (6 mm) OPEN FULLY OPEN

High Altitude Installation

When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must be properly de-rated and installed ac-

cording to local codes, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or

Installation Code, CAN/CGA-B149, in Canada.

General Information

Rating Plate Label

SAMPLE

General Information

Installation Checklist

This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained

within this installation manual.

Customer: Date Installed:

Install Address: Location of Fireplace:

Installer:

Solid Fuel Zero Clearance Install: YES NO IF NO, WHY NOT?

Was the bottom of the existing zero clearance removed?

Venting: YES NO IF NO, WHY NOT?

Venting conguration complies with vent diagrams.

Venting installed, fastened, and secured in place maintaining proper

clearances.

Secured or removed existing solid fuel replace damper.

Terminations installed and sealed in compliance with local building

code.

Direct vent termination is highest point in vent assembly.

Wiring / Electrical: YES NO IF NO, WHY NOT?

Connected to household 110/120v per local codes.

Unit is properly grounded.

Gas: YES NO IF NO, WHY NOT?

Proper appliance for fuel type?

Was a conversion performed?

Leak check performed & inlet and manifold pressures veried?

Was the rating of the insert clocked?

Finishing: YES NO IF NO, WHY NOT?

Only noncombustible material installed in noncombustible areas.

Clearances meet installation manual requirements.

Mantels and/or projections comply with install manual.

Was the solid fuel replace warning plate installed?

Appliance Setup: YES NO IF NO, WHY NOT?

Burner media / log set, door, and screen installed according to install

manual.

Manual given to home owner.

Did you check operation of fans, and ame modulation?

Comments:

Installation

Appliance Overview

Rating Plate Location

Figure 6.1.01:

Appliance Overview

Surround

Left Side Right Side

The valve is located on the left side* of the replace behind the surround.

The fan is located on the inside of the rear replace shell and can be accessed from the rear of the replace or through the front of the

replace by removing the burner.

The exhaust and intake collars are located on top of the replace as marked.

*Left and right side references in this manual correspond with the sides identied in Figure 6.2.01.

Figure 6.2.01:

Figure 6.2.02:

Installation

Electrical Connections

The 27-DVIM22N-2 comes complete with an thermally controlled variable speed fan equipped with a solid state speed control.

Do not cut or remove the grounding prong from this plug.

NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,

with the National Electrical Code, ANSI / NFPA 70, or the Canadian Electrical code, CSA C22.1.

CAUTION: Label all wires prior to disconnection when servicing.

Leveling the Appliance

Figure 6.3.01:

The 27-DVIM22N-2 is equipped with front and rear leveling bolts.

The replace has the ability to independently level left/right and

front/back.

Leveling is done from the bottom of the unit Front Bolts

Rear Bolts

CONTROLS IN CONTROLS OUT

Figure 6.2.03: Figure 6.2.04:

Installation

Congure the Fireplace

Control Panel Locations

The control panels can be mounted in the following di󰀨erent ways. They are shipped in the “Controls In” conguration. They can be

moved to the “Controls Out” conguration by removing the two mounting screw on each side and swinging the panels out and re-

installing the screws. They can also be disconnected and placed remotely within the limits of the gas connections and electrical wiring

making sure to place them away from any heat source over 150 degrees Fahrenheit or 65 degrees Celsius.

Other manuals for 27-DVIM22N-2

Table of contents

Other Archgard Indoor Fireplace manuals

Archgard

Archgard AGDVT-38 User manual

Archgard

Archgard NORTHFIRE 3400 User manual

Archgard

Archgard DV - 520 Owner's manual

Archgard

Archgard 45-DVFE28LN-1 User manual

Archgard

Archgard Optima 34 User manual

Archgard

Archgard NORTHFIRE 3400 3400-DVTR20N-2 SN 8605 User manual

Archgard

Archgard 40-dvi40n Optima 40 - SB User manual

Archgard

Archgard OPTIMA 30 - 1 Owner's manual

Archgard

Archgard Chantico 36 User manual

Archgard

Archgard 31-DVIM33 Owner's manual

Archgard

Archgard 22-DVIE22LN-1 User manual

Archgard

Archgard OPTIMA 30 - 1 Owner's manual

Archgard

Archgard 72-DVTE30P-2-ERG User manual

Archgard

Archgard Sereno 41 User manual

Archgard

Archgard Optima 20-1 Owner's manual

Archgard

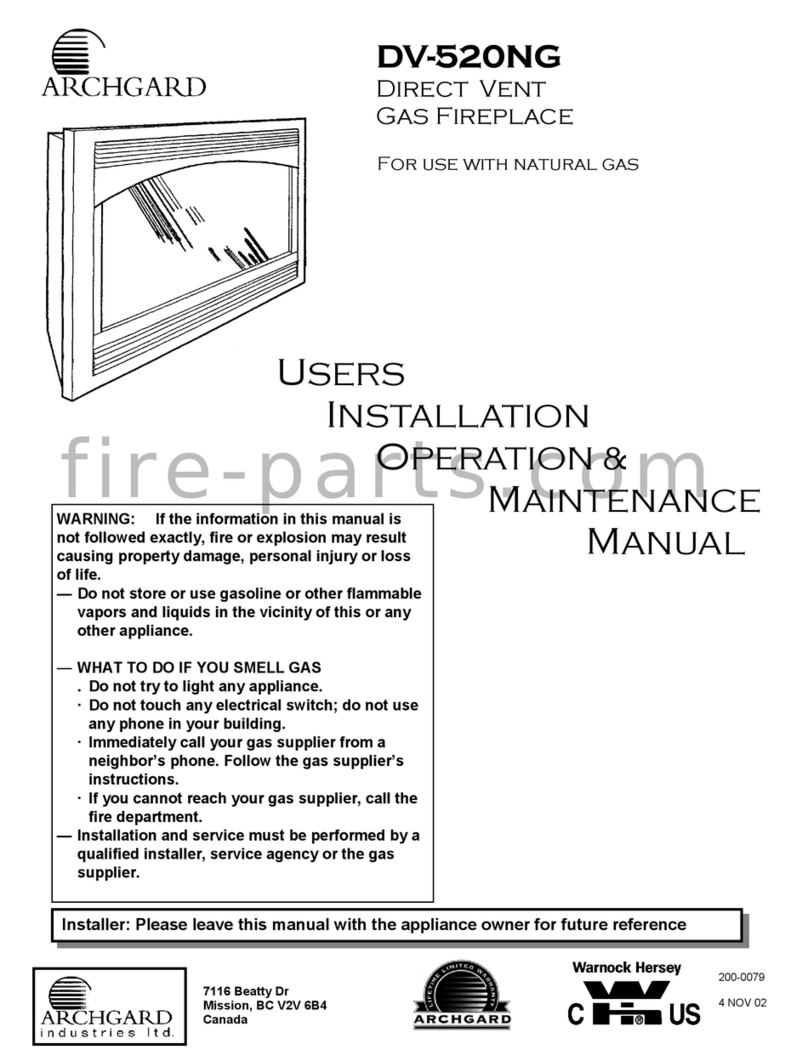

Archgard DV-520NG Owner's manual

Archgard

Archgard EURO 25-1 User manual

Archgard

Archgard NorthFire-DVT36E User manual

Archgard

Archgard 22-DVI24N-3 User manual

Archgard

Archgard 72-DVTE30P-2 User manual

Archgard

Archgard Harmonia 22 User manual

Archgard

Archgard 27-DVIM22 Owner's manual

Archgard

Archgard marquis AGDV-38D User manual

Archgard

Archgard 31-DVIM33C-2 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
