Anviz M5 User manual
Outdoor Fingerprint & Card
Reader/Controller
M5
Quick Guide V1.0
1
Package List
RELAY DELAY
POWER
SUPPLY LOCK
EXIT
BUTTON ANVIZ DEVICE
RELAY OUT
I II III
12V-I
GND
GND
NC
NO
COM
12V-O
GND
D0
D1
GND
BUT
ON OFF
PROGRAM
PROGRAM MODE - (YELLOW)
NORMAL MODE - (BLUE)
CD
ID Card
M5
Outdoor Fingerprint & Card
Reader/Controller
M5 SC011
Quick Guide
Outdoor Fingerprint & Card
Reader/Controller
M5
Quick Guide V1.0
X4
RJ45 USB
Note:
1. Please check if the package contains all the
items listed above. Contact the distributer if
there is any problem.
2. Please keep the product away from the
magnetic field, and avoid causing any
damage to the device.
3. Please use the original power supply or
refer to the instruction to get the right power
supply.
4. Please strictly follow the instructions to
install the product. Any damage to it caused
by incorrect operation and wiring are not
under warranty.
Screws
X2 X1
There are 4 cards in the package:
Enroll Card Delete Card User Card * 2.
Illustration for placing finger
Always place finger in
the center of the sensor.
Try to place your finger covers the entire sensor window.
Correct method
Incorrect method
DO NOT slide your finger
during the fingerpint
verification process.
DO NOT just use your fingertip.
DO NOT place finger
at an angle.
DO NOT place finger away from
the center of the sensor window.
DO NOT move your finger before
the backlight of sensor turns off.
DO NOT take off finger during
the fingerprint verification
process. 2
( Straighten your finger and then place it on the sensor.Ensure the finger is flat and covers
the entire sensor window)
Installation Diagram
Appearance
Steps:
Screw Hole
Mini USB Port
Function Button
Indicator LED
Three colour: Red,
Blue and Green.
Fingerprint Sensor
Place the finger here.
1.36in.
(34.5mm)
4.88in.(124mm)
1.97in. (50mm)
Step1
Step2
Step3
3
Card Reader Area
Swipe the card here.
Step1: Drill holes in the wall follow the hole
position on back panel.
Step2: Install and fix back panel, connect related
cables.
Step3: Place M5 on back panel, fix screw at the
buttom of M5.
Restart button
4

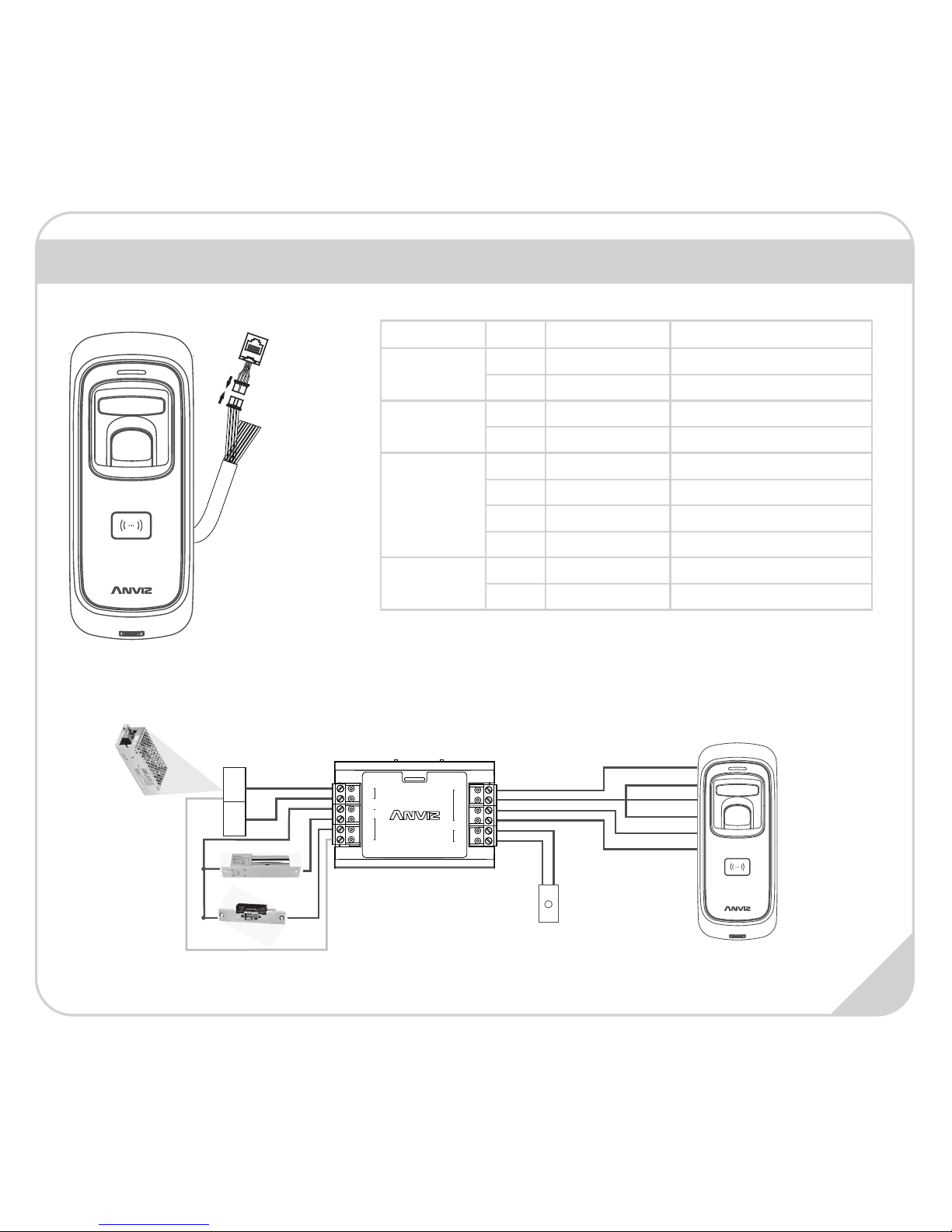

Wiring Instruction
+12V GND
RELAY DELAY
POWER
SUPPLY LOCK
EXIT
BUTTON ANVIZ DEVICE
RELAY OUT
I II III
12V-I
GND
GND
NC
NO
COM
12V-O
GND
D0
D1
GND
BUT
ON OFF
PROGRAM
PROGRAM MODE - (YELLOW)
NORMAL MODE - (BLUE)
Exit Button
SC011
Switch Power Supply
Power off to unlock
Power on to unlock
Cable ColorFunction No. Description
Output
Red (AWG 24)
Brown
Orange
Black (AWG 24)
Blue
Light Blue
Red
Black
White
Green
Power
Wiegand26
Status LED
Tamper alarm
DC12V
GND
GND
GND
LED
Wiegand DATA0 Output
Wiegand DATA1 Output
Anviz Wiegand Switch
Tamper alarm
Tamper alarm
Connect RJ45
Important notice:
Please carefully follow this wiring instruction. Any damage caused
by incorrect wiring is not covered by warranty.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
①
⑦
⑧
⑤
⑥
②
5
Function Button
Communication
Notice: The operation will not delete user data stored in the device.
Green LED lights
up with 4 short beeps Green LED lights
up with 4 short beeps
In orginal state
Blue LED flashes Red LED lights
Register Management Cards (Enroll Card and Delete Card)
Swipe Enroll
Card Swipe Delete
Card
Function Button
Press function button until you hear beeps which means the
information of Enroll Card and Delete Card have been
eliminated in the device.
After that, you MUST register management cards (Enroll Card and Delete Card) to run the machine.
If management cards are registed,indicator light turns yellow and flashes.You must verify any
management card first.
If no management card is registed, you can communicate with M5 directly.
Communication with M5 via USB port:
IMPORTANT:
Operation Guide
Register User:
1. Swipe
Enroll Card
4. Swipe Enroll
Card once1Exit
Enrollment
Add One Fingerprint per User Only:
Blue LED
flashes
2. Place finger 3. Place finger
again
Blue LED flashes fast
and fingerprint
sensor lights up
Green LED lights up
with 4 short beeps,
registration successed
5. Continue to register another user
Blue LED
flashes
2. Swipe
User Card
3. Swipe User
Card again
Note: 1. After finish enrolling current user,
please swipe enroll card and then continue
register another user.
2. After finish enrollment, please swipe
enroll card TWICE to exit enroll status.
Notice:
When you place finger on M5, Red LED flashing
with two long beeps means the finger has been
registered.
Add Card Only:
6
6. Swipe Enroll
Card TWICE to end
the enrollment2
Notice:
When you swipe card on M5, Red LED flashing
with two long beeps means the card has been
registered.
1. Swipe
Enroll Card
Note: 1. After finish enrolling current user,
please swipe enroll card and then continue
register another user.
2. After finish enrollment, please swipe
enroll card TWICE to exit enroll status.
4. Swipe Enroll
Card once1
6. Swipe Enroll Card
TWICE to end the
enrollment2
Green LED lights up
with 4 short beeps,
registration
successed
Blue LED flashes
fast and
FingerPrint
sensor lights up
5. Continue to register another user
Exit
Enrollment
M5 is suitable for vehicle with DC12V power supply only. When connect to DC12V power supply, the indicator light
displays blue and flashes fast. Meanwhile, the backlights of fingerprint sensor turn on with beeps.
Operation Guide
4. Continue to register the 2nd finger
Blue LED
flashes
2/5. Place the
1st/2nd finger
3/6. Place the 1st/2nd
finger again
Blue LED flashes fast
and FingerPrint
sensor lights up
8. Continue to register another user
Blue LED
flashes
4. Swipe
User Card
5. Swipe User
Card again
Add Two Fingerprints of one User:
Add Fingerprint and Card of one User:
2. Place finger 3. Place finger
again
7
Note: 1. After finish enrolling current user,
please swipe enroll card and then continue
register another user.
2. After finish enrollment, please swipe
enroll card TWICE to exit enroll status. 1. Swipe
Enroll Card
7. Swipe Enroll
Card once1Exit
Enrollment
9. Swipe Enroll
Card TWICE to
end the
enrollment2
Green LED lights up
with 4 short beeps,
registration
successed
1. Swipe
Enroll Card
Exit
Enrollment
9. Swipe Enroll Card
TWICE to end the
enrollment2
Green LED lights up
with 4 short beeps,
registration
successed
Blue LED
flashes fast and
FingerPrint
sensor lights up
Green LED lights up
with 4 short beeps,
registration
successed
Blue LED
flashes fast and
FingerPrint
sensor lights up
8. Continue to register another user
Note:
1. After finish enrolling current user, please swipe enroll card and then continue register another user.
2. After finish enrollment, please swipe enroll card TWICE to exit enroll status.
7. Swipe Enroll
Card once1
* Two fingerprints belongs to one user ID.
* The wiegand output of fingerprint and card are the same.
* The wiegand output of fingerprint and card are the same.
Operation Guide
Delete User:
Delete Fingerprint or Fingerprint and Card
Red LED
flashes
4. Continue to delete
After delete one user, you can continue to delete
another user or swipe Delete Card to save and exit.
Blue LED
flashes
10. Continue to register another user
Add Two Fingerprints and Card of one User:
5. Swipe Delete
Card to end
the process
1. Swipe
Delete Card
4. Continue to register the 2nd finger
8
Notice:
When you place finger on M5, Red LED flashing
with long beeps means the fingerprint does not
exist in the device.
When fingerprints or card belong to one user
ID,you can delete either one to delete this
user.
7. Swipe
User Card
8. Swipe User
Card again
2/5. Place finger 3/6. Place finger
again
Note: 1. After finish
enrolling current user,
please swipe enroll card and
then continue register
another user.
1. Swipe
Enroll Card
Exit
Enrollment
11. Swipe
Enroll Card
TWICE to end
the
enrollment2
Green LED lights up
with 4 short beeps,
registration
successed
Blue LED
flashes fast and
FingerPrint
sensor lights up
9. Swipe
Enroll Card
once1
Green LED lights up
with 4 short beeps,
registration
successed
Blue LED
flashes fast and
FingerPrint
sensor lights up
2. After finish
enrollment, please
swipe enroll card
TWICE to exit enroll
status.
Green LED lights up
with 4 short beeps,
registration
successed
Red LED flashes
fast and
FingerPrint
sensor lights up
2. Place finger 3. Place finger
again
Operation Guide
After delete one user, you can continue delete another
user or swipe Delete Card to save and exit.
Delete Card:
Red LED flashes
2. Swipe
Enroll Card
3. Swipe Enroll
Card again
Red LED flashes fast Green LED lights up
4 short beeps
Delete ASuccessed
Delete all uses fingerprints and cards, the
device parameter setting do not change.
Delete All Users
9
Notice:
When you swipe card on M5, Red LED flashing
with long beeps means the card does not exist in
the device.
1. Swipe
Delete Card
4. Swipe Delete
Card to end
the process
2. Swipe
User Card
3. Swipe User
Card again
4. Continue to delete
1. Swipe
Delete Card
5. Swipe Delete
Card to end
the process
Red LED
flashes Green LED lights up
with 4 short beeps,
registration successed
Red LED flashes
fast and
FingerPrint
sensor lights up
