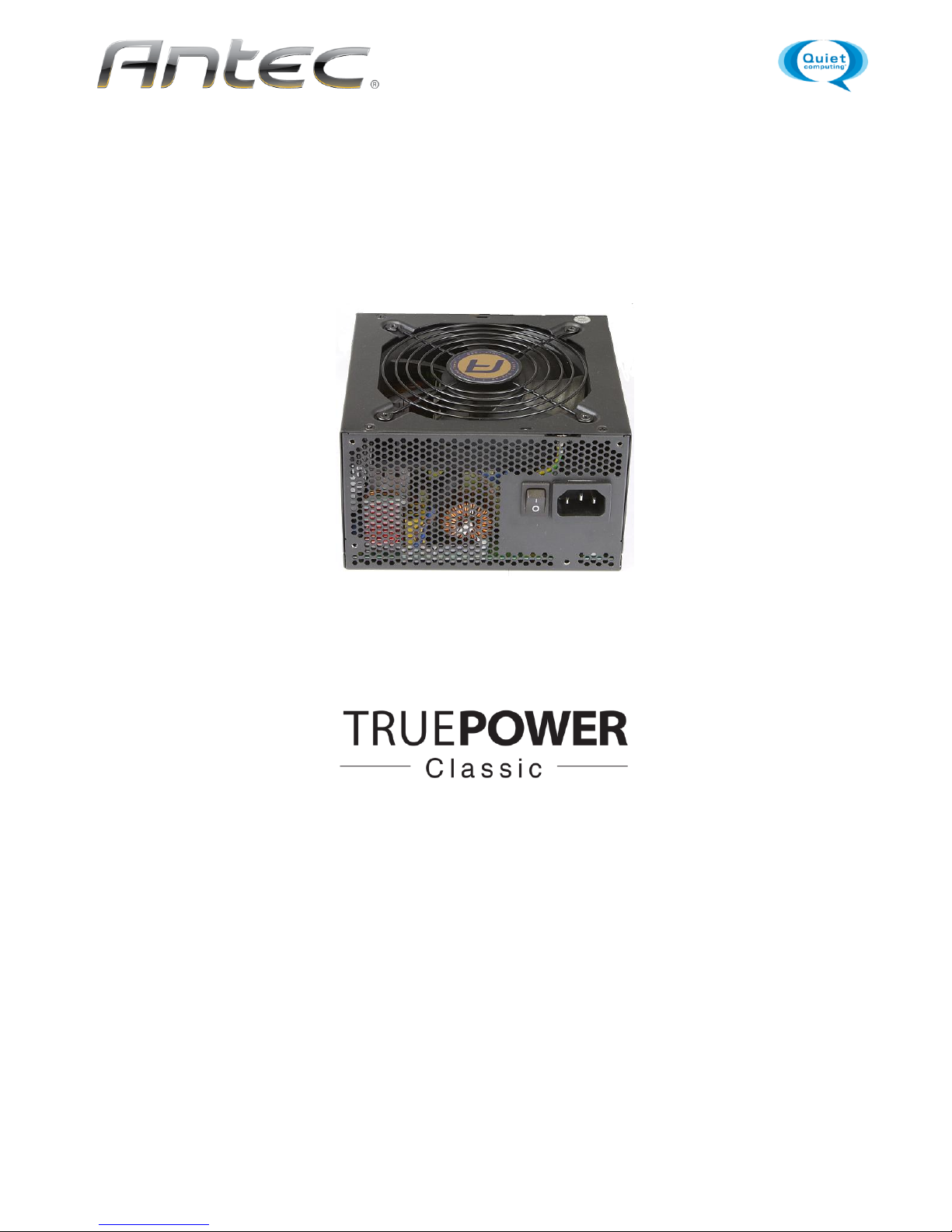

Antec TP-650C TRUEPOWER Classic User manual
1
TP-650C
POWER SUPPLY
USER’S MANUAL
2
TP-650C
Antec’s TruePower Classic series sets new standards for power supplies. TruePower Classic is one of
the first series to comply with the toughest energy standard available, ErP Lot 6: 2013. By using a PSU
that is 80 PLUS® GOLD certified, operating up to 92% efficient, you can reduce your electricity bill by up
to 20% when compared to many other power supplies. Backed by a 5 year warranty and lifetime global
24/7 support, the TP-650C is the guaranteed gold standard for power.
STANDARDS AND FEATURES
The connectors and power specifications of the TP-650C PSU are all compatible with ATX12V v2.4 and
EPS12V v2.92 specifications. The TP-650C features Universal Input, which automatically senses when
you connect the power supply to any AC power source between 100 - 240V without setting a voltage
switch. This power supply also features Active Power Factor Correction (PFC), which improves the
power factor value of the power supply by altering the input current wave shape, helping to power
transmission across the grid.
SYSTEM PROTECTION
A variety of industrial-grade safety circuitry will help protect your computer: Over Current Protection
(OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP),
Over Power Protection (OPP), Over Temparature Protection (OTP), Surge & Inrush Protection (SIP), No
Load Operation (NLO) & Brown-Out Protection (BOP). Sometimes the PSU will “latch” into a protected
state. You will need to power off the PSU and clear the fault before it will function again. There are no
user-replaceable fuses in your TP-650C.
3

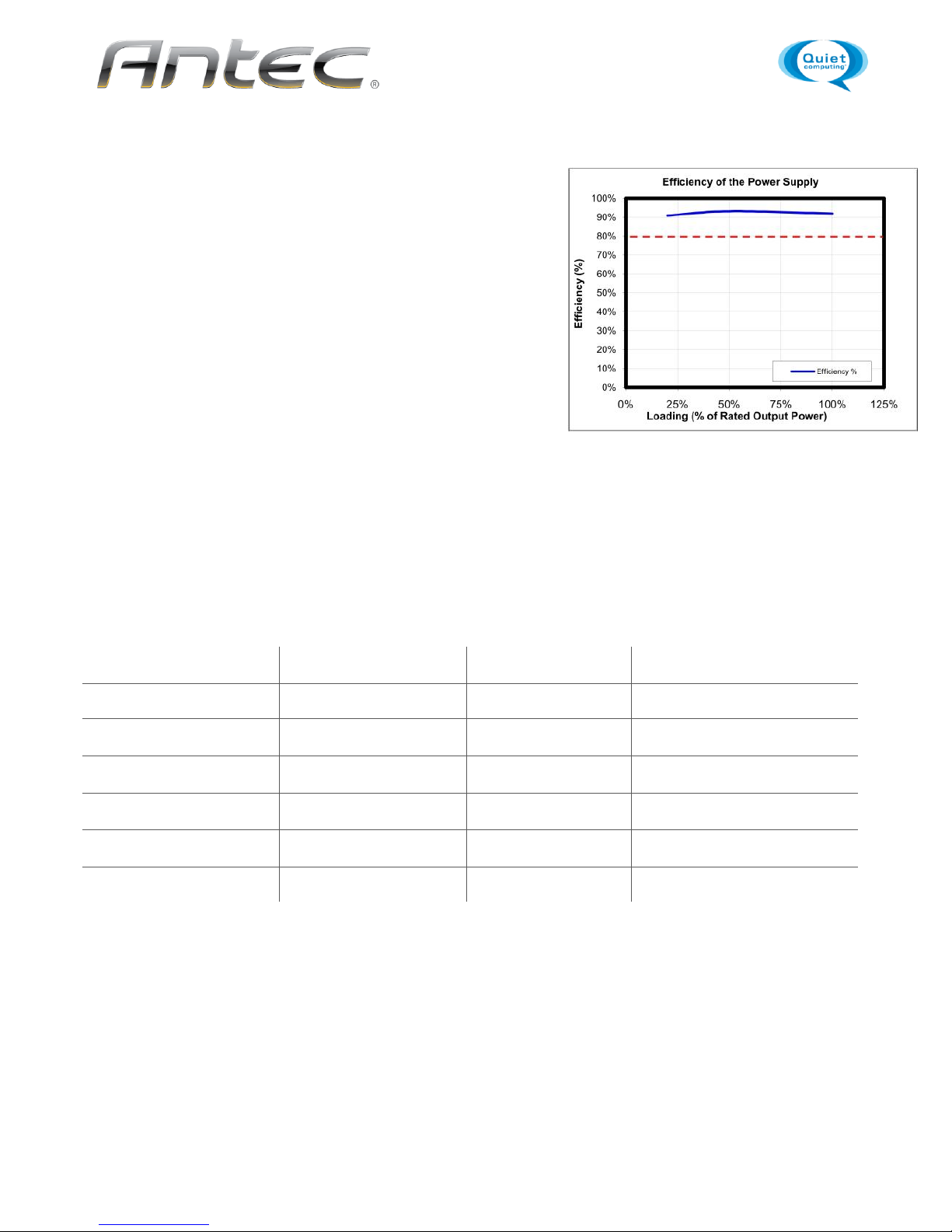

80 PLUS® CERTIFICATION
80 PLUS® certification is the most widely recognized
independent standard in power supply efficiency. An 80
PLUS® certified power supply uses less energy and
generates less heat to stay cooler, run quieter and last
longer. The TP-650Chas been 80 PLUS® GOLD certified to
be at least 87% efficient at a wide range of operating
loads; this will lower your operating costs and help protect
the environment.
POWER OUTPUT
To see the output capacity and regulation for each different voltage, see table 1.
TABLE 1
Output Voltage
Load Max.
Regulation
Ripple & Noise
+12V₁
30A
± 5%
< 120 mV
+12V₂
30A
± 5%
< 120 mV
+3.3V
20A
± 5%
< 50 mV
+5V
20A
± 5%
< 50 mV
-12V
0.3A
± 10%
< 120 mV
+5Vsb
2.5A
± 5%
< 50 mV
4

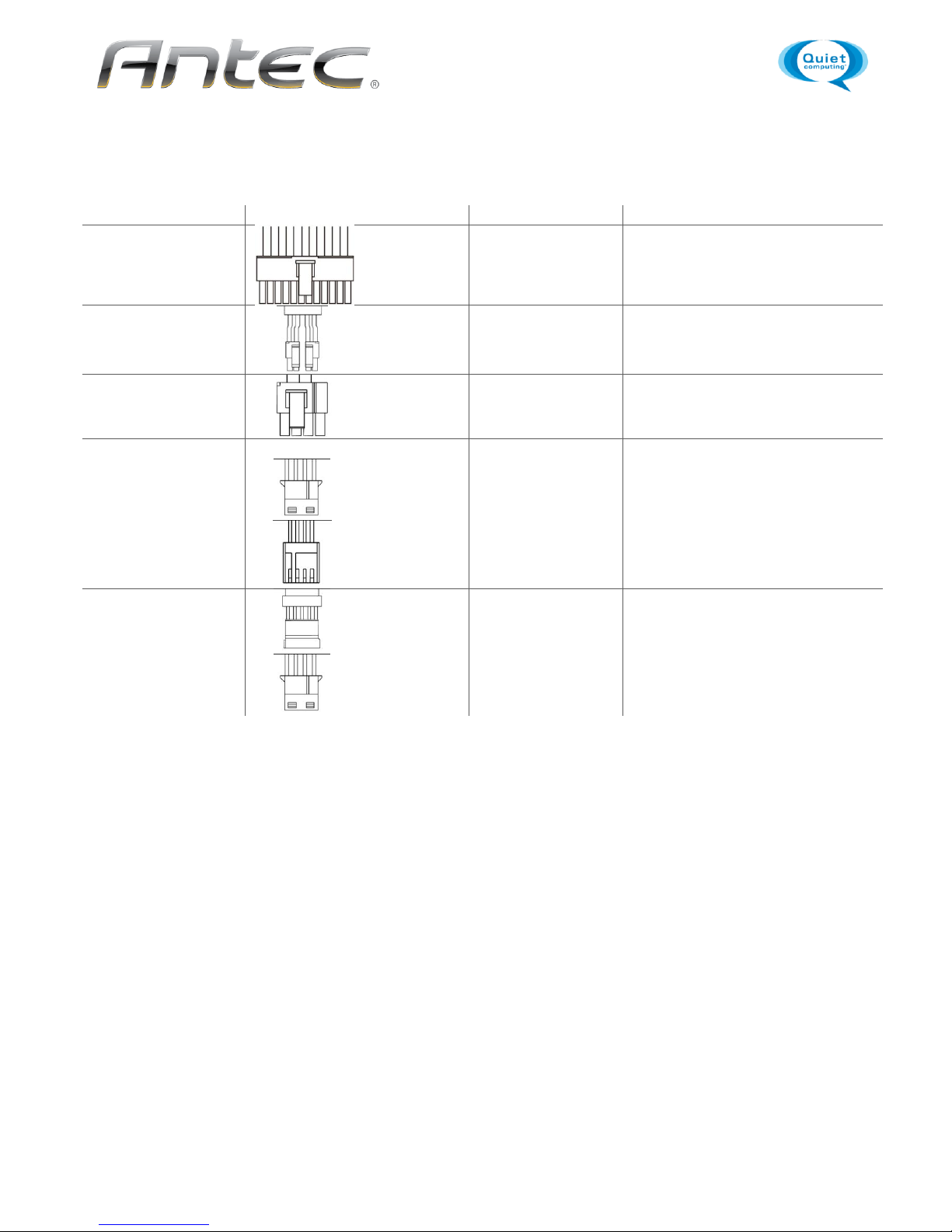

TABLE 2
Cable Quantity
Connectors
+12V Rail
Description
1
X 1
+12V1
24(20+4)-pin Motherboard
1
X 1
+12V1
8(4+4)-pin ATX12V/EPS12V
2
X 2
+12V2
8(6+2)-pin PCI-E
1
+12V₁
Molex + FDD
X 3
X 1
2
X 3
+12V₁
SATA + Molex
X 1
5
INSTALLATION

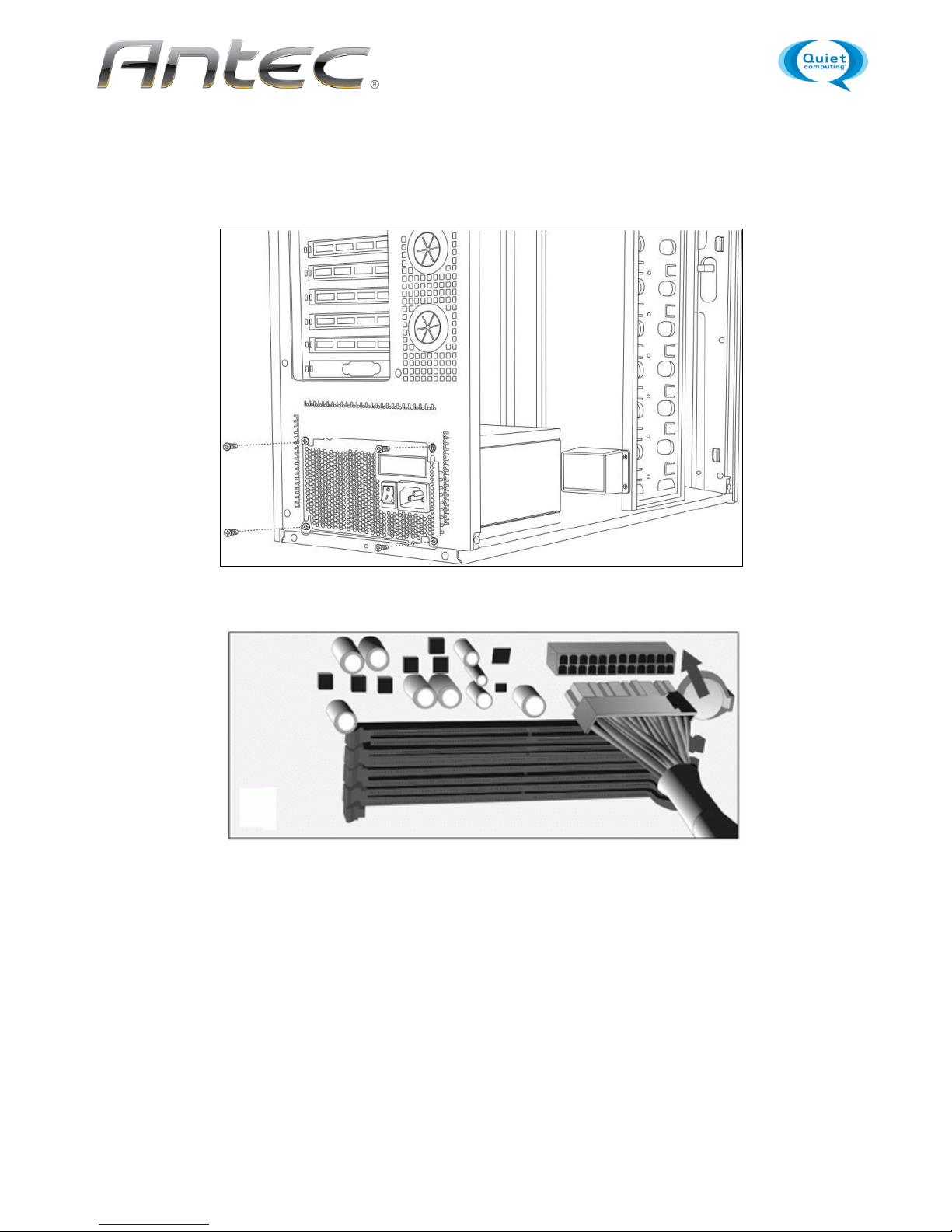

Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your
case manual if you are unsure where the power supply should be installed.
Connect the 24-pin main power connector to your motherboard.
Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a
cover on some of the openings, we recommend that you remove the cover and use the 8-pin
connector.
Note: Please also refer to your motherboards manual for any special instructions.
6

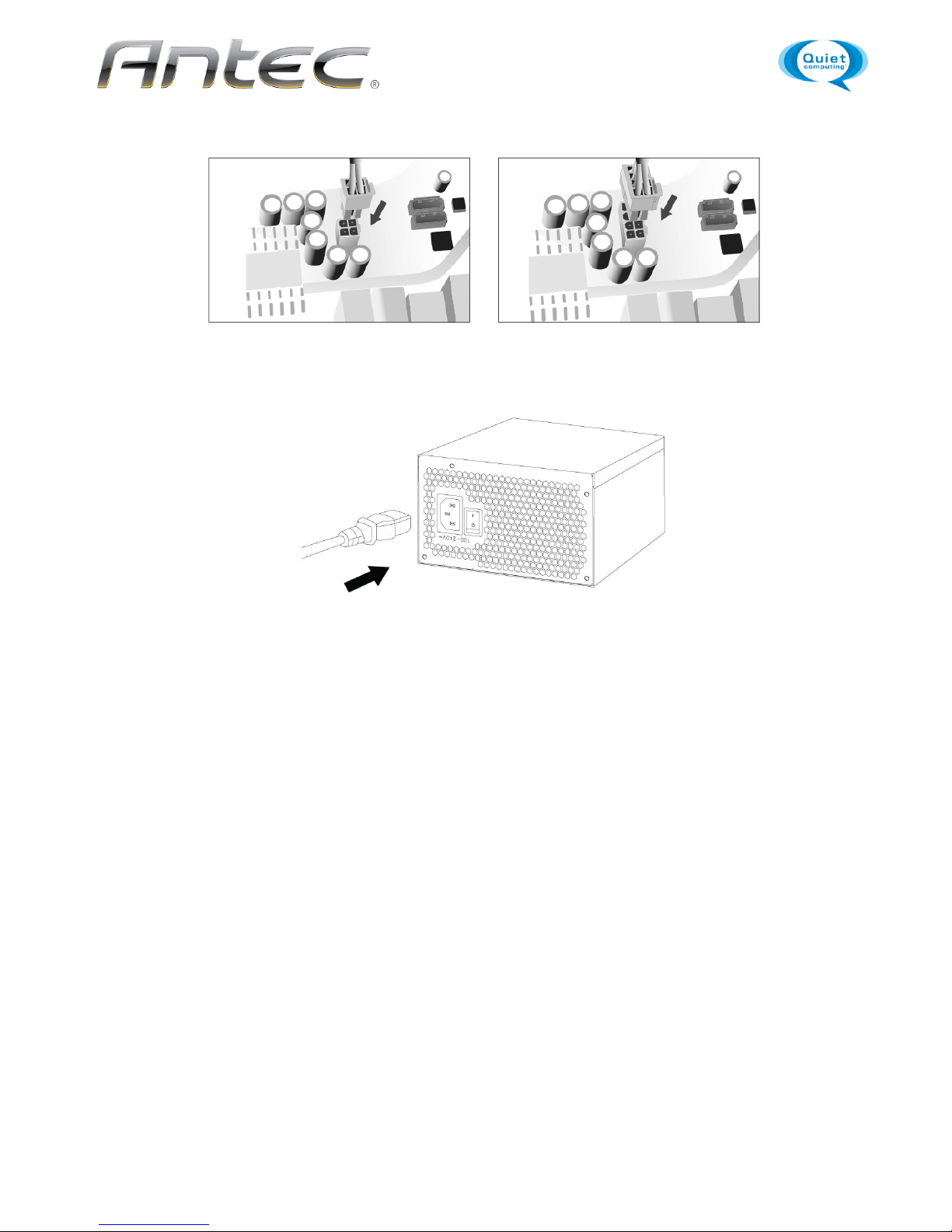

Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied
with your PSU.
PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient,
making the hardwired connector the preferred choice. More powerful cards use multiple connectors,
including the advanced 8-pin PCI-E connector. The 8-pin PCI-E connector on the PSU can be used as
either a 6- or 8-pin connector.
Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin
Molex connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one
yellow and one red wire. The SATA connector has an additional orange power wire.
When you have all the connections secured, turn the switch on the PSU to the “|” position.
