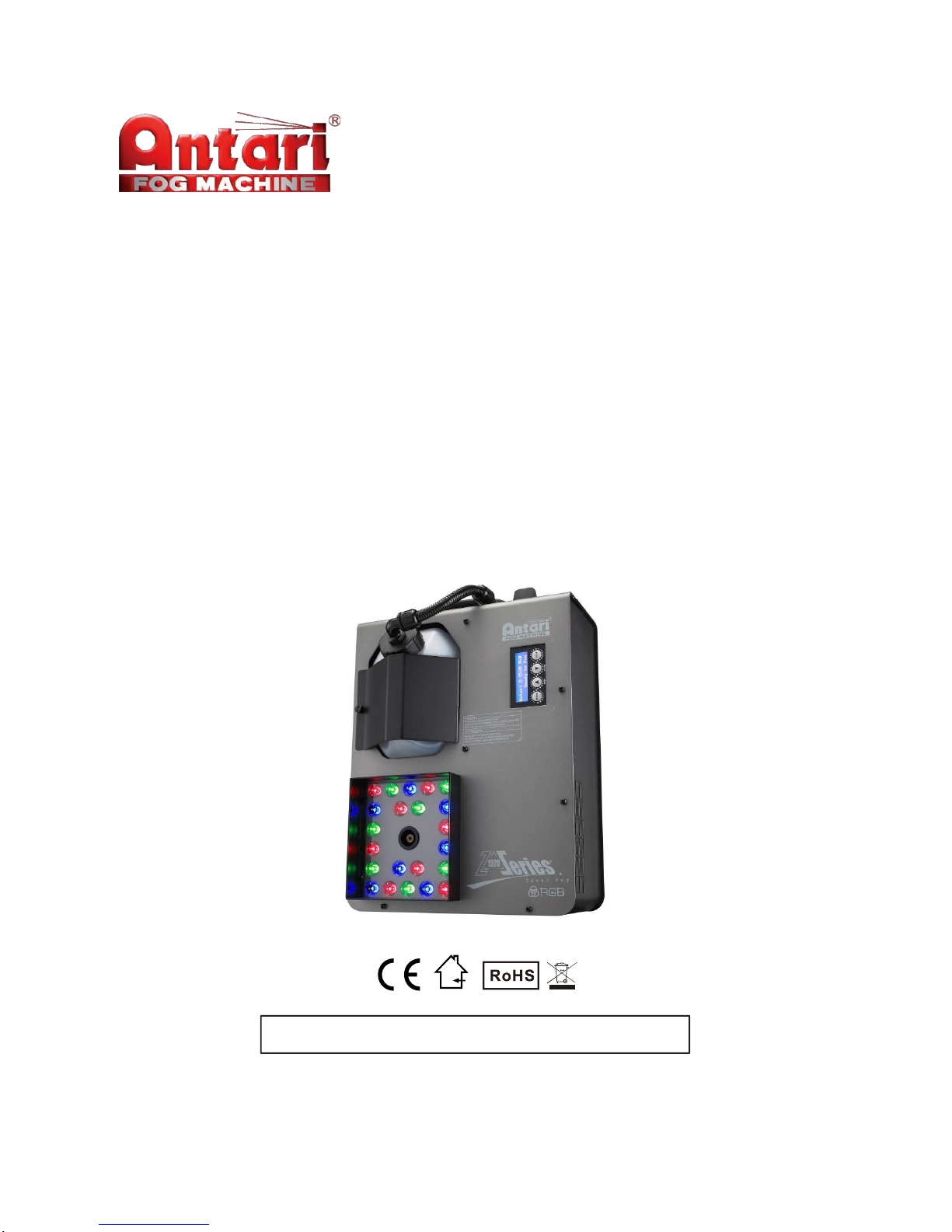

Antari Z-1520 RGB User manual

Z-1520 RGB

Fog Machine User Manual

English Français Deutsch • • • 中文

User Manual - English

Safety Information

Please read the following safety information carefully before operating the

machine. This information includes important safeguards about installation,

usage, and maintenance. Pay attention to all warning labels and instructions in

this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local

Antari dealer for help.

․Keep this device dry.

․Always connect to a grounded circuit to avoid risk of electrocution.

․Before connecting machine to power, always check voltage indicate on machine

match to your local AC voltage. Do not use the machine if AC power voltage does

not match.

․Disconnect the machine from AC power before servicing and when not in use.

․This product is for indoor use only! Do not expose to rain or moisture. If fluid is

spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto

electronic parts, immediately unplug the machine and contact your local Antari

dealer for advice.

․No user serviceable and modifiable parts inside. Never try to repair this product, an

unauthorized technician may cause damage or malfunction to the machine.

․For adult use only. Never leave the machine running unattended.

․Installed the machine in a well-ventilated area. Provide at least 50 cm space

around the machine.

․Never add flammable liquid of any kind to the machine.

․Make sure there are no flammable materials close to the machine while operating.

․Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

․If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for advise.

․Before transporting the machine, make sure the fluid tank is completely drained.

․Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it

securely. In case of eye contact or if fluid is swallowed, immediately look for

medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to

ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retrain the

packing material for inspection.

What is included: 1 x Z-1520 RGB Fogger

1 x W-2 Wireless Remote

1 x Power Cord

1 x User Manual

Product Dimensions

210 mm

418 mm

295 mm

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm

open space around the machine.

Step 2: Fill the fluid tank with Antari approved fluid.

Step 3: Connect the machine to suitable rated power supply. To determine the power

requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximatly 5 mintues.

Once the machine has reached operating temperature, the LCD display will show “Ready To

Fog”. Now the machine is ready for operation.

Tank Capacity: 2.5 liters

22 x 3W LED

(8R, 7G, 7B)

LCD Control Panel

XLR 3-Pin DMX Connector

XLR 5-Pin DMX Connector

PowerCon

Breaker

Wireless Receiver

Step 5: To start making fog, locate the Volume



button on the control panel, and press the

button to start making fog.

Step 6: To turn off the machine, press STOP button and turn Powercon to the OFF position.

Operation

Control Panel Operation

The machine can be operated with the onboard digital control interface.

Button

Function

[MENU]

Scroll through setting menu

▲[UP]/[TIMER]

Up/Activate Timer function

▼[DOWN]/[VOLUME]

Down/Activate Volume function

[STOP]

Deactivate Timer/Volume function

Control Menu

Set DMX address from 1 to 504

Set machine as Master of Slave unit

Turn LED on or off

ANTARI Z-1520 RGB

DMX512

Address: 1

Stand Alone

Set Master

Color Mode

Ready to Fog

Set LED output color from macro 1 to 10

Set LED chase from 1 to 15

Set interval from 15 to 360 seconds

Set duration from 1 to 5 seconds

Turn wireless control on or off

Set wireless remote button function macro color 1 to 10 or chase 1

to 15 and off.

Set wireless remote button function macro color 1 to 10 or chase 1

to 15 and off.

Set wireless remote button function macro color 1 to 10 or chase

1 to 15 and off.

Set wireless remote button function macro color 1 to 10 or chase 1

to 15 and off.

Setting for LED to turn on with fog only or always on.

Color Mode

Macro:01

Color Mode

Chase:01

Timer

Interval 15 Sec

Timer

Duration 5 Sec

Wireless Setting

Button A:M01

Wireless Setting

Button B:M01

Wireless Setting

Button C:M01

Wireless Setting

Button D:M01

LED Setting

Fog Only

Set LED delay time from 0 to 5 seconds.

Turn run last setting function on/off

Wireless Operation

The wireless remote control system W-2 consists of a transmitter equipped with four buttons

to activate four user-configurable LED settings and fog; with an onboard receiver attached to

the rear panel of Z-1520 RGB.

W-2 Wireless Transmitter

Wireless Receiver

Wireless settings are configurable through the onboard control panel, refer to control menu

section to setup each button.

LED Fade Out

Delay: 0 Sec

Run Last Setting

In a free open space the effective distance is 50 meters, actual usage depends on obstacle

level, the effective distance is 10-25 meters.

Registering transmitters

Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 10

transmitters. Follow the steps below to pair or delete a transmitter from a receiver.

Step 1: Power off the Z-1520 RGB Fogger.

Step 2: Press and hold the [DOWN] button.

Step 3: Turn power on and release the [DOWN] button when the LCD display blinks.

Step 4: Follow the menu instruction to pair or delete transmitters.

Transmitter battery replacement

If the effective distance seems to decrease, it is possible the battery level is low and requires

replacement. In order to replace the battery, undo the three screws on the back of

transmitter to release the cover. Replace with same type and specification of battery which is

27A 12V.

DMX Connector Pin Assignment

The machine provides 3-pin and 5-pin XLR connectors for DMX connection. The diagram

below indicates pin assignment information.

Function

Ground

Data-

Data+

DMX Channel Function

Channel 1

DMX Value Range

Function

Fog

0 –4

5 –255

Fog Off

Fog On

Channel 2

DMX Value Range

Function

Red LED

0-255

0-100%

Channel 3

DMX Value Range

Function

Green LED

0-255

0-100%

Channel 4

DMX Value Range

Function

Blue LED

0-255

0-100%

Channel 5

DMX Value Range

Function

Chase

1-15

16-31

32-47

48-63

64-79

80-95

96-111

112-127

128-143

144-159

160-175

176-191

192-207

208-223

224-255

Chase 1

Chase 2

Chase 3

Chase 4

Chase 5

Chase 6

Chase 7

Chase 8

Chase 9

Chase 10

Chase 11

Chase 12

Chase 13

Chase 14

Chase 15

Channel 6

DMX Value Range

Function
