1. Overview

Antaira Technologies’ LNX-C500G series is a compact 5-port industrial gigabit unmanaged

Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller

allowing for a more versatile implementation. The LNX-C500G is equipped with 5*10/100/1000

RJ45 Ethernet ports with a backplane speed of 10gbps that can handle high bandwidth

applications in tight spaces.

The LNX-C500G supports high EFT & ESD protection to prevent damage from unregulated

power coming into the unit. This compact media converter also supports redundant power inputs

with reverse polarity and overload current protection. The LNX-C500G product series supports

DIN-rail as well as wall mountable orientations and provides operating temperature range

models in STD: -10°C to 70°C and EOT: -40°C to 75°C. This is an industrial grade unit

applicable for networking applications in factory automation, ITS, power/utility, water wastewater

treatment plants, and any other application that needs a compact solution.

1.1 Key Features

 System Interface/Performance

 All RJ-45 ports support the auto MDI function

 Embedded 5*10/100/1000Tx

 Store-and-forward switching architecture

 8K MAC address table

 Jumbo frame support up to 10.0K

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 12~48V redundant power with a 4-pin removal terminal block

 Operating Temperature

 Standard operating temperature model: -10°C ~ 70°C

 Extended operating temperature model (–T): -40°C ~ 75°C

 Case/Installation

 IP-30 protection

 DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNX-C500G Series User Manual V1.1

1.2 Package Contents

 1 - LNX-C500G (-T): 5-port industrial compact gigabit unmanaged Ethernet switch

with 5*10/100/1000Tx

 2 - Wall mounting brackets and screws

 1 - DC cable –18 AWG & DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNX-C500G Series User Manual V1.1

2. Hardware Description

2.1 Physical Dimensions

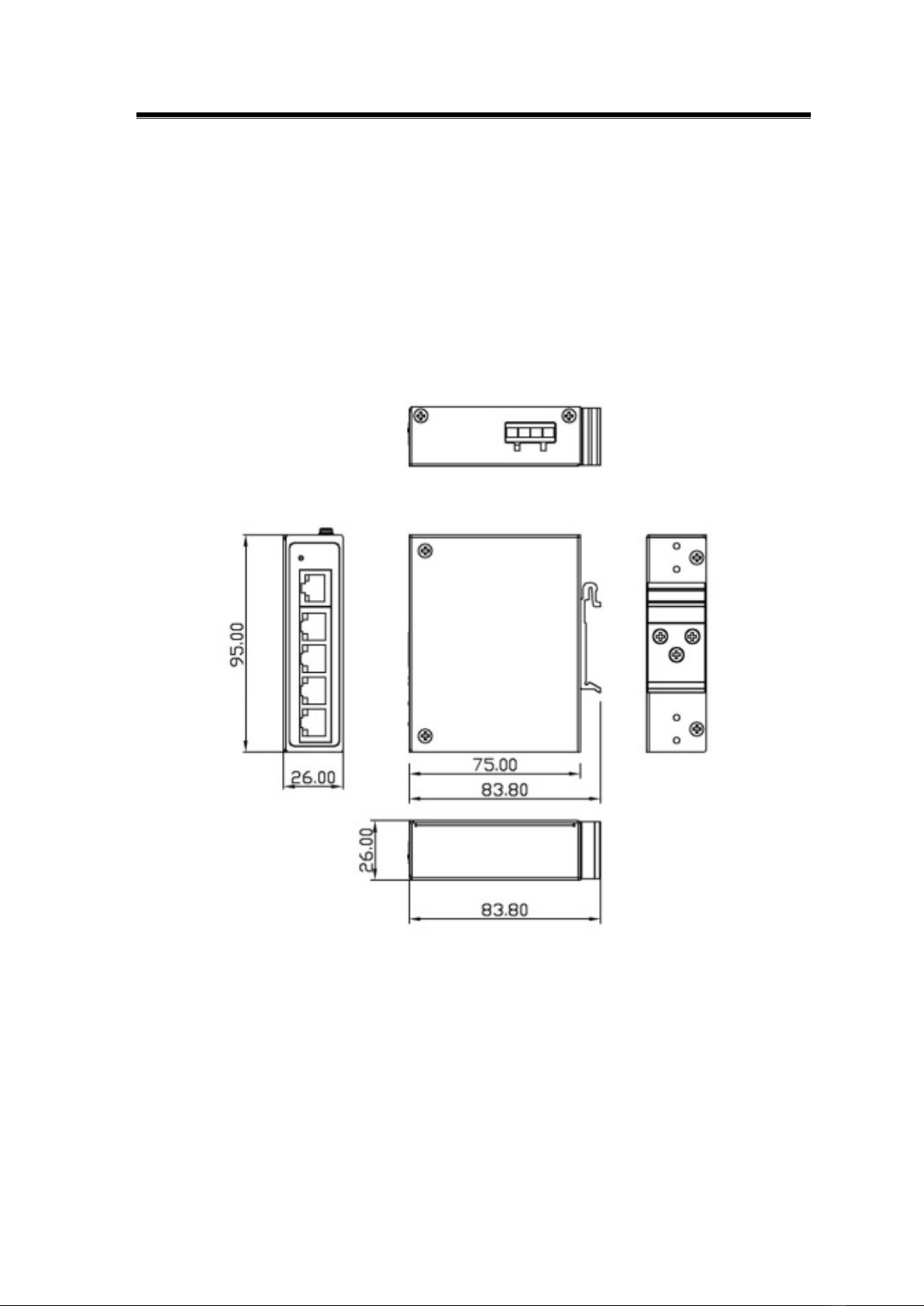

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C500G series: 5-

port compact industrial gigabit unmanaged Ethernet switch with 5*10/100/1000Tx RJ45 ports.

(W x D x H) is 26mm x 75mm x 95mm

Figure 2.1

LNX-C500G Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNX-C500G Series User Manual V1.1

2.2 Front Panel

The front panel of the LNX-C500G series: 5-port gigabit compact industrial unmanaged Ethernet

switch with 5*10/100/1000Tx. See Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNX-C500G series switch that is equipped

with one 4-pin removal terminal block connector for dual DC power inputs (12-48 VDC).

Figure 2.2

Front Panel of the LNX-C500G Series

Figure 2.3

Top Panel View of LNX-C500G Series

4-pin removal terminal block (power input)

Grounding screw

LED for PWR

LAN Port # 1~5 – 10/100/1000Tx

LED for 1000Tx data transmission

LED for 10/100Tx network speed

Antaira Technologies - Industrial Ethernet Switches

LNX-C500G Series User Manual V1.1

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED Color Description

Power

Green On Power input is active

Off Power input is inactive

LAN Port 1 ~ 5

(Left LED)

Green

On Connected to network, 1000Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port 1 ~ 5

(Right LED)

Green

On Connected to network, 10Mbps/100Mbps

Flashing Networking is active

Off Not connected to network

2.5 Ethernet Ports

 RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~5) are auto-sensing for

10/100/1000Base-T, or 100Base-Tx devices connections. Auto MDI/MDIX means that the switch

can connect to another switch or workstation without changing the straight-through or crossover

cabling. See the figures shown below for straight-through and crossover cabling schematics.

 RJ-45 Pin Assignments (Table 2.2)

Pin Number Assignment

1 Rx+

2 Rx-

3 Tx+

6 Tx-

Note

: The “+” and “-” signs represent the polarity of the wires that make up each wire pair.

Table 2.1

LED Indicators for LNX-C500G Series

Table 2.2

RJ45 Pin Assignments

Antaira Technologies - Industrial Ethernet Switches

LNX-C500G Series User Manual V1.1

All ports on this industrial Ethernet switch support automatic MDI operations. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, and other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are

connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below

(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI port pin outs.

The following figures show the cabling schematics for straight-through and crossover cables.

Pin MDI-X Signal Name MDI Signal Name

1 Receive data plus (RD+) Transmit data plus (TD+)

2 Receive data minus (RD-) Transmit data minus (TD-)

3 Transmit data plus (TD+) Receive data plus (RD+)

6 Transmit data minus (TD-) Receive data minus (RD-)

Table 2.3

Ethernet Signal Pin Outs

Figure 2.4 Figure 2.5

Straight-Through Cables Schematic Crossover Cables Schematic
