ANTAIRA LNX-800AG User manual

LNX-800AG

8-Port Industrial Gigabit Unmanaged Ethernet Switches

w/8*10/100/1000Tx

User Manual

FCC Warning

This equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

Table of Contents

Introduction................................................................ 1

Features................................................................... 1

Package Contents.................................................... 2

Hardware Description ............................................... 3

Physical Dimension.................................................. 3

Front Panel .............................................................. 4

Top View.................................................................. 4

LED Indicators ......................................................... 5

Ports......................................................................... 5

Cabling..................................................................... 7

Wiring the Power Inputs........................................... 7

Wiring the Fault Alarm Contact................................ 8

Mounting Installation ................................................ 9

DIN-Rail Mounting.................................................... 9

Wall Mounting ........................................................ 11

Hardware Installation .............................................. 12

Installation Steps.................................................... 12

Network Application................................................ 13

Troubleshooting ...................................................... 14

Technical Specification........................................... 15

Introduction

Antaira’s LNX-800AG is a smart 8-Port Industrial Gigabit Unmanaged Ethernet Switch

supporting 8-Port 10/100/1000Tx that can automatically sense transmission speeds of

10/100/1000 Mbps. The RJ-45 interface can also be auto-detected, so MDI or MDI-X is

automatically selected and a crossover cable is not required. All Ethernet ports have

memory buffers that support the store-and-forward mechanism. This assures that data is

properly transmitted.

The LNX-800AG switch supports 12~48VDC dual power inputs, and also offers an

extended operating temperature model (w/-T) that can withstand -40°C ~ 75°C. It

supports IEEE 802.3/802.3u/802.3x/802.3ab with 10/100/1000BTx for full or half duplex

data transmission. Meanwhile, it supports advanced protection with up to 3,000 VDC

EFT protection and 6,000 VDC ESD protections for Ethernet ports which makes the

Industrial switch more suitable for harsh environments.

In addition, the built-in Network Broadcast Storm Protection and built-in relay warning

function will alert network engineers whenever there is a power failure or port break.

Features

System Interface/Performance

RJ-45 Ports Support Auto MDI/MDI-X Function

Ethernet Embedded 8-Port 10/100/1000Tx

Store-and-Forward Switching Architecture

Back-Plane (Switching Fabric): 16Gbps

Provides 176Kbytes Memory Buffer

Supports Jumbo Frame of 9.6Kbytes

Broadcast Storm Protection

8K MAC Address Table

Port Break Alarm Mask

Power Input

DC 12 ~ 48V Redundant Power

Operating Temperature

Standard Operating Temperature Model: -10°C ~ 70°C

Extend Operating Temperature Model with –T: -40°C ~ 75°C

Case/Installation

IP-30 Protection

Installation in Pollution Degree 2 Environment

DIN Rail and Wall Mount Design

Provides EFT Protection 3,000 VDC for Power Line

Supports 6,000 VDC Ethernet ESD Protection

Package Contents

Please refer to the package contents list below.

LNX-800AG - 8-Port Industrial Gigabit Unmanaged Switch with DIN Rail Bracket

User Manual

Removable Terminal Block

Wall-Mount Kit (Two Wall-Mount Plates with Screws)

Compare the contents of the Industrial switch with the checklist above. If any item is

damaged or missing, please contact Antaira or Antaira’s authorized channel partners for

service.

Hardware Description

The Industrial switch’s hardware spec, port, cabling information, and wiring installation

will be described below.

Physical Dimension

The LNX-500AG - 5-Port Industrial Gigabit Unmanaged Ethernet Switch

Dimensions: (W x D x H) 30mm x 95mm x 140mm

Front Panel

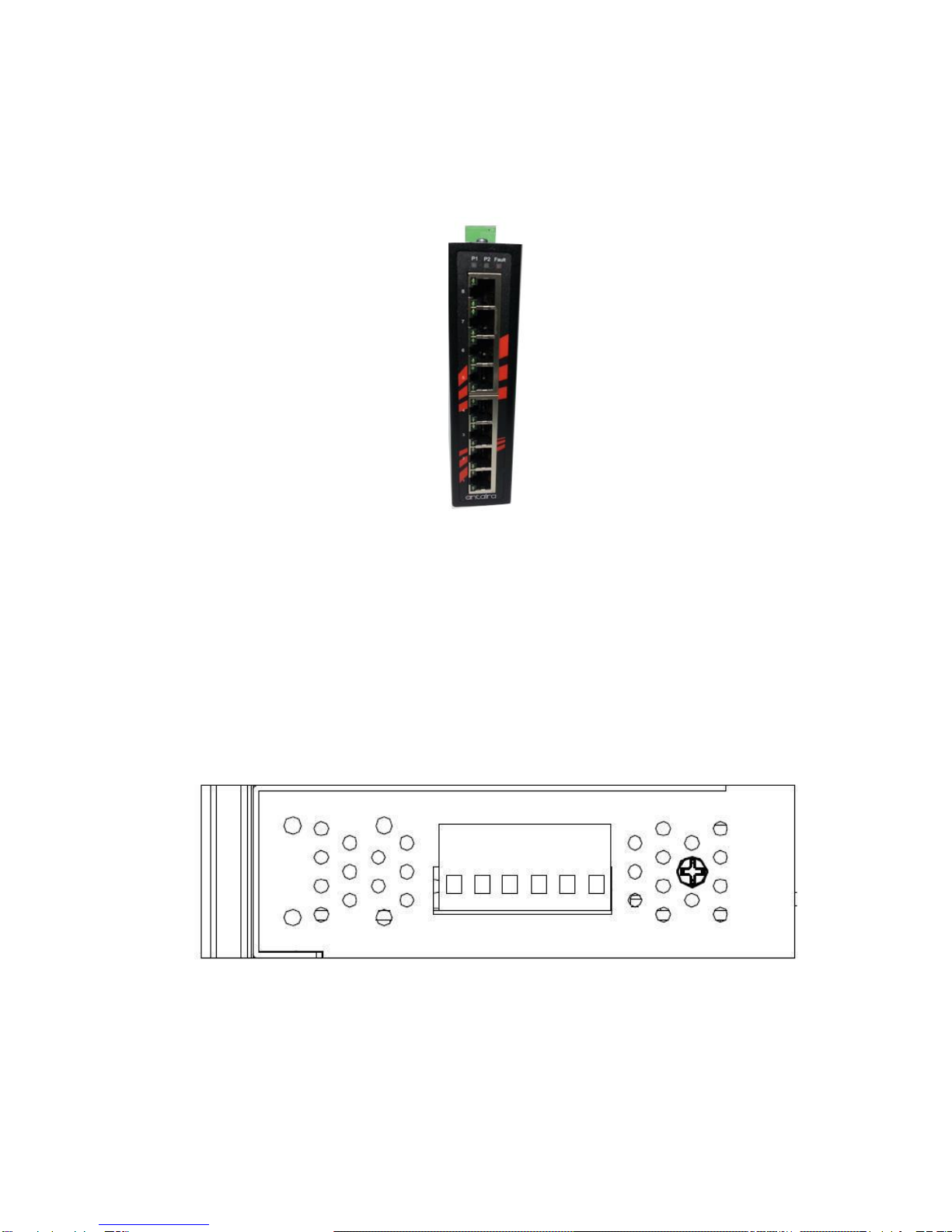

The front panel of the Industrial switch is shown below:

Front Panel of the Industrial Switch

Top View

The top view of the Industrial switch has one terminal block connector of two DC power

inputs and relay circuit contact.

Top View of the Industrial Switch

LED Indicators

The diagnostic LEDs located on the front panel of the Industrial switch provide real-time

information of the system and optional status. The following table provides the

description of the LED status.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 has failed, port link is inactive

Off

Power input 1 and 2 are both functional, or no power

inputs/port’s link is active/port alarm is disabled

LAN Port 1 ~ 8

Green

(Upper

LED)

Connected to network

Flashing

Networking is active

Off

Not connected to network

Green

(Lower

LED)

Connected to network, 1000Mbps

Off

Not connected to network, nor not working at speed of

1000Mbps

Ports

RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T,

100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the

switch can connect to another switch or workstation without changing straight

through or crossover cabling. See figures below for straight through and crossover

cable schematic.

RJ-45 Pin Assignments

Pin Number

Assignment

Rx+

Rx-

Tx+

Tx-

Note

“+” and “-” signs represent the polarity of the wires that make up each wire pair.

All ports on this Industrial switch support an automatic MDI/MDI-X operation, and users

can use straight-through cables (see figure below) for all network connections to PCs or

servers, or to other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at

one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other

end of the cable. The table below shows the 10BASE-T/100BASE-TX/1000BASE-TX

MDI and MDI-X port pin outs.

Pin MDI-X

Signal Name

MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)

The following figures show the cable schematic for both straight-through type and

crossover type.

Straight Through Cable Schematic

Cross Over Cable Schematic

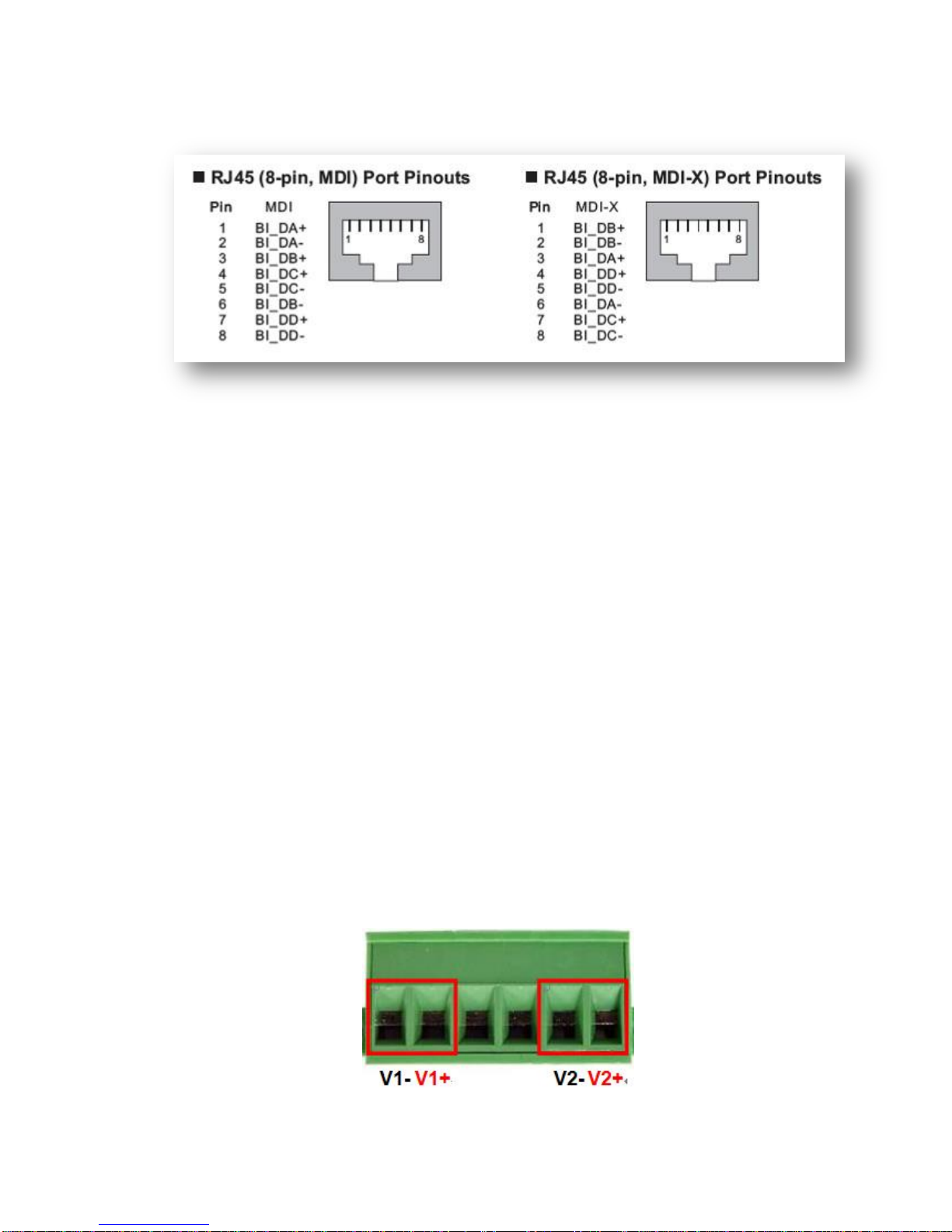

The following figure shows the 10/100/1000 Ethernet RJ-45 pin outs.

Cabling

Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45

connections: 100Ω Category 3, 4 or 5 cable for 10Mbps connections, 100Ω Category 5

cable for 100Mbps, or 100Ω Category 5e/above cable for 1000Mbps connections.

The cable between the switch and the link partner (switch, hub, workstation, etc.)

must be less than 100 meters (328 ft.) long.

Wiring the Power Inputs

Please follow below steps to insert the power wire.

1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+,V2-)

contacts on the terminal block connector.
