1.0 Introduction
1.1 Dear customer
Thank you for purchasing Amtune product. For optimum
performance and safety, please read these instructions
carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
Note:
This manual is made for AM-HM404/HM808. Our
Company reserves the right to make final interpretation and
all rights to improve the product described therein.
Warning:
Read these operating instructions carefully before using the
unit. Follow all the safety instructions listed below. Keep
these operating instructions handy for future reference:
1) Do not use this device near water, do not place liquids
bottle (such as vases) on the device.
2) Do not install the device in cabinets, built-in cabinets or
other confined space, ensure good ventilation.
3) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat, the device should away from
combustible such as paper, tablecloth, drapes and so on.
4) Clean only with dry cloth.
Amtune HDMI Matrix user manual
4
5) Unplug this apparatus during lightning storms or when
unused for long periods of time.
6) Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and
the point where they exit from the device.
7) Only use attachments/accessories specified by
the manufacturer.
1.2 How does it work
This AM-HM404/HM808 Matrix HDMI SWITCH SPLITTER
by cat5e/6 offers unprecedented flexibility and convenience
by routing high definition audio/video from any of four/eight
HDMI video sources to any of 4/8 displays over HDMI cable
or 4/8 remote displays over inexpensive, standard CAT5e/6
cable. It eliminates the need to disconnect and reconnect
sources to a display equipped with one input.
Four receivers work with the Switch Splitter as a full
functional module. Full High-Resolution HDTV signals are
supported up to a resolution of 1080p over HDMI cable
15m or at a maximum distance of 40M over two pieces of
CAT5e/6 cable. The 4X4/8x8 Matrix HDMI SWITCH
SPLITTER works with HD-DVD players, TiVo systems, HT
PCs, and satellite set-top boxes that connect to an HDMI
display. Every source and display is accessible at all times
Amtune HDMI Matrix user manual
5
by selecting it with an IR remote or through RS232 port.
1.1 FEATURES：
This product has many features that enable it to perform in
a superior manner. Among those features you will find:
Allows any HDMI display to view any source at any
time
Allows any source to be displayed on multiple
displays at the same time
HDMI or DVI to HDMI cables are used to connect the
inputs and the matrix output
Each Output includes one HDMI output and UTP
output over cat5e/6, but only one way is available at
a time.
Each UTP output is connected to a Receiver.
UTP output extends signal up to 40m for 1080p by
Amtune HDMI Matrix user manual
6
CAT-6 cable.
Each Input includes an infrared Emitter, which is
used to control the long-distance source device by
Remote Control.
Each display's inputs can be switched with the IR
remote control or through RS232
Supports HDMI1.3b
Supports highest video resolution 1080p.
Supports 225MHz/1.65Gbps per channel (13.2Gbps
all channel) bandwidth.
Supports 12bit per channel (36bit all channel) deep
color.
Supports HDCP
Power Supply for Host：AC220~250V 50Hz
12W(max.)
Power Supply for Receiver：5V-3A/DC 5W(max.)
Operating Temperature range: -25℃~+70℃
Amtune HDMI Matrix user manual
7
Storage Temperature：-40℃~+80℃
Operating Humidity range: 0~95%（No
Condensation）
Host size: 290Lx110Wx44H
Supports uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital,
Dolby Digital（including DTS-HD and Dolby True
HD）
Support exclusive function, Each IR control could set
the device as exclusive device, when one of IR
locked, indicator keep light, others outputs’signal will
be cut off. When you change the channel or unlock
by IR controller, then all displayer becomes normal.
Support memory function, Channel keeps invariable
after power off.
2.0 Package content
Following is contents is for AM-HM808
AM-HM808 host x1
AM-TL3010 receiver x8
Power cord x1
IR controller x8
IR extension cord x8
Amtune HDMI Matrix user manual
8
Multi-IR transfer cord x2
User manual x1
Note: Please check the supplied accessories above, if lost
contact your distributor immediately.
3.0 Description
3.1 AM-HM808 Host front panel
○
1．Power indicator
○
2．Reset key
○
3．Local infrared signal input port
○
4．Selection button of outputs
○
5. LCD displayer, shows inputs/outputs and inner
temperature.

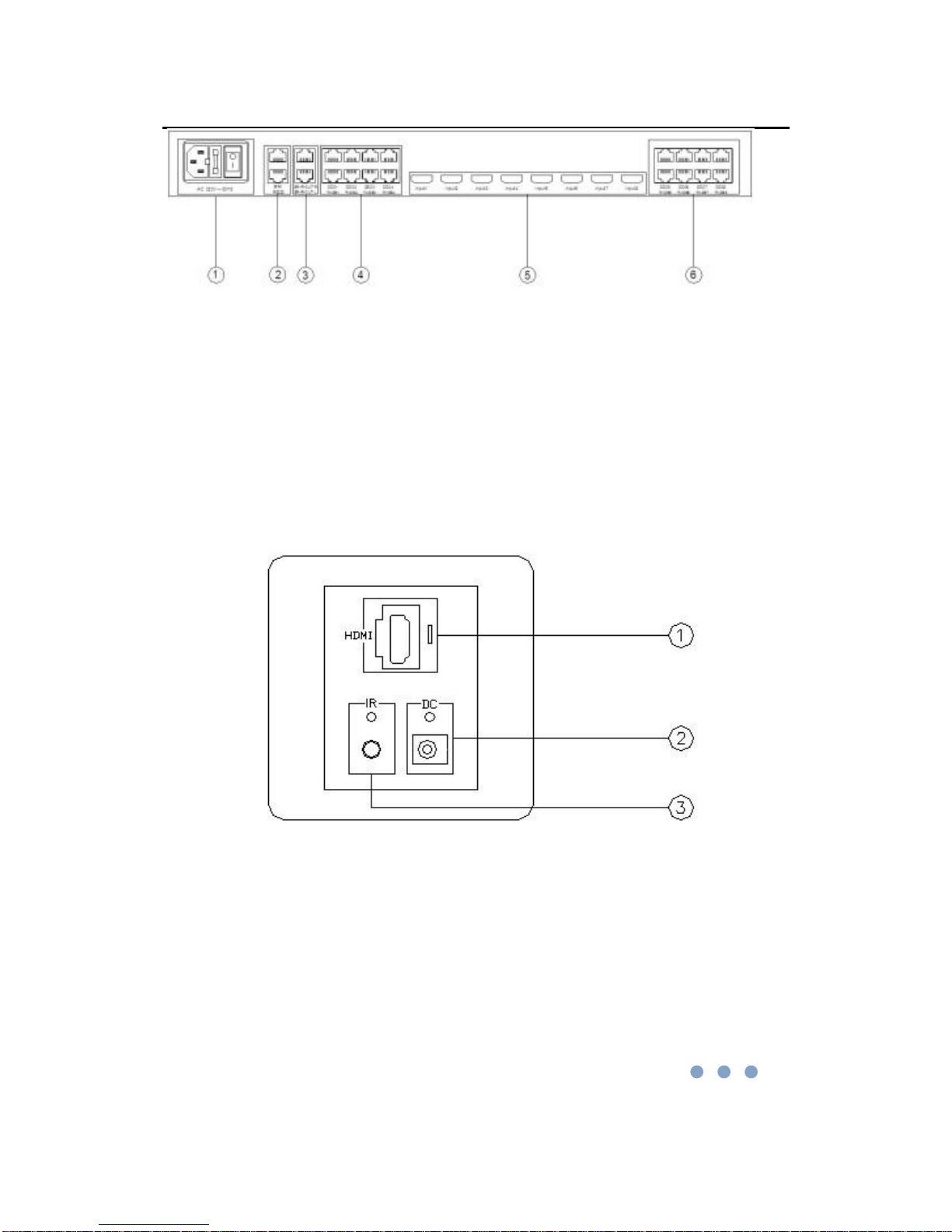

3.2 AM-HM808 Rear panel
Amtune HDMI Matrix user manual
9
○
1．Power port, Power switch;
○
2．RS-232 port
○
3．Multi 4 in 1 IR port
○
4．HDMI outputs port 1~4, DDC and TMDS;
○
5．HDMI inputs port;
○
6．HDMI outputs 5~8, DDC and TMDS.
3.3 AM-TL3010 receiver front panel
○
1．HDMI output port;
○
2．Power supply DC5V、Working indicator;
○
3. IR receiver port, IR Locked indicator.
3.4 AM-TL3010 receiver rear panel
Amtune HDMI Matrix user manual
10
○
1．TMDS input port;
○
2．DDC input port.
3.5 IR transfer cord
3.6 IR Receiver cord
