Amina APU-RS8i User manual

Installation guide APU-RS8i

APU-RS8iC

APU-RS16i

APU-RS16iC

19” Rack Mount, 1U,

Multi-channel Loudspeaker

Protection Unit

Index

Caution: Read before installing these products.........4

Introduction ..................................................................................4

Compatibility...........................................................................4

Speaker settings.........................................................................5

Check model numbers........................................................ 5

Cautions when changing speaker settings..............5

Speaker settings.........................................................................6

Changing settings.................................................................6

Recording settings ................................................................6

Connection....................................................................................7

Connection cautions............................................................ 7

Wiring diagram......................................................................7

Wiring the speaker connectors......................................8

Fitting the connectors.........................................................8

Positioning.....................................................................................9

Front panel mounting .........................................................9

Operation.......................................................................................9

Cautions in use.......................................................................9

Using the APU-RS16i(C)/RS8i(C)...................................9

Troubleshooting........................................................................ 10

Specifications............................................................................ 10

Warranty ...................................................................................... 10

Caution: Read

before installing

these products

• To ensure optimal performance,

please read this guide carefully. Keep

it in a safe place for future reference.

• Install this product in a cool, dry

and clean place - away from direct

sunlight, heat sources, vibration, dust

and moisture.

• Do not expose this unit to sudden

temperature changes or locate it in

an environment with high humidity.

This is to prevent condensation

forming inside which may cause

damage to this unit and possibly to

devices connected to it.

• Do not clean this unit with chemical

solvents as this might damage the

finish. Use a clean, dry or damp cloth.

• Do not attempt to modify or repair

this unit.

• Be sure that all connections are made

in accordance with this guide

• Contact your distributor or the

manufacturer if a fault should occur.

• This unit features internal jumpers

that may be adjusted by the installer.

Take care when removing and re-

fitting the lid not to damage the four

machine screws. Ensure the screws

are tight when re-fitting them.

• This product does not require any

power connection. Never attempt to

connect mains or any other power

source to it.

Introduction

Compatibility

The APU-RS8i and APU-RS16i has been

designed specifically to enhance the

sound and reliability of Mobius Series

and iQ Series loudspeakers.

The APU-RS8iC and APU-RS16iC are to

be used exclusivly for the Edge Series

and the Mobius7. The installation of the

different rackmount-models is the same.

Compatible models are listed in this

table -

Model Compatible Speakers

APU-RSi 8/16 iQ1, iQ2, iQ3,

AIW350iN-S200,

MobiusDual, Mobius5

APU-RSiC 8/16 Edge5, Edge7, Mobius7

The APU-RSi(C) features a separate high-

pass filter and a current sensing

re-settable fuse to protect each

loudspeaker from being over-driven and

potentially damaged.

If the APU-RSi(C) senses excessive drive

current from the system’s amplifier it

will automatically reduce the sound level

from the speaker until the amplifier’s

volume is reduced.

NOTE: APU-RSi(C) is not suitable

for 100v/70v line systems

(high impedance/fixed

voltage), subwoofers or other

manufacturers’ loudspeakers.

Speaker settings

Check model numbers

The APU-RSi are compatible with four

groups of Amina speaker models, and

the APU-RSiC are compatible with two

groups. These are shown in the table

below.

Group Compatible models

APU-RSi 8/16

1 iQ1, iQ2

3 iQ3, AIW350iN-S200,

MobiusDual

5 Mobius5

7N /A

APU-RSiC 8/16

1N /A

3N /A

5 Edge5

7 Edge7, Mobius7

NOTE: The factory setting for all jumpers

is Group 1. If all connected

speaker models are listed in

Group 1 of the table, it will not be

necessary to change any settings.

If not changed from Group 1,

higher perfoming loudspeakers

will have their performance

characteristics limited.

• Before changing any settings, make

a note of which speaker model will

be connected to each channel of the

APU-RSi or the APU-RSiC.

Cautions when changing

speaker settings

Ensure that each channel is

correctly set to match the

connected speaker before use.

Failure to do so could result in

speaker damage.

• The APU-RS8i, APU-RS16i, APU-RS8iC

and APU-RS16iC are low voltage,

passive devices, however ALWAYS

disconnect them from all speakers

and amplifiers before changing

speaker settings.

• Ensure that jumpers are fully pushed

down onto their pins when changing

settings.

• Only fit one jumper for each channel.

• Ensure the lid is securely fitted to the

product after changing settings.

• Only remove and replace the lid

fixing screws by hand. Always use the

correct tool and do not over tighten.

Speaker settings

Changing settings

• Unscrew the four screws on the sides

of the chassis.

• Remove the lid.

• Identify the 8 or 16 configuration

jumpers located on the PCB (two are

shown in the enlarged diagram on

the right).

Each jumper has four settings marked

on the PCB - 1, 3, 5 and 7. In the

diagram, the arrowed jumpers are set

to the factory setting - group 1.

• Referring to the table at the start of

this section, set each jumper to the

correct setting for the connected

speaker.

• Check that all settings have been

correctly made.

• Re-fit the lid.

Recording settings

There is an area on the product serial

number label where the fuse settings can

be marked for each channel once the

jumpers have been set.

The label drawing below shows an

example of a system that has 10

speakers connected of differing types.

CHANNELFUSE SETTINGS:

Group 1

Group 3

Group 5

Group 7

APU-RS16iC

Serial No.

IMPORTANT:

ENSURE CORRECT SPEAKER MODEL

IS USED ON EACH CHANNEL.

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16

16 Channel

Protection

Unit

Amina Technologies Ltd

Huntingdon, Cambridgeshire, PE29 7DL.

Made in the U.K.

xxxx

xx xx

Connection

Connection cautions

• NEVER connect more than one

loudspeaker to an output channel.

• It is not recommended to connect

amplifiers with power outputs that

are far greater than the loudspeaker’s

peak power rating.

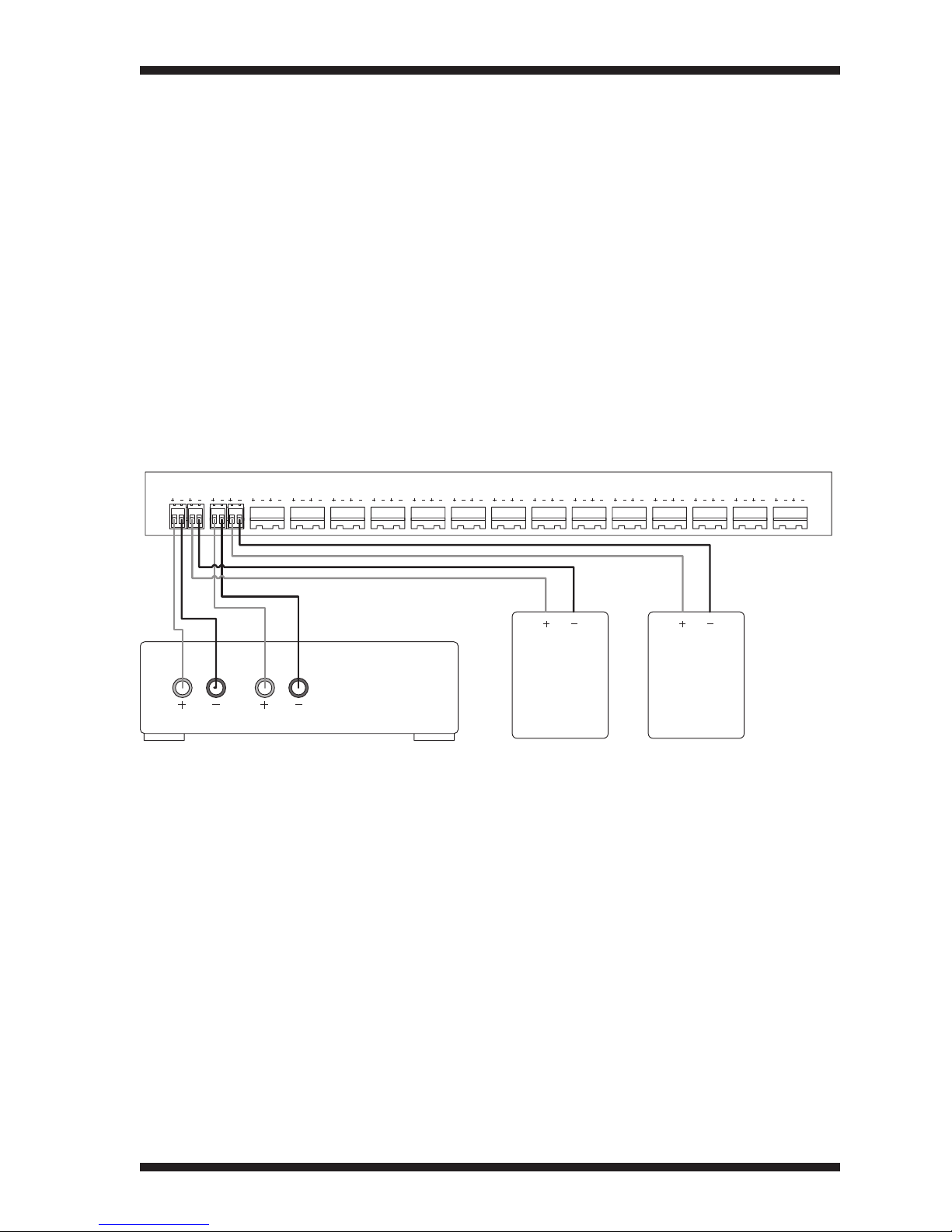

Wiring diagram

The diagram below shows an example of

the wiring for channels 1 and 2.

Each channel of the amplifier is wired

to the ‘AMP’ terminals of one of the APU-

RSi(C) channels.

The corresponding speaker is wired to

the ‘SPK’ terminals of the same channel.

NOTE: The + terminals of the amplifiers

and speakers must connect to the

+ terminals of the APU-RSi(C) to

maintain correct polarity all the

way from amplifier to speaker.

Amplifier

Channel 2Channel 1

AMP SPK

CH1

AMP SPK

CH2

AMP SPK

CH3

AMP SPK

CH4

AMP SPK

CH5

AMP SPK

CH6

AMP SPK

CH7

AMP SPK

CH8

AMP SPK

CH9

AMP SPK

CH10

AMP SPK

CH11

AMP SPK

CH12

AMP SPK

CH13

AMP SPK

CH14

AMP SPK

CH15

AMP SPK

CH16

Edge,

Mobius or IQ

series

loudspeaker

Edge,

Mobius or IQ

series

loudspeaker

Connection

Wiring the speaker connectors

The speaker connectors are supplied

packed separately with the APU-RSi(C)

to simplify the fitting of cables from each

amplifier and speaker channel.

• Strip each cable back by 6-8mm and

twist the wire ends.

• Identify the polarity of the cable.

The + cable is usually marked with a

stripe or a rib.

Stripe Rib

The + cable must be connected only

to + terminals throughout the system

(at the APU-RS, the amplifier and the

speaker).

• Unscrew the cable fixing screws.

• Pass the speaker cable into the

terminal openings.

To maintain polarity the + cable must

always be connected to the LEFT

terminal.

• Tighten the fixing screws to secure

the cable.

Fitting the connectors

• Each connector can now be fitted by

pressing it into the opening on the

back of the APU-RSi(C).

The slot in the connector should

engage with the edge of the PCB inside

the opening.

Positioning

Front panel mounting

The APU-RSi(C) is designed to fit into a

standard 19 inch equipment rack via 4

mounting holes in the front panel and

has a height of 1U (45mm/1 3

4inches).

The fixing hole dimensions are shown in

the diagram below.

10.0mm

(/")

25 64

0mm

( /

932

32.0mm

(1 / ")

44.5mm

(1 / ")

Alternatively, the APU-RSi(C) can be

placed on a shelf. Other equipment (up

to 10kg/22lbs) may be placed on top if

necessary. Take care not to scratch the

top of the case and that any weight is

not directly over the centre of the APU-

RS16i.

NOTE: The APU-RSi(C) does NOT require

ventilation and therefore its

installation position is not critical.

The APU-RSi(C) should ALWAYS be

installed in a dry environment that does

not exceed 35 degree Centigrade (95

degree Fahrenheit).

The product’s steel case provides all

necessary shielding from magnetic fields

generated by the APU-RSi(C) itself (these

are very small) or from other equipment

placed nearby.

Operation

Cautions in use

It is not recommended that you

intentionally cause the APU-RSi(C) to

automatically protect the loudspeakers

by deliberately over-driving them. If you

find that the APU-RSi(C) automatically

reduces the audio volume from the

loudspeakers frequently it may suggest

that the amplifier being used is too

powerful or that the layer of plaster over

the speakers is too thick.

WARNING: DO NOT switch on the

amplifier unless both APU-RSi(C)

and loudspeakers are connected to it.

Damage may occur to the amplifier if

it is operated without a loudspeaker

connected to the output of the APU-

RSi(C).

Using the APU-RSi(C)

There are no controls on the APU-RSi(C)

and no need to change any settings

unless the model of connected speaker is

changed.

Troubleshooting

Symptom Solution

No sound from one

or more channels

Check that the sound source and all of the system amplifiers

are switched on.

If the problem persists, switch off the system and check that

the connections to each channel have been correctly and

securely made. Ensure that there are no whiskers of wire

touching at the connectors and causing the signal to short-

circuit.

Volume reduces

periodically in one or

more of the speakers

This may be due to over-driving. If so, reduce the volume.

Never overdrive the system intentionally.

There may be too much plaster over the speakers.

If you cannot resolve the problem, contact your supplier.

Specifications

Dimensions: 1U height front panel, 482mm x 44.4mm (19” x 1 3

4”),

case depth, 213mm (8 3

8”)

Weight: 3.14kg (6lbs 14oz) Nett, 3.68kg (8lbs 2oz) Gross

Fuse protection: Self-resetting, current sensing type. Fuse threshold

set via internal jumpers

Compatibility APU-RS8i/16i Suitable for use with Amina MobiusDual; Mobius5; iQ1;

iQ2; iQ3; AIW350iN-S200 only (legacy speakers may

be supported, contact your supplier for information)

Compability APU-RS8iC/16iC Suitable for use with Amina Edge5; Edge7; Mobius7

Number of channels: 8 or 16

Connection type: Screw terminals

Maintenance requirements: Protection fuses can be set by installer if necessary.*

*Repeated tripping of fuses may require fuse replacement by the manufacturer to

ensure optimal speaker performance

Warranty

The APU-RSi and APU-RSiC are designed to operate reliably for many years. Correctly

installed and operated in accordance with these instructions, Amina warranties the

APU-RS against defective materials and workmanship for a period of ten years.

This manual suits for next models

Table of contents

Other Amina Rack & Stand manuals

Amina

Amina BackboxSW345 User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
