American Standard Town Square 2748.002 User manual

H25

TOWN SQUARE® 5' x 42"

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

TOWN SQUARE® 5' x 42" WHIRLPOOL AND

BATHING POOL

❏ 2748.018WC Whirlpool Massage System

• Acrylic with berglass reinforcement

• Pre-leveled tub bottom

• Two person design with center drain and dual

lumbar ends

• Faucet/Accessory deck area

• 1.6 HP single speed, self-draining pump/motor

• Factory installed power cord with plug

• Six multi-directional and ow adjustable jets

• Deck-mounted air switch On/Off

• Two silent air volume controls

• Quick Connect Safe-T-Heater

connection system

• Factory installed and tested whirlpool system

• EverClean® System

❏ 2748.018WC.K2 Whirlpool Massage System

with Chromatherapy

Same as 2748.018WC but also includes:

• Two digitally controlled lights

• Backlit electronic control with color selector and

color cycle function

❏ 2748.002 Bathing Pool only

Nominal Dimensions:

59-1/2" x 41-5/8" x 23"

(1511 x 1057 x 584mm)

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

American Standard whirlpools and air baths with

EverClean® incorporate a patented silver-ion additive

right into the circulation piping to protect the pipes

from mold, mildew, algae and fungus that could cause

deterioration or staining of the pipes.

SEE REVERSE FOR PRODUCT DIMENSIONS

AND SPECIFICATIONS

To Be Specied - Required:

❏ Color:

❏ Drain 1594.170 (specify nish):

❏ Town Square Bath Faucet:

❏ D/M Filler with Personal Shower: 2555.901

(specify nish)

❏ D/M Filler less Personal Shower: 2555.900

(specify nish)

❏ Town Square Bath/Shower Faucet:

❏ B/S for Wall Mount Spout: 2555.602 (specify nish)

❏ B/S for Deck Mount Spout: 2555.652 (specify nish)

❏ Other Bath Faucet (specify nish):

To Be Specied - Optional:

❏ Safe-T-Heater*: 9075.120

❏ Apron: 9460.018 (specify color

❏ Tile Bead Kit: 751755-200

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

* NOTE: the Safe-T-Heater is designed to maintain water

temperature during operation. It will not heat cold water to

desired bathing temperature.

Rev. 2/08

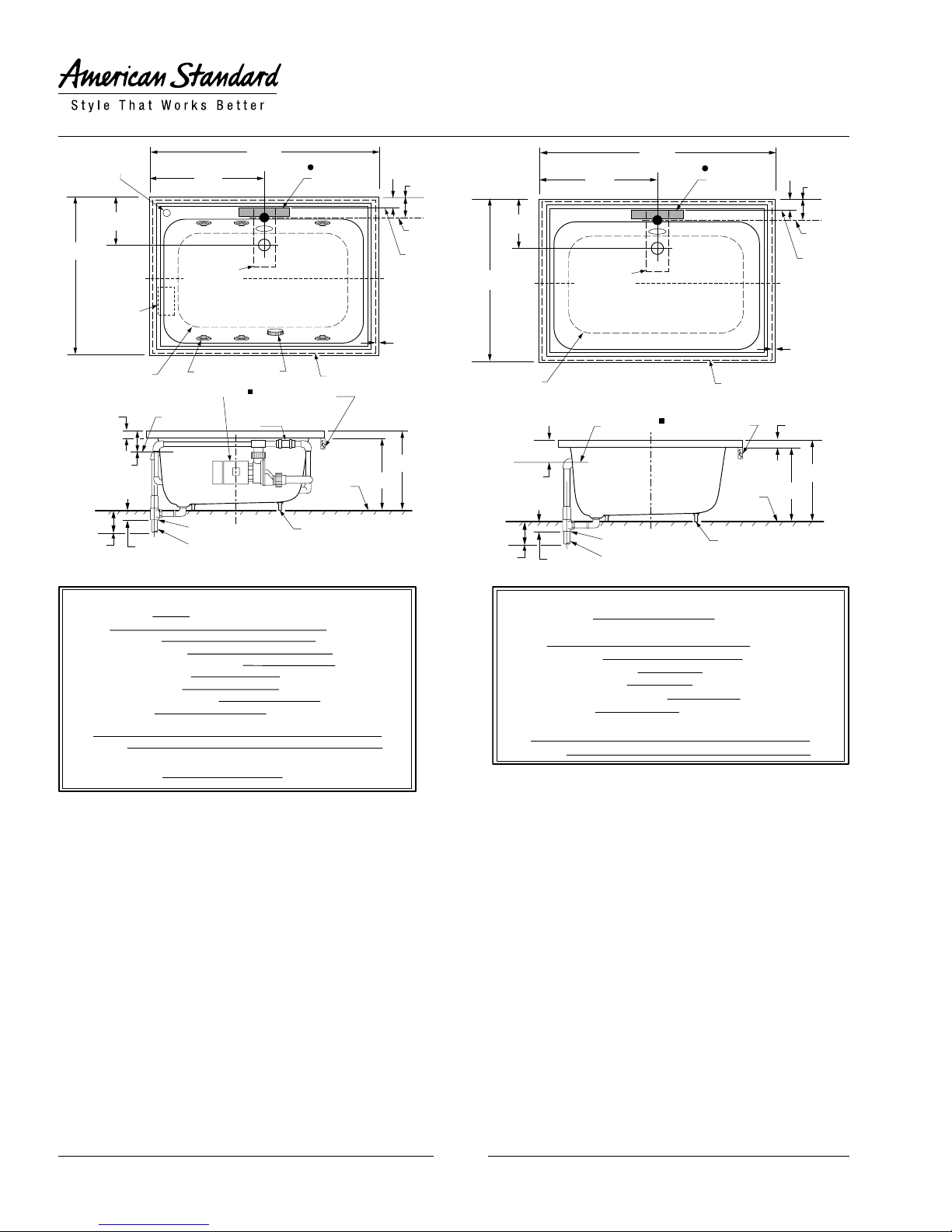

H26

TOWN SQUARE® 5' x 42"

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

SAFE-T-HEATER

REMOVABLE

BLANK

59-1/2"

(1511mm)

INTEGRAL

FITTING DECK

2-1/2" X 14"

(64 X 356mm)

29-7/8"

(759mm)

41-5/8"

(1057mm)

ON/OFF

SWITCH

SUCTION OUTLINE OF CUTOUT

58-1/4" X 40-1/4"

(1480 X 1022mm)

PROVIDE ACCESS

TO PUMP FOR

SERVICE ON ALL

INSTALLATIONS

C/L OF

DRAIN

OUTLET

FLOOR CUTOUT

5" X 12"

(127 X 305mm)

3/4"

(19mm)

14-1/2"

(368mm)

5-1/4"

(133mm)

JETS (6)

(76mm)

OUTLINE OF

SKID RESISTANT

SURFACE

LEVELING STRINGER

(NOT FOR SUPPORT)

1-1/2" N.P.T.

THREADS

(51mm)

5-3/4"

(146mm)

C/L OF

OVERFLOW

21"

(533mm)

23"

(584mm)

ROUGH

FLOOR

INTEGRAL

FEET

SUPPORT

1-1/2" O.D.

TAILPIECE

3/4"

(19mm)

3-1/8"

(79mm)

PUMP

EDGE OF

FLOOR

CUTOUT

PUMP

59-1/2"

(1511mm)

INTEGRAL

FITTING DECK

2-1/2" X 14"

(64 X 356mm)

29-7/8"

(759mm)

41-5/8"

(1057mm)

OUTLINE OF CUTOUT

58-1/4" X 40-1/4"

(1480 X 1022mm)

C/L OF

DRAIN

OUTLET

FLOOR CUTOUT

5" X 12"

(127 X 305mm)

3/4"

(19mm)

14-1/2"

(368mm)

5-1/4"

(133mm)

(76mm)

OUTLINE OF

SKID RESISTANT

SURFACE

LEVELING STRINGER

(NOT FOR SUPPORT)

1-1/2" N.P.T.

THREADS

(51mm)

5-3/4"

(146mm)

C/L OF

OVERFLOW

21"

(533mm)

23"

(584mm)

ROUGH

FLOOR

INTEGRAL

FEET

SUPPORT

1-1/2" O.D.

TAILPIECE

3/4"

(19mm)

3-1/8"

(79mm)

EDGE OF

FLOOR

CUTOUT

GENERAL SPECIFICATIONS FOR 2748 WHIRLPOOL

59-1/2 x 41-5/8 x 23 In. (1511 x 1057 x 584mm)

110 Lbs. (50 Kg.)

611 Lbs. (278 Kg.)

60 Gal. (227 L)

55 Gal. (208 L)

34 x 24 In. (864 x 610mm)

52 x 31 In. (1321 x 1321mm)

12-1/2 In. (318mm)

40 Lbs./Sq.Ft. (194 Kgs./Sq.m)

27.8

45.4

1.6 HP, 9.7 AMPS ,120V.WHIRLPOOL PUMP

WHIRLPOOL ELECTRICAL SPECIFICATIONS

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

GENERAL SPECIFICATIONS FOR 2748 BATHING POOL

59-1/2 x 41-5/8 x 23 In.

(1511 x 1057 x 584mm)

110 Lbs. (50 Kg.)

611 Lbs. (278 Kg.)

34 x 24 In. (864 x 610mm)

52 x 31 In. (1321 x 1321mm)

12-1/2 In. (318mm)

40 Lbs./Sq.Ft. (194 Kgs./Sq.m)

27.8

45.4

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND OR PENINSULA TYPE INSTALLATION. SUMP

OF BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIALS BY OTHERS.

● IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING

SYSTEM PIPING AND DRAIN OVERFLOW. MOUNTING HOLES DRILLED BY INSTALLER.

OPTIONAL TILING BEAD KIT No. 751755-200 AVAILABLE.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 / CSA Certied.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.

Rev. 2/08
