American DJ Fiesta User manual

User Instructions

American DJ

4295 Charter Street

Los Angeles Ca. 90058

www.americandj.com

Introduction:

Thank you for purchasing the American DJ Fiesta.

™

Thank you for purchasing the American DJ Fiesta.

™

Thank you for purchasing the American DJ Fiesta.

To optimize the

performance of this product, please read these operating instructions

carefully to familiarize yourself with the basic operations of this unit. The

American DJ

Fiesta

® Fiesta®

™

is a party light for any occasion. This unit has a

gobo for almost any “Fiesta.” The unit is sound active and has three dif-

ferent operating modes (Sound Active, Continuos Rotation, and Static).

A gobo selector switch allows you to scroll through the gobo or stay on

a single one.

Customer Support:

American DJ

provides a toll free customer support line, to provide set

® provides a toll free customer support line, to provide set ®

up help and to answer any question should you encounter problems

during your set up or initial operation. You may also visit us on the web

at www.americandj.com for any comments or suggestions.

Service Hours are Monday through Friday 10:00 a.m. to 5:00 p.m.

Paci c Standard Time.

Voice:

(800) 322-6337

Fax:

(323) 582-2610

E-mail:

suppor[email protected]

Warning!

To prevent or reduce the risk of electrical shock or  re, do

not expose this unit to rain or moisture.

Caution!

There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

your nearest American DJ dealer.

Do not discard the shipping cartoon in the trash. Please recycle when

ever possible.

HALOGEN LAMP WARNING!

This fixture is fitted with a halogen lamp which is highly susceptible

to damage if improperly handled. Never touch lamp with your bare

fingers as the oil from your hands will shorten lamp life. Also, never

move the fixture until the lamp has had ample time to cool. Remember,

lamps are not covered under warranty conditions.

Fiesta™ Introduction

American DJ Supply

- www.americandj.com - Fiesta™ Instruction Manual Page 2

® - www.americandj.com - Fiesta™ Instruction Manual Page 2®

General Operation:

This fixture is designed to operate as a stand alone unit. It has

been tested and lamped at the factory there is no assembly

necessary. The Fiesta™ is ready to be plugged in, out of the

box. There is no power switch, after plugging the unit if there is

no lamp output check the fuse and bulb. If the fuse and bulb are

good, please return the unit for servicing.

Operating Modes:

This unit comes with a 3-way operating switch located on the

rear of the unit. The switch controls three (3) different operating

modes; Static, Sound Active, and Continuous Rotation. When

the switch is in the "I" position the unit will react to a music

source, via its internal microphone. When the unit is in the "0"

position the fixture will act as a static gobo projector, the color

dish will not rotate. When the switch is in the "II" position the

unit's color wheel will rotate in a continuous pattern not reacting

to a sound source.

Gobo Change:

On the rear of the unit there is a gobo selector switch. The

switch has two functions. In one position the gobo wheel will

rotate in a continuous pattern. In the other position the gobo

wheel will lock in one position. Use this switch to lock you

desired gobo in position. When you desire a specific gobo,

place the switch in the continuous rotation position and wait

for your desired gobo to come around. When you desired gobo

comes around, flip the switch in the lock position. This will proj-

ect only your desired gobo.

Fiesta™ Operation

American DJ Supply

- www.americandj.com - Fiesta™ Instruction Manual Page 3

® - www.americandj.com - Fiesta™ Instruction Manual Page 3®

Trouble Shooting:

Listed below are a few common problems that you may

encounter, with solutions.

No light output from the unit;

1. Be sure you have connected your unit into a standard

110V wall outlet.

2. Be sure the external fuse has not blown. The fuse is

located on the rear panel.

3. Remove the lamp cover and be sure the lamp is seated

in its socket properly. Occasionally lamps become loose

during shipping be sure the lamp is push in to its socket

all the way.

Unit does not respond to sound;

1. Be sure the unit's mode switch is in the "I" position, this is

the only mode that allows the unit to operate in sound

active mode.

2. Low frequencies (bass) should cause the unit to react to

sound. Tapping on the microphone, quiet or high

pitched sounds may not activate the unit.

Unit’s gobo do not change;

1. Be sure the unit's mode switch is in the "I" position, this is

the only mode that allows the unit to operate in sound

active mode.

2. Low frequencies (bass) should cause the unit to react to

sound. Tapping on the microphone, quiet or high

pitched sounds may not activate the unit.

Fiesta™ Trouble Shooting

American DJ Supply

- www.americandj.com - Fiesta™ Instruction Manual Page 4

® - www.americandj.com - Fiesta™ Instruction Manual Page 4®

Fixture Cleaning:

Due to fog residue, smoke, and dust cleaning the internal and

external optical lenses must be carried out periodically to opti-

mize light output.

1. Use normal glass cleaner and a soft cloth to wipe down

the outside casing.

2. Use a brush to wipe down the fan grill.

3. Clean the external optics with glass cleaner and a soft

cloth every 20 days.

4. Clean the internal optics with glass cleaner and a soft

cloth every 30-60 days.

5. Always be sure to dry all parts completely before

plugging the unit back in.

Cleaning frequency depends on the environment in which the

fixture operates (I.e. smoke, fog residue, dust, dew). In heavy

club use we recommend cleaning on a monthly basis. Periodic

cleaning will ensure longevity, and crisp output.

Lamp Replacement:

Disconnect from the main power supply. Remove the thumb

screw on the top of the unit that holds the lamp cover in

place. Remove the trap door. Carefully remove socket assem-

bly from the unit and discard the old lamp. Be sure the unit

has had ample time to cool before attempting to replace the

lamp. Carefully install the new lamp, be sure to follow all the

installation guide lines that are included with your new lamp.

Reassemble in reverse order. Replace the trap door and thumb

screw.

Caution:

Always replace with the exact same type lamp and

fuse, unless otherwise specified by an authorized American

technician.

Fiesta™ Gobo Options Fiesta™ Cleaning

American DJ Supply

- www.americandj.com - Fiesta™ Instruction Manual Page 6

® - www.americandj.com - Fiesta™ Instruction Manual Page 6®

American DJ Supply

- www.americandj.com - Fiesta™ Instruction Manual Page 5

® - www.americandj.com - Fiesta™ Instruction Manual Page 5®

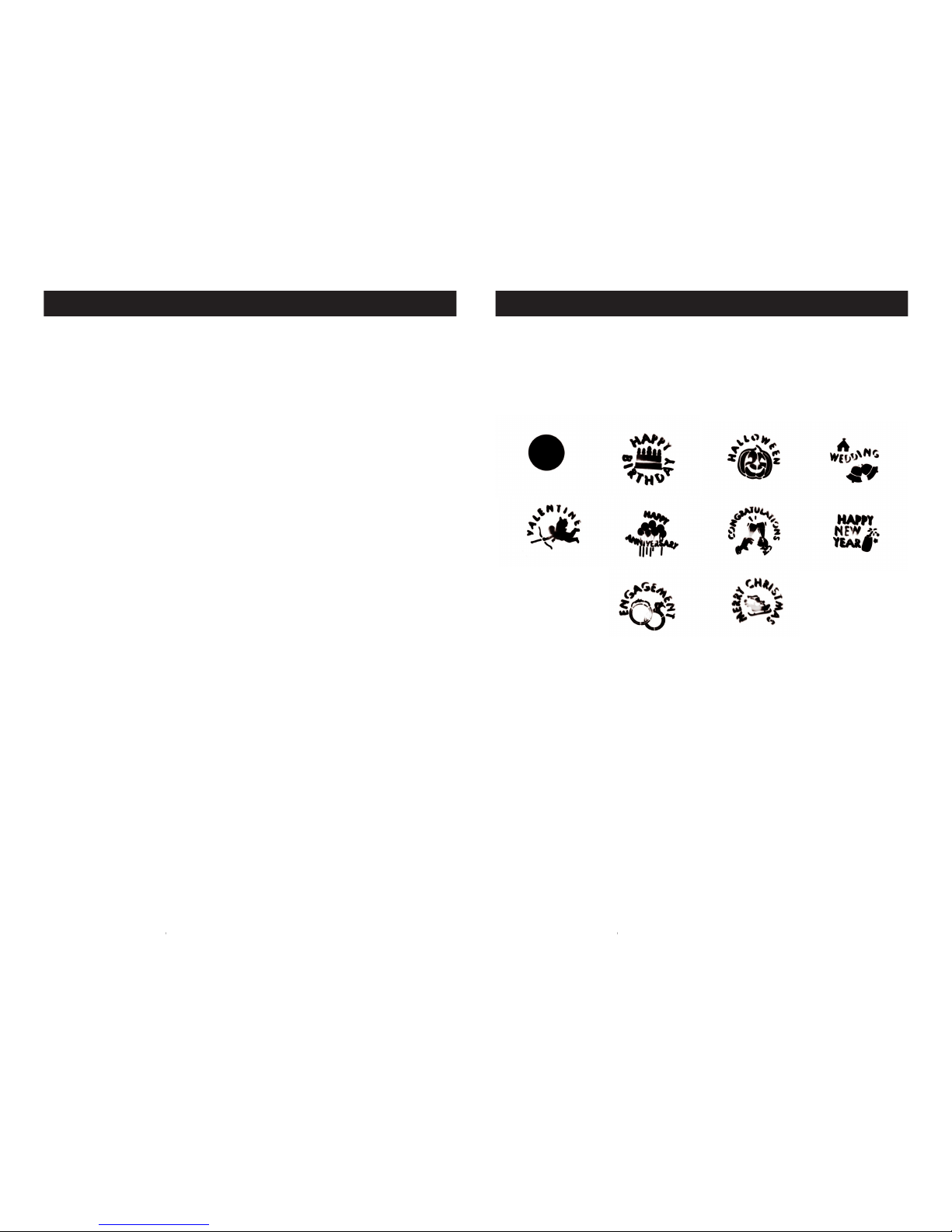

The illustration below detail all the included gobo patterns.

Focusing:

On the top of the unit, loosen the thumb screw that holds the

lens in place. Grasp the thump screw with your hand and manu-

ally slide the lens back and forth until you achieve your desire

focus. When you achieve the proper focus retighten the thumb

screw.

©American DJ Supply

American DJ World Headquarters:

4295 Charter Street Los Angeles, CA 90058 USA

Tel: 323-582-2650 / Fax: 323-582-2610

Web: www.americandj.com / E-mail: [email protected]

Technical Specifications:

Model: Fiesta™

Lamp:

ZB-ELC-3 24v/250w

Voltage:

110~120v

Dimensions:

9H x 11W x 12L

Colors

Multi-colored dichroic dish

Gobos:

9 plus Spot

Weight:

21Lbs

Fuse:

5Amp

Duty Cycle:

15min on/off

Fiesta™ Specifications

American DJ Supply

- www.americandj.com - Fiesta™ Instruction Manual Page 7

® - www.americandj.com - Fiesta™ Instruction Manual Page 7®

Please Note: Speci cations and improvements in the design of

this unit and this manual are subject to change without any prior

written notice.
