American DJ ELECTRA User manual

©American DJ Supply

American DJ World Headquarters:

4295 Charter Street Los Angeles, CA 90058 USA

Tel: 323-582-2650 / Fax: 323-582-2610

Web: www.americandj.com / E-mail: info@americandj.com

User Instructions

American DJ

4295 Charter Street

Los Angeles Ca. 90058

www.americandj.com

Technical Specifications:

Model: Electra™

Lamp: ZB-BRL 12v/50w

Voltage: 110~120v

Dimensions: 9H x 11W x 12L

Colors: Multi-colored dichroic dish

Gobos: None

Weight: 6 Lbs.

Fuse: 3 Amp GMA

Duty Cycle: 15min on/off

Optics: High Quality Glass Lens

Reflective Surface mirror

Ventilation: Fan Cooled

Operating Mode: 3-position Mode Switch (Static,

Sound Active, & Continuous)

Electra™ Specifications

©American DJ Supply® - www.americandj.com - Electra™ Instruction Manual Page 7

Please Note: Specications and improvements in the design of

this unit and this manual are subject to change without any prior

written notice.

Introduction:

Thank you for purchasing the American DJ Electra.

™ To optimize the

performance of this product, please read these operating instructions

carefully to familiarize yourself with the basic operations of this unit.

This unit is a miniture version of our Sapphire 4™ a multicolored rotat-

ing moon ower effect. The American DJ® Electra™ is sound active and

has three different operating modes (Sound Active, Continuous Rota-

tion, and Static).

Customer Support:

American DJ® provides a toll free customer support line, to provide set

up help and to answer any question should you encounter problems

during your set up or initial operation. You may also visit us on the web

at www.americandj.com for any comments or suggestions.

Service Hours are Monday through Friday 9:00 a.m. to 6:00 p.m. Pacic

Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2610

E-mail: support@americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

your nearest American DJ dealer.

Do not discard the shipping carton in the trash. Please recycle when

ever possible.

HALOGEN LAMP WARNING!

This fixture is fitted with a halogen lamp which is highly susceptible

to damage if improperly handled. Never touch lamp with your bare

fingers as the oil from your hands will shorten lamp life. Also, never

move the fixture until the lamp has had ample time to cool. Remember,

lamps are not covered under warranty conditions.

Electra™ Introduction

©American DJ Supply® - www.americandj.com - Electra™ Instruction Manual Page 2

General Operation:

This fixture is designed to operate as a stand alone unit, there is

no need of a controller. It has been tested and lamped at the

factory there is no assembly necessary. The Electra™ is ready to

be plugged in, out of the box. There is no power switch, after

plugging the unit if there is no lamp output check the fuse and

bulb. If the fuse and bulb are good, please return the unit for

servicing. After plugging this fixture in, the units X-axis mirror

will move back and forth. The Electra™ features a multi-color

dichroic dish that will also rotate. This fixture features a light

weight case design and a hanging bracket. This unit can be

operated in three different modes. This fixture is designed for

mobile DJ’s, clubs, bands, roller rinks and any arena that requires

a compact, light weight, easy to use fixture.

Operating Modes:

This unit comes with a 3-way multi-operating switch located on

the rear of the unit. The switch controls three (3) different operat-

ing modes; Static, Sound Active, and Continuous Rotation. When

the switch is in the "I" position the internal dichoric dish spin

continously and the mirror will react to sound, via its internal

microphone. When the unit is in the "0" position the internal

dichoric dish is static (does not rotate) and the mirror will react

to sound. When the switch is in the "II" position the unit's internal

dichoric color wheel and mirro will react to sound.

Electra™ Operation

©American DJ Supply® - www.americandj.com - Electra™ Instruction Manual Page 3

3 Position Mode SwitchFuse Holder

Electra Bottom Housing

©American DJ Supply® - www.americandj.com - Electra™ Instruction Manual Page 6

Trouble Shooting:

Listed below are a few common problems that you may

encounter, with solutions.

No light output from the unit;

1. Be sure you have connected your unit into a standard

110V wall outlet.

2. Be sure the external fuse has not blown. The fuse is

located on the rear panel.

3. Remove the lamp cover and be sure the lamp is seated

in its socket properly. Occasionally lamps become loose

during shipping be sure the lamp is push in to its socket

all the way.

Unit does not respond to sound;

1. Be sure the unit's mode switch is in the "I" position, this is

the only mode that allows the unit to operate in sound

active mode.

2. Low frequencies (bass) should cause the unit to react to

sound. Tapping on the microphone, quiet or high

pitched sounds may not activate the unit.

Electra™ Trouble Shooting

©American DJ Supply® - www.americandj.com - Electra™ Instruction Manual Page 5

Electra™ Cleaning

Lamp Replacement:

Disconnect from the main power supply. Be sure the unit has

had ample time to cool before attempting to replace the lamp.

On the front of the unit there is a single thumb screw. Remove

the thumb screw and pull back the front case housing. The hous-

ing is hinged which allows it to pull back without being removed.

Remove the old lamp from the socket assembly. Carefully install

the new lamp, be sure to follow all the installation guide lines

that are included with your new lamp. Close the front cover and

replace the thumb screw.

Caution: Always replace with the exact same type lamp and

fuse, unless otherwise specified by an authorized American DJ®

technician.

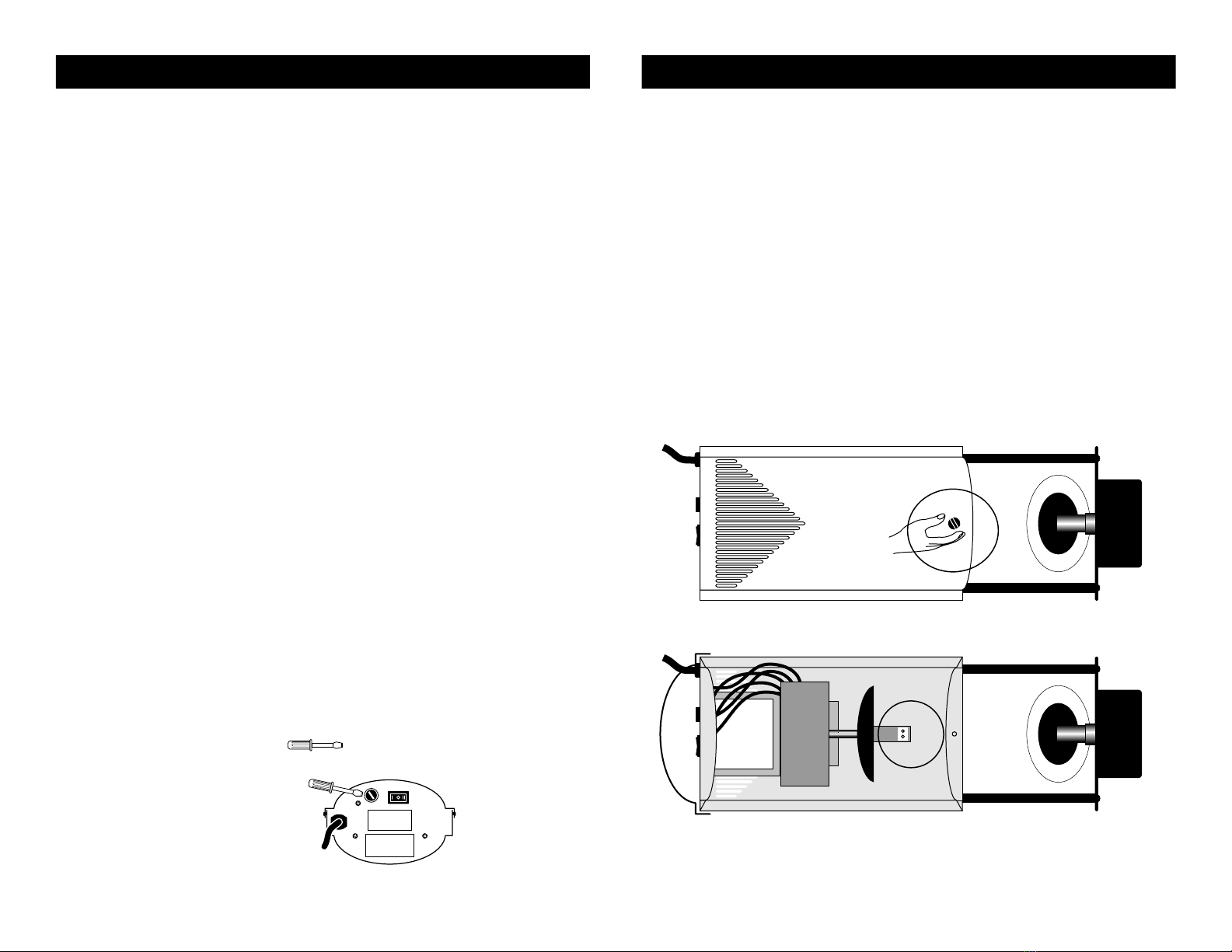

Remove the thumb screw on the front of the unit as illustrated below.

Remove the lamp from the socket and insert a new one as illustrated above.

©American DJ Supply® - www.americandj.com - Electra™ Instruction Manual Page 4

Fixture Cleaning:

Due to fog residue, smoke, and dust cleaning the internal and

external optical lenses must be carried out periodically to

optimize light output.

1. Use normal glass cleaner and a soft cloth to wipe down the

outside casing.

2. Use a brush to wipe down the fan grill.

3. Clean the external optics with glass cleaner and a soft

cloth every 20 days.

4. Clean the internal optics with glass cleaner and a soft cloth

every 30-60 days.

5. Always be sure to dry all parts completely before plugging

the unit back in.

Cleaning frequency depends on the environment in which the

fixture operates (I.e. smoke, fog residue, dust, dew). In heavy

club use we recommend cleaning on a monthly basis. Periodic

cleaning will ensure longevity, and crisp output.

Fuse Replacement:

Disconnect from the main power supply. Insert a standard flat

head screw driver in to the fuse holder housing as illustrated in

figure two. Turn the screwdriver in counter-clockwise direction

to remove the fuse holder. Remove the old fuse and discard it,

replace the fuse with the same type. Insert the fuse back into

it’s housing.

If you continue to blow fuses, STOP using the unit. Returning the

unit for servicing. Continuing to use the unit may cause serious

damage.

Caution: Always replace with the exact same type lamp and

fuse, unless otherwise specified by an authorized American DJ®

technician.

Electra™ Cleaning

Use a at head screwdriver

to remove the fuse holder
