INSTALLATION AND SAFETY INSTRUCTIONS
WARNING: Be sure the electricity to the system you are
working on is turned off; either the fuse removed or the circuit
breaker set at off.
IF YOU ARE UNCLEAR AS TO HOW TO PROCEED,
CONTACT A QUALIFIED ELECTRICIAN.
CAUTION: BE SURE TO CHECK YOUR TRANSFORMER TO
DETERMINE THE VOLTAGE OF THE SYSTEM.
RISK OF FIRE: USE ONLY 12V LAMPS WITH 12V SYSTEMS.
USE OF 12V LAMPS WITH 24V SYSTEM MAY RESULT IN
DAMAGE TO SYSTEM AND SURROUNDING AREA.
CAUTION: RISK OF FIRE: MAXIMUM WATTAGE FOR RAIL
IS: 300W AT 12V; 500W AT 24V.
FOR YOUR SAFETY
IMPORTANT SAFETY INSTRUCTIONS
1. Minimum distance from the front of the lamp to combustible
surfaces is 8”.
2. Be sure to install the rail system where it can not be
shorted out by conductive materials.
3. Make sure all connections are tight.
4. This is a non-electrified support.
5. Space supports no greater than 4 feet apart for straight
sections.
WARNING: Use of other manufacturers components will
void warranty, E.T.L. listing and create a potential safety
hazard.
CAUTION - RISK OF FIRE. KEEP AWAY FROM
COMBUSTIBLE MATERIALS.
FIGURE 1
CANOPY
FITTER
STEM
LV-054
110102
www.SeaGullLighting.com
ASSEMBLY LV-054
NOTE:
This support comes with 10 feet of field cuttable aircraft cable.
To shorten the cable:
1. Loosen set screw on canopy.
2. Shorten aircraft cable to desired length.
3. Insert cable into canopy.
4. Secure with set screw.
FITTER
AIRCRAFT
CABLE
DRY WALL
FIGURE 2
INSTALLATION
1. Choose desired location for the support.
2. On drywall,drill ³⁄₈” diameter hole for supplied toggle bolts.
Insert toggle bolt screws into fitters. Secure fitters to wall by
inserting wings on toggle bolts through wall, and tighten
screw. On other surfaces use proper securing method
(not supplied).
3. Thread canopy and stem onto fitter.
4. Raise rail until it sits flush into rail adapter groove.
5. Secure in place by threading adapter cap.

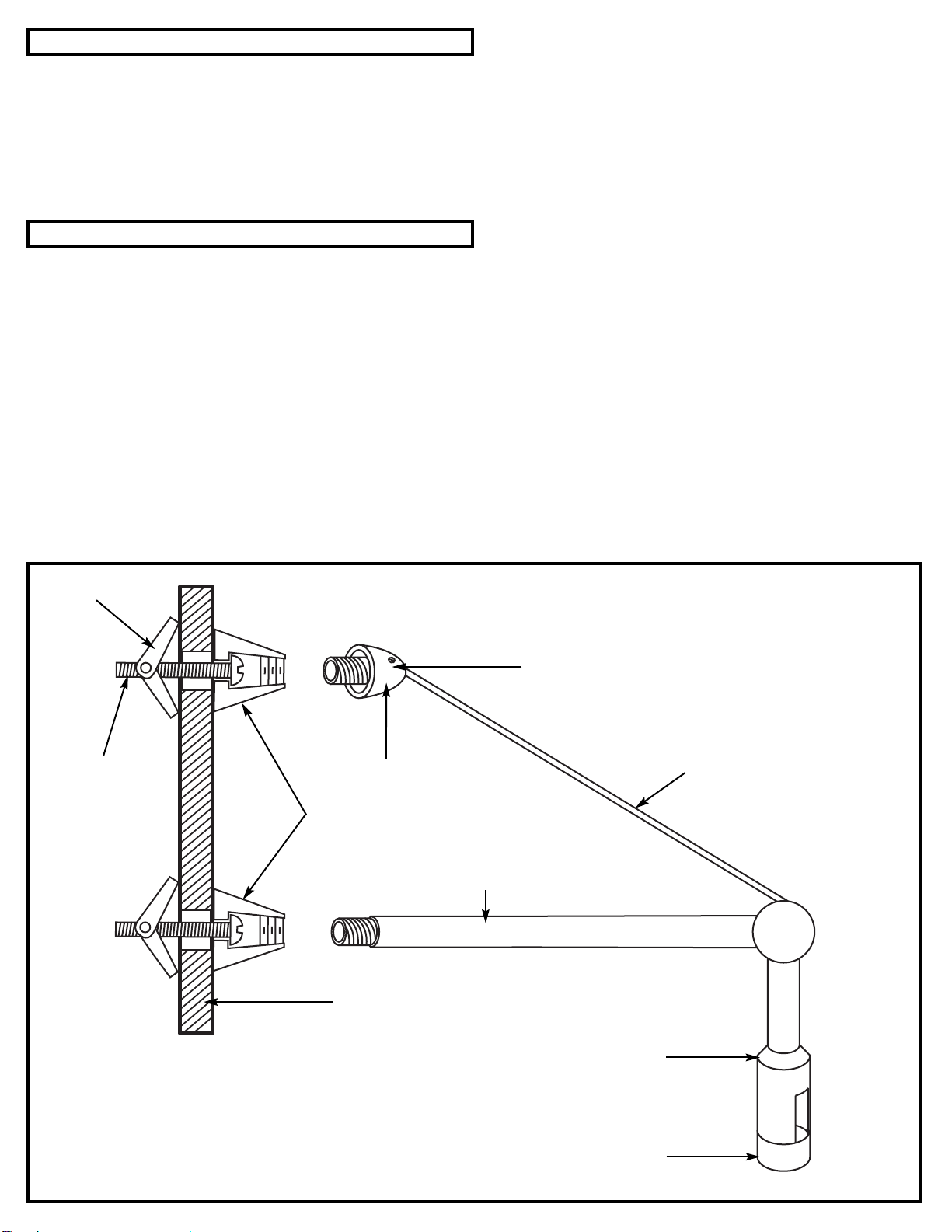

SET
SCREW
CANOPY
STEM
RAIL
ADAPTER
ADAPTER
CAP
TOGGLE BOLT
WINGS
TOGGLE BOLT
