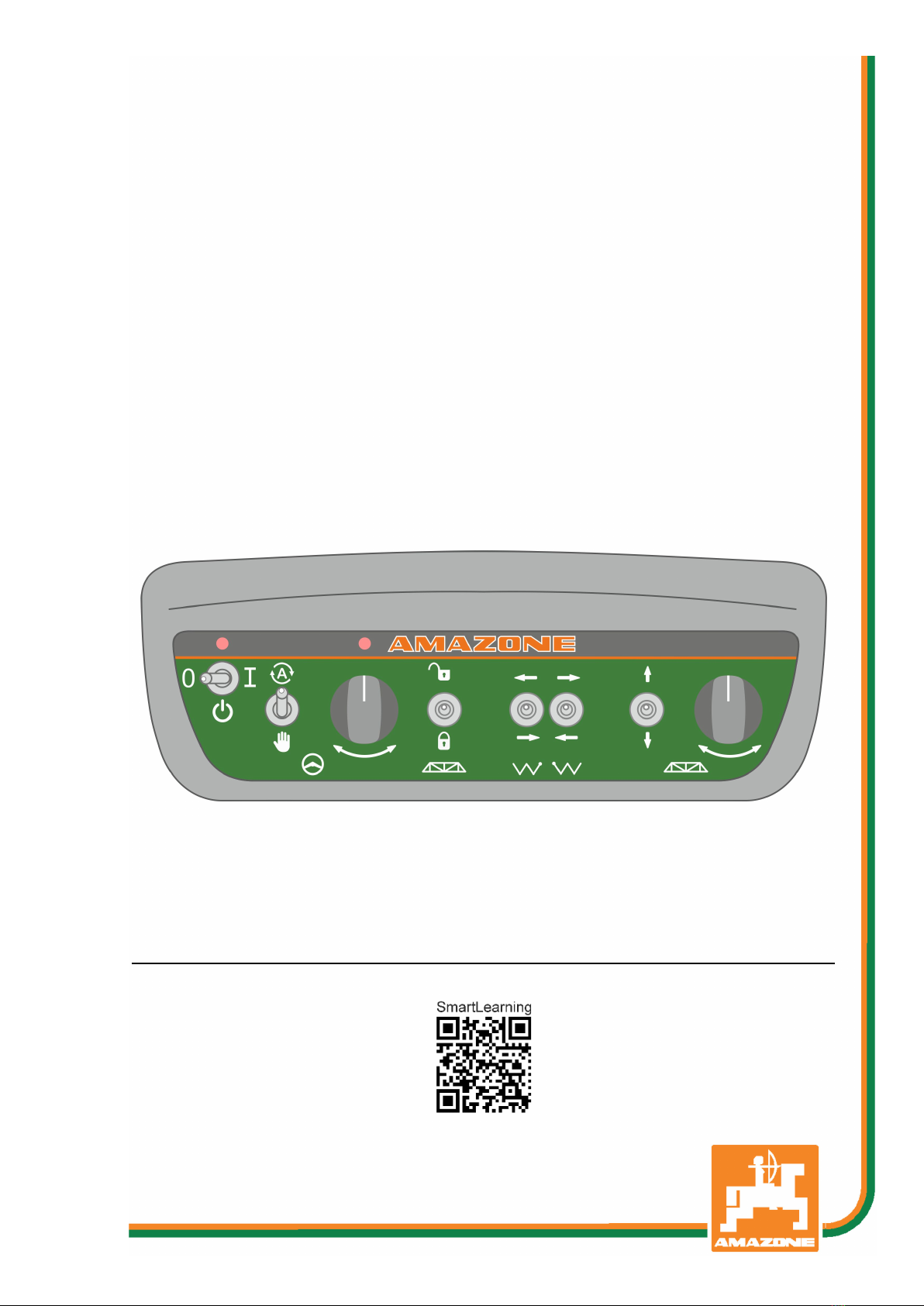

Amazone ProfiClick User manual

Operating instructions

AMAz

ProfiClick

Dashboard

to operate the hydraulic functions

MG5668

BAG0138.1

03.15

Printed in Germany

Please read this operating

manual before initial operation.

Keep it in a safe place for future

use!

Proficlick BAG0138.1

03.15

Identification data

Proficlick

BAG0138.1 03.15

Manufacturer's address

AMAZONEN-WERKE

H. DREYER SE & Co. KG

Postfach 51

D-49202

Tel.:

Fax:

E-mail:

Hasbergen, Germany

+ 49 (0) 5405 50 1-0

+ 49 (0) 5405 501-234

amazone@amazone.de

Spare part orders

Spare parts lists are freely accessible in the spare parts portal at

www.amazone.de.

Please send orders to your AMAZONE dealer.

Formalities of the operating manual

Document number:

MG5162

Compilation date:

03.15



Reprinting, even of sections, only possible with the approval of

AMAZONEN-WERKE H. DREYER SE & Co. KG.

Table of Contents

Proficlick BAG0138.1

03.15

1Product description .................................................................................... 5

1.1 Structure.................................................................................................................................. 5

1.2 Function................................................................................................................................... 5

2Operation ..................................................................................................... 6

2.1 Error messages ....................................................................................................................... 8

3Transportation ............................................................................................. 9

4Settings ...................................................................................................... 10

4.1 Teaching in the boom centre position ................................................................................... 10

4.2 Teaching in the centre position for the steering .................................................................... 10

4.3 Adjusting the steering control factor...................................................................................... 11

5Attachment ................................................................................................ 12

Product description

Proficlick

BAG0138.1 03.15

1 Product description

1.1 Structure

2 rocker switches

Latching in 2 positions

Rotary knob

+/ - 135°

4 rocker switches, momentary

With latching centre position

Rotary knob

+/ - 135°

Press the momentary rocker switch until the end position / desired

position (boom height) has been reached.

After switching on, the rotary knobs must be turned once to the centre

position before they are functional.

1.2 Function

The ProfiClick control device serves to operate the hydraulic functions

of an Amazone field sprayer.

To do so, the field sprayer must be equipped accordingly.

During operation, the field sprayer is constantly supplied with hydrau-

lic fluid through an oil circuit.

The ProfiClick is available in versions with or without steering func-

tion.

Operation

Proficlick BAG0138.1

03.15

2 Operation

ProfiClick main switch

Latching rocker switch

0 ProfiClick switched off

1ProfiClick switched on

AutoTrail (optional)

Latching rocker switch

Steering in automatic mode (precise

tracking of the implement)

•The steering angle is constantly regulated

in the defined target position.

•When the steering rotary knob is in centre

position, the target position of the steering

angle is the same as the taught-in centre

position.

Steering in manual mode

Rotary knob for manual steering of the

field sprayer.

→The light shows the centre position of the

steering in manual mode.

In automatic mode: The intensity of the slope

correction can be adjusted using the rotary knob.

In manual mode: Rotary knob for direct steering

against the slope.

The rotary knobs only react when they were

turned to the centre position once after switching

on.

If the boom is locked when the steering is in

automatic mode, a warning tone is issued

οuntil the boom is unlocked,

until the steering is switched to manual

mode.

Operation

Proficlick

BAG0138.1 03.15

Boom locking mechanism

Momentary rocker switch

Boom unlocked during operation

Boom locked for folding and for one-sided

spraying.

→Actuate the rocker switch for approx. 8 sec-

onds.

Fold the left boom section

Momentary rocker switch

Unfold the left boom section

Fold the left boom section

Fold the right boom section

Momentary rocker switch

Unfold the right boom section

Fold the right boom section

To move the sprayer boom into working position and transport posi-

tion, please also refer to the implement operating manual.

To fold both boom sections at the same time, actuate both rocker

switches simultaneously until the end position is reached.

Operation

Proficlick BAG0138.1

03.15

Boom height and tilt

Momentary rocker switch

Raise the boom

Lower the boom

Rotary knob to adjust the boom tilt.

The rotary knobs only react when they were

turned to the centre position once after switching

on.

DANGER

Risk of accident due to unintentional operation of the hydraulic

functions while driving on the road.

When driving on road, interrupt the oil circulation and switch the Pro-

fiClick off.

2.1 Error messages

If an error is detected by the sensors, none of the ProfiClick functions

should be executed. However, the rotary knobs can be operated.

As long as the error persists, it is displayed by:

•a recurrent acoustic signal,

•flashing light on the main switch.

Transportation

Proficlick

BAG0138.1 03.15

3 Transportation

DANGER

Risk of accident caused by turning the machine over !

For road transport, set the steering axle / steering drawbar to

transport position!

1. Set the steering drawbar / steering axle to

the middle position (steering drawbar /

wheels align with machine).

For this:

1.1 Put AutoTrail in manual

operation.

1.2 Move to the middle position.

1.3 Move the machine until the centre po-

sition is reached.

2. Switch off the red tractor control unit.

3. Secure the steering drawbar (1) by closing

the stop tap (3) in position 0.

Settings

Proficlick BAG0138.1

03.15

4 Settings

4.1 Teaching in the boom centre position

When the rotary knob is in centre position (ma

rk positioned vertically),

the unfolded sprayer boom must be aligned horizontally.

Otherwise, teach in the centre position.

1. Align the sprayer boom horizontally.

2. Switch off the main switch.

3. Press down the right-

hand rocker switch for

folding and

the rocker switch for the boom

height.

4. At the same time, switch on the main

switch.

→An acoustic signal is issued and the centre

position is saved.

4.2 Teaching in the centre position for the steering

When the rotary knob is in centre position (mark positioned vertically),

the steering must be in neutral position (axle / drawbar aligned in the

direction of travel).

Otherwise, teach in the centre position.

1. Move the steering into neutral position

(axle / drawbar are aligned in the direction

of travel).

2. Switch off the main switch.

3. Press down the left-hand rocker switch for

folding and

the rocker switch for the boom locking

mechanism.

4. At the same time, switch on the main

switch.

→An acoustic signal is issued and the centre

position is saved.
