Amantii BS1900034-1 Operating instructions

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

BS1900034-1

SYM-34-LUMINA

AMB-IW-34-3

BS1900042-1

SYM-42-LUMINA

AMB-IW-42-3

BS1900050-1

SYM-50-LUMINA

AMB-IW-50-3

BS1900060-1

SYM-60-LUMINA

AMB-IW-60-3

BS1900074-1

SYM-74-LUMINA

AMB-IW-74-3

BS1900088-1

SYM-88-LUMINA

AMB-IW-88-3

BS1900100-1

SYM-100-LUMINA

AMB-IW-100-3

www.amantii.com

WARNING: This product can expose you to chemicals including

lead in the wiring, which is [are] known to the State of California

to cause birth defects or other reproductive harm. For more

information visit: www.p65warnings.ca.gov

SAFETY INFORMATION

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other.

If the information in these instructions

are not followed exactly, a fire or

explosion may result causing property

damage, personal injury or loss of life.

WARNING

Version:202309

CONSUMER: RETAIN THIS MANUAL FOR

FUTURE REFERENCE.

INSTALLER: LEAVE THIS MANUAL WITH

THE APPLIANCE.

SYMMETRY LUMINA MODEL SKU:

01.INSTALLATION /

OWNERS MANUAL

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

TABLE OF CONTENTS

Please read and carefully follow all of the instruction found in this manual. The instructions

included here will assure that you have many years of dependable and enjoyable service from

your Amantii Electric Fireplace.

IMPORTANT INSTRUCTIONS

CAUTIONS

FCC CAUTIONS

UNPACKING AND TESTING APPLIANCE

GROUNDING APPLIANCE

LOCATING THE FIREPLACE

PRODUCT SPECIFICATION

OUTDOOR INSTALLATIONS

INSTALLATION-WALL MOUNT

INSTALLATION- BUILT-IN

HARDWIRE INSTALLATION

DECORATIVE MEDIA INSTALLATION

MANUAL OPERATION

REMOTE CONTROL OPERATION

EXPLODED VIEW

ELECTRIC FIREPLACE WARRANTY

TROUBLE SHOOTING 21

WIRING DIAGRAM 21

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

1. Read all instructions before installing or using this heater.

2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provid-

ed, use handles when moving this heater. Keep combustible materials, such as furniture, pillows,

bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater.

3. Always unplug heater when not in use.

4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the

unit has been dropped or damaged in any way.

5. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or anything

else. Arrange the cord away from traffic areas where it could not be tripped over.

6. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.

7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may

cause an electric shock, fire or damage to the heater.

8. To prevent a possible fire, do not block air intakes in any manner. Do not use on soft surfaces,

like a bed, where openings may become blocked.

9. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline,

paint or flammable liquids are used or stored.

10. Use this heater only as described in this manual. Any other use not recommended by the

manufacturer may cause fire, electric shock or injury.

11. Avoid the use of an extension cord, the extension cord will overheat and cause a fire. This

heater is not to be used with an extension cord.

12. Always use properly grounded fused and polarized outlets.

13. Always use ground fault protection where it is required by electrical codes.

14. Always disconnect the power before performing any cleaning, maintenance or relocation of the

heater.

15. To prevent a possible fire, do not burn wood or other materials in this heater.

16. To prevent electric shock or fire, always use a certified electrician, should new circuits or

outlets be required.

17. When transporting or storing the heater, keep it in a dry place, free from excessive vibration.

18. This appliance should not be modified under any circumstances.

19. Packaging material should be kept away from children and be disposed of in a safe manner.

Plastic bags are not toys and should be kept away from children and infants.

20. Do not use this heater in small rooms when they are occupied by persons not capable of

leaving the room on their own, unless constant supervision is provided.

21. If the glass is damaged, do not use the heater in order to avoid a hazard.

22. Extreme caution is necessary when any heater is used by or near children or invalids and

whenever the heater is left operating and unattended.

23.If heater may include an audible or visual alarm to warn that parts of the heater are getting

excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect

for any objects on or adjacent to the heater that may have blocked the airflow or otherwise caused

high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM

SOUNDING (OR ILLUMINATING).

24. Do not operate any heater after it malfunctions. Disconnect power at service panel and have

heater inspected by a reputable electrician before reusing.

SAVE THESE INSTRUCTIONS

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

CAUTIONS

Always install the heater in accordance with this guide. If in doubt obtain

expert advice.

Always make sure the electrical socket is accessible and located adjacent

to, but not above the heater.

Always disconnect the heater from the electrical supply before moving it, or

carrying out cleaning, maintenance.

Always make sure the heater is firmly secured to prevent it from being

tipped over.

Always use a fireguard when young children and infirm persons can come

into contact with the heater.

Never leave children unsupervised in a room where the heater is ON and

unguarded.

Never obstruct or cover the fan outlet or force items into heater openings.

Never use aerosols or steam cleaners on or around the heater.

Never route the main supply cable under carpet etc.

Never install the heater close to curtains or combustible materials.

Never use the heater to dry clothes etc.

Never sit or stand on the heater.

Do’s

Don’ts

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

FCC CAUTIONS

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:(1)This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Any Changes or modifcations not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Note:This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference wil not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on,the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an cxperienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and opeated with minimum distance 20cm

between the radiator & your body.

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

UNPACKING AND TESTING APPLIANCE

GROUNDING APPLIANCE

LOCATING THE FIREPLACE

Carefully remove the appliance from the box.

Prior to installing the appliance, test to make sure the appliance operates properly by plugging the

power supply cord into a 120 Volt grounded outlet.

Test all aspects of its operation (manual switches, remote and heater) to make sure all

components are operating correctly.

As with most electronic devices, your new electric fireplace has been designed to operate at

temperatures between 5 ℃(41℉） and 35℃(95℉). During the cold winter months, allow the

fireplace to reach room temperature before turning it on.

NOTE: There may be trace of odor during the first few minutes of initial use. This is

harmless, normal and will never occur again.

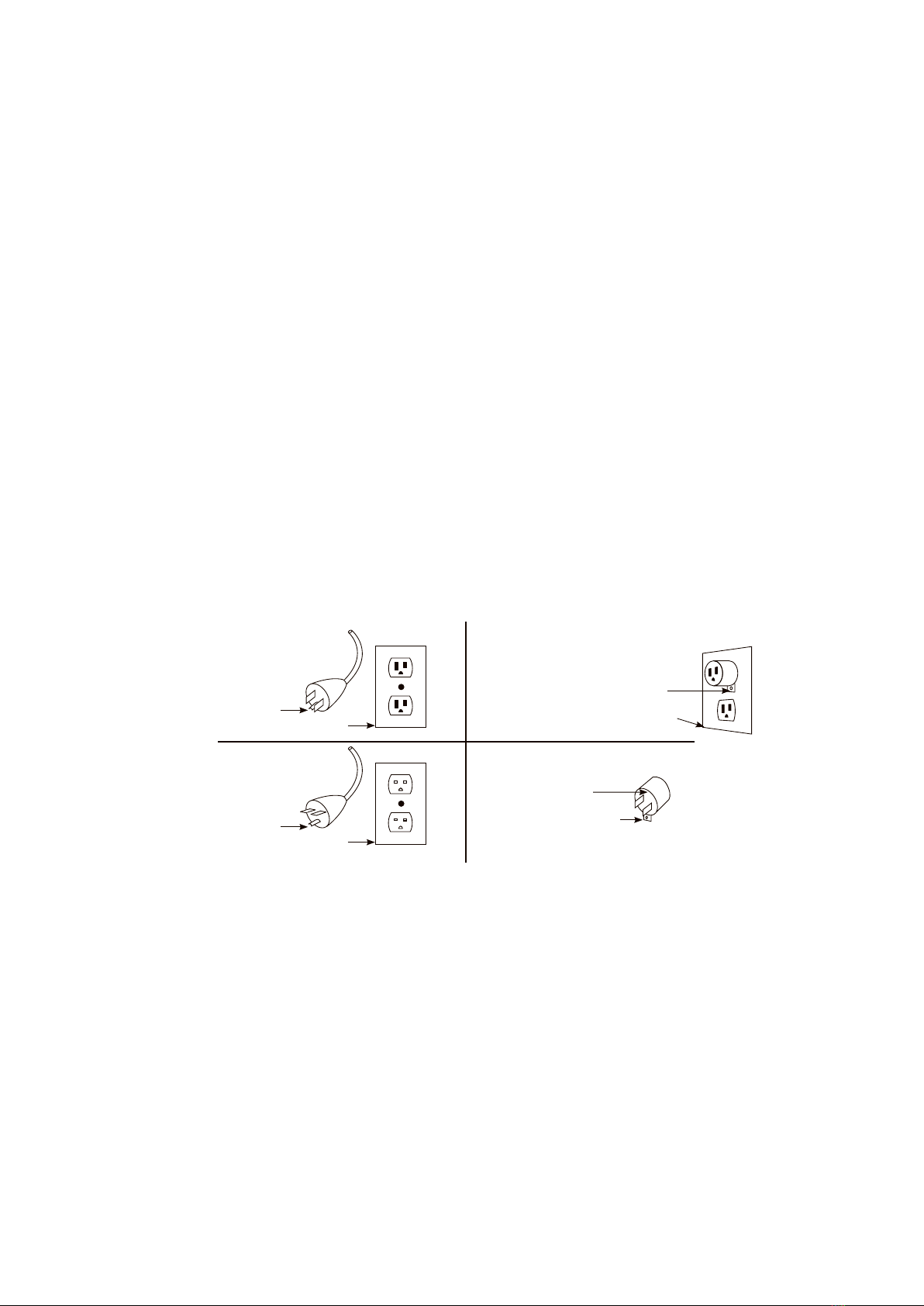

This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as

shown in (C) is available for connecting three-blade grounding type plugs to two-slot. The green

grounding lug extending from the adapter must be connected to a permanent ground such as a

properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle

is available.

To disconnect appliance, turn controls to off, then remove plug from outlet.

Plan where to locate and frame the fireplace. This will save time and money later when you install

the fireplace. Before installation consider the following:

1. Where the fireplace is located must allow for wall and ceiling clearances.

2. Consider a location where the fireplace screen will not be exposed to direct sunlight from

windows or doors.

3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the

location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip

of fuses to blow.

Adapter

Grounding Lug

Cover of Grounded Outlet Box

Grounding Pin

Cover of Grounded Outlet Box

Grounding Pin

Cover of Grounded Outlet Box

Metal Screw

A B

NOTE: Adaptors are NOT for use in Canada.

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

Do not share a socket with other appliances

when using electric fireplaces, please use a

dedicated socket.

Never use with an extension cord or

relocatable power tap (outlet / power strip).

√×

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

PRODUCT SPECIFICATION

This appliance has been tested in accordance with the UL Standard 2021 for fixed and location

dedicated electric room appliances in the United States and Canada. If you need assistance

during installation, please contact your local dealer.

NOTE: This appliance must be electrically wired and grounded in accordance with local

codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code

in Canada or the ANSI/NFPA 70 National Electrical Code in the United States.

AMB-IW-34-3

SYM-34-LUNINA

BS1900034-1 BS1900042-1 BS1900050-1 BS1900060-1

AMB-IW-42-3

SYM-42-LUNINA

AMB-IW-50-3

SYM-50-LUNINA

AMB-IW-60-3

SYM-60-LUNINA

H2 H1 H

product model

Voltage

1500W

120V AC 60Hz

Watts

Appliance size

(W x H x D)

Cord Length

Frame size

(W2 x H2 )

Wall Opening Size

(W3 x H3 x D3 )

Glass Viewing

(W1 x H1 )

32 3/8”x 15 5/8” x 6 1/8”

82.3 x 39.6 x 15.4 cm

30 5/8” x 13 1/8”

77.7 x 33.2 cm

34 1/2” x 16 7/8”

87.5 x 43 cm

33 3/8” x 15 3/4” x 6 1/2”

84.8 x 40 x16.4 cm

43 1/4” x 15 3/4” x 6 1/2”

109.7 x 40 x16.4 cm

51 1/4” x 15 3/4” x 6 1/2”

130.1 x 40 x16.4 cm

61 1/4” x 15 3/4” x 6 1/2”

155.5 x 40 x16.4 cm

L = 70.9”

L = 180 cm

40 3/8” x 13 1/8”

102.7 x 33.2 cm

48 1/2” x 13 1/8”

123.1 x 33.2 cm

58 3/8” x 13 1/8”

148.4 x 33.2 cm

42 1/4”x 15 5/8” x 6 1/8”

107.2 x 39.6 x 15.4 cm

44 1/4” x 16 7/8”

112.5 x 43 cm

52 1/4” x 16 7/8”

132.7 x 43 cm

62 1/4” x 16 7/8”

158.2 x 43 cm

50 1/4”x 15 5/8” x 6 1/8”

127.6 x 39.6 x 15.4 cm

60 1/4”x 15 5/8” x 6 1/8”

153 x 39.6 x 15.4 cm

NOTE: The wall opening size is suitable for fireplace without adjustable leveling feet.

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

AMB-IW-74-3

SYM-74-LUNINA

AMB-IW-88-3

SYM-88-LUNINA

AMB-IW-100-3

SYM-100-LUNINA

H2 H1 H

product model

Voltage

1500W

120V AC 60Hz

Watts

Appliance size

(W x H x D)

Cord Length

Frame size

(W2 x H2 )

Wall Opening Size

(W3 x H3 x D3)

Glass Viewing

(W1 x H1 )

74 1/4” x 15 5/8” x 6 1/8”

188.5 x 39.6 x 15.4 cm

72 3/8” x 13 1/8”

184 x 33.2 cm

76 1/4” x 16 7/8”

193.7 x 43 cm

75 1/4” x 15 3/4” x 6 1/2”

191 x 40 x16.4 cm

86 3/8” x 13 1/8”

219.5 x 33.2 cm

98 3/8” x 13 1/8”

250 x 33.2 cm

88 1/4” x 15 5/8” x 6 1/8”

224.1 x 39.6 x 15.4 cm

90 1/4” x 16 7/8”

229.3 x 43 cm

102 1/4” x 16 7/8”

259.7 x 43 cm

101 1/4” x 15 3/4” x 6 1/2”

257.1 x 40 x16.4 cm

89 1/4” x 15 3/4” x 6 1/2”

226.6 x 40 x16.4 cm

100 1/4” x 15 5/8” x 6 1/8”

254.6 x 39.6 x 15.4 cm

L = 70.9”

L = 180 cm

NOTE: The wall opening size is suitable for fireplace without adjustable leveling feet.

BS1900074-1 BS1900088-1 BS1900100-1

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 2423

OUTDOOR INSTALLATIONS

The Symmetry Bespoke Series electric fireplaces are suitable for installation in outdoor areas

protected from direct water impingement. In addition to maintaining the listed mantel and

combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front

and to each side of the installed appliance. See illustration below. All wiring connections to line

power shall be in accordance with local building code requirements. Inquires about local codes

and regulations must be done prior to installation.

The overhang(A) must extend at least 1/2 the roof-line height. Height is measured from the base

of the fireplace.

For example: if the roof-line(B) is 8” above the base of the fireplace, the overhang(A) must be at

least 4”.

This manual suits for next models

Table of contents

Other Amantii Indoor Fireplace manuals

Amantii

Amantii 30-TRV-SLIM User manual

Amantii

Amantii 2939-TRU-VIEW-XL User manual

Amantii

Amantii SYM-34 User manual

Amantii

Amantii SYM-B Series Installation and maintenance instructions

Amantii

Amantii BI-40-SLIM User manual

Amantii

Amantii ZC-FM-37 User manual

Amantii

Amantii WM-FM-26-3623-BG Operating instructions

Amantii

Amantii TRV-SLIM Installation and maintenance instructions

Amantii

Amantii Remii SYM-SLIM-42 User manual

Amantii

Amantii BI-S190040-1 Operating instructions

Amantii

Amantii CUBE-2025WM Operating instructions

Amantii

Amantii BI-30-XTRASLIM User manual

Amantii

Amantii INS-FM-30 User manual

Amantii

Amantii SYM XT Series Assembly instructions

Amantii

Amantii ZECL-26-2923 Original instructions

Amantii

Amantii TRD Series Manual

Amantii

Amantii BI-50-FLUSHMT-BLKGLS User manual

Amantii

Amantii BI-50-DEEP User manual

Amantii

Amantii WM-BI-2428-VLR-BG User manual

Amantii

Amantii INS-FM-30 User manual

Amantii

Amantii 40-TRV-XL-XT Owner's manual

Amantii

Amantii TRV SLIM Assembly instructions

Amantii

Amantii TRADITIONAL XTRASLIM Series Operating instructions

Amantii

Amantii BLT-IN-5124 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
