1

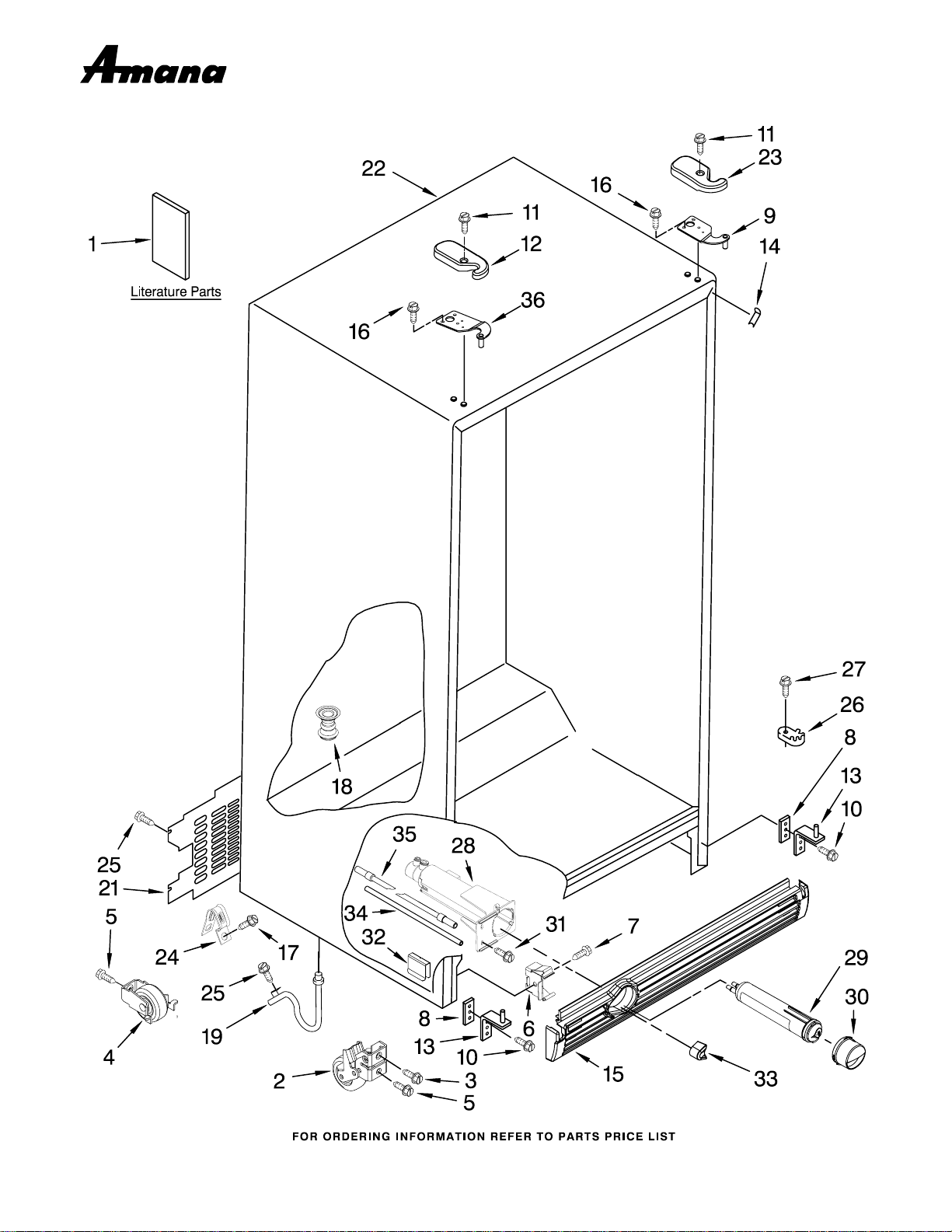

CABINET PARTS
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
01−09 Printed In U.S.A. (jdc)(bay) Part No. W10250810 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10194140
Energy Guide
W10162456
Owner’s Manual
W10238213
Service & Wiring
Sheet
628370 Modular Icemaker
Service Sheet
W10206334
Instruction Sheet
(Door Removal)
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5
W10146358
Screw
6 2155013 Clip, Grille
7
W10001260
Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10
W10142235
Screw
11 8281227 Screw
12 Hinge Cover (FC)
W10138576
White
W10138577
Black
13 Hinge Bottom
W10138965
RC
2303141 FC
14 Filler, Wrapper
2304846 White
2304848 Black
15 Grille
W10184886
White
W10184888
Black
16 489497 Screw
17
W10001250
Screw
18 2304888 Drain Fitting
19
W10153550
Extension Tube
21 2188739 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover (RC)
W10138581
White
W10138582
Black
24 549193 Clamp, Service
Cord
25
W10141645
Screw
26 Door Closer
2155311 RC
2223751 FC
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502B Black
31 489500 Screw
32 2260519 Block, Housing
Support
33 Button, Water
Filter
2260503W White
2260503B Black
34 2255012 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet
36 2203770 Hinge Top (FC)

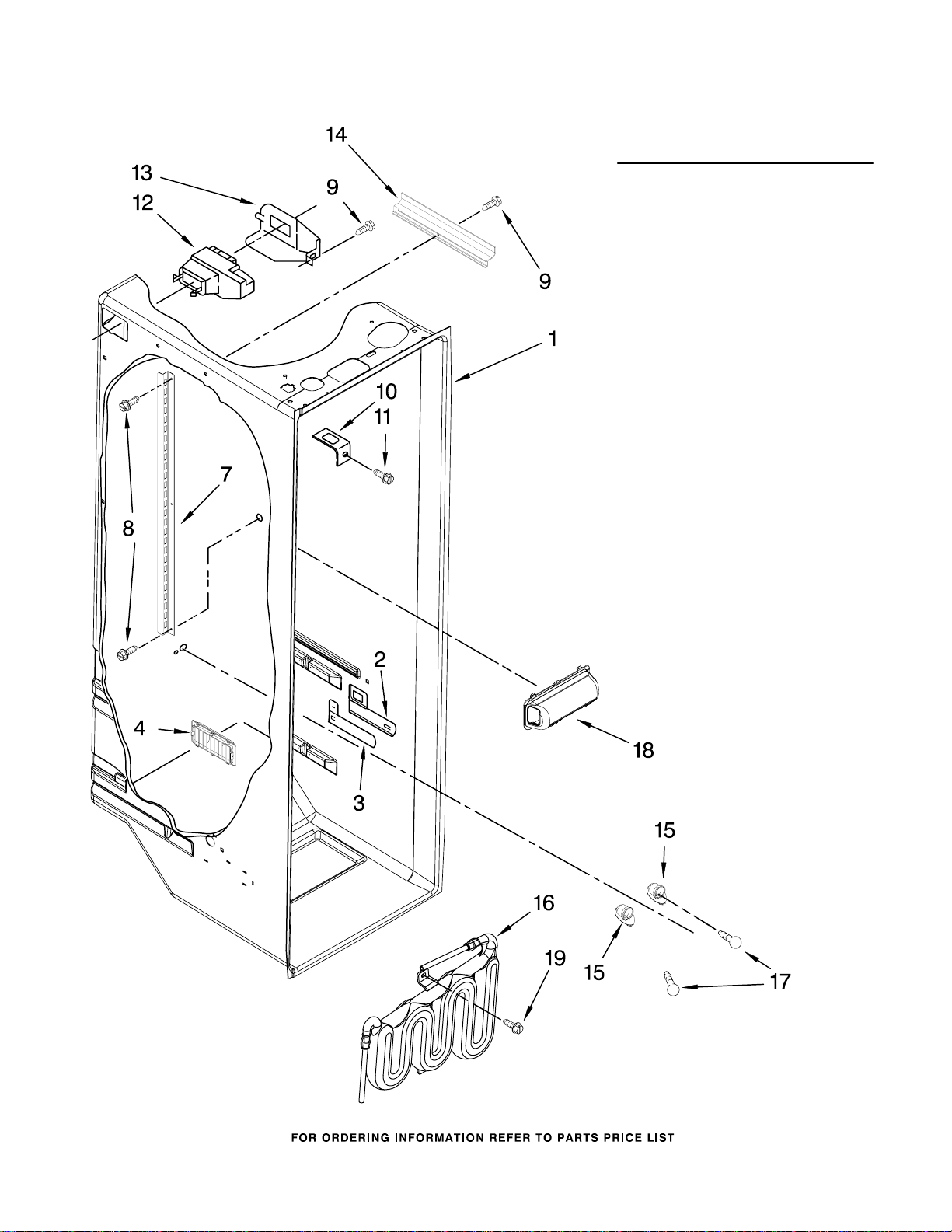

REFRIGERATOR LINER PARTS
3
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967
Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
7 2319866 Shelf Ladder
8
W10001260
Screw
9
W10004810
Screw (2)
10 2256085 Bracket Retainer
11 489290 Screw
12
W10151374
Air Diffuser
Assembly
13 2152019 Air Diffuser
Cover
14 2150331 Cover, Wiring
15 2162085 Socket
16 2307107 Reservoir
17 527949 Light Bulb
18
W10242623
Shield Assy, Light
19 488280 Screw

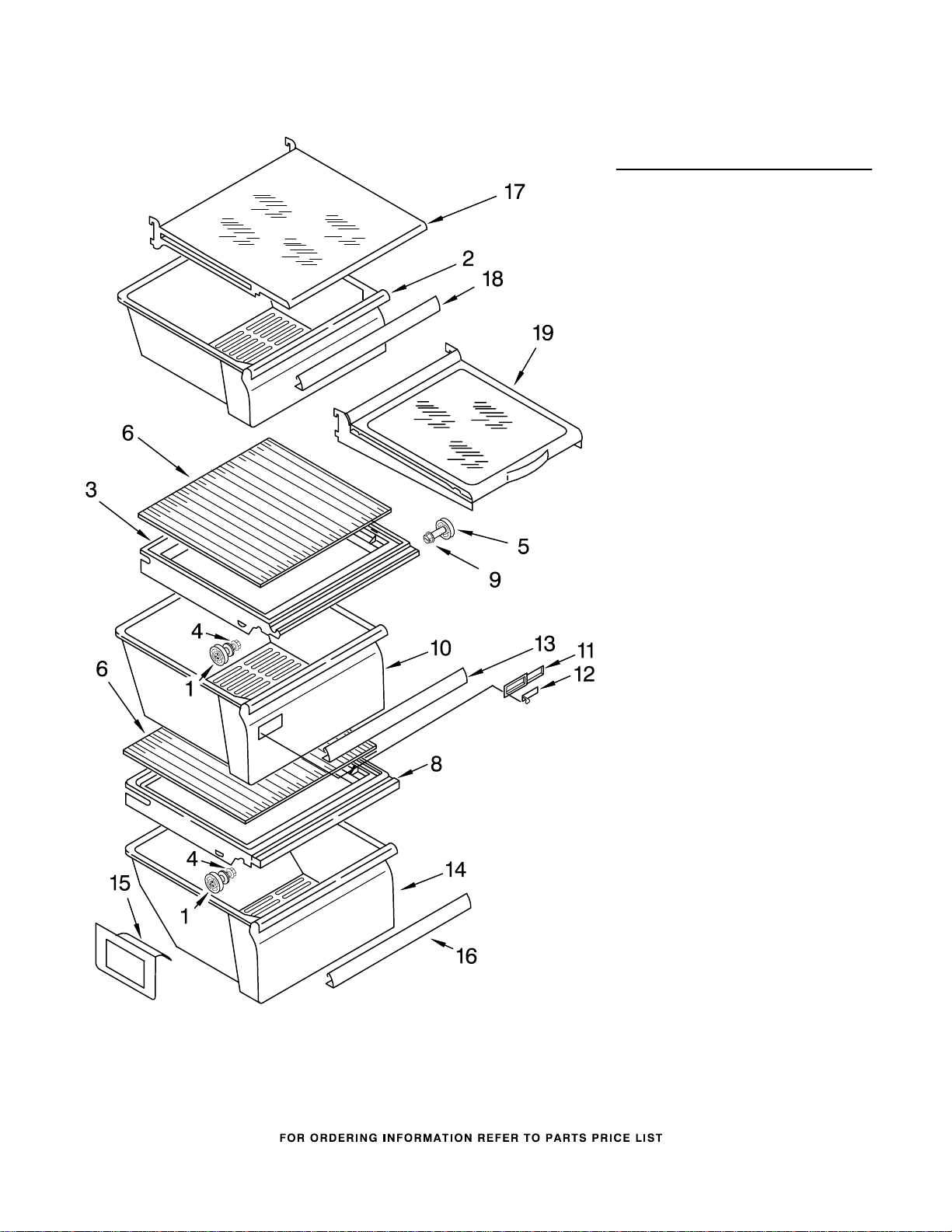

REFRIGERATOR SHELF PARTS
4
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
Illus. Part
No. No. DESCRIPTION
1 2196485 Stud Assembly
2 2188655 Snack Bin
3 2209698 Cover, Crisper
4 3400894 Screw
5 2196483 Stud Assembly
6 2179259 Glass, Meat Cover
8 2311726 Cover, Meat Pan
9 8281158 Screw
10 2188652 Crisper Pan
11 2179343 Body, Humidity
Control
12 2179342 Slide, Humidity
Control
13 2255593 Trim, Handle
14 2188654 Meat Pan
15 2179350 Deflector
16 2255592 Trim, Handle
17
W10141750
Shelf, Snack Bin
18 2179243 Trim, Handle
19
W10141749
Shelf Assembly,
Spillguard (2)

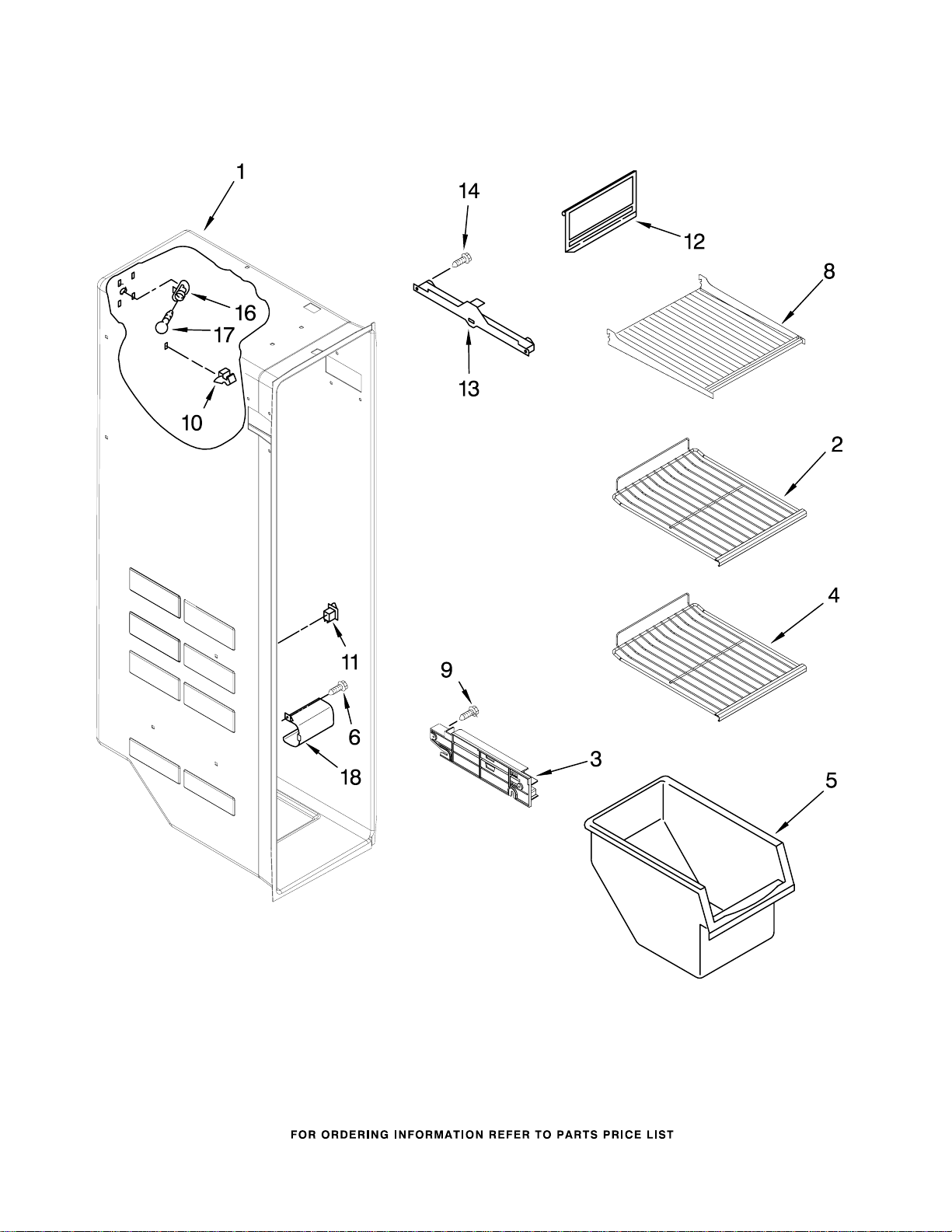

FREEZER LINER PARTS
5
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
FREEZER LINER PARTS
6
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2171714K Shelf, Slide Out
Upper
3 Track, Basket−Dual
2261449 Right
2261448 Left
4 2174268K Shelf, Slide Out
5 2182971 Freezer Bin
6 3400893 Screw
8 2174267K Shelf
9
W10004810
Screw (8)
10 842534 Clip, Air Duct (2)
11 1115373 Switch, Rocker Arm
12 2171713K Door, Ice Comp
13 Slide, Ice Maker
Mounting
1119293 Right Side
1119237 Left Side
14
W10001260
Screw
16 2162085 Light Socket
17 527949 Light Bulb
18 2171705 Light Lens

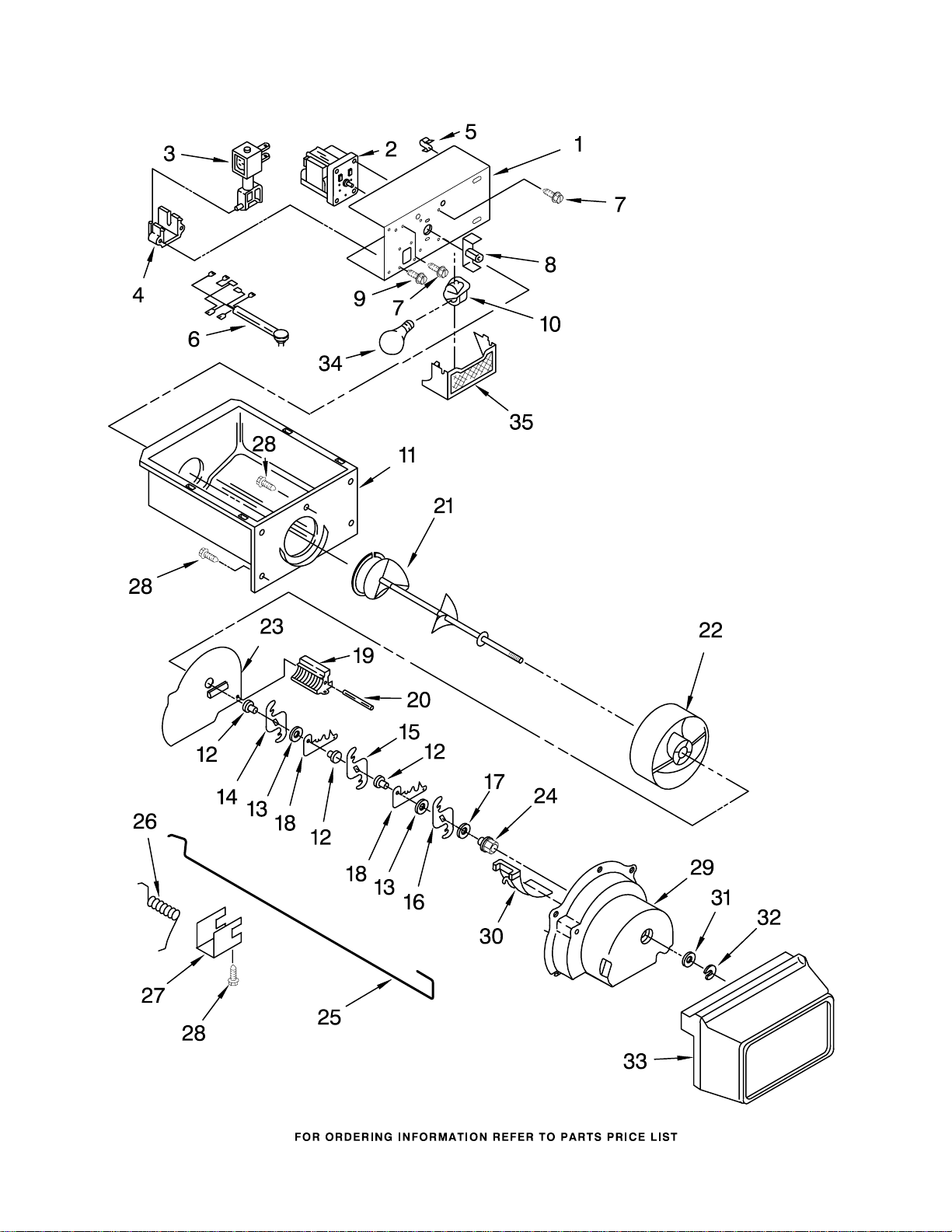

MOTOR AND ICE CONTAINER PARTS
7
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
MOTOR AND ICE CONTAINER PARTS
8
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
Illus. Part
No. No. DESCRIPTION
1 2254587 Bracket, Motor
2
W10181208
Motor, Dispenser
3 2152713 Solenoid Assy
4 2149100 Guide, Solenoid
5 1115374 Clip, Wiring
6 2206501 Wire Assy, Disp
7 489399 Screw
8
W10169511
Coupling, Mtr
9
W10001260
Screw
10 2162085 Socket, Light
11 2196091 Container, Ice
12 1119005 Spacer, Step (2)
13 1119007 Spacer, Flat (4)
14 2257022 Blade, Rotary
15 2257023 Blade, Rotary
16 2257024 Blade, Rotary
17 489235 Washer, Plain
18 1119009 Blade, Fixed (2)
19 2157405 Block, Blade
20 489229 Roll Pin
21 2196295 Auger
22 2305377 Drum
23 2171682 Baffle, Floating
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2204321 Cover, Ice Cont’r
34 527949 Bulb, Light
35 2171706 Lens, Light

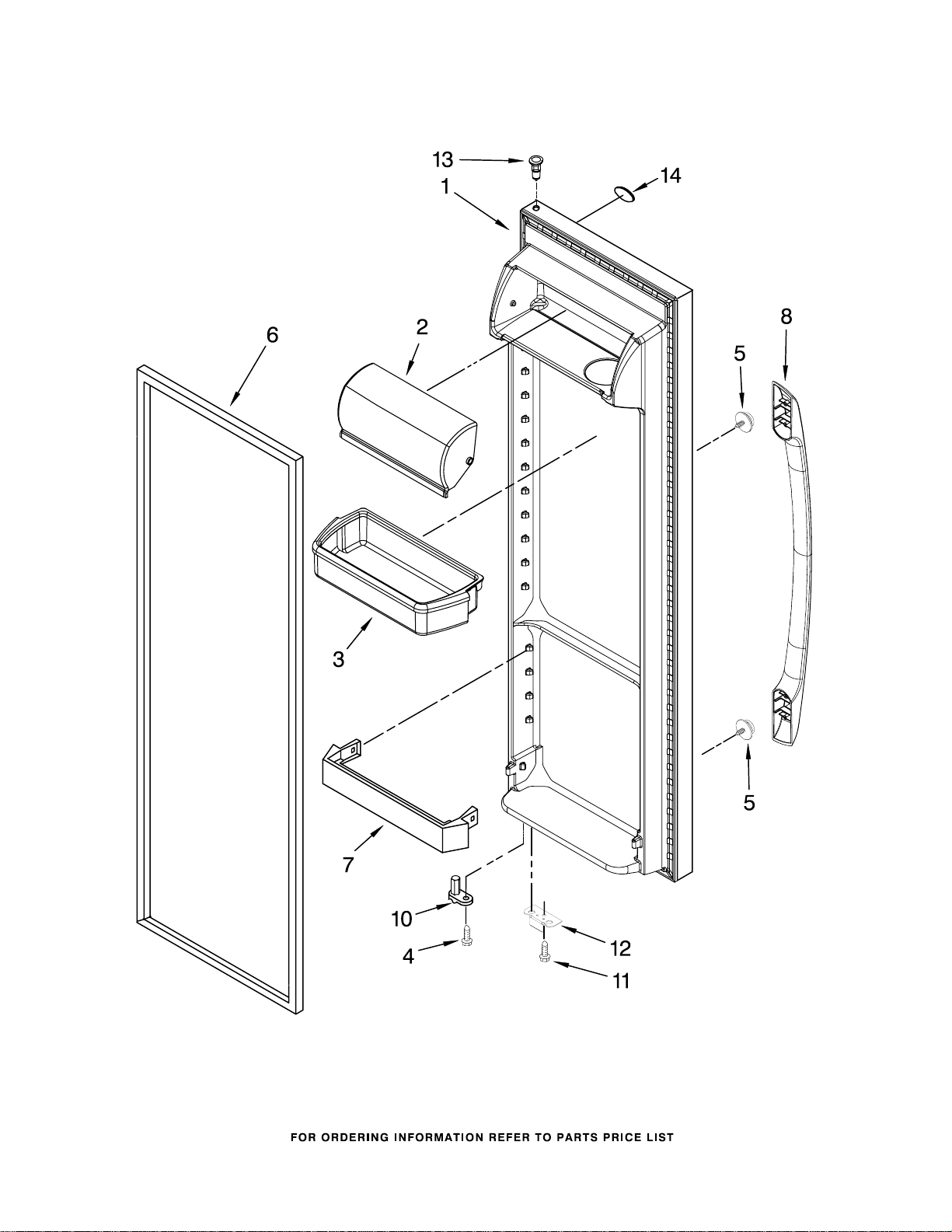

REFRIGERATOR DOOR PARTS
9
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
REFRIGERATOR DOOR PARTS
10
For Models: ASD2524VEW01, ASD2524VEB01, ASD2524VES01
(White) (Black) (Stainless Steel)
W10250810
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10173407
White
W10173409
Black
2318542S Stainless Steel
2 2256101 Compartment Door
3 2304235K Shelf Bin (3)
4 3400012 Screw
5 2326016 Screw, Mounting
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
7 2156022 Shelf Bin
8 Handle, Assy
W10179168
White
W10179166
Black
W10136871
Stainless
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13 2308091 Thimble−Top
14 12528501 Nameplate
