Amana AGR5844VDW0 User manual
COOKTOP PARTS
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
01−09 Litho in U.S.A. (JMJ) (eeb) Part No. W10213954 Rev. B
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10196161
Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10196156
Owners Manual
W10198635
Tech Sheet
9762761 Safer Cooking Tips
2 Cap, Burner
Left Front
W10173832
Grey
W10173833
Black
R. Front, L. Rear
W10169974
Grey
W10169984
Black
Right Rear
W10169975
Grey
W10169985
Black
3 Burner
8286182 Left Front
W10194076
R. Front, L. Rear
8286181 Right Rear
4 Cooktop
8272251 White
8272253 Black
5 Panel, Manifold
8523854 White
8523855 Black
6 Knob, Control (4)
W10163287
White
W10163288
Black
7 Grate, Burner (4)
W10165807
Grey
8053458 Black
8 3400701 Screw
9 3196557 Screw

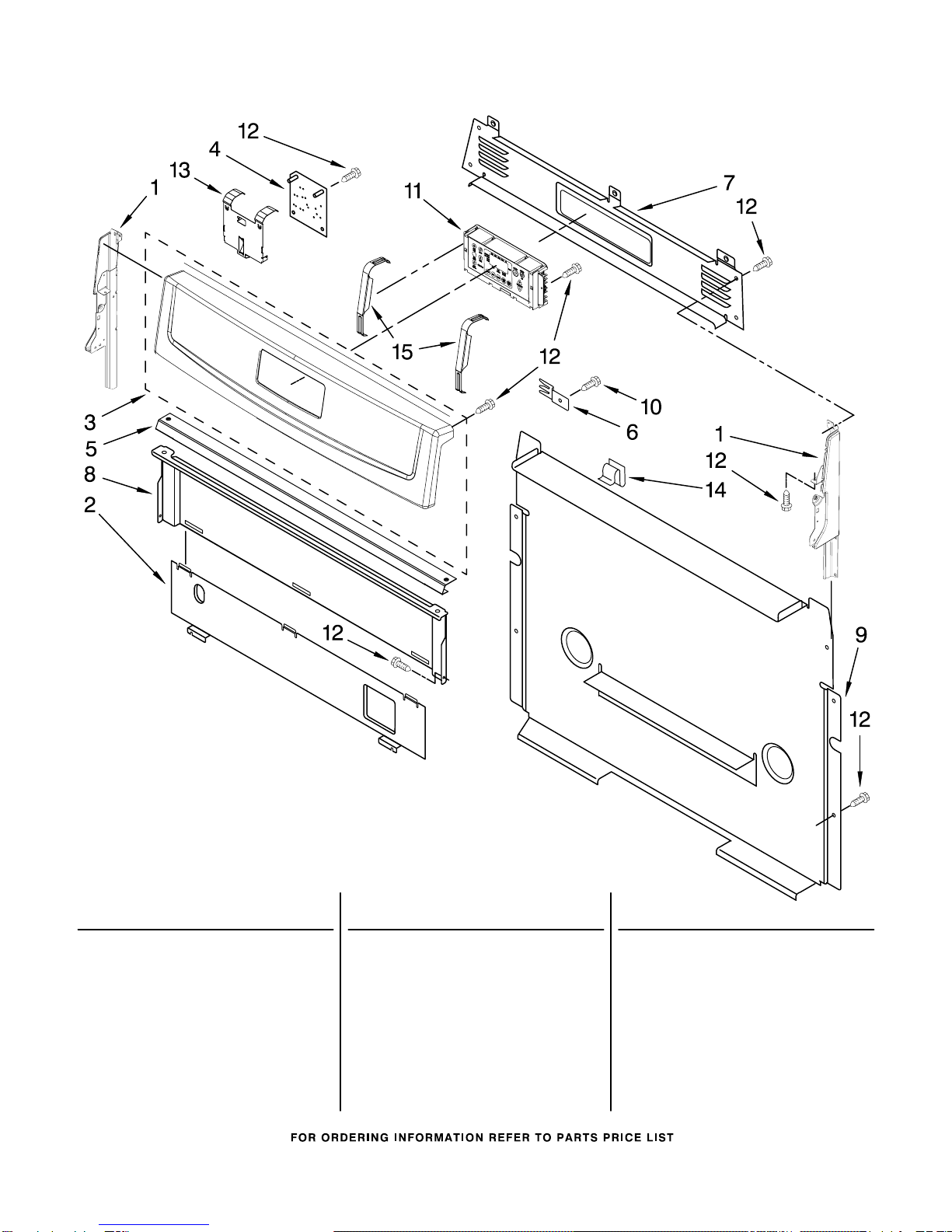

CONTROL PANEL PARTS
2
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap
W10184433
White Hand Left
W10184434
White Right Hand
W10184437
Black Left Hand
W10184438
Black Right Hand
2 8053505 Shield−Heat, Lwr
3 Panel, Console
W10170022
White
W10170023
Black
W10170024
Universal Silver
W10170025
Stainless Model
4 9758080 Module, Spark
5
W10211996
Brkt−Mntg, Console
6 8523412 Bracket, Support
7
W10198745
Cover, Upper
8
W10292841
Shield, Heat
9
W10184370
Cover, Back
10 3196169 Screw
11 Control, Range
W10173508
White
W10173509
Black
12 3196178 Screw
13
W10137524
Brkt−Mntg, DSI
14 8273564 Clip
15
W10138683
Bracket, EOC Mount
MANIFOLD PARTS
3
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
MANIFOLD PARTS
4
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
Illus. Part
No. No. DESCRIPTION
1 8273096 Screw, Valve
3 Tubing, Burner
W/Orifice
W10177324
Left Front
W10177165
Left Rear
W10177323
Right Front
W10177163
Right Rear
4
W10157928
Tubing (Manifold
to Regulator)
5 8523406 Harness, Igniter
(W/Switches)
6
W10216419
Electrode (4)
7
W10169928
Pipe, Manifold
8 Valve
9757218 LF − RF − LR
8273004 Right Rear
10 8273062 Screw (4)
11 3400228 Bolt
12 8054078 Burner, Broiler
13 8053970 Spreader, Flame
(Oven)
14 9758078 Burner, Bake
15 9761959 Valve/Regulator
16 Igniter
8054129 Broil
9758079 Bake
17 8272222 Tubing (Broiler
Fitting To Valve)
18 3186489 Fitting, Broiler
19 3400016 Screw
20 Orifice, Burner
W10170508
Left & Right Front
W10178934
Left Rear
W10170506
Right Rear
21
W10137062
Spreader, Flame
(Broiler)
22 3196265 Screw
23 3196176 Screw
24 3196385 Screw
Following Parts Not Illustrated
8523418 Spuds, LP Gas
(Kit of 4)
CHASSIS PARTS
5
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
CHASSIS PARTS
6
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10153186
Flue Box
2 8272747 Shield, Flue
3 8273036 Burner Box
4 Panel, Side (2)
8053830 White−Textured
8053832 Black
5 8523249 Brkt, Manifold Mtg
6 Frame, Front
(Not Serviced)
7 3196037 Foot, Front (2)
8
W10058460
Foot, Rear (2)
9 3195097 Bottom, Oven
10
W10181986
Sensor, Oven
11 8053967 Baffle, Burner
12 8053969 Shield, Heat
13 8053968 Shield, Lower
14 9760314 Rail, Base (2)
15
W10008830
Seal, Oven Flange
16 9758701 Spacer, Door
17
W10222733
Back, Main
18 8522416 Seal, Oven
19 8053971 Brace, Main Back
20 Retainer, Insul.
9761449 Left Hand
9761448 Right Hand
21
W10137382
Clip, Panel (4)
22 9757891 Cord, Power
23 9760407 Brkt − Hinge
24 9757262 Switch, Door
25 3196701 Light Socket Assy
26 311255 Bulb, Oven Light
27 9761013 Latch, Door
28
W10078370
Rod, Latch
29
W10107820
Latch−Mtr
30
W10114344
Glide, Drawer
31
W10182346
Insulation
32 3196560 Screw
33 3196178 Screw
34 3196152 Screw
35 Screw
3196166 White
3196168 Black
36
W10031780
Screw
37 3196179 Screw
38 3196177 Screw
39 3196168 Screw
40 9757239 Rod − Door Switch,
Rear Mount
INSULATION
8524099 Insulation, Wrap
W10180437
Insulation, Back
8272613 Insulation, Vent
DOOR PARTS
7
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
DOOR PARTS
8
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
W10144869
White
W10144870
Black
2
W10200660
Screw
3 Handle, Door
W10144888
White
W10144889
Black
W10144890
Stainless Model
4 9761344 Liner, Door
5
W10031790
Screw
6 9758162 Glass, Inner (2)
7 3186289 Frame, Glass
8 8272618 Insulation, Door
9 9761357 Retainer, Insul.
10 9761493 Hinge, Door
11 Glass, Outer Door
W10118454
White
W10118455
Black
12 Trim, Door Side
8523172 White Left Hand
8523166 White Right Hand
8523171 Black Left Hand
8523165 Black Right Hand
W10113925
Stainless LH
W10113926
Stainless RH
13 3196160 Screw
14 3196165 Screw
15
W10113759
Strap, Door
17 Trim, Bottom
8523175 White
8523177 Black
W10067550
Universal Silver
18 9761517 Clip, Door Mntg
19
W10031780
Screw
DRAWER & BROILER PARTS
9
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
Illus. Part
No. No. DESCRIPTION
1
W10179196
Rack, Oven (2)
2 9761031 Drawer, Storage
3
W10174397
Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
3196813 Black
5 Panel, Drawer Frnt
W10022090
White
W10022100
Black
9762180 Universal Silver
6 8053334 Spacer, Glide
7 3196168 Screw
8 3196567 Screw(Stls. Model)
9
W10133364
Panel(Stls. Model)
10
W10197980
Handle(Stls. Mdl)
11 9781235 Clip(Stls. Model)
OPTIONAL PARTS
10
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213954
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
REFINISHING MATERIAL
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
4396923 Pan − Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10182840
Harness, Main
(EOC Pyro)
W10170250
Harness, Wire
(Bake/Broil)
W10174458
Harness, Wire
(Cooktop Spark)
W10045060
Harness, Wire
(Ground)
3196896 Clip, Wire
3196520 Clip, Wire
313438 Clip, Harness
3196173 Screw
3196696 Clip, Harness
3196174 Screw−Grnd Harns
