Amana AER5822VAW0 User manual
COOKTOP PARTS
1
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
9−11 Litho in U.S.A. (MP)(bay) Part No. W10213958 Rev. B
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
1 Literature
W10196158
Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
W10196163
Owners Manual
W10198624
Tech Sheet
9762761 Safer Cooking Tips
2
W10162042
Spring, Element
3 3196170 Screw
4 Cooktop
W10172293
White
W10172294
Black
5 Element, Surface
8273992 LF/RR − 2500 W
8273994 LR/RF − 1200 W
6 3196169 Screw
7 3195060 Hinge, Cooktop
8
W10170526
Pan−Radiant Elem.
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION

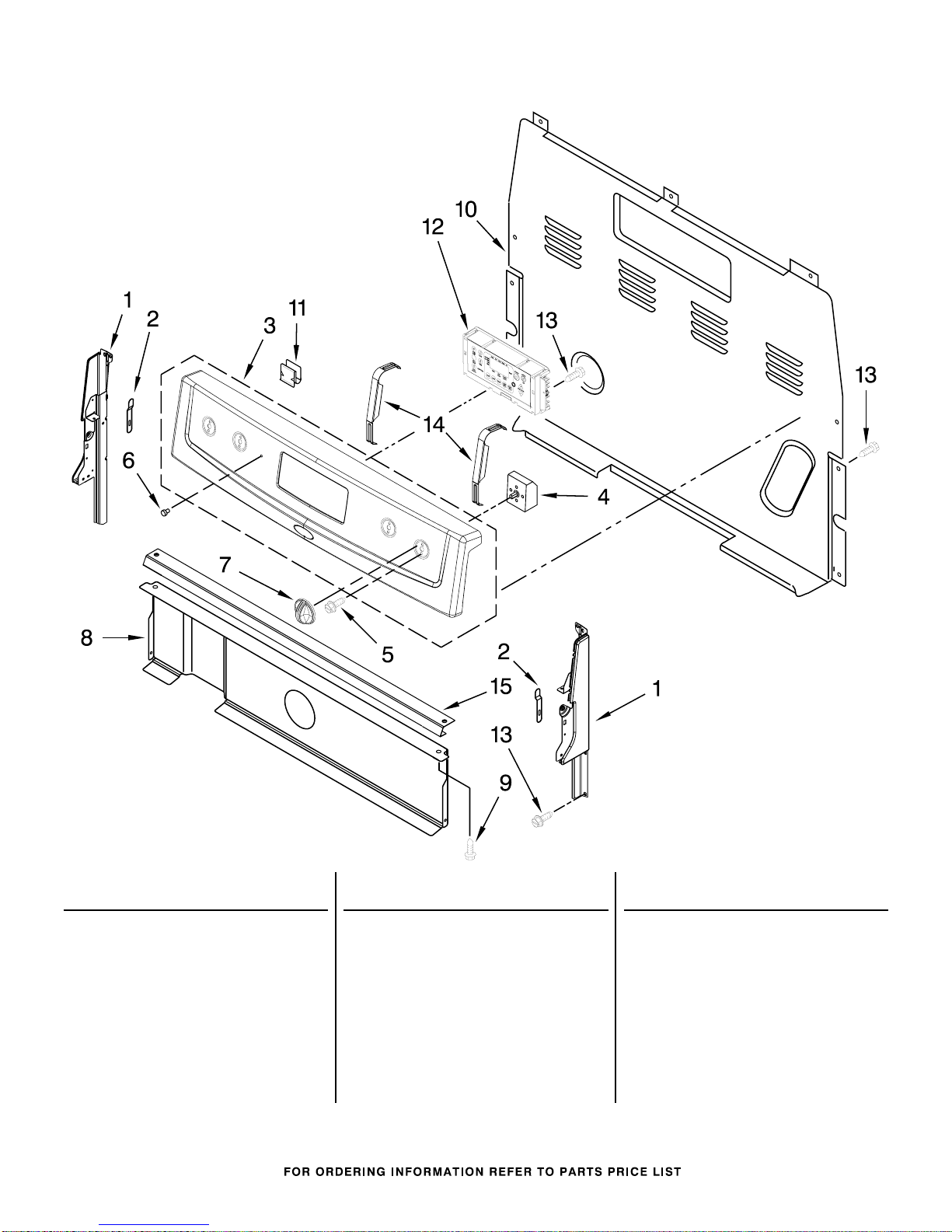

CONTROL PANEL PARTS
2
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213958
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009040
White Left Hand
W10009050
White Right Hand
W10009080
Black Left Hand
W10009090
Black Right Hand
2 3196200 Clip, Spring
3 Panel, Console
W10170011
White
W10170012
Black
W10170013
Universal Silver
W10170014
Stainless Steel
4 Switch, Infinite
3148954 LF/RF (Orange)
3148951 LR/RR (Silver)
5 3400882 Screw
6 3196068 Lens, Light
7 Knob, Infinite
W10119705
White
W10119706
Black
8
W10134247
Shield, Heat
9 3196166 Screw
10 8272473 Cover, Upper
11 8273564 Clip
12 Control, Range
W10173504
White
W10173505
Black & Stainless
13 3196178 Screw
14
W10138683
Brkt−Mntg, EOC
15
W10182322
Brkt−Mntg, Console
CHASSIS PARTS
3
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213958
CHASSIS PARTS
4
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213958
Illus. Part
No. No. DESCRIPTION
1 9760407 Receiver,
Hinge−Door
2
W10134285
Flue
3 Panel, Side
8053830 White
8053832 Black
4
7103P027−60
Nut
5
W10129032
Seal, Oven Door
6 9757340 Element, Broil
7 9758541 Element, Bake
8 9761517 Clip,Door Mntg
9 3196174 Screw
10
W10114344
Glide, Drawer Frnt
11 3196037 Foot, Front
12
W10067840
Screw
13 8054068 Tray, Insulation
14
W10137382
Clip, Panel
15 9760314 Rail, Base
16
W10058460
Foot, Rear
17 3196548 Thermal, Fuse
18 3196172 Screw
19 3186116 Support, Oven
20 3186034 Bracket, Service
21 9761958 Block, Terminal
22 8274034 Back, Main
23 3196566 Screw
24 3196701 Light Socket Assy
25 311255 Bulb, Oven Light
26 9758701 Spacer − Door
27
W10181986
Sensor, Oven
28 3196169 Screw
29
W10031780
Screw
30 3196178 Screw
31 3400016 Screw
32 9758283 Cover, Box
INSULATION
8273263 Insulation, Wrap
8272611 Insulation, Back
8272613 Insulation, Vent
DRAWER & BROILER PARTS
5
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213958
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10138079
Rack, Oven
2 9761031 Drawer, Storage
3
W10174396
Bracket, Drawer
4 Rivet, Push
3196814 White
3196813 Black
5 Panel, Drawer Frnt
8053339 White
8053341 Black
9761694 Universal Silver
6 8053334 Glide, Drawer
7 3196168 Screw
8 489355 Screw(Stls. Model)
9
W10282465
Panel(Stls. Model)
10 3196165 Screw
DOOR PARTS
6
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213958
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Vent, Top
W10144869
White
W10144870
Black
2
W10200660
Screw
3 Handle, Door
W10144888
White
W10144889
Black
W10144890
Stainless Steel
4 9761344 Liner, Door
5
W10031790
Screw
6 9758162 Window, Inner
7 9761501 Retainer, Insul.
8 Hinge, Door
Active −
W10299225
(White, Black)
W10299224
(Silver)
W10299226
(Stainless)
Passive −
W10299227
(All Models)
9 Glass, Outer
W10118454
White
W10118455
Black
W10144884
Stainless
(Includes SS
Panel)
10 Trim, Side
8523172 White Left Hand
8523166 White Right Hand
8523171 Black Left Hand
8523165 Black Right Hand
11 3196160 Screw
12 Trim, Lower
8523175 White
8523177 Black
W10067550
Silver
13
W10113759
Strap, Door
14
W10031780
Screw
15
W10178143
Screw
OPTIONAL PARTS (NOT INCLUDED)
7
For Models: AER5822VAW0, AER5822VAB0, AER5822VAD0, AER5822VAS0
(White) (Black) (Universal Silver) (Stainless Steel)
W10213958
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
REFINISHING MATERIAL
242756 Touch−Up
Self−Clean(1/2 Pt)
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
8212473 Universal Silver
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
4396923 Pan, Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10174424
Harness, Wire
(Cooktop Left)
W10174422
Harness, Wire
(Cooktop Right)
W10174459
Harness, Wire
(Sensor/Dr Switch)
8523279 Wire, Ground
3196154 Screw
W10251766
Harness, Wire
(Main)
W10144763
Tie, Wire
(Ceran Cktop)
313660 Clip, Wire Ground
3196173 Screw
3196174 Screw
(Grnd Wire / Back)
