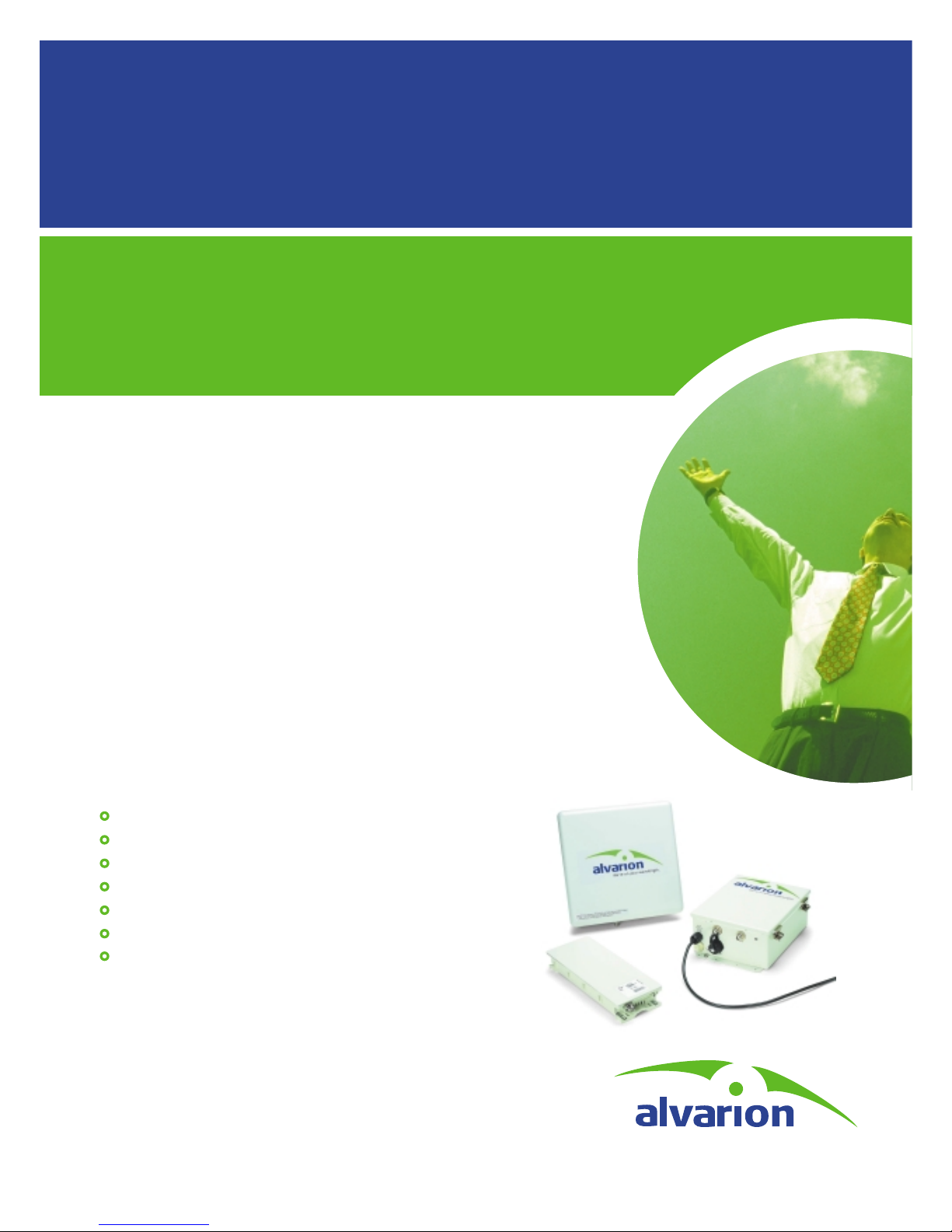

Specifications
Specifications
Radio Frequency 2.400-2.4835 GHz ISM band
Operating Mode Time Division Duplex
Radio Access Method FH-CDMA
Standard Compliance FCC Part 15.247
Channel Bandwidth 1 MHz
Antenna (SU-RA) [downlink] 16 dBi, 20°x 20°, VPOL, EN 301 525 Class TS 2 compliant
Antenna Port (AU-RE) [mirco-cell] N-Type Connector, 50 ohm
Output Power (at antenna port) 26 dBm typical. Control Range 20 dB typical
Maximum RX Input Power -20 dBm
Gross Bit Rate at sensitivity, typical 1 Mbps -87 dBm
(dBm at antenna port, BER 10E-6) 2 Mbps -81 dBm
3 Mbps -73 dBm
Modulation 2, 4, 8 level GFSK modulation (1, 2, 3 bits / symbol).
IF Communication Interface
IF Frequency 440 MHz
IF cable Impedance 50 ohm
Maximum IF cable Attenuation 15 dB
Maximum IF cable DC Resistance 1.5 ohm
Interface
Interface SU-RA AU-RE Interface Unit
IF TNC jack, lightning TNC jack, lightning TNC jack, lightning protected
protected protected
ANT N-Type jack, lightning protected
Ethernet & 10Base-T (RJ-45) in a sealed Physical Media ENSR 1FB5
Monitor Receptacle that mates with ENSAM315 field
attachable connector
Power 12 VDC from Interface 12 VDC from Interface UL/CSA listed power cable through
Unit via the IF cables Unit via the IF cables a Heyco-Flex Straight Connector
Electrical, Mechanical and Environmental
AU-RE SU-RA Interface Unit
Electrical 12 VDC from 12 VDC from Interface 110-240 VAC, 50-60Hz, 1.4A max
Unit via the IF cable Unit via the IF cables
Mechanical 12 x 4.7 x 1.8 in, 3.5 lbs 12 x 12 x 2.8 in, 5.5 lbs 11 x 9 x 4.3 in, 13 lbs
30.6 x 12 x 4.7 cm, 1.6 kg 30.6 x 30.6 x 7.2 cm, 2.5 kg 28 x 23 x 11cm, 5.9 kg
Operating Temperature -40°F to 131°F -40°F to 131°F14°F to 131°F
-40°C to 55°C -40°C to 55°C -10°C to 55°C
Operating Humidity 100% RH Condensing 100% RH Condensing 100% RH Condensing
Standards Compliance, General
EMC FCC Part 15.247, 15.207, 15.209
Safety IEC 60 950 US/C (TUV), FCC 1.1307
Environmental ETS 300 019 part 2-4 class 4.1E
Radio FCC Part 15.247
