Altronix TROVE T1RM3F4V User manual

T1RM3F4V

4 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove1R rack enclosure with Altronix and Mercury/LenelS2 backplane (TM1R)

- (1) eFlow6NBV - Power Supply/Charger

- (1) VR6 - Voltage Regulator

- (1) PDS8 - Fused Dual Output Power Distribution Module

- (1) ACM4 - Fused Access Power Controller

T1RM3F4DV

4 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove1R rack enclosure with Altronix and Mercury/LenelS2 backplane (TM1R)

- (1) eFlow6NBV - Power Supply/Charger

- (1) VR6 - Voltage Regulator

- (1) PDS8CB - PTC Dual Output Power Distribution Module

- (1) ACM4CB - PTC Access Power Controller

Access & Power Integration

Rev. T1RM3F4V080720

Installing Company: _________________________ Service Rep. Name: __________________________________________

Address: _________________________________________________________ Phone #: _________________________

All registered trademarks are property of their respective owners.

Installation Guide

More than just power.™

- 2 - T1RM3F4(D)V

Overview:

Altronix T1RM3F4V and T1RM3F4DV rack kits are pre-assembled and consist of Trove1M1R enclosure/backplane with factory installed Altronix

power supply/charger and sub-assemblies. These kits also accommodate various combinations of Mercury/LenelS2 boards for up to four (4)

doors in a single enclosure.

Configuration Chart:

Altronix

Model

Number

220VAC 50/60Hz

P/S Input Current (A)

Power Supply Board

Input Fuse Rating

Power Supply Board

Battery Fuse Rating

Nominal DC

Output Voltage Maximum Supply

Current for Main and

Aux. Outputs on

Power Supply board,

PDS8(CB) Power

Distribution Module

and ACM4(CB) Access

Power Controller’s

outputs (A)

Current Per

ACM4 Output (A)

Current Per

ACM4CB Output (A)

ACM4(CB) Board

Input Fuse Rating

ACM4 Board

Output Fuse Rating

ACM4CB Board

Output PTC Rating

Fail-Safe/Fail-Secure or

Dry Form “C” Outputs

(ACM4 Only)

PDS8 Board

Input Fuse Rating

PDS8 Board

Output Fuse Rating

PDS8CB Board

Input PTC Rating

PDS8 Board

Output Fuse Rating

[DC] [Aux]

24VDC Output

Range (V)

24VDC Output

Range (V)

T1RM3F4V

2.5 5A/

250V

10A/

32V

20.28-

26.4

20.28-

26.4 24VDC @ 5.6A

2.5 – 10A/

250V

3A/

32V –

10A/

32V

3A/

32V – –

T1RM3F4DV – 2.0 – 2.5A – – 9A 2.5A

Hardware and Accessories:

Specifications:

Agency Listings:

• CE European Conformity.

Mechanical:

• Black enclosure with ample knockouts for convenient access.

• Includes: tamper switch, cam lock and mounting hardware.

• Modular 2U standard EIA 19” drawer with

extendable slides up to 48”.

• Dimensions (H x W x D): 3.25” x 19.0” x 26.5”

(82.6mm x 482.6mm x 673.1mm).

Included Accessories:

• One (1) tamper switch (Altronix Model TS112 or equivalent).

• Cam lock.

Available Accessories (not included):

• RE2: Rack Mount Battery Enclosure

accommodates up to four (4) 12VDC/7AH batteries.

• WM5, WM25, WM100: Magnetic Cable Tie Mounts

(5, 25, 100 counts).

Spacer | 5/16” Pan Head Screw | Lock Nut

T1RM3F4(D)V - 3 -

Assembling and Attaching Z Bracket Wire Management Accessory (included):

Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.

1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 1, pg. 3).

2. Attach arms to each other using bolts and lock nuts (Fig. 1a, pg. 3).

3. Attach the hinge brackets to the ends of arms using bolts and nuts positioning them as shown on Fig. 1b, pg. 3.

4. Make sure that all nuts are tightened.

5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable rail using bolts and lock nuts (included) (Fig. 2, 2a, pg. 3).

6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).

Fig. 2

Fig. 2a

Hardware (included):

Ten (10) bolts and eight (8) lock nuts

Two (2)

Fig. 1

Fig. 1b

Fig. 1a

- 4 - T1RM3F4(D)V

Installation Instructions for T1RM3F4(D):

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).

2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down.

Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig. 3, pg. 4).

Insert the tamper switch into the knockout from outside of the drawer with the button facing outwards and spaded connectors

inside the drawer. Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.

To activate alarm signal open the rack drawer.

3. Slide the rack enclosure into an open 2U location in the four post rack cabinet.

4. Utilizing proper fasteners attach front ears to the rack rails.

5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.

6. Ensure that all internal cofigurations (voltage selection, switch settings, etc.) are completed before mounting backplane back into

Trove rack enclosure.

7. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and corresponding sub-assembly Installation Guides for

the following models: ACM4(CB), PDS8(CB), VR6 for further instructions.

Fig. 3

Tamper Switch mounting location

Back of the drawer,

viewed from outside.

T1RM3F4(D)V - 5 -

Altronix - PDS8(CB)/VR6

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

1 2 3 4 5 6 7 8

Common Power Outputs (NEG)

+ INP1 - + INP2 -

PWR1+

PWR2+

COM(-)

PWR1+

COM(-)

PWR1+

Altronix - ACM4(CB)

--- +

Control

--- +

Power

NO C NC

FACP INTERFACE

+ INP --- T + RET ---

TRG

TRIGGER

INPUT

IN GND

NC C NO COM

OUTPUT 1

NC C NO COM

OUTPUT 2

NC C NO COM

OUTPUT 3

NC C NO COM

OUTPUT 4

IN GND

ACM4

ACCESS POWER

CONTROLLER

RoHS

MAIN

Altronix - eFlow6NBV

L G N

DCAC1 1 min

enable

2 hr.

disable

OFF - 24V

ON - 12V

TRIGGER EOL

SUPERVISED

--- BAT + --- DC +

NC C NO

AC FAIL

NC C NO

BAT FAIL + AUX ---

NO GND

RESET

VR6 is mounted under PDS8(CB)

To IEC connector

To LED lense

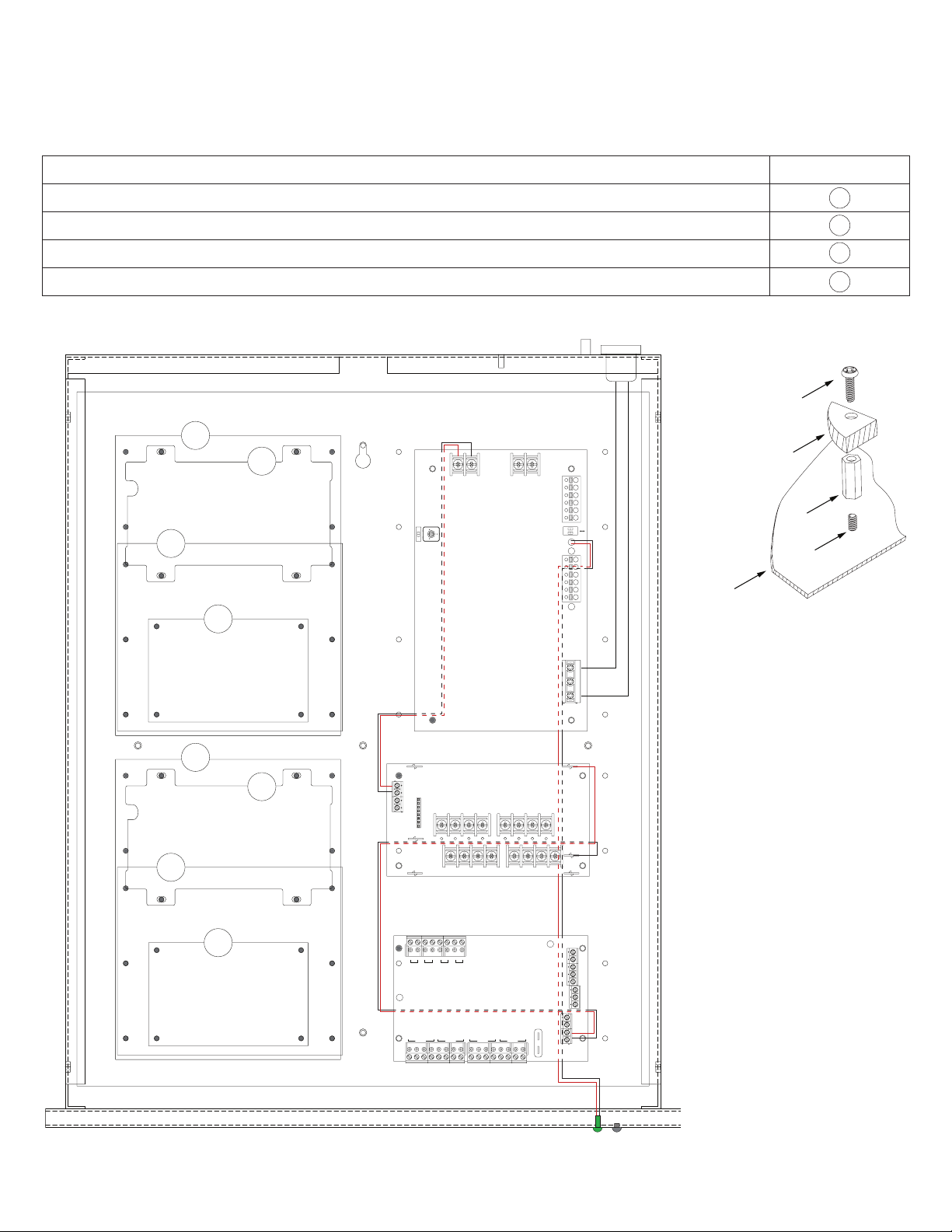

T1RM3F4(D)V: Configuration of Mercury Boards:

1. Fasten spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 5, pg. 5).

2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).

3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

Mercury/LenelS2 Access Controller Pem Mounting

LP1502, MR52, MR16IN, MR16OUT A

LP2500, MUX8 B

LP1501, MR62e C

MR50 D

Fig. 5

Pem

Spacer

Backplane

Power Supply or

Sub-Assembly

Pan Head Screw

Fig. 5a

- 6 - T1RM3F4(D)V

Notes:

T1RM3F4(D)V - 7 -

Notes:

- 8 - T1RM3F4(D)V

Trove1R Enclosure Dimensions (H x W x D):

3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.

0.1”

2.5mm

1.5”

38.1mm

11.175” (283.8mm)

2.4”

61mm

4.57”

116.1mm

3.25”

82.3mm

26.5”

673.1mm

19” (482.6mm)

R 1.27” (32.3mm)

1” (25.4mm)

0.55” (14mm)

3.62”

92mm

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

web site: www.altronix.com | e-mail: [email protected] | Made in U.S.A.

IIT1RM3F4(D)V G14U
