Altronix Trove T1RAL13F8P8 User manual

Rev. T1RAL13F8P8032019

T1RAL13F8P8

Fully assembled kit includes:

- Trove1R rack enclosure with Altronix backplane (TAL1R)

- (1) eFlow4NB - Power Supply/Charger

- (1) eFlow6NB - Power Supply/Charger

- (1) ACM8 - Fused Access Power Controller

- (1) PD8UL - Fused Power Distribution Module

Installation Guide

All registered trademarks are property of their respective owners. More than just power.™

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

Access & Power Integration

- 2 - T1RAL13F8P8

Overview:

Altronix T1RAL13F8P8 Trove Rack kit is pre-assembled and consist of Trove1AL1R enclosure/backplane with factory installed Altronix

power supply/chargers and sub-assemblies.

Configuration Chart:

Altronix

Model

Number

120VAC

60Hz

Input

Current

(A)

Power

Supply

Boards’

Input

Fuse

Rating

Power

Supply

Boards’

Battery

Fuse

Rating

Nominal DC

Output Voltage Maximum Supply

Current for Main

and Aux. Outputs

on Power Supply

board and ACM8

Access Power

Controller’s outputs

Fail-Safe/

Fail-Secure

or Dry

Form “C”

Outputs

Additional

Fuse

Protected

Outputs

Current Per

ACM8 Output

ACM8 Board

Input Fuse Rating

ACM8 Board

Output Fuse Rating

PD8UL Board

Input Fuse Rating

PD8UL Board

Output Fuse Rating

[DC] [Aux]

Output

Range

(VDC)

Output

Range

(VDC)

T1RAL13F8P8 75A/

250V

10A/

32V

Power Supply 1 (24VDC)

8 8 2.5A 15A/

32V

3.5A/

250V –3.5A/

250V

20.19-

26.4

20.19-

26.4 24VDC @ 5.7A

Power Supply 2 (12VDC)

10.0-

13.2

10.1-

13.2 12VDC @ 4A

Specifications:

Agency Listings:

• CE European Conformity.

Mechanical:

• Black enclosure with ample knockouts for convenient access.

• Includes: tamper switch, cam lock and mounting hardware.

• Modular 2U standard EIA 19” drawer with

extendable slides up to 48”.

• Dimensions (H x W x D): 3.25” x 19.0” x 26.5”

(82.6mm x 482.6mm x 673.1mm).

Included Accessories:

• One (1) tamper switch (Altronix Model TS112 or equivalent).

• Cam lock.

Available Accessories (not included):

• RE2: Rack Mount Battery Enclosure

accommodates up to four (4) 12VDC/7AH batteries.

• WM5, WM25, WM100: Magnetic Cable Tie Mounts

(5, 25, 100 counts).

T1RAL13F8P8 - 3 -

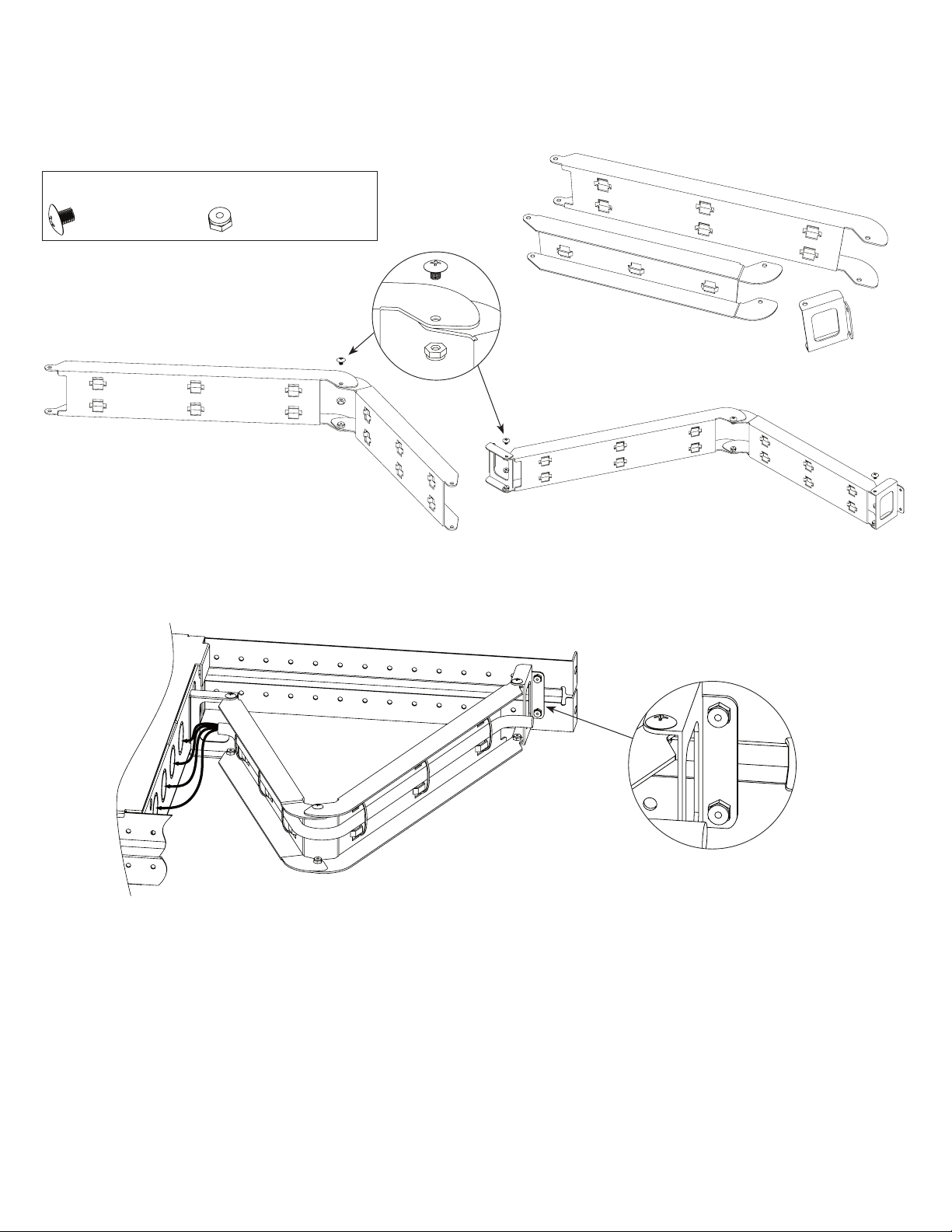

Assembling and Attaching Z Bracket Wire Management Accessory (included):

Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.

1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 1, pg. 3).

2. Attach arms to each other using bolts and lock nuts (Fig. 1a, pg. 3).

3. Attach the hinge brackets to the ends of arms using bolts and nuts positioning them as shown on Fig. 1b, pg. 3.

4. Make sure that all nuts are tightened.

Fig. 2

Fig. 2a

5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable rail using bolts and lock nuts (included) (Fig. 2, 2a, pg. 3).

6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).

Hardware (included):

Ten (10) bolts and eight (8) lock nuts

Two (2)

Fig. 1

Fig. 1b

Fig. 1a

- 4 - T1RAL13F8P8

Installation Instructions for T1RAL13F8P8:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having

jurisdiction. Product is intended for indoor use only.

1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).

2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down.

Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig. 3, pg. 3).

Insert the tamper switch into the knockout from outside of the drawer with the button facing outwards and spaded connectors inside

the drawer. Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.

To activate alarm signal open the rack drawer.

3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.

4. Utilizing proper fasteners attach front ears to the rack rails.

5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.

6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete before mounting backplane back

into enclosure.

7. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow4NB and eFlow6NB, and corresponding sub-assembly

Installation Guides for ACM8(CB) and PD8UL for further instructions.

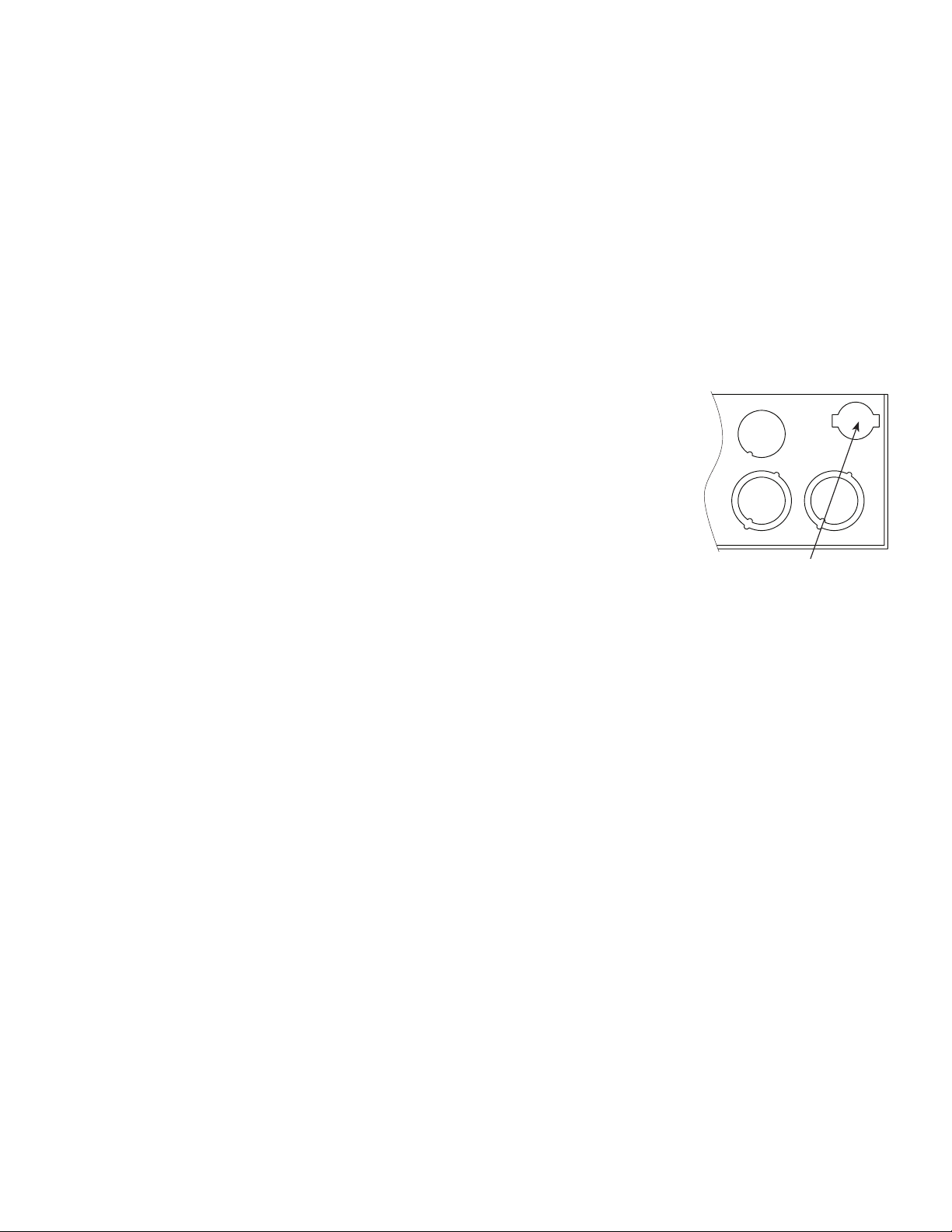

Fig. 3

Tamper Switch mounting location

Back of the drawer,

viewed from outside.

T1RAL13F8P8 - 5 -

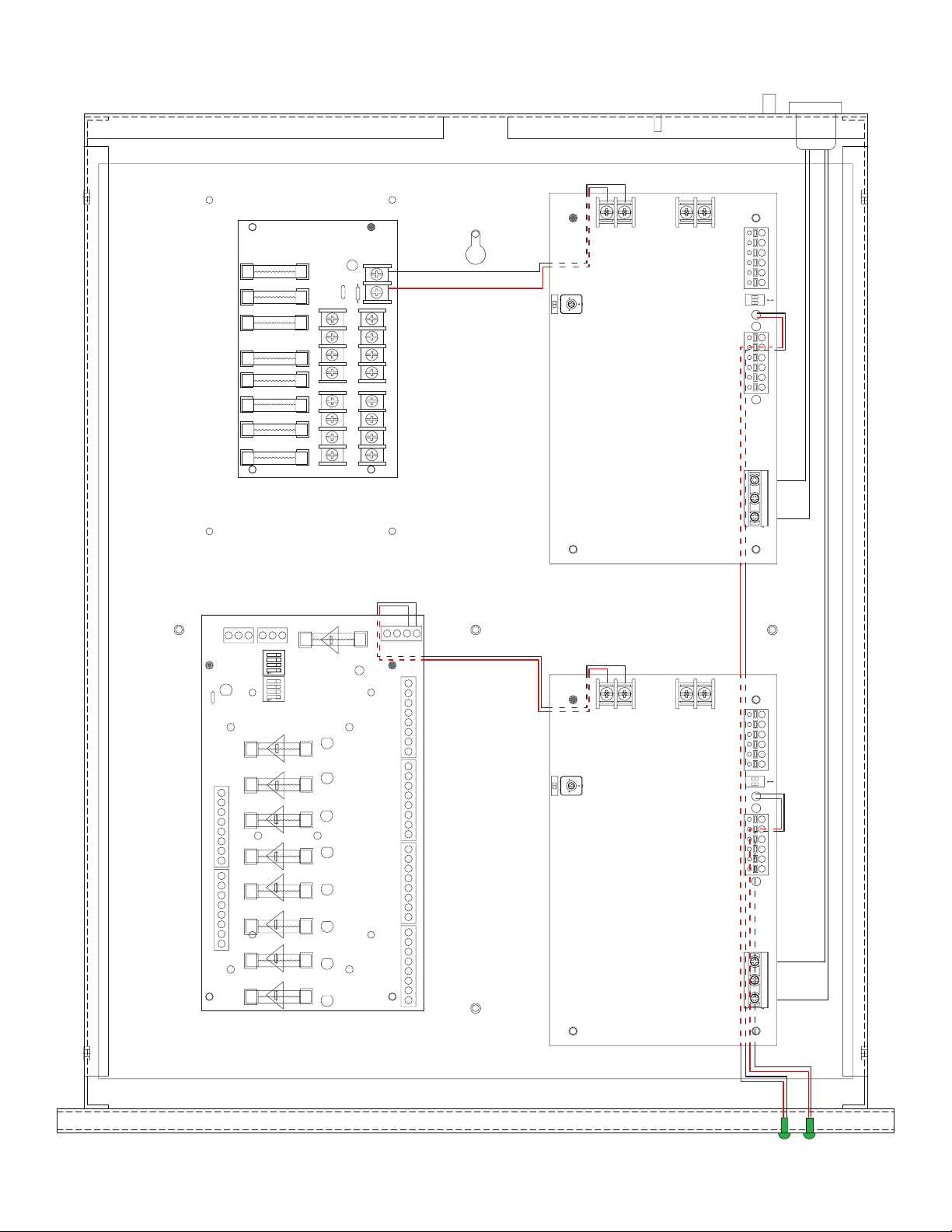

T1RAL13F8P8 Configuration

Fig. 4

L G N

DCAC1 1 min

enable

2 hr.

disable

OFF - 24V

ON - 12V

TRIGGER EOL

SUPERVISED

--- BAT + --- DC +

NC C NO

AC FAIL

NC C NO

BAT FAIL

+ AUX ---

NO GND

RESET

Altronix - eFlow4NB

12VDC

L G N

DCAC1 1 min

enable

2 hr.

disable

OFF - 24V

ON - 12V

TRIGGER EOL

SUPERVISED

--- BAT + --- DC +

NC C NO

AC FAIL

NC C NO

BAT FAIL

+ AUX ---

NO GND

RESET

Altronix - eFlow6NB

24VDC

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

1 2 3 4 5 6 7 8

INPUT

TRIGGER

10A 250V

+INP- T + RET-

NO C NC

FACP INTERFACE

Power Control

- + - +

F1 F2 F3 F4 F5 F6 F7 F8

MAIN

TRG

FACP

1 2 3 4

Altronix - ACM8

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

INPUT

P N

R1 LED

Altronix - PD8UL

To IEC connector

To LED lenses

- 6 - T1RAL13F8P8

Notes:

T1RAL13F8P8 - 7 -

TAL1R Dimensions:

18.5” x 15.25” x 0.3125” (469.9mm x 387.4mm x 7.9mm)

15.25” (387.4mm)

18.5” (469.9mm)

- 8 - T1RAL13F8P8

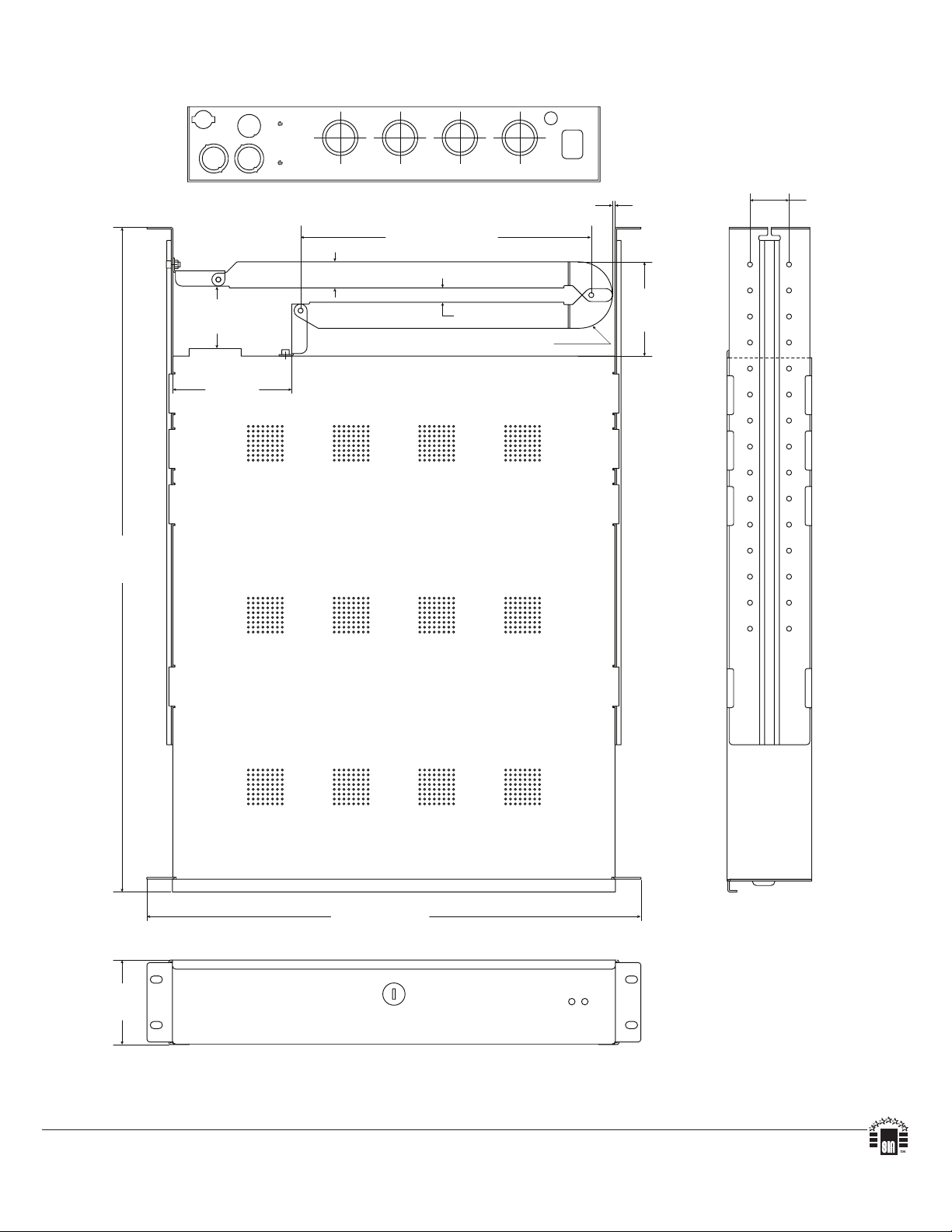

Trove1R Enclosure Dimensions (H x W x D):

3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.

0.1”

2.5mm

1.5”

38.1mm

11.175” (283.8mm)

2.4”

61mm

4.57”

116.1mm

3.25”

82.3mm

26.5”

673.1mm

19” (482.6mm)

R 1.27” (32.3mm)

1” (25.4mm)

0.55” (14mm)

3.62”

92mm

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

web site: www.altronix.com | e-mail: [email protected] | Made in U.S.A.

IIT1RAL13F8P8 A14U
