ALS RB/IN-WW(L)-C User manual
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
sales@alsukltd.co.uk www.alsukltd.co.uk

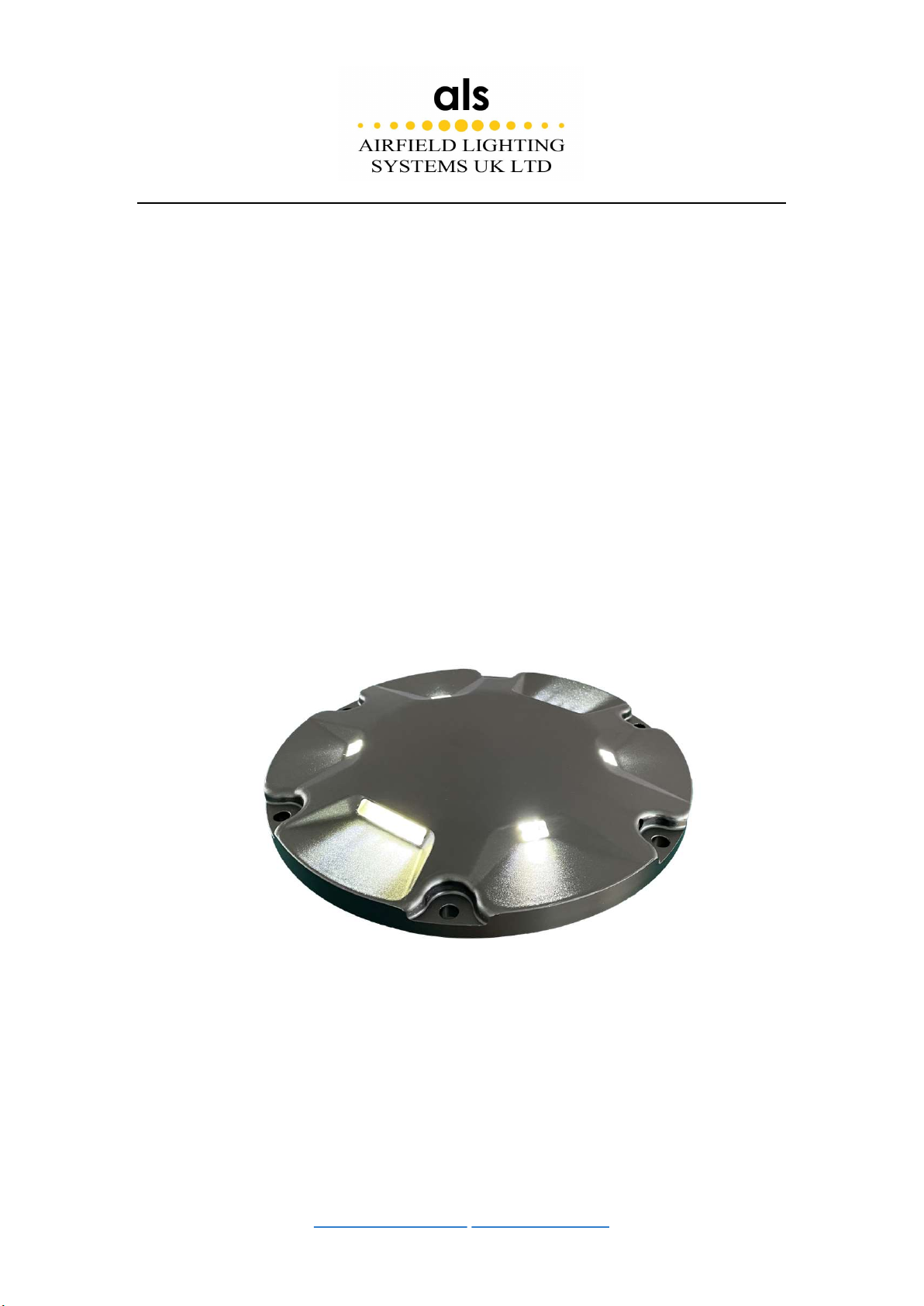

12 Inch LED Inset Runway Edge Light
with Circular Guidance
Instruction Manual
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
sales@alsukltd.co.uk www.alsukltd.co.uk
User Manual
UM-2101, Rev. 1.01, 2021.9.16
Disclaimer and standard warranty
CE mark
The equipment marked CE means that the product complies with the essential
requirements.
ICAO certification
The equipment complies with the essential requirements concerning ICAO Airfield
regulations.
CAAC certification
The equipment complies with the requirements concerning CAAC standards.
Standard Products Guarantee
Products of ALS manufacture are guaranteed against mechanical, electrical, and physical
defects which may occur during proper and normal use for a period of two years from the
date of delivery ex-works.
Liability
Use of the equipment in ways other than described in the manual may result in personal
injury, death, or property and equipment damage. Use this equipment only as described in
the manual.
ALS cannot be held responsible for injuries or damages resulting from non-standard,
unintended uses of its equipment. The equipment is designed and intended only for the
purpose described in the manual. Uses not described in the manual are considered
unintended uses and may result in serious personal injury, death or property damage.
Unintended uses, includes the following actions:
Making changes to equipment that have not been recommended or described in this
manual or using parts that are not genuine ALS replacement parts or accessories.
Failing to make sure that auxiliary equipment complies with approval agency requirements,
local codes, and all applicable safety standards.
Using materials or auxiliary equipment that are inappropriate or incompatible with your ALS
equipment.
Allowing unskilled personnel to perform any task on or with the equipment.
User manual
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
sales@alsukltd.co.uk www.alsukltd.co.uk
This manual or parts thereof may not be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying, recording,
nor otherwise, without ALS's prior written consent.
This manual could contain technical inaccuracies or typographical errors. ALS reserves the
right to revise this manual from time to time in the contents thereof without obligation of
ALS to notify any person of such revision or change. Details and values given in this
manual are average values. They are not binding, however, and ALS disclaims any liability
for damages or detriments suffered as a result of reliance on the information given herein
or the use of products, processes or equipment to which this manual refers. No warranty
is made that the use of the information or of the products, processes or equipment to which
this manual refers will not infringe any third party's patents or rights.
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
sales@alsukltd.co.uk www.alsukltd.co.uk
Table of Contents
1. Safety ............................................................................................................................ 1
1.1. Safety Symbols .................................................................................................. 1
1.2. Professional ....................................................................................................... 1
1.3. Introduction to safety ......................................................................................... 2
2. Equipment Information ................................................................................................. 4
2.1. Fixtures in this manual ....................................................................................... 4
2.2. Compliance with standards ............................................................................... 6
2.3. Features ............................................................................................................. 6
2.4. Power and power factor..................................................................................... 7
2.5. Dimensions and Weight ..................................................................................... 8
3. Installation ..................................................................................................................... 9
3.1. Tools and Material ............................................................................................. 9
3.2. Installation steps ................................................................................................ 9
3.3 Installation Bolt Torque ......................................................................................... 11
3.4Top-Lock Installation Guidelines ........................................................................... 11
4. Maintenance ............................................................................................................... 13
4.1 Basic Maintenance Program ................................................................................ 13
4.2 Workshop Maintenance ........................................................................................ 14
4.2.1 Tools and accessories ....................................................................................... 14
4.2.2 Remove a light fixture from its base .................................................................. 15
4.2.3 Remove and replace light source ...................................................................... 16
4.2.4 Replace the prism and its sealing gasket ......................................................... 17
4.2.5 Waterproof test .................................................................................................. 18
5. Spare Parts ................................................................................................................. 19
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
1. Safety
This section contains general safety instructions for installing and using ALS equipment.
1.1. Safety Symbols
Carefully read and observe all safety instructions in this manual, which alert you to safety
hazards and conditions that may result in personal injury, death or property and equipment
damage and are accompanied by the symbol shown below.
WARNING
Failure to observe a warning may result in personal injury, death or
equipment damage.
DANGER - Risk of electrical shock or ARC FLASH
Disconnect equipment from line voltage. Failure to observe this warning
may result in personal injury, death, or equipment damage. ARC Flash
may cause blindness, severe burns or death.
CAUTION
Failure to observe a caution may result in equipment damage.
1.2. Professional
Professional is defined as individuals who thoroughly understand the equipment and its
safe operation, maintenance and repair. Qualified personnel are physically capable of
performing the required tasks, familiar with all relevant safety rules and regulations and
have been trained to safely install, operate, maintain and repair the equipment.
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
1.3. Introduction to safety
WARNING
This equipment may contain electrostatic devices and hazardous voltages.
• Read installation instructions in their entirety before starting installation.
• Become familiar with the general safety instructions in this section of the manual
before installing, operating, maintaining or repairing this equipment.
• Make this manual available to personnel installing, operating, maintaining or
repairing this equipment.
• Follow all applicable safety procedures required by your company, industry
standards and government or other regulatory agencies.
• Install all electrical connections to local code.
• Use only electrical wire of sufficient gauge and insulation to handle the rated
current demand. All wiring must meet local codes.
• Protect components from damage, wear, and harsh environment conditions.
• Protect equipment with safety devices as specified by applicable safety
regulations
• If safety devices must be removed for installation, install them immediately after
the work is completed and check them for proper functioning prior to returning power
to the circuit.
• Never touch exposed electrical connections on equipment while the power is
ON.
Failure to follow this instruction can result in serious injury or equipment damage
Electric Shock Hazard
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
• Do not operate a system that contains malfunctioning components. If a
component malfunctions, turn the system OFF immediately.
• Allow only qualified personnel to make repairs. Repair or replace the
malfunctioning component according to instructions provided in its manual.
• Live operation is not allowed.
Failure to follow this instruction can result in serious injury or equipment damage
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
2. Equipment Information
2.1. Fixtures in this manual
This manual covers the following 12-inch fixtures:

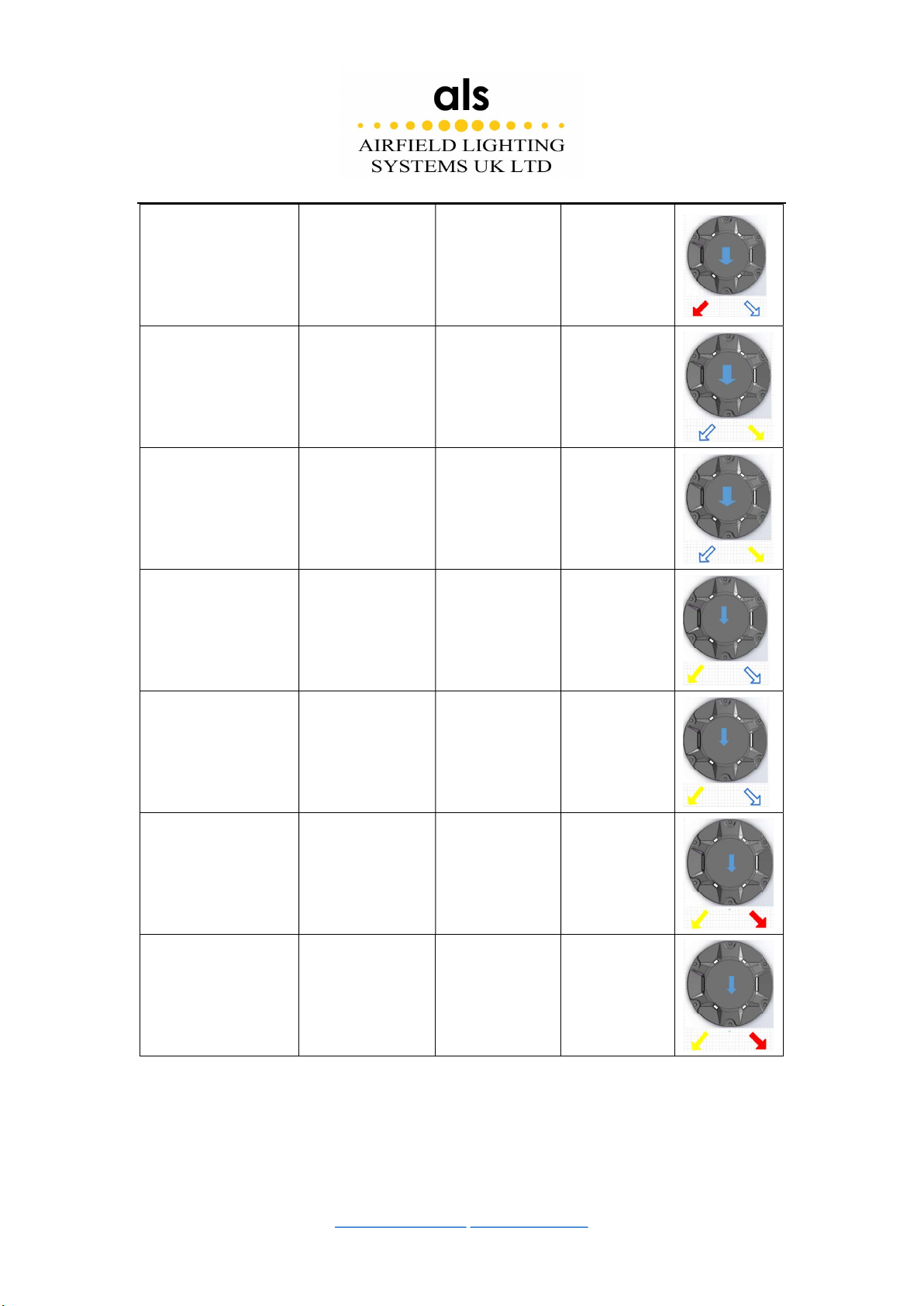

Light Fixture Ordering Code Optical Toe-in Color Sketch
Runway Edge Light
（width of runway
is 45m）
RB/IN-WW(L) -
C Toe-in 3.5° White, White
Runway Edge Light
（width of runway
is 60m）
RB/IN-WW(L) -
C Toe-in 4.5° White, White
Runway Edge Light
（width of runway
is 45m）
RB/IN-WR(L) -C Toe-in 3.5° White, Red
Runway Edge Light
（width of runway
is 60m）
RB/IN-WR(L) -C Toe-in 4.5° White, Red
Runway Edge Light
（width of runway
is 45m）
RB/IN-RW(L) -C Toe-in 3.5° Red ,White,
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
Runway Edge Light
（width of runway
is 60m）
RB/IN-RW(L) -C Toe-in 4.5° Red ,White,
Runway Edge Light
（width of runway
is 45m）
RB/IN-WY(L) -C Toe-in 3.5° White, Yellow
RunwayEdge Light
（width of runway
is 60m）
RB/IN-WY(L) -C Toe-in 4.5° White, Yellow
Runway Edge Light
（width of runway
is 45m）
RB/IN-YW(L)-C Toe-in 3.5° Yellow ,White
Runway Edge Light
（width of runway
is 60m）
RB/IN-YW(L)-C Toe-in 4.5° Yellow ,White
Runway Edge Light
（width of runway
is 45m）
RB/IN-YR(L)-C Toe-in 3.5° Yellow, Red
Runway Edge Light
（width of runway
is 60m）
RB/IN-YR(L)-C Toe-in 4.5° Yellow, Red
Airfield Lighting Systems UK Limited
Aviation House, Russell Gardens, Wickford
Essex SS11 8BF Tel +44 1702 547866
Runway Edge Light
（width of runway
is 45m）
RB/IN-RY(L)-C Toe-in 3.5° Red,Yellow
Runway Edge Light
（width of runway
is 60m）
RB/IN-RY(L)-C Toe-in 4.5° Red,Yellow
2.2. Compliance with standards
ICAO Annex 14 Volume 1
IEC TS 61827
FAA AC 150/5345-46
FAA Engineering Brief No. 67
EASA CS-ADR-DSN
NATO STANAG 3316
CAAC AC-137-CA-2015-01
CAAC AC-137-CA-2015-03
CAAC AC-137-CA-2017-03
2.3. Features
Low protrusion of less than 6.3mm above ground level
Modulized electrical driver and LED assembly for simplicity of maintenance
Efficient and stable optical output, suitable for operation with 6.6A and 2.2A CCRs
Unique optical design, ensuring luminous efficacy and color consistency
At any brightness level, the intensity of circling guidance beam is no less than 50cd
Strict thermal management solution increasing life expectancy
Highly conductive aluminum mechanical components with special treatment
suitable for various weather conditions
This manual suits for next models
