AlphainnoTec LW 150H-A User manual

Instruction Manual

Air / Water Heat Pumps

Outside installation

LW 150H-A

INSTRUCTION MANUAL

with Product Information

Air / Water Heat Pumps

Outside Installation

LW 150H-A

2 - We reserve the right to make technical changes - 830123GB/161130

Seite

SAFETY REGULATIONS 2

GENERAL 3

SCOPE OF SUPPLY 3

TRANSPORT 4

INSTALLATION 5

ASSEMBLY

- Heating water supply 5

- Hydraulic schematic 7

- Power supply 8

TERMINAL CONNECTION DIAGRAM 9

START-UP / MAINTENANCE /

TROUBLE-SHOOTING 10

TECHNICAL DATA 11

HEATING CAPACITY 12

PRESSURE DROP CURVE 13

DIMENSIONAL DRAWING 14

PLAN OF PEDESTAL 15

MINIMUM DISTANCES 16

INSTALLATION ADVICE 17

NOISE 18

CIRCUIT DIAGRAM 19

EU-STATEMENT OF CONFORMITY 25

COMPLETION NOTICE 26/27

In general, the following recommendations are

referred to this instruction manual:

Safety regulations. Important! Please observe!

Please observe advice referring to function and

operating method!

Reference to instruction manual of the

heat pump controller

The heat pump installation must be installed

and commissioned by a competent person in

accordance with the current legislation and

standards and the instruction manual.

The use of a heat pump plant must be notiﬁed to

your local energy supply company.

The heat pump must not be inclined by more

than 45° during transportation.

Note: consider the heat pump is not secured to

the transport-pallet during transportation!

The components and pipework of the

refrigeration circle must on no account be used

for lifting purposes.

For safety reasons, the power supply of the

heat pump and of the controller must never be

shut off even outside the heating period.

The use of the heat pump as heat source is

admissible only as outside device with ambient

air as heat source. The air-carrying sides must

never be reduced or obstructed.

Before opening the device, all electric circuits

must be switched off.

Works on the refrigeration system must be

carried out only by competent persons. They

must be skilled and experienced how to handle

coolants.

After purging respectively cleaning the evaporator

with a chemical purifying agent, the neutralization

of remainders as well as intense water rinsing is

absolutely necessary (by a competent person). Use

only agents recommended by the manufacturer!

Never use scouring, acidic or corrosive agents.



TABLE OF CONTENTS SAFETY REGULATIONS



830123GB/161130 - We reserve the right to make technical changes - 3

General

Field of application

The heat pump is designed exclusively for the heating of

heating circuit water and domestic hot water. Considering

the application limits (see annex), the heat pump can be

installed on new or existing heating systems.

The heat pump is intended only for outside

installation. The integration in ventilation

systems or the use of the cooled down air for

refrigeration purposes is not admissible.

Functioning of the air / water heat pump

The heat pump converts the low temperature heat of the

outside air to a higher temperature. The fan of the heat

pump sucks in the air and conducts it to the evaporator of

the heat pump. The evaporator contains the liquid agent

which boils and vaporizes at low temperatures and low

pressure. The vaporizing heat is transferred from the

air with resultant decrease in temperature. The cooled

down air is blown outside. The compressor sucks in the

vaporized agent and compresses it to achieve a higher

pressure. The compressed gaseous agent enters the

condenser, where it condenses at high pressure and

high temperature. The condensation heat is transferred

to the heating circuit water with resultant increase in

temperature.

The energy transmitted to the heating circuit water

corresponds to the energy transmitted from the ambient

air plus the small amount of electric energy for the

compressor.

Energy-saving use of the heat pump heating system

By choosing a heat pump heating system, you have

acknowledged the need for environmental protection by

lower emissions and less consumption of energy.

To ensure your new heating system works as efﬁciently

as possible, please note the following:

The heat pump heating system must be

correctly sized and installed.

Avoid unnecessary high forerun temperatures.

The lower the forerun temperature at the

heating-circuit water side is, the more

efﬁciently the heat pump works.

The controller must be set correctly!

Preferably open the window totally to renew

the air. Compared to constantly pivot-hung

windows opening outward, this kind of

ventilation reduces the energy consumption

and saves money!

Scope of supply

Scope of supply heat pump basic device

• Compact device with fully hermetic compressor and

all relevant safety components for refrigeration circuit

monitoring, without controller

• 1 m tube for condensate drain, to be connected at the

heat pump side.

• Electric switching box with power contactor,

protection class IP44.

• Sensors integrated in the device for capturing the hot

gas temperature and the ﬂow and return temperature

of the heating-circuit water.

• Electronic soft starter for limiting of breakaway

starting current.

Necessary accessories for operating

Only with the heat pump controller and the control- and

sensor line, the heat pump is a functional unit.

The heat pump controller controls and monitors the heat

pump and serves as heating system controller at the

same time. The control-line and the sensor-line connect

the heat pump and the controller.

You can choose control- and sensor-lines of different size

from our range of accessories, adapted to the respective

installation conditions of the heat pump.

Controller

GENERAL

SCOPE OF SUPPLY



4 - We reserve the right to make technical changes - 830123GB/161130

General

Transport the device in packed condition to the ﬁnal des-

tination, on a wooden pallet, with a lift truck or a fork lift to

avoid transportation damage.

The heat pump is not ﬁxed to the wooden pal-

let!

To avoid damage, the heat pump must not be

inclined by more than 45° during the transpor-

tation.

Transport with pipes

The heat pump is prepared for the transport with two ¾”

pipes. For this purpose, there are suitable borings in the

device frame.

The transport pipes must be provided on-site.

Consider the weight of the heat pump when

choosing the pipe material.

Transport openings on the user side

(side with logo)

Transport openings on the device back side

Preparation

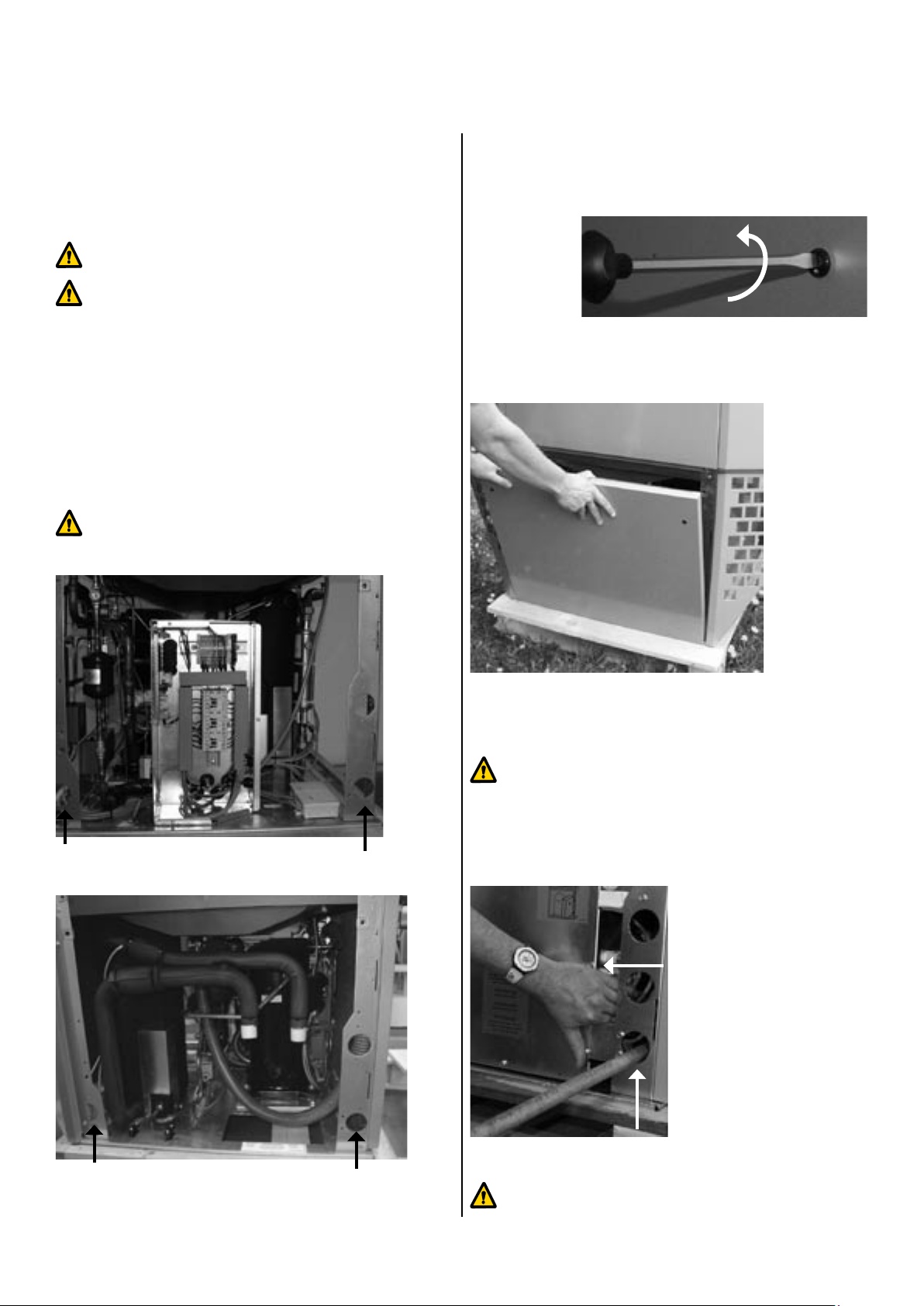

1) Open the quick-release screws of the user side (side

with logo) by turning anticlockwise.

2) Lift the cover plate on the user side and the water sup-

ply side.

3) Lead the transport pipes from the user side through the

lowest transport openings of the frame.

Note: please consider the position of wirings

and refrigeration circuit components to prevent

damages.

Brush aside the cable looms of the switching box and car-

ry the transport rods through.

Transport

Please secure the heat pump against slipping

down and carry the device only horizontally!

TRANSPORT

830123GB/161130 - We reserve the right to make technical changes - 5

Installation

When installing the device, please consider the

enclosed assembly instructions and the mini-

mum distances.

The heat pump must be installed on a sustainable and

horizontal underground. The base frame of the heat

pump must seat solidly.

As fundament material, use materials meeting these con-

ditions (concrete, sidewalk plates etc.)

The air temperature in the air outlet area is 5K

lower than the ambient temperature. Due to this,

under certain climatic conditions, there will pro-

bably be an ice layer.

Therefore, the air outlet of the device should not

open out in the sidewalk area.

The surface in the air outlet area of the heat pump must

leak water.

The operating side of the heat pump must always be

accessible for the ﬁtter. When installing the heat pump,

please consider the following minimum distances:

Assembly / Heating water supply point

Connection to the heating system

The heating system must be ﬂushed before connecting

the heat pump to prevent contamination inside the hea-

ting system affecting the function of the heat pump.

On the heat pump side, ﬂow and return must be equipped

with isolating valves to allow eventual ﬂushing of the con-

denser.

To avoid structure-borne sound transmissions to the he-

ating system, the connection of the heat pump must be

made with ﬂexible tubes.

In accordance with the current legislation and stan-

dards for heating systems, the connecting tubes

must be insulated on-site.

(hose clamps and tube available as accessories as “in-

stallation set”)

The outside heating water pipes must be insulated in

accordance with the current legislation and standards for

heating systems. They must be laid underneath the frost

line.

When connecting the heating circuit water pi-

pework, the connection point on the heat pump

must be secured against torsion with a spanner

in order to avoid damage to the copper pipe on

the condenser side.

INSTALLATION

ASSEMBLY



















  

 















 



































 

















6 - We reserve the right to make technical changes - 830123GB/161130

Assembly / Heating water supply point

Inside the device, the condensate tube must not touch

the coolant pipes.

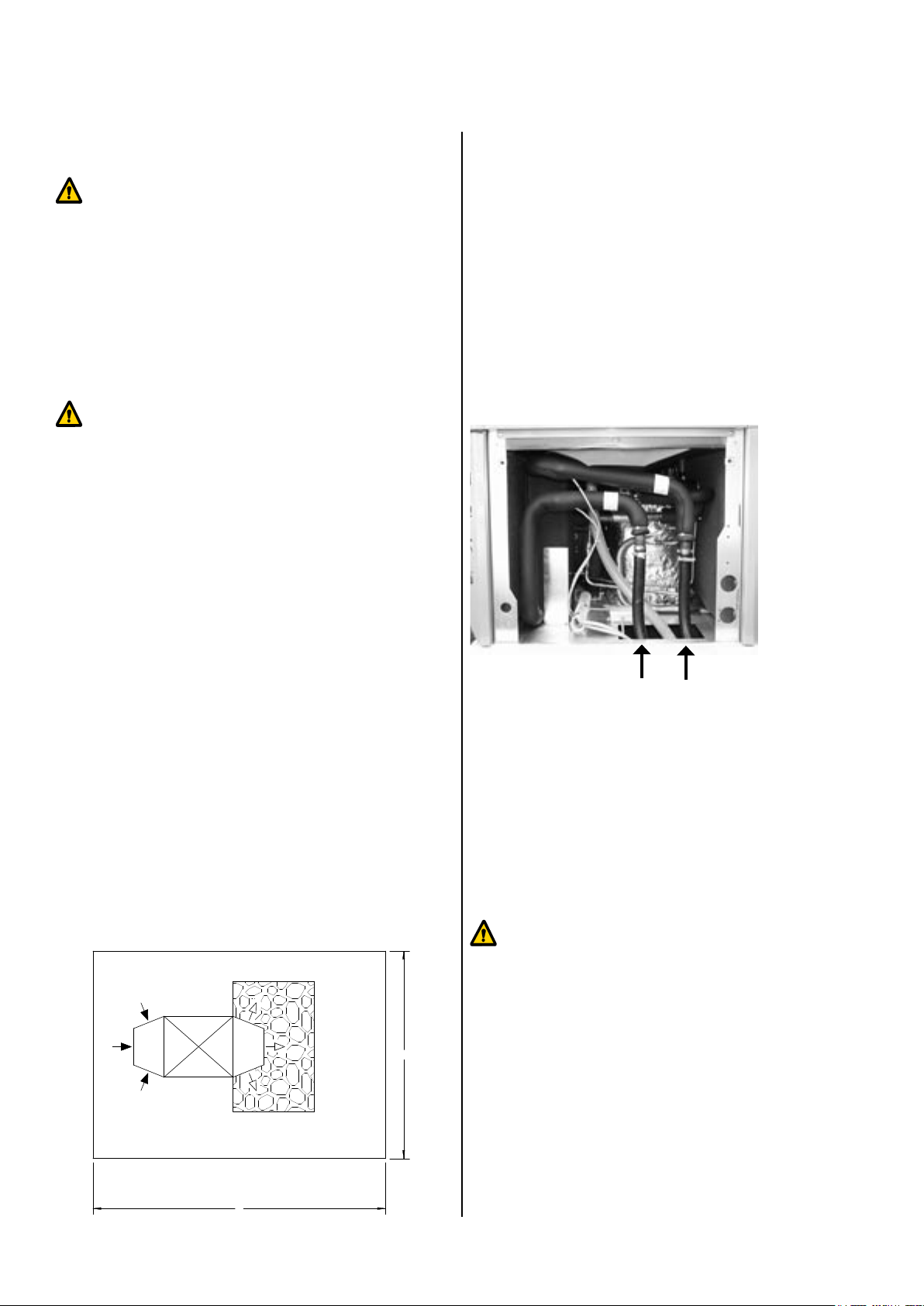

Make sure the condensate drain is frost-free - see

enclosed plan of pedestal.

Condenser ventilation

After ﬁlling the heating circuit with water, the condenser must be

ventilated with the enclosed exhaust valve.

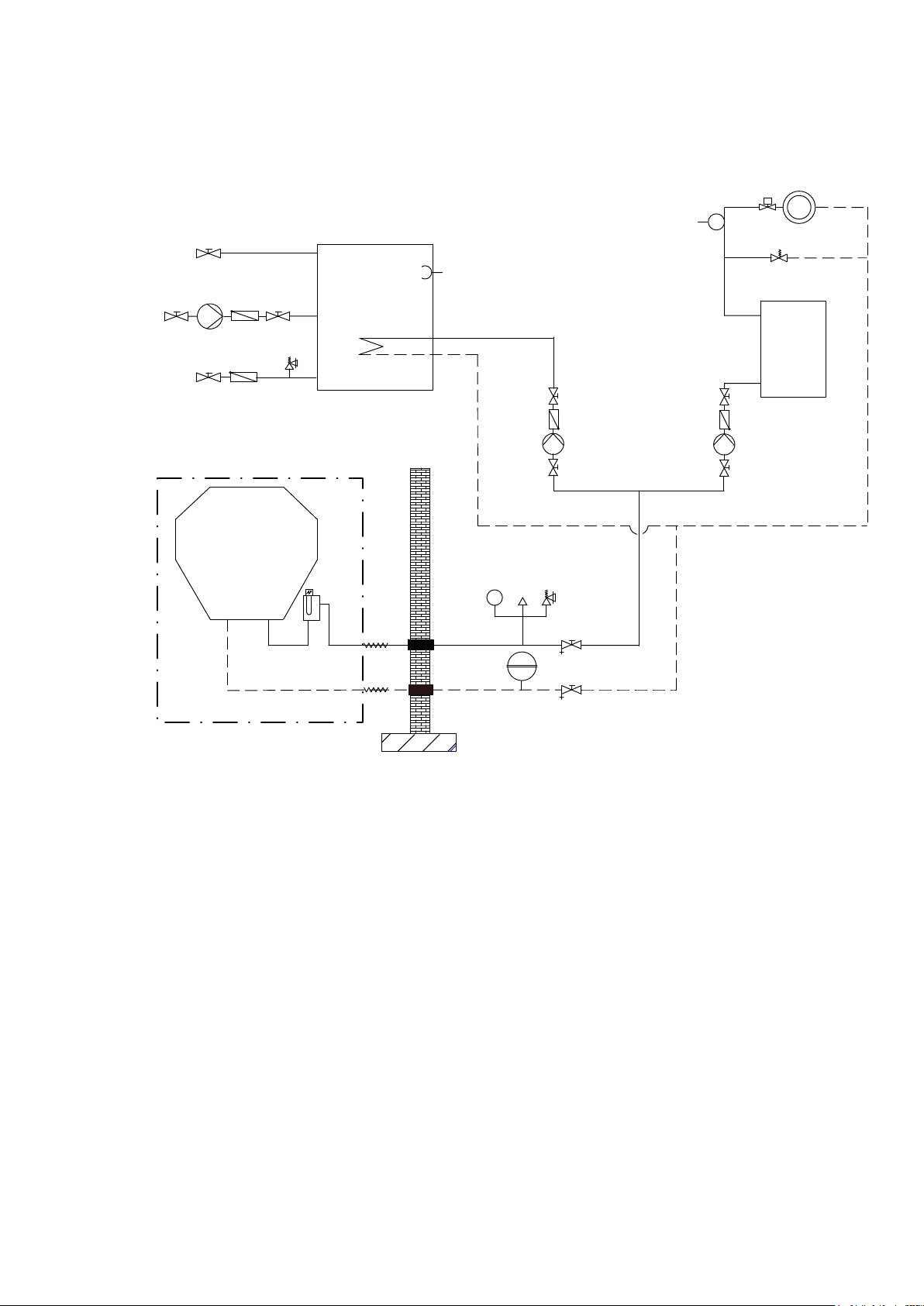

Assembly / Hydraulic schematic

The heat pump must be integrated in the heating circuit in

accordance with the recommended hydraulic schematic - see

enclosure.

In accordance with the valid regulations for pressure protection,

the heating circuit must be equipped with a safety valve and a

pressurized expansion vessel.

Furthermore, ﬁlling and draining devices, gate valves and no

return valves must be installed.

• Pressure differential valve

A pressure differential valve must be installed to secure the

heating water side minimum water ﬂow rate through the heat

pump. The overﬂow valve must be sized to allow the minimum

water ﬂow rate through the heat pump even though the heating

circuit is closed.

• Buffer tank

For the hydraulic integration, a series buffer tank must be

provided. This buffer tank secures a minimum running time

of the heat pump when the heating valves are closed. The

minimum heating-circuit water ﬂow rate depends on the heating

capacity of the heat pump - for further details please see the

technical data sheet of the heat pumps.

With single-source air/water systems, the buffer tank should be

installed on the ﬂow before the pressure differential valve (see

hydraulic schematic).

• Circulating pump

The heating circuit water and domestic water circulating pumps

must be graded.

The use of variable speed pumps is not permitted!

• Domestic water heating

Domestic water heating with the heating pump takes place with

a second heating circuit run in parallel to the heating circuit.

Please note: during the installation, the return must not be

connected to the buffer storage. From the control technology

point of view, the water heating takes priority, as long as it is not

stopped by the clock timer program.

• Domestic hot water storage

For domestic hot water requirements using a heat pump, it is

vital to have special domestic hot water storages. It is important

to have a sufﬁciently sized heat exchanger within the hot

water tank to ensure the heating capacity of the heat pump is

transferred with lowest possible spread with a heating circuit

water ﬂow temperature < 55°C. The storage volume must be big

enough to ensure the required domestic hot water quantity even

during off-times by your local energy supply company.

Our product range includes domestic hot water storages with

special plain ended pipe exchangers matching with our heat

pumps.

ASSEMBLY

830123GB/161130 - We reserve the right to make technical changes - 7

Luft / Wasser

Aussenauf-

stellung

Wärmepumpe

Luft Wasser Wärmepumpe Aussenaufstellung 7 - 19 KW

1 Heizkreis, Brauchwarmwasserbereitung

V.833094

Wichtiger Hinweis:

In diesem Prinzipschema sind Absperrorgane,

Entlüftungen und sicherheitstechnische Massnahmen

nicht komplett eingezeichnet. Diese sind gemäss den

gültigen Normen und Vorschriften anlagenspezifisch zu erstellen.

Lieferumfang Wärmepumpe

24 7

Brauch-

warm-

wasser-

speicher

TWW

TWK

810

42 10 Puffer-

speicher

HYDRAULIC SCHEMATIC

Air/Water heat pump outdoor 7 - 19 kW

single source operation, domestic hot water heating

Domestic hot

water storage

Buffer

tank

air/water

heat pump

outdoor

2) Radiator or underﬂoor heater

3) Vibration-decoupled connection (ﬂexible hoses or

sliding joints)

4) Sound-proof base (only where there are more strin-

gent noise requirements)

5) Gate valve with discharge device

6) Expansion tank

7) Safety valve

8) Gate valve

9) Heating circulating pump (HUP)

10) Check valve

11) Thermostat valve / individual room thermostat

12) Pressure differential regulating valve

13) Steam-tight insulation

14) Circulating pump for domestic hot water (BUP)

15) Three-way mixer (mixing circuit)

16) Mixer motor

17) 2nd heating circuit with tv<tv 1st heating circuit

18) Immersion heating element heater

19) Four-way mixer

20) Immersion heating element domestic hot water

21) Mixing circuit circulating pump (HUP)

22) Pool circulating pump

23) Circulating pump feeder line (ZUP)

24) Pressure gauge

25) Circulating pump for heater and domestic hot water

26) Domestic hot water switching valve

27) Heating element for heating and domestic hot water

28) Brine circulating pump

29) Dirt ﬁlter (1 mm ﬁlter size)

30) Brine collector

31) Wall duct

32) Feeder pipe PE-MR PN10

33) Brine distributor with ﬁlling and discharge device

34) Collector pipe PE-MRS8

35) Permanent breather pipe

36) Well pump (corrosion-resistant submersible pump)

37) Thermostat 0°C - 16°C

38) Flow switch

39) Suction well pipe

40) Inverted drainage well pipe

41) ﬂushtap heating circuit

42) circulation pump

A External wall sensor

B Domestic hot water sensor or thermostat

C Flow sensor (mixing circuit)

D Floor temperature controller

All pipe cross sections must be conﬁgured for the heat

pump’s minimum ﬂow rate!

Please notice:

There is no complete speciﬁcation of gate valves, ventilations

and saﬁty-measures in this schematic. You have to construct

these conforming to standards and rules yourself.

8 - We reserve the right to make technical changes - 830123GB/161130

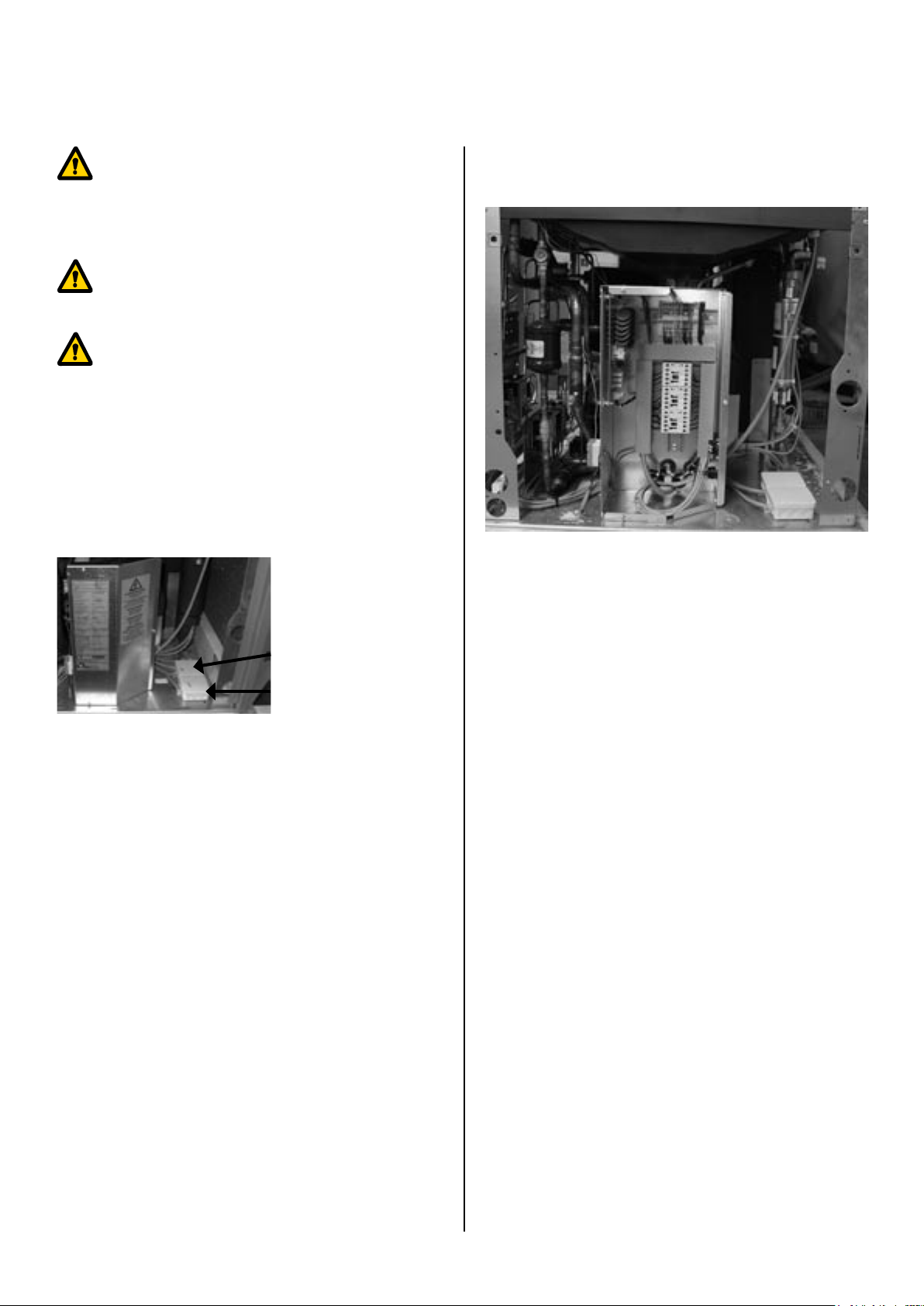

Installation and electric works must be carried

out by competent persons and in accordance

with all safety and IEE* regulations.

*IEE – Institute of Electrical Engineers

Please secure right rotating ﬁeld of the load

supply when connecting the heat pump.

The supply of the heat pump must be equipped

with an all-pole switching-off with minimum

3 mm contact opening distance and a 3-pole

overload release. Please ﬁnd the relevant initial

current on the respective technical product

information.

For the electrical connection of the heat pump, it is not

necessary to open the switching box.

Power end of the heat pump at the two outlets besides

the switching box.

Power supply:

Additional heater (heating

element)

Capacity (compressor)

The connection between the heat pump and the controller

(accessories) is ensured by the sensor and control lines

(accessories).

Loosen the switching box ﬁxings.

Lead the sensor- and control-line through the cable

duct to the device backside and lay in the ground

with a tubular cable protection up to the house lead-

through.

After connection of the sensor- and control-line, put the

switching box back in the original position.

To allow the ﬁtter to hang out the switchbox for servicing

purposes, the sensor- and control-line must have mini-

mum 15 cm excess length inside the heat pump..

ASSEMBLY

POWER SUPPLY

830123GB/161130 - We reserve the right to make technical changes - 9

ASSEMBLY POWER SUPPLY / TERMINAL CONNECTION DIAGRAM

The installation and execution of electric works must be carried out by a competent person, taking into account the

relevant IEE* safety regulations.

Please ﬁnd all device speciﬁc connections in the instruction manual of the heat pump.

ASD

PEX

VBO

ZW1

HUP

FP1

ZUP/ZIP

MA1

MZ1

BUP

ZW2/SST

GND

RFV

GND

TB1

GND

BWT

GND

TRL

GND

MOT

EVU

9 12

123

456

789

101112

Hausinstallation

Unterverteilung

geschlossen

Sperre

EVU-

freigabe WP

EVU-Sperre

Kontakt bei

Aussenfühler

Brauchwasserfühler/-thermostat (Zubehör)

EVU-Sperre

Fühler Mischer1 (Zubehör)

Raumfernversteller (Zubehör)

Heizungsumwälzpumpe

Fußbodenheizungspumpe

Zusatzp. / Zirkulationsp.

Brauchwasserumwälzpumpe

Zweiter Wärmeerzeuger 1

Wärmeerzeuger 2 / Sammelst.

Mischer 1

AUF

Mischer 1

externer Rücklauffühler

Anschlussklemmen auf Platine

Lade-/

Entlademischer

Raumstation (Zubehör)

Pumpenansteuerung

N-/PE-Verteilung in Wandgehäuse

für Anschluß externer 230V-Geräte

(z.B. Pumpen/Mischer)

Steuerleitung zur

Wärmepumpe

Bei LW-Geräten mit eingebautem Durchlauferhitzer

Einzellitze von Steuerleitung auf ZW1 anklemmen

Wärmepumpe

Luft / Wasser

Aussenaufstellung

Last Verdichter (3PE)

Last ZWE1 (3NPE)

Steuerspannung (1NPE)

Schütz

E-Stab

Puffer

Last ZWE2 (3NPE)

Speicher

Fühlerleitung zur

Wärmepumpe

831107

X0 X3 X4

Heating circulating pump

Electricity board locking device

Underﬂoor heating pump

Second heat generator 1

Mixer 1 Open

Mixer1 Closed

External sensor

Remote thermostat (accessories)

Heat generator 2 / collector

External return sensor

Domestic water sensor/-thermostat (accessories)

Loading/

unloading

mixer

Pump approach

Sensor mixer 1 (accessories)

Room unit (accessories)

Domestic water circulating pump

Add. pump/circulating pump

Sensor line to

heat pump

Storage

Supply terminals on the circuit board

For LW-devices with built-in boiler, clamp

single end of control line to SHG1

Heat pump

Air / water

outside installation

N-/PE-distribution in heat pump to

connect 230V external devices (for

example pumps, mixers).

Control line to heat

pump

Load compressor (3PE)

On-site installation-

Sub-distribution

Electricity

board locking

device Contact

closed when heat

pump is released

Load SHG1 (3NPE)

Load SHG2 (3NPE)

Contactor

Heating

element

Buffer

Control voltage (1NPE)

Electricity

board

locking

device

10 - We reserve the right to make technical changes - 830123GB/161130

Start up

The heat pump will be started by the heat pump controller;

the commissioning is to be carried out by a competent

person.

For this, ﬁll in the completion notice (see page 26) and fax

it to the supplier..

Before the start up, please check the following:

1. The installation and assembly have been carried

out in accordance with the pages 4 to 9?

2. Check the electrical supply for the correct rotation.

3. Check all isolation valves in the heating circuit are

open.

4. Check all isolation valves in the heat source side are

open.

5. Check all heating circuits have been vented

thoroughly.

6. Does the compressor have electrical disconnection

protection?

7. Before commissioning, functionality of the circulating

pumps hat to be scrutinised.

Maintenance

Clean the device with a damp cloth and a mild cleansing

agent.

Never use scouring, acidic or corrosive agents.

Servicing

The heat pump needs no servicing.

The servicing of the included components has to conform

to the valid regulations.

Trouble Shooting

The diagnostic programme within the heat pump

controller will establish errors.

Please ﬁnd further instructions referring to diagnosis and

trouble shooting in the heat pump controller instruction

manual!

Disposal

Before dismounting the heat pump the electricity has to be shut

off. You have to adhere strictly current rules concerning the envi-

ronment. The disposal of the cooling agents and oils needs spe-

cial attention!

START-UP / MAINTENANCE / TROUBLE-SHOOTING

Table of contents

Other alphainnoTec Heat Pump manuals

alphainnoTec

alphainnoTec BWP 310 User manual

alphainnoTec

alphainnoTec WWP series User manual

alphainnoTec

alphainnoTec SW 42H3 User manual

alphainnoTec

alphainnoTec WZS 41-101H/SX User manual

alphainnoTec

alphainnoTec LWC Series User manual

alphainnoTec

alphainnoTec LW 71A User manual

alphainnoTec

alphainnoTec BWP 303+S User manual

alphainnoTec

alphainnoTec SWC V Series User manual

alphainnoTec

alphainnoTec LW 101 User manual

alphainnoTec

alphainnoTec SW 232H3 User manual

alphainnoTec

alphainnoTec LW A User manual

alphainnoTec

alphainnoTec WZS Series User manual

alphainnoTec

alphainnoTec WWC100HX User manual

alphainnoTec

alphainnoTec Solair LW 70M-A User manual

alphainnoTec

alphainnoTec SWC - Series User manual

alphainnoTec

alphainnoTec SW 232H3 User manual

alphainnoTec

alphainnoTec SWC 60H User manual

alphainnoTec

alphainnoTec LWA Series User manual

alphainnoTec

alphainnoTec LW 71A User manual

alphainnoTec

alphainnoTec LWD 50A User manual

alphainnoTec

alphainnoTec Solterra SWP 230H User manual

alphainnoTec

alphainnoTec LW 140 User manual

alphainnoTec

alphainnoTec SWC - Series User manual

alphainnoTec

alphainnoTec WZSV 42K3M User manual

Popular Heat Pump manuals by other brands

MICROWELL

MICROWELL HP 1000 GREEN Installation and user manual

Sanyo

Sanyo SAP120FCH Service manual

Daikin

Daikin EHYHBH05AA Operation manual

Panasonic

Panasonic WH-SDF03E3E5 Design handbook

Bryant

Bryant 544B Specifications

Airxcel

Airxcel 45000 Series Installation, operation and maintenance instructions

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Service manual

Dimplex

Dimplex LI 16I-TUR Installation and operating instruction

Carrier

Carrier WSHP Open v3 Integration guide

TGM

TGM CTV14CN018A Technical manual

Carrier

Carrier 38MGQ Series installation instructions

Kokido

Kokido K2O K880BX/EU Owner's manual & installation guide

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Installation and service instructions

Carrier

Carrier 48EZN installation instructions

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Installation and service instructions for contractors

Ariston

Ariston NIMBUS user manual

Weishaupt

Weishaupt WWP L 7 Installation and operating instruction

GE Zoneline AZ85H09EAC datasheet

alphainnoTec LW 150H-A User manual

Popular Heat Pump manuals by other brands
