1 Introduction

he FMC-PLUS-QSFP-DD is a VI A 57.4 compliant Single Width HSPC FMC Plus module, designed for use

with Alpha Data's VI A 57.4 compliant carrier cards. It provides the user with the connectivity to implement

high-speed serial IO communication applications.

his adapter board provides the connection between the FPGA card and industry standard 3xQSFP Double

Density connectors.

Maximum total bandwidth = 600Gbps (28Gbps per channel per direction)

Figure 1 : FMC-PLUS_QSFP-DD Image

Key Features

• FMC (VI A 57.4) electrically compliant

• he FMC-PLUS-QSFP-DD module is based on VI A 57.4 but does not adhere the mechanical

specification(Region 1 of VI A 57.4 is extended to 7.1mm from 5.2mm and the IO Area is extended both in

width and depth to be able to fit the 3xQSFP-DD connectors)

• Air cooled compatible

• Each cage has 8 lanes of up to 28Gbps Serdes capable of 2x100GE, or 8x10GE, and many other

signaling standards

• Operating temperature range from 0 to 55 degrees Celsius

• Compatible with active optical cables

FMC+ Connector

QSFP-DD(x3)

Cage

Front plate

LMK61E2

Programma le

Oscillator

Internal EEPROM

GBTCLK(x6)

3xQSFP_RX(x8)

3xQSFP_TX(x8)

Figure 2 : FMC-PLUS_QSFP-DD Block Diagram

Page 1Introduction

ad-ug-1404_v1_0.pdf

FMC-PLUS-QSFP-DD User Manual

V1.0 - 20th uly 2021

1.1 References & Specifications

VI A 57.4 FMC+ Standard Specification

Table 1 : References

FMC+ 3xQSFP-DD

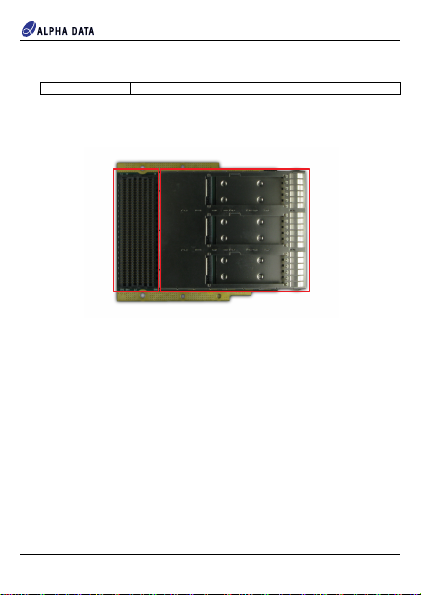

Figure 3 : FMC-PLUS-QSFP-DD Top Side Features

Page 2 Introduction

ad-ug-1404_v1_0.pdf

FMC-PLUS-QSFP-DD User Manual

V1.0 - 20th uly 2021

2 High Speed Serial IO (HSSIO)

2.1 User Clock

he user can specify a custom clock frequency from the on-board Programmable Oscillator With Internal

EEPROM(LMK61E2) that is directed to the FPGA banks associated with the high speed serial signals from this

module. his enables support for a multitude of high speed serial IO communication protocols.

2.2 Connectors

he QSFP DD connectors on the FMC-PLUS-QSFP-DD offers the user a wide selection of interconnect

schemes that break out the multi-gigabit transceivers on the FPGA.

Receptacle

• QSFP-DD connector/cage system: Molex part number 202718-0100

2.3 Mating Cables

Below is a list of possible mating cables for the QSFP-DD receptacle/cage:

Cable Solutions

• For passive cables use Molex 2015911005 or similar

Page 3High Speed Serial IO (HSSIO)

ad-ug-1404_v1_0.pdf

FMC-PLUS-QSFP-DD User Manual

V1.0 - 20th uly 2021

3 Installation

he FMC-PLUS-QSFP-DD is designed to plug into the FMC+ front panel connector on a compatible carrier. he

retaining screws should be tightened to secure the FMC+.

he FMC-PLUS-QSFP-DD it should be removed in a certain way for the FMC+ connector not to be damaged.

Here is a video from Samtec showing the removal procedure of this kind of connectors: see https://

vimeo.com/158484280

Note:

his operation should not be performed while the host carrier is powered.

3.1 Handling instructions

Observe precautions for preventing damage to components by electrostatic discharge. Personnel handling the

board should take SSD precautions and avoid flexing the board.

3.2 IO Voltage Selection

he required IO voltage range (VADJ) for the FMC+ is 1.2V to 3.3V. his is stored in a ROM on the FMC+, as

per VI A 57.4 for automatic configuration of supplies. he carrier is responsible for detecting and setting the IO

voltage accordingly.

Page 4 Installation

ad-ug-1404_v1_0.pdf

FMC-PLUS-QSFP-DD User Manual

V1.0 - 20th uly 2021

Appendix A: FMC+ Pin Assignments

Appendix A.1: Clock Signals

FMC Signal FMC (J1) Function | Function FMC (J1) FMC Signal

GB CLK0_M2C_P*

D4 USER_CLK_P | USER_CLK_N D5

GB CLK0_M2C_N*

GB CLK1_M2C_P*

B20 USER_CLK_P | USER_CLK_N B21

GB CLK1_M2C_N*

GB CLK2_M2C_P*

L12 USER_CLK_P | USER_CLK_N L13

GB CLK2_M2C_N*

GB CLK3_M2C_P*

L8 USER_CLK_P | USER_CLK_N L9

GB CLK3_M2C_N*

GB CLK4_M2C_P*

L4 USER_CLK_P | USER_CLK_N L5

GB CLK4_M2C_N*

GB CLK5_M2C_P*

Z20 USER_CLK_P | USER_CLK_N Z21

GB CLK5_M2C_N*

Table 2 : User Clock Location

Appendix A.2: High Speed Serial IO

FMC Signal FMC (J1) Function | Function FMC (J1) FMC Signal

DP0_M2C_P C6 QSFP_0_RX_P0 | QSFP_0_ X_P0 C2 DP0_C2M_P

DP0_M2C_N C7 QSFP_0_RX_N0 | QSFP_0_ X_N0 C3 DP0_C2M_N

DP1_M2C_P A2 QSFP_0_RX_P1 | QSFP_0_ X_P1 A22 DP1_C2M_P

DP1_M2C_N A3 QSFP_0_RX_N1 | QSFP_0_ X_N1 A23 DP1_C2M_N

DP2_M2C_P A6 QSFP_0_RX_P2 | QSFP_0_ X_P2 A26 DP2_C2M_P

DP2_M2C_N A7 QSFP_0_RX_N2 | QSFP_0_ X_N2 A27 DP2_C2M_N

DP3_M2C_P A10 QSFP_0_RX_P3 | QSFP_0_ X_P3 A30 DP3_C2M_P

DP3_M2C_N A11 QSFP_0_RX_N3 | QSFP_0_ X_N3 A31 DP3_C2M_N

DP4_M2C_P A14 QSFP_0_RX_P4 | QSFP_0_ X_P4 A34 DP4_C2M_P

DP4_M2C_N A15 QSFP_0_RX_N4 | QSFP_0_ X_N4 A35 DP4_C2M_N

DP5_M2C_P A18 QSFP_0_RX_P5 | QSFP_0_ X_P5 A38 DP5_C2M_P

DP5_M2C_N A19 QSFP_0_RX_N5 | QSFP_0_ X_N5 A39 DP5_C2M_N

DP6_M2C_P B16 QSFP_0_RX_P6 | QSFP_0_ X_P6 B36 DP6_C2M_P

DP6_M2C_N B17 QSFP_0_RX_N6 | QSFP_0_ X_N6 B37 DP6_C2M_N

DP7_M2C_P B12 QSFP_0_RX_P7 | QSFP_0_ X_P7 B32 DP7_C2M_P

DP7_M2C_N B13 QSFP_0_RX_N7 | QSFP_0_ X_N7 B33 DP7_C2M_N

DP8_M2C_P B8 QSFP_1_RX_P0 | QSFP_1_ X_P0 B28 DP8_C2M_P

DP8_M2C_N B9 QSFP_1_RX_N0 | QSFP_1_ X_N0 B29 DP8_C2M_N

DP9_M2C_P B4 QSFP_1_RX_P1 | QSFP_1_ X_P1 B24 DP9_C2M_P

DP9_M2C_N B5 QSFP_1_RX_N1 | QSFP_1_ X_N1 B25 DP9_C2M_N

Table 3 : Serial Channel Locations (continued on next page)

Page 5FMC+ Pin Assignments

ad-ug-1404_v1_0.pdf

FMC-PLUS-QSFP-DD User Manual

V1.0 - 20th uly 2021

FMC Signal FMC (J1) Function | Function FMC (J1) FMC Signal

DP10_M2C_P Y10 QSFP_1_RX_P2 | QSFP_1_ X_P2 Z24 DP10_C2M_P

DP10_M2C_N Y11 QSFP_1_RX_N2 | QSFP_1_ X_N2 Z25 DP10_C2M_N

DP11_M2C_P Z12 QSFP_1_RX_P3 | QSFP_1_ X_P3 Y26 DP11_C2M_P

DP11_M2C_N Z13 QSFP_1_RX_N3 | QSFP_1_ X_N3 Y27 DP11_C2M_N

DP12_M2C_P Y14 QSFP_1_RX_P4 | QSFP_1_ X_P4 Z28 DP12_C2M_P

DP12_M2C_N Y15 QSFP_1_RX_N4 | QSFP_1_ X_N4 Z29 DP12_C2M_N

DP13_M2C_P Z16 QSFP_1_RX_P5 | QSFP_1_ X_P5 Y30 DP13_C2M_P

DP13_M2C_N Z17 QSFP_1_RX_N5 | QSFP_1_ X_N5 Y31 DP13_C2M_N

DP14_M2C_P Y18 QSFP_1_RX_P6 | QSFP_1_ X_P6 M18 DP14_C2M_P

DP14_M2C_N Y19 QSFP_1_RX_N6 | QSFP_1_ X_N6 M19 DP14_C2M_N

DP15_M2C_P Y22 QSFP_1_RX_P7 | QSFP_1_ X_P7 M22 DP15_C2M_P

DP15_M2C_N Y23 QSFP_1_RX_N7 | QSFP_1_ X_N7 M23 DP15_C2M_N

DP16_M2C_P Z32 QSFP_2_RX_P0 | QSFP_2_ X_P0 M26 DP16_C2M_P

DP16_M2C_N Y33 QSFP_2_RX_N0 | QSFP_2_ X_N0 M27 DP16_C2M_N

DP17_M2C_P Y34 QSFP_2_RX_P1 | QSFP_2_ X_P1 M30 DP17_C2M_P

DP17_M2C_N Y35 QSFP_2_RX_N1 | QSFP_2_ X_N1 M31 DP17_C2M_N

DP18_M2C_P Z36 QSFP_2_RX_P2 | QSFP_2_ X_P2 M34 DP18_C2M_P

DP18_M2C_N Z37 QSFP_2_RX_N2 | QSFP_2_ X_N2 M35 DP18_C2M_N

DP19_M2C_P Y38 QSFP_2_RX_P3 | QSFP_2_ X_P3 M38 DP19_C2M_P

DP19_M2C_N Y39 QSFP_2_RX_N3 | QSFP_2_ X_N3 M39 DP19_C2M_N

DP20_M2C_P M14 QSFP_2_RX_P4 | QSFP_2_ X_P4 Z8 DP20_C2M_P

DP20_M2C_N M15 QSFP_2_RX_N4 | QSFP_2_ X_N4 Z9 DP20_C2M_N

DP21_M2C_P M10 QSFP_2_RX_P5 | QSFP_2_ X_P5 Y6 DP21_C2M_P

DP21_M2C_N M11 QSFP_2_RX_N5 | QSFP_2_ X_N5 Y7 DP21_C2M_N

DP22_M2C_P M6 QSFP_2_RX_P6 | QSFP_2_ X_P6 Z4 DP22_C2M_P

DP22_M2C_N M7 QSFP_2_RX_N6 | QSFP_2_ X_N6 Z5 DP22_C2M_N

DP23_M2C_P M2 QSFP_2_RX_P7 | QSFP_2_ X_P7 Y2 DP23_C2M_P

DP23_M2C_N M3 QSFP_2_RX_N7 | QSFP_2_ X_N7 BY3 DP23_C2M_N

Table 3 : Serial Channel Locations

Note:

he function names match the QSFP-DD connectors name

Page 6 FMC+ Pin Assignments
