Allied Telesis GS950PS V2 Series User manual
613-003079 Rev. A
*613-003079 Rev A*
GS950PS V2 Series
Gigabit WebSmart Ethernet Switches
GS950/10PS V2
GS950/18PS V2
GS950/28PS V2
GS950/52PS V2
Quick Installation Guide
2 GS950PS V2 Series Quick Installation Guide
Introduction
This Quick Installation Guide contains a short version of the
installation instructions for the GS950PS V2 Series of Gigabit
WebSmart Ethernet Switches. For complete instructions, refer to the
GS950PS V2 Gigabit Ethernet Switch Series Installation Guide on the
Allied Telesis web site at www.alliedtelesis.com/us/en/services-
support. This guide contains the following sections:
“Front Panels” next
“PoE+ Power Budgets” on page 4
“Beginning the Installation” on page 4
“Installing the Switch” on page 8
“Ports” on page 13
“Powering On the Switch” on page 15
“Starting the First Management Session” on page 16
“LEDs” on page 17
“eco-friendly Button” on page 21
“Troubleshooting” on page 22
Front Panels
Here are the front panels of the switches.
1 2 3 4 56
GS950/10PS V2
56
1234
GS950/18PS V2
56
1 2 34
GS950/28PS V2
GS950PS V2 Series Quick Installation Guide 3

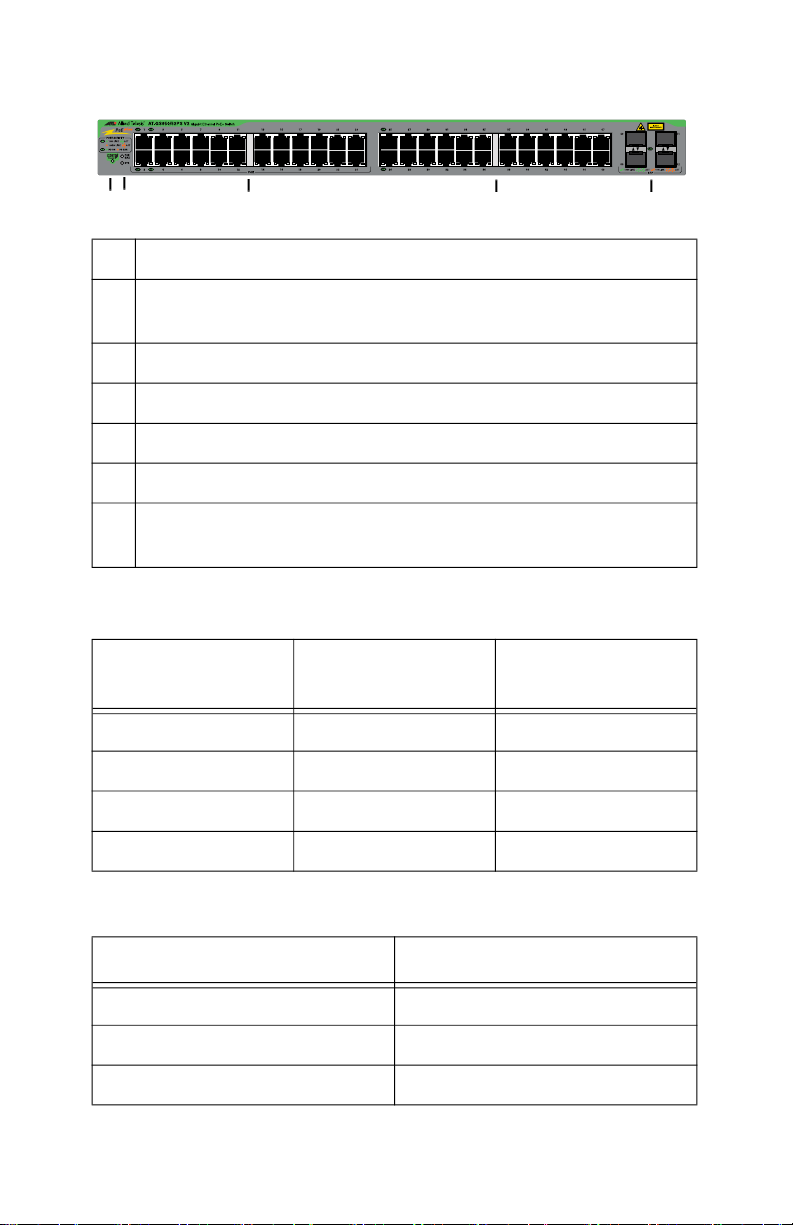

Here are the 10/100/1000Mbps Ethernet copper ports.
Here are the 100Mbps and 1Gbps SFP transceiver ports.
1 eco-friendly button that turns the LEDs on and off.
2 PoE MAX and POWER LEDs - GS950/10PS V2 Switch.
PoE MAX and SYSTEM LEDs
3 Ethernet copper port LEDs.
4 SFP ports LEDs
5 10/100/1000Mbps Ethernet copper ports with PoE+.
6 100Mbps and 1Gbps SFP transceiver ports.
7 Ports 25 to 48 10/100/1000Mbps Ethernet copper on the
GS950/52PS V2 Switch - no PoE+
Switch 10/100/1000Mbps
Ports (no PoE+)
10/100/1000Mbps
Ports with PoE+
GS950/10PS V2 1 to 8
GS950/18PS V2 1 to 16
GS950/28PS V2 1 to 24
GS950/52PS V2 25 to 48 1 to 24
Switch SFP Transceiver Ports
GS950/10PS V2 9 and 10
GS950/18PS V2 17 and 18
GS950/28PS V2 25 to 28
1 2 574,6
GS950/52PS V2
4 GS950PS V2 Series Quick Installation Guide
PoE+ Power Budgets
Here are the PoE+ power budgets of the switches. Power budgets
are the maximum amounts of power that PoE+ switches can supply
to powered devices on the Ethernet copper ports. The switches can
support IEEE 802.3at Classes 0 to 4 powered devices (maximum
30W at the ports.)
Beginning the Installation
Reviewing Safety Precautions
Review the following safety precautions before installing the product.
Note: The symbol indicates that a translation of the safety
statement is available in the PDF document “Translated Safety
Statements” on the Allied Telesis website at
www.alliedtelesis.com/us/en/documents/translated-safety-
statements.
GS950/52PS V2 49 to 52
Switch PoE+ Budget
GS950/10PS V2 75 watts
GS950/18PS V2 185 watts
GS950/28PS V2 185 watts
GS950/52PS V2 370 watts
Warning: Class 1 Laser product.
L1
Warning: Do not stare into the laser beam.
L2
Switch SFP Transceiver Ports
GS950PS V2 Series Quick Installation Guide 5
Installation Options
Here are the installation options:
Warning: Power cord is used as a disconnection device.
To de-energize equipment, disconnect the power cord.
E3
Warning: To prevent electric shock, do not remove the
cover. No user-serviceable parts inside. This unit
contains hazardous voltages and should only be opened
by a trained and qualified technician. To avoid the
possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the
cables. E1
Warning: Class I Equipment. This equipment must be
earthed. The power plug must be connected to a
properly wired earth ground socket outlet. An improperly
wired socket outlet could place hazardous voltages on
accessible metal parts. E4
Warning: The device is heavy. Always ask for
assistance before moving or lifting it to avoid injuring
yourself or damaging the equipment. E122
Warning: To reduce the risk of electric shock, the PoE
ports on this product must not connect to cabling that is
routed outside the building where this device is located.
E40
1
2
3
6 GS950PS V2 Series Quick Installation Guide
1 - Table
2 - Standard 19-inch Equipment Rack
3 - Wood or concrete wall
Note: Installing the GS950/52PS V2 Switch on a wall requires the
BRKT-J22 kit. The kit is sold separately.
Unpacking the Switch

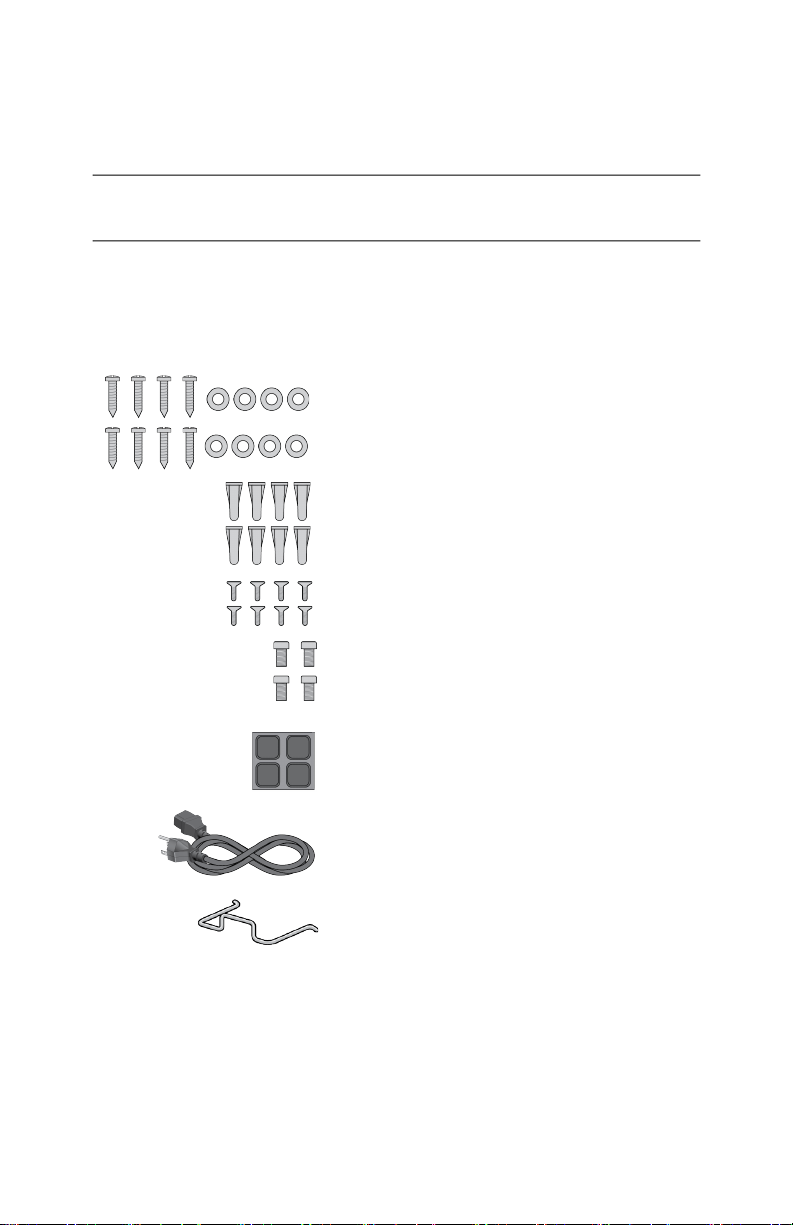

The switches come with these items:
Eight 3.5mm x 16mm wall screws and
washers
Eight 4mm x 22.2mm wall anchors
Eight M3 3mm x 6mm bracket screws
Four 10#-32T 4.7mm x 11mm
equipment rack screws
Four bumper feet
Power cord retaining clip
One AC power cord
GS950PS V2 Series Quick Installation Guide 7
Note: The GS950/52PS V2 Switch does not include the eight wall
screws, washers, and wall anchors.
Choosing a Site for the Switch
Review these site recommendations and requirements.
Before installing the switch in an equipment rack, verify that the
rack is safely secured so that it will not tip over. Devices in a rack
should be installed starting at the bottom of the rack, with the
heavier devices near the bottom.
Before installing the switch on a table, verify that the table is level
and stable.
Before installing the switch on a wall, verify that the wall’s material
is strong enough to hold the switch’s weight. You should position
the device so that it can be screwed into the wall’s framing timber
or equivalent structural element.
The power outlet should be located near the switch and be easily
accessible.
The site should allow for easy access to the ports on the front of
the switch so that you can easily connect and disconnect cables,
and view the port LEDs.
Equipment rack/wall brackets
for the GS950/10PS V2 switch
Equipment rack/wall brackets
for the GS950/18PS V2 and
GS950/28PS V2 switches
Equipment rack brackets for
the GS950/52PS V2 switch
8 GS950PS V2 Series Quick Installation Guide
The site should allow for adequate air flow around the unit and
through the cooling vents on the side panels.
Do not place objects on top of the switch.
The site should not expose the switch to moisture or water.
The site should be a dust-free environment.
The site should use dedicated power circuits or power
conditioners to supply reliable electrical power to the network
devices.
Do not install the switch in a wiring or utility box without adequate
airflow and cooling. The switch might overheat and shutdown.
Direction of Ventilation in the Switches
The GS950/18PS V2, GS950/28PS V2, and GS950/52PS V2
Switches have internal ventilation fans. Airflow is from left to right,
when facing the front of the switch.
Note: The GS950/10PS V2 Switch does not have ventilation fans.
The site must provide sufficient airflow to prevent overheating of the
device.
Installing the Switch
Installing the Switch on a Desk or Table
To install the switch on a desk or table, perform the following
procedure:
1. Place the switch upside down on the table.
2. Affix the bumper feet to the four corners on the bottom panel of
the switch.
Warning: Switches should not be stacked on a table or
desktop. They could present a physical safety hazard if
you need to move or replace switches. E91
GS950PS V2 Series Quick Installation Guide 9
3. Turn over the switch.
4. Go to “Ports” on page 13.
Installing the Switch in an Equipment Rack
Here are the items for installing the switch in an equipment rack:
Two equipment rack brackets (included with the switch)
Eight M4x6mm bracket screws (included with the switch)
Cross-head screwdriver (not provided)
Four equipment rack screws (included with the switch)
To install the switch, perform the following procedure:
1. Place the switch on a table.
2. If the bumper feet are attached to the bottom panel of the switch,
remove them with a flat-head screwdriver.
3. Attach the two brackets to the sides of the switch with the eight
M3 3mm x 6mm screws included with the switch. This figure
shows the GS950/28PS V2 Switch.
4. Have another person hold the switch in the equipment rack while
you secure it using four equipment rack screws. The switch
comes with equipment rack screws.
13579111315
AT-GS950/28PS V2
Gigabit Ethernet PoE+ Switch
plus
13579111315
2 4 6 8 10 12 14 16
CLASS1
LASERPRODUCT
POE
MAX
SYSTEM
26 28
25 27
25 27
1000LINK
SFP
PDERRPDON
ACT1000LINK
ACT100/10LINK
PORTACTIVITY
26 28
17 19 21 23
18 20 22 24
SFP
1357
2468
POE
9111315
10 12 14 16
17 19 21 23
18 20 22 24
100LINK
ACT
ACT
10 GS950PS V2 Series Quick Installation Guide
5. Go to “Ports” on page 13.
Installing the Switch on a Wall
Note: Wall installation of the GS950/52PS V2 Switch requires the
BRKT-J22 brackets kit. The kit is sold separately. For installation
instructions, refer to the GS950PS V2 Gigabit Ethernet Switch
Series Installation Guide on the Allied Telesis web site at
www.alliedtelesis.com/us/en/services-support.
You can install the GS950/10PS V2, GS950/18PS V2, and GS950/
28PS V2 Switches on a wall with the front panels facing up or down.
Note: Do not install the switches with the front panels facing left or
right.
This manual suits for next models
4
