Allied Telesis AT-PWR01 User manual
Installation Guide
Removable Power Supply and Fan
AT-PWR01
AT-PWR02
AT-PWR05
AT-FAN01
AT-FAN03
Removable Power Supply and Fan
Installation Guide
AT-PWR01
AT-PWR02
AT-PWR05
AT-FAN01
AT-FAN03
Download the complete document set from
www.alliedtelesis.com/support/software
Removable Power Supply and Fan
2
Removable Power Supply and Fan Installation Guide
Document Number C613-04057-00 REV Q
© 2009 Allied Telesis, Inc. All rights reserved. No part of this publication may be
reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis, Inc. reserves the right to change specifications and other
information in this document without prior written notice. The information
provided herein is subject to change without notice. In no event shall Allied
Telesis, Inc. be liable for any incidental, special, indirect, or consequential
damages whatsoever, including but not limited to lost profits, arising out of or
related to this manual or the information contained herein, even if Allied Telesis,
Inc. has been advised of, known, or should have known, the possibility of such
damages.
Allied Telesis, AlliedWare, AlliedWare Plus, and SwitchBlade are trademarks or
registered trademarks in the United States and elsewhere of Allied Telesis, Inc.
Adobe, Acrobat, and Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
Microsoft and Visio are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Additional brands,
names and products mentioned herein may be trademarks of their respective
companies.
Installation Guide
3
Contents
About this Guide .............................................................................................................. 4
Compatible Switches ....................................................................................................... 4
Package Contents ............................................................................................................. 5
Installing a Power Supply Unit or Fan .......................................................................... 6
Connecting an AC power supply .................................................................................. 9
Connecting a PWR01 DC power supply .................................................................. 12
Connecting a PWR05 DC power supply .................................................................. 14
Checking LEDs ................................................................................................................ 16
Removing a Power Supply Unit or Fan ...................................................................... 19
Troubleshooting .............................................................................................................. 22
Obtaining Documentation and Resources ............................................................... 23
Standards .......................................................................................................................... 25
EC Declaration of Conformity .................................................................................... 26
Removable Power Supply and Fan
4
About this Guide
This Installation Guide describes how to install the following PSUs and fans:
■AT-PWR01 PSU, either AC or DC power supply unit
■AT-PWR02 PSU, AC only
■AT-PWR05 PSU, either AC or DC power supply unit
■AT-FAN01, fan-only module
■AT-FAN03, chassis fan module
Compatible Switches
The following table shows which models of PSUs and fans are appropriate for
individual switches.
You can download complete documentation for these switches from
www.alliedtelesis.com/support/software. For more information about the
documentation and other resources, see “Obtaining Documentation and
Resources” on page 23.
Switch PWR01 PWR02 PWR05 FAN01 FAN03
AT-8948 99
x900-48FE 99
x900-48FS 99
AT-9924T 99
AT-9924SP 99
AT-9924Ts 99
x900-24XT 99
x900-24XT-N 99
x900-24XS 99
SwitchBlade®x908 99
Installation Guide
5
Package Contents
Depending on the model, switches are shipped with a single supply unit (PSU),
either AC or DC. Some models also have fan-only modules (FOM), chassis fan
modules, or blanking plates.
■The AT-8948, AT-9924Ts, x900-24XT, x900-24XT-N, and x900-24XS
switches have a PSU and a FOM installed.
■The x900-48FE, x900-48FS, AT-9924T, and AT-9924SP switches have a PSU
and a blanking plate installed.
■The SwitchBlade®x908 is shipped with dual chassis fan modules and
blanking plates, but no PSUs.
The following items are included with each factory-installed PSU. Contact your
authorised Allied Telesis distributor or reseller if any are damaged or missing.
■one AC power cable (AC models)
■one power cable retaining clip (AC models)
■one warranty card
The following items are included with PSUs when purchased separately:
■one AC power cable (AC models)
■one power cable retaining clip (PWR01 and PWR02 AC models only)
■one clip-on ferrite core (PWR05 AC model only)
■one DC power cable (PWR05 DC model only - requiring termination to a
48V DC power supply by a suitably qualified person)
■this Installation Guide
■one warranty card
The following items are included with fans when purchased separately:
■this Installation Guide
■one warranty card
Removable Power Supply and Fan
6
Installing a Power Supply Unit or Fan
Use these instructions to install PSUs, chassis fan modules and FOMs.
■Do not combine AC and DC PSUs in the same switch.
■Do not combine PWR01 and PWR02 PSUs in the same switch.
Before you begin
■Read the safety information for the switch.
Safety information is in the x900 Series Switch and SwitchBlade®x908
Installation and Safety Guide. You can download this document from
www.alliedtelesis.com/support/software.
■Gather necessary tools and equipment.
Youwillneedanappropriateflat-bladedorPhillips(#1)screwdrivertotighten
or loosen the captive screws.
■Verify the package contents if you have not already done so.
See “Package Contents” on page 5. Contact your authorised Allied Telesis
distributor or reseller if items are damaged or missing.
■Remove the unit from its packing material in an anti-static environment.
Caution Follow correct anti-static procedures. Failure to do so could
damage the PSU, fan, or switch. If you are unsure about correct procedures,
contact your authorised Allied Telesis distributor or reseller.
Caution When adding or replacing power supplies, keep your hands and
fingers out of the power supply bays. After installing a PWR05 power supply,
use a screwdriver to tighten the captive screw such thata screwdriver will be
required to remove the PSU at a later date.
Installation Guide
7
Installing a PWR01, PWR02, or FAN01
1. If there is a PSU, fan or blanking plate in the bay you wish to install the unit,
first remove the old unit, following the steps described in section
“Removing a Power Supply Unit or Fan” on page 19.
2. Insert the new PSU or fan unit, and carefully slide it into the bay.
Insert it slowly, being sure to keep it straight. Firmly press the unit until the
faceplate engages, or nearly engages, the chassis. Forcing a misaligned unit
into the bay is likely to damage both the unit and chassis.
Note that when you have only one PSU installed in the AT-9924T and
AT-9924SP switches, it must be installed in bay 2 to optimise cooling.
3. Secure the unit in the switch by tightening the captive screws on the
faceplate.

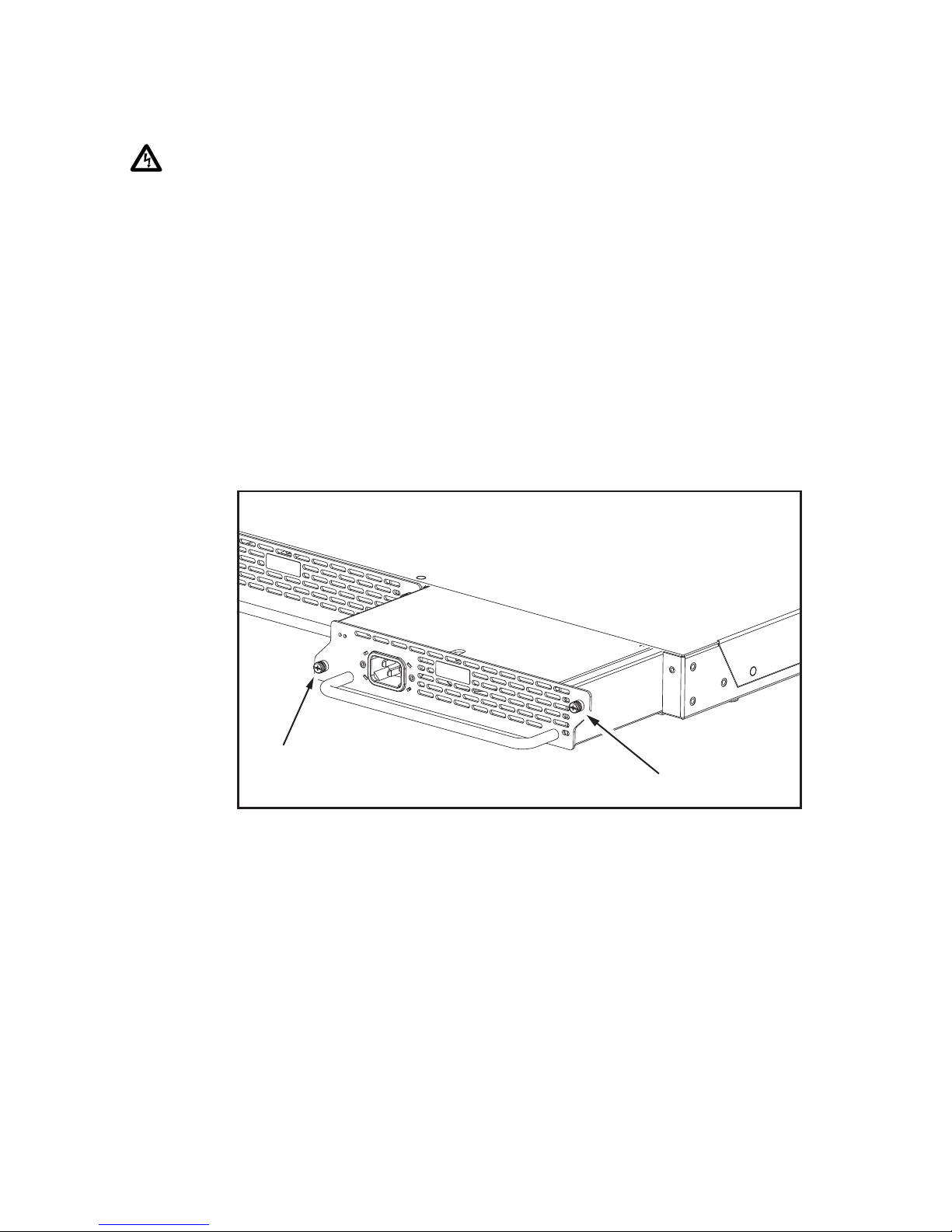

Captive screw
Captive screw
PSU
Switch
Removable Power Supply and Fan
8
Installing a PWR05 or FAN03
1. If there is a PSU, fan or blanking plate in the bay you wish to install the unit,
first remove the old unit, following the steps described in section
“Removing a Power Supply Unit or Fan” on page 19.
2. Insert the new PSU or chassis fan module, and carefully slide it into the bay.
If you are installing a PSU, unlock the latch on the PSU first by loosening the
captive screw.
Insert the PSU or fan module slowly, being sure to keep it straight. Firmly
press the unit until the faceplate engages, or nearly engages, the chassis.
Forcing a misaligned unit into the bay may damage both the unit and chassis.
3. Secure the unit in the switch by tightening the captive screw(s) on the
faceplate. On the PWR05, use a screwdriver to tighten the captive screw
such that a screwdriver will be required to remove the PSU at a later date.
Captive screw
PSU bays
PSU
Captive screw
Chassis fan
Service
access
panels
Installation Guide
9
Connecting an AC power supply
Follow these instructions to connect an AT-PWR01, AT-PWR02, or AT-PWR05
AC PSU to an AC power supply:
Warning The AT-PWR01 AC PSU has a fuse rating of 250VAC, 5A for FH101
and FH102.
Warning The AT-PWR01 AC PSU has double pole/neutral fusing. Electric
shock is possible since there are dual primary fuses, one on the phase circuit and
one on the neutral circuit. If the neutral opens, the phase may still be live.
Warning When x900-24 units are connected with VCS stacking cables (XEM-
STK-CBL) ensure that all the PSUs are appropriately grounded. This is to avoid
large circulating ground currents that could damage the stacking cables. To
achieve this ensure that:
■AT-PWR01 AC is grounded by the 3-pin AC power connector
■All grounding points are at the same ground level. That is, all power
connectors share a common power distribution unit.
Warning For SwitchBlade x908 units with AC PSUs, the grounding stud on the
rear of the device is provided for situations where an additional ground is
required. The device must be powered from a grounded 3 wire AC source via the
AC power cable and connector.
Warning When SwitchBlade x908 units are connected with VCS stacking
cables (either HS-STK-CBL or XEM-STK-CBL), each individual stack member
chassis must be additionally grounded by using the rear grounding-terminal on
each device. In order to avoid large circulating ground currents, thewires of each
grounding cable must be 18 AWG (0.8mm2) or thicker.
