Preface

Introduction This user manual describes the installation and operation of the 1788-EN2FFR

and 1788-CN2FFR linking devices.

About the Linking Devices

The 1788-EN2FFR linking device provides a gateway between an EtherNet/IP

network and a single segment FOUNDATION Fieldbus H1 layer.

The 1788-CN2FFR linking device provides a gateway between a ControlNet

network and a FOUNDATION Fieldbus network.

In this manual, both modules are referred to as the linking device.

The linking device can support up to16 field devices. It is configurable through

the Studio 5000® Logix Designer™ application by use of a dedicated Add-on

Profile (AOP). Multiple levels of media redundancy are supported, including

ring, split, and redundant trunk, plus options for H1 media, redundant linking

devices, redundant controllers, and redundant ControlNet media.

The linking device has full FOUNDATION fieldbus host capability, including

link active scheduler (LAS) capability.

6Rockwell Automation Publication 1788-UM057B-EN-P - September 2014

Preface

Network Diagrams 1788-EN2FFR EtherNet/IP Network

The diagram below is an example of how a 1788-EN2FFR linking device could

be used with an EtherNet/IP network..

Rockwell Automation Publication 1788-UM057B-EN-P - September 2014 7

Preface

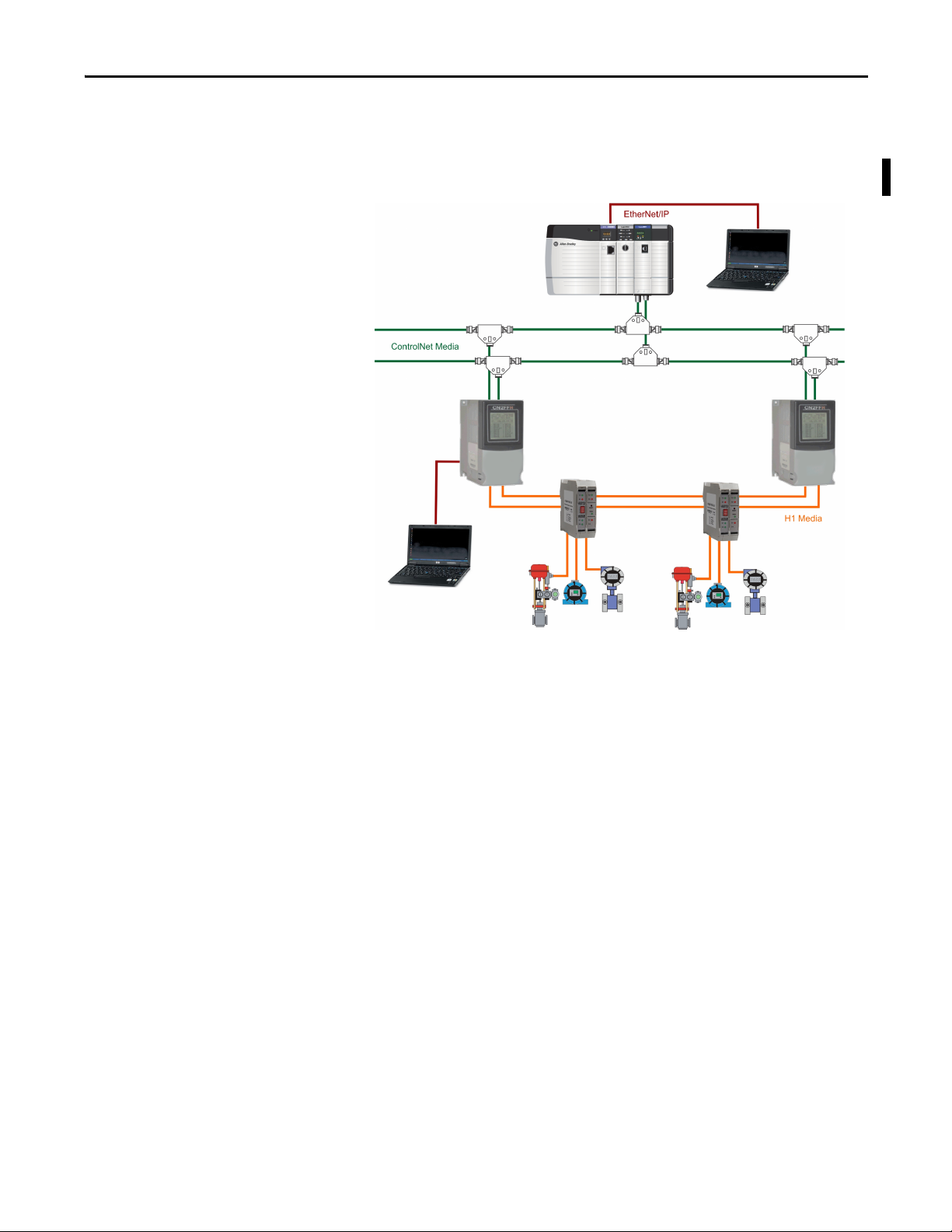

1788-CN2FFR ControlNet Network

This diagram shows an example of how a 1788-EN2FFR linking device could be

used with a ControlNet network.

Features The AOP provides an intuitive graphical interface to configure devices. A

predefined data structure for each field device provides eight input process

variables (PVs), eight output PVs, and eight PVs for inter-device communication

for full distributed control.

The linking device uses four controller connections. The data for the 16 field

devices is distributed over the four CIP connections. Connection A has the data

for the linking device and four field devices. Connection B, C, and D have the

data of four field devices each. The minimum requested packet interval (RPI) is

100 ms, and the maximum is 3,000 ms.

The HSProcessUtility is used to manage and register the field device description

(DD) files. The utility is launched from the AOP in the Studio 5000 Logix

Designer application, or directly in the Microsoft Windows operating system.

Field Device Tool/Device Type Manager (FDT/DTM) technology is supported.

This allows access to field device configuration and diagnostics via FDT Frames

such as FactoryTalk® AssetCentre. In addition, the Rockwell Automation FDT

ThinFrame (read only) can be launched from a FactoryTalk View or via the AOP

providing access to each field devices status and extended diagnostics.

1788-CN2PAR

Linking Device

1788-FBJB4R

Junction Boxes

1788-CN2PAR

Linking Device

ControlLogix

Controller

8Rockwell Automation Publication 1788-UM057B-EN-P - September 2014

Preface

Built-in power conditioners and protection are provided, which helps to

minimize installation space requirements. The H1 segment is divided between

two physical ports (A and B) with individual protection and a supply of 500 mA

per port. See H1 Network Connections on page 14.

The basic diagnostics of the linking device and the field devices, is found in the

input assemblies. Advanced configuration is found only through the AOP.

To assist with troubleshooting, a 128 x 128 pixel display provides access to the

status of the linking device. Information available includes network voltages and

currents, internal temperature, and communication quality to each field device.

A built-in web server provides remote access to network and field device data.

Safety Precautions Read and understand all precautions before using the linking device.

Prevent Electrostatic Discharge

ATTENTION: Prevent Electrostatic Discharge

This equipment is sensitive to electrostatic discharge, which can cause internal

damage and affect normal operation. Follow these guidelines when you handle

this equipment

•Touch a grounded object to discharge potential static.

•Wear an approved grounding wriststrap.

•Do not touch connectors or pins on component boards.

•Do not touch circuit components inside the equipment.

•Use a static-safe workstation, if available.

•Store the equipment in appropriate static-safe packaging when not in use.

This manual suits for next models

Table of contents

Other Allen-Bradley Control Unit manuals

Allen-Bradley

Allen-Bradley ControlNet 1786-RPFM User manual

Allen-Bradley

Allen-Bradley D Series User manual

Allen-Bradley

Allen-Bradley DeviceNet 1747-SDN/B User manual

Allen-Bradley

Allen-Bradley FLEX I/O 1794-IP4 User manual

Allen-Bradley

Allen-Bradley PowerFlex 755 User manual

Allen-Bradley

Allen-Bradley 1492-CM1771-LD007 User manual

Allen-Bradley

Allen-Bradley 160-DN2 User manual

Allen-Bradley

Allen-Bradley Kinetix 2000 User manual

Allen-Bradley

Allen-Bradley 1718 Ex I/O User manual

Allen-Bradley

Allen-Bradley ControlLogix 1756-ENET/B User manual

Allen-Bradley

Allen-Bradley ControlNet-to-FOUNDATION Fieldbus H1 User manual

Allen-Bradley

Allen-Bradley Series B User manual

Allen-Bradley

Allen-Bradley ArmorBlock 1732E-IT4IM12R User manual

Allen-Bradley

Allen-Bradley 140G-H User manual

Allen-Bradley

Allen-Bradley FLEX I/O 1794-OB8 User manual

Allen-Bradley

Allen-Bradley POINT I/O PROFIBUS 1734-APB User manual

Allen-Bradley

Allen-Bradley 1203-GD1 Parts list manual

Allen-Bradley

Allen-Bradley ProcessLogix B Series User manual

Allen-Bradley

Allen-Bradley ControlLogix 1756-OV32E User manual

Allen-Bradley

Allen-Bradley 1794-IE8H User manual

Allen-Bradley

Allen-Bradley ControlNet 1747-ACN15 User manual

Allen-Bradley

Allen-Bradley 1794-IA8 User manual

Allen-Bradley

Allen-Bradley ArmorBlock 1732E Manual

Allen-Bradley

Allen-Bradley 1606-XLBRED20 User manual

Popular Control Unit manuals by other brands

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation

JS Automation MPC3034A user manual

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum

Spektrum Air Module System manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS

KHADAS BT Magic quick start

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton

Eaton Powerware Series user guide

WAGO

WAGO 750-407/040-000 manual

Sony

Sony CCU-590 Operation manual

Graco

Graco 25D614 instructions

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini

Shini SPV-U Series manual
