Alfresco AGBQ-42 User manual

ADRIAN CRISCI



LAST SAVED BY: »» adrian «« September 24, 2007 10:14:47 AM

COMMERCE, CA. 90040

DRAWING NO.:

PROJECT TITLE:

DRAWING TITLE:

7039 EAST SLAUSON AVENUE

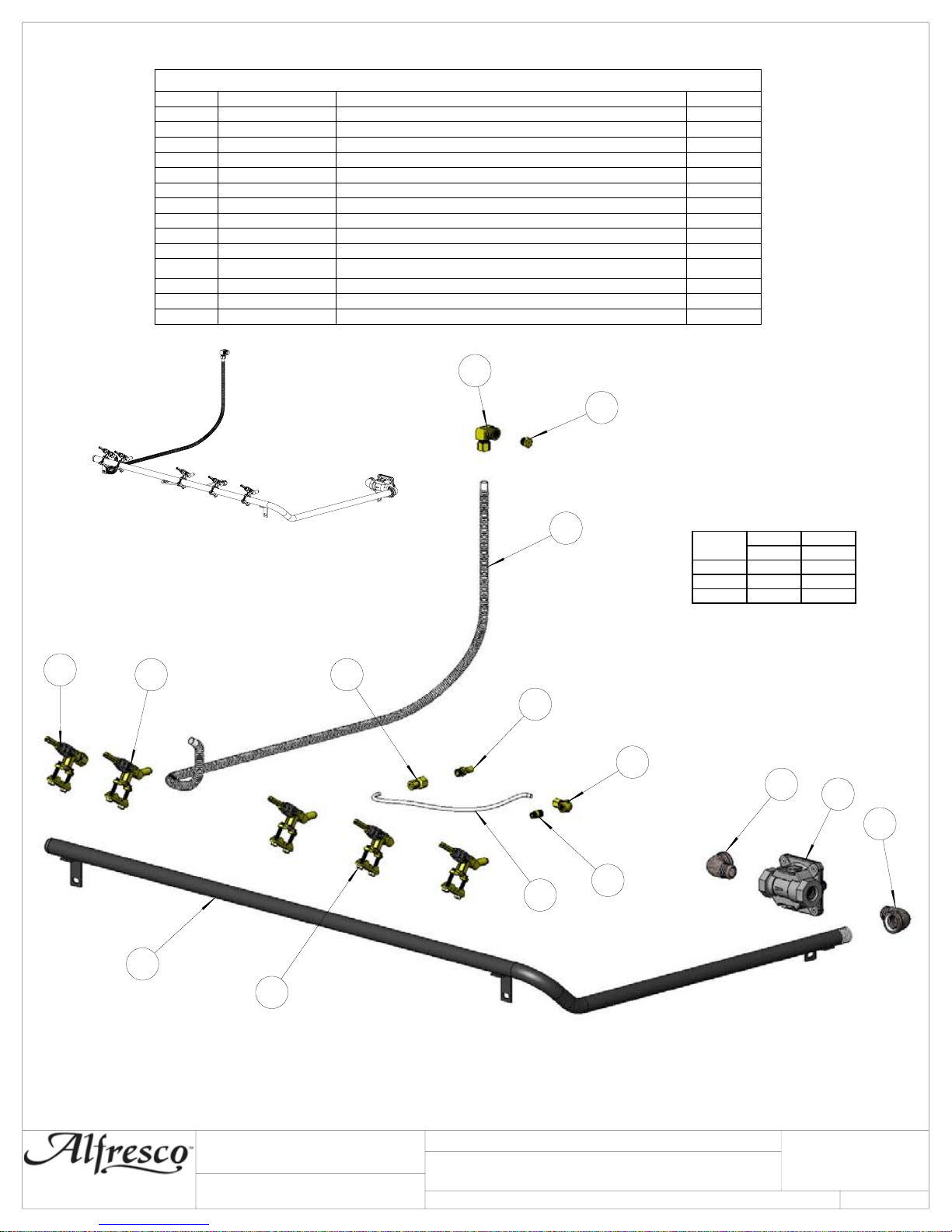

SUPERIOR EQUIPMENT SOLUTIONS 42" BBQ - GAS MANIFOLD - TRIPLE BURNER

42" BBQ ALFRESCO UNIT

CREATED:

EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.

510-0032

March 16, 2005 11:13:00 AM SHEET 1 OF 1

\\Engnas\ses-engineering\DWGS\Alfresco\BBQ'S\42 IN\

THE INFORMATION CONTAINED IN THIS DRAWING IS THE

SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS

INC. ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT WRITTEN PERMISSION FROM SUPERIOR

DRAWN BY:

SHOWN ASSEMBLED

BILL OF MATERIAL

NO. PART NUMBER DESCRIPTION QTY.

1 100-0914 ROTISSERIE GAS LINE (42"L x 3/8" Ø - SS. FLEX TUBE) 1

2 100-0933 SMOKER GAS LINE - 3/16" Ø AL TUBING 1

3 200-0274 ELBOW 90°- CAST IRON - 1/2" FPT x 1/2" MPT 2

4 220-0272 COUPLING 3/16" COMP x 1/4" FPT 1

5 220-0273 ELBOW 90° - 1/8" FPT x 3/16" COMP 1

6 220-0276 ELBOW 3/8" MPT x 1/8" FPT x 3/8" COMP 1

7 220-0277 NIPPLE 1/8"MPT x 1/16"MPT 1

8 220-0280 REGULATOR GAS - MAXITROL RV48CL440002 1

9 220-0294 MANIFOLD - GAS - FOR 42" BBQ 1

10 290-0041 GAS VALVE - STRAIGHT - WITHOUT ORIFICES 1

11 290-0066 GAS VALVE - ANGLED - ORIFICE: INT= 0.95 mm /

EXT=NONE 1

12 SEE NOTE ORIFICE - SMOKER UNIT >>> SEE NOTE 1

13 SEE NOTE ORIFICE - IR ROTISSERIE UNIT >>> SEE NOTE 1

14 SEE NOTE GAS VALVE - ANGLED WITH ORIFICE >>> SEE NOTE 3

5

13

6

1

10 14

9

11

38

3

12

4

2

7

NOTE: THE FOLLOWING ITEMS WILL

CHANGE PART NUMBERS DEPENDING

UPON THE GAS SUPPLY, NATURAL GAS

(NG) OR LIQUID PROPANE (LP)

NG LP

PART N° PART N°

12 220-0287 220-0288

13 220-0285 220-0286

14 290-0064 290-0065

ITEM N°
