AirLive WL-5470POE User manual

1.> Connect your internet cable to WAN port of WL-5470PoE and connect your PC to

LAN 2 via Ethernet cable .

2.> Connect the power adapter to the WL-5470PoE ’s power port.

3.> Wait about 1 ~ 2 minutes to complete the bootup procedure .

4.> Please make sure your PC’s IP is in the same subnet as theAP

(e.g 192.168.100.100 Subnet mask : 255.255.255.0) .

5.>Check whether you can ping WL-5470PoE’s IP (192.168.100.252).

If you can not ping 192.168.100.252 , please try the tips as below.

Please try to open the cmd window and input command: arp –d .

The command will clean the arp table.

Please input the command “arp –d” several times until it shows “the specified entry

was not found”, and try again.

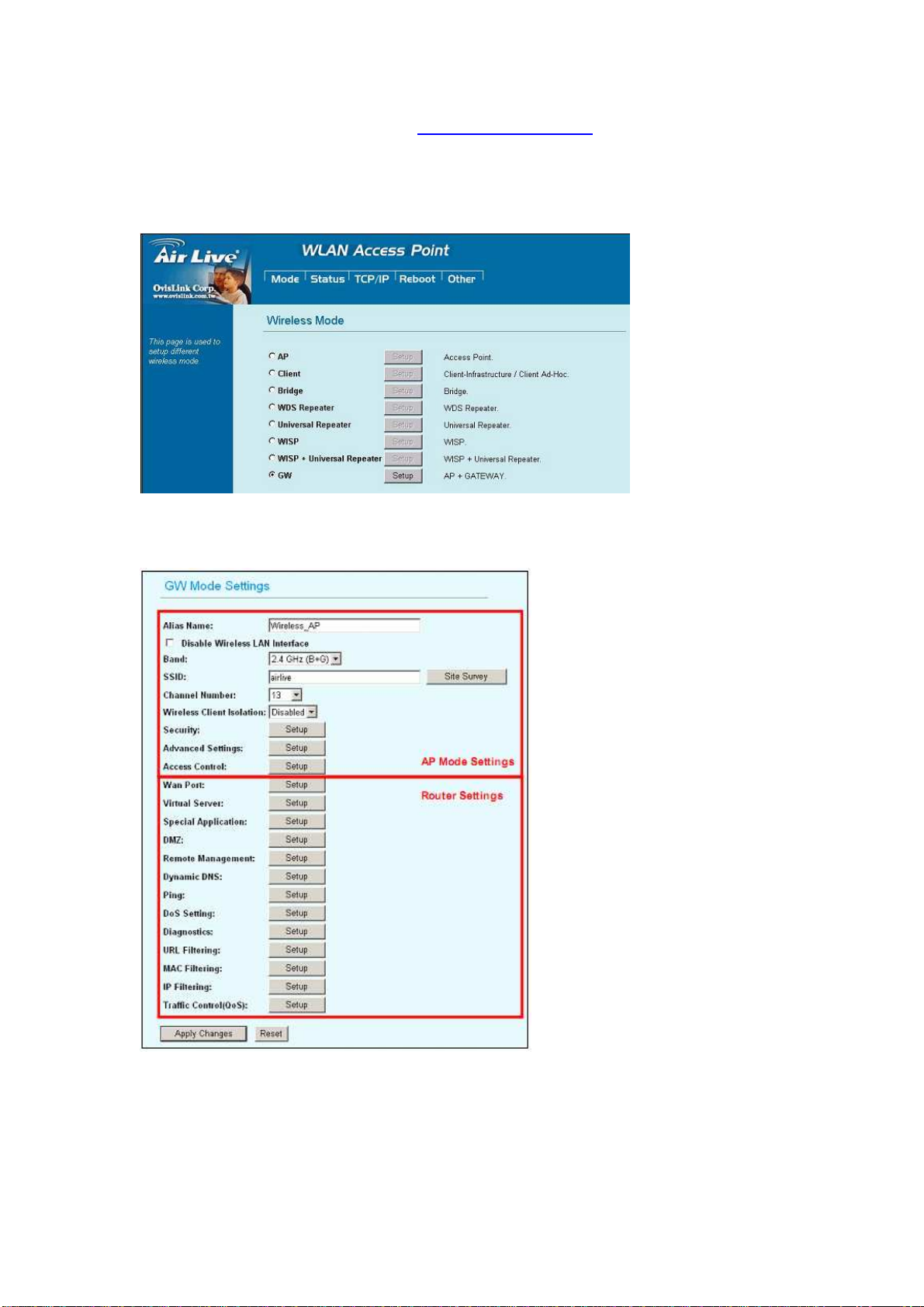

6.>Open the web browser and enter http://192.168.100.252/.

7.>Click on “Mode“

8.>Select GW Mode in the main page

9.>Reboot device

10.>Click Setup for detail configuration

11.>

Band: You can choose one mode of the following you need.

(2.4GHz (B) / 2.4GHz (G) / 2.4GHz (B+G)).

The default is 2.4GHz (B+G) mode.

12.> SSID (Network ID): Please enter your specific SSID or keep the default .

It is case-sensitive and must not exceed 32 characters.

13.>Channel Number: Please set the channel manually or keep the default .

14.>Wireless Security:

Here you can configure the security of your wireless network.

WL-5470POE provides WEP, WPA-PSK (TKIP), WPA2-PSK

(AES) and WPA2-PSK (AES) security policy.

15.>WAN Port : WL-5470POE provides 4 methods for client to access the internet. This

depends on the location and the service which the ISP provides. You need to contact the

ISP for detail information.

16.>

Whenever you have completed the configuration from above item(11 ~ 15),

you need to press <Apply Changes> or <Save> button to save the changed

configuration.

17.>reboot WL-5470PoE.

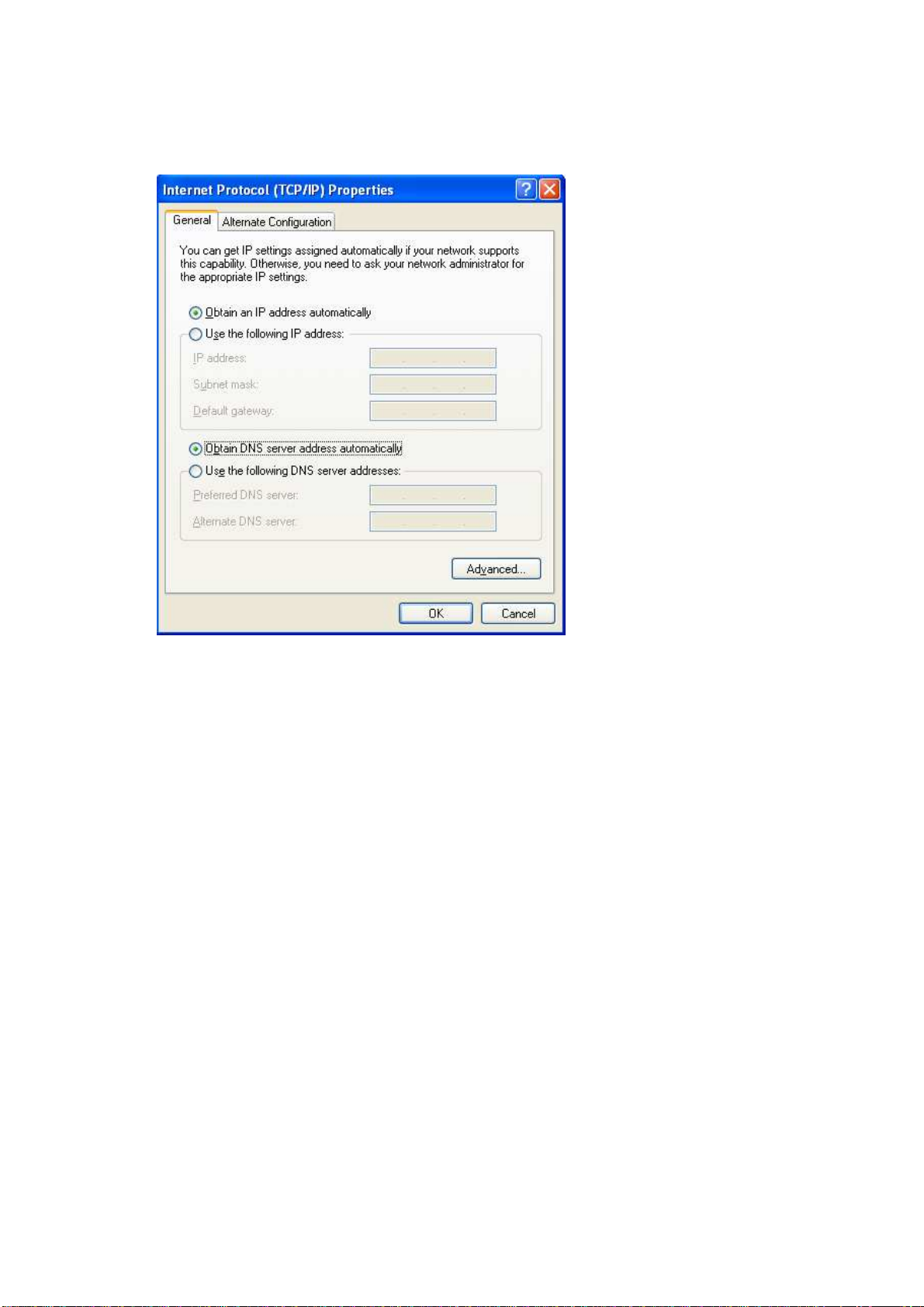

18.>Please set your PC or wireless client to dhcp client , it will get the IP address from

WL-5470PoE’s DHCP sever.
