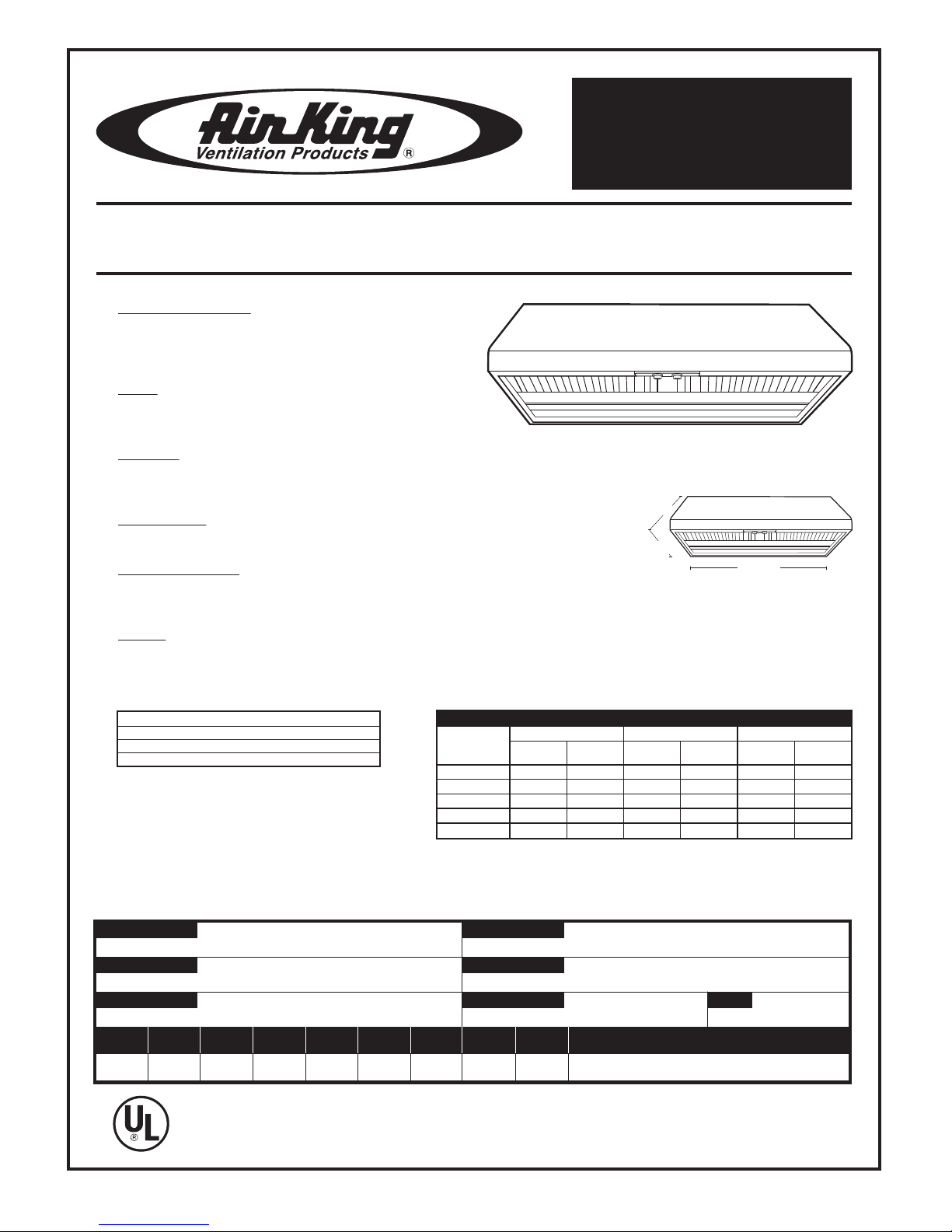

Professional Series 10" Height

Wall Mounted Range Hood

24"

30", 36"

10"

Breaker Size is listed at the recommended minimum size. Installation must be in accordance with all applicable

codes and standards.

•Hood Dimensions

Overall bottom projection - 24"

Available height

(less Soffit) -10"

Available widths: 30" and 36"

•Hood

Stainless steel. Wall mounted. Install at least 24" above the

cooking surface.

•Lighting

2 - PAR16 Medium screw base, 45 watt maximum

Halogen lamps (not included).

•Heat Lamps (model P1036W)

2 - 175 watt maximum Type PAR38 heat lamps (not included).

•Ducting Options

Vertical or Horizontal ducting through ducting transition (not included)

specified for size of motor.

•Filters

Grease Baffles: Dishwasher safe, Stainless Steel baffles (included).

Model Description Width Height

P1030 Range Hood 30" 10"

P1036 Range Hood 36" 10"

P1036W Range Hood w/Heat Lamps 36" 10"

POWER USAGE

30" 36" 36" w/Heat Lamps

Full Load Breaker Full Load Breaker Full Load Breaker

Motor Size Amps Size Amps Size Amps Size

300 CFM 1.7 amps 15 amp 1.7 amps 15 amp 5.9 amps 15 amp

500 CFM 1.9 amps 15 amp 1.9 amps 15 amp 6.1 amps 15 amp

600 CFM 2.1 amps 15 amp 2.1 amps 15 amp 6.3 amps 15 amp

900 CFM 6.5 amps 15 amp 6.5 amps 15 amp 10.7 amps 15 amp

1200 CFM 8.0 amps 15 amp 8.0 amps 15 amp 12.2 amps 20 amp

PROJECT

LOCATION

CONTRACTOR

ARCHITECT

ENGINEER

SUBMITTED BY DATE

FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT

NUMBER NUMBER W.C. & REMARKS
