AIPTEK POCKETDV II User manual

DV Cam

Installation GuideInstallation Guide

Notice

2Notice

1. Do not drop, puncture or disassemble the

camera.

2. Remove batteries during long periods between

use.

3. Avoid all contact with water and dry hands

before using.

4. Do not expose the camera to high temperature

or leave it in direct sunlight.

5. Avoid pressing hard on the camera body.

Camera USB cable

AV-out cable Strap

2 x AA Alkaline batteries

CD driver User guide

Bundled Accessories

Tripod (Optional)

Your Camera

(1)

(2)

(3)

(4)

(5)

(15)

(16)

(17)

(18)

4Your Camera

(19)

Camera Parts

(1) Shutter

(2) Lens

(5) Microphone

LCD display

(8) LED light

USB port

(12) CF Card slot

(13) AV-out port

(14) Eject ( CF Card)

(15) Strap-holder

(16) Speaker

(17) Battery cover

(18) Tripod port

(19) LCD Backlight control

(3) Focus

(4) Mirror

(6) View finder

(7)

(9) Record button

(10) MENU control

(11)

(6)

(7)

(9)

(10)

(11)

(12)

(13)

(14)

(8)

Battery Installation

Your camera runs on two AA alkaline batteries.

High performance batteries are recommended for

this camera for maximum battery life.

When not using your camera for extended

periods, we suggest you remove the batteries.

on the LCD display indicates low battery.

Transfer data from SDRAM to your PC

immediately to avoid data loss. All SDRAM

data will be lost when the camera loses power

from battery exhaustion or removal.

Full Low Out of power

Battery Indicators

Battery Installation 5

Using a CF Card

External Memory/ CF Card

Gently insert CF Card to CF Card Slot. Do not

force. Ensure CF Card is completely inserted.

CF Card storage capacity

- Movies (P. 12)

- Still pictures (P.14)

- Voice recording (P15)

Using a CF Card

Format CF Card

Select on the LCD display to format the

CF Card. (See P.9 for more on the Mode

Selecting. )

Do not eject CF Card while the camera is

processing data.

EJECT

CF CARD

Data will be completely lost as you format your

card.

In addition to 128 Mbits SDRAM, your camera

can store data on Compact Flash Cards ( 8MB-

512MB). Insert you CF Card as shown.

Files will be automatically stored on the CF Card after

you've inserted the CF Card.

We recommend CF Cards from Tanscend, HP, PQI,

PRETEC, Sandisk and Toshiba.

Strap and Tripod Use

Strap

Tripod (Optional)

Attach the carrying strap for convenience and

safety.

Use a tripod to minimize camera movement and

ensure optimal image quality, especially while

shooting longer movies, self-portraits or video

conferencing.

Tight

Loose

Strap and Tripod Use 7

Using Your Camera

Opening LCD panel

Turning on your camera/off

Press and hold the MENU control for 3 seconds to

turn on your camera.

Manual shut-off: press the MENU control for 3

seconds. If you can't turn off your camera,

please make sure you exit the MENU.

Auto shut-off: your camera will automatically

shut off after 60 seconds of inactivity.

Swing the LCD panel 90 away from the camera

body. Be careful not to over extend the panel.

90 °

Using Your Camera

Turning on/off LCD Backlight

Turn on backlight as shown.

Backlight

On Off

To reduce power consumption

turn off the LCD backlight.

LCD Display

LCD Display 9

Mode Selecting

Rotate (MENU control) up or down to shift between

modes. Press to select mode.

Show MENU

After turning on the camera, press MENU control to show

MENU. To exit MENU, select on LCD display. See

.Mode Selecting

Note

Still picture mode and AVI Movie function are

temporarily disabled when the MENU is shown.

To take still pictures or AVI Movie, please select

to exit MENU.

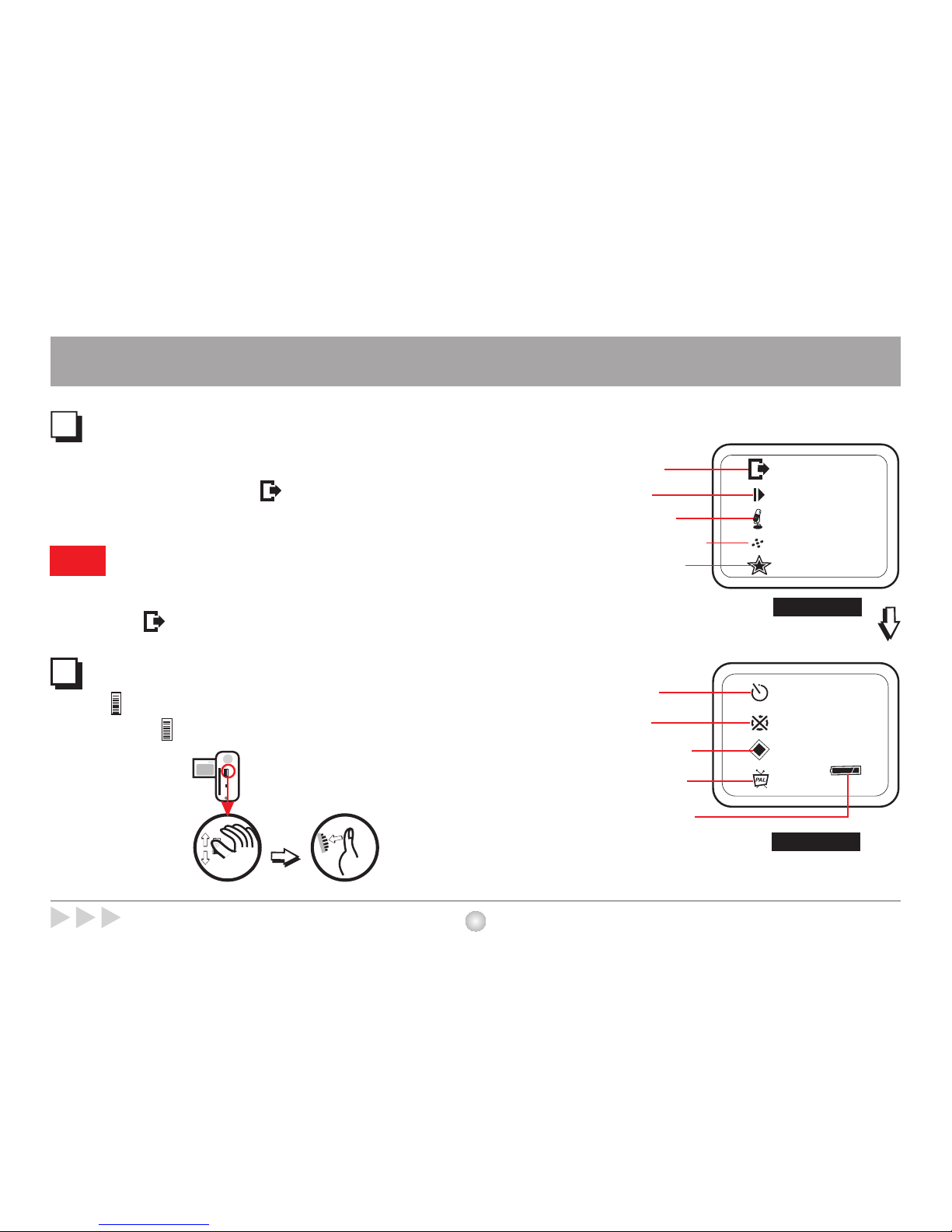

(1)

(3)

(6)

(7)

(4)

(5)

(2)

(8)

(9)

(10)

Self-Timer

Voice Record

Erase All

Picture Quality

Format CF card

Battery Indicator

Picture Resolution

Playback

A/V out setting

Exit MENU

LCD Preview

Screen Page 1

Screen Page 2

LCD Preview

Focus

Set focus before taking pictures.

Focus

16"~40" (40cm~100cm)

40"~ (100cm~ )
