Aiphone GF-VBC GF-4Z User manual

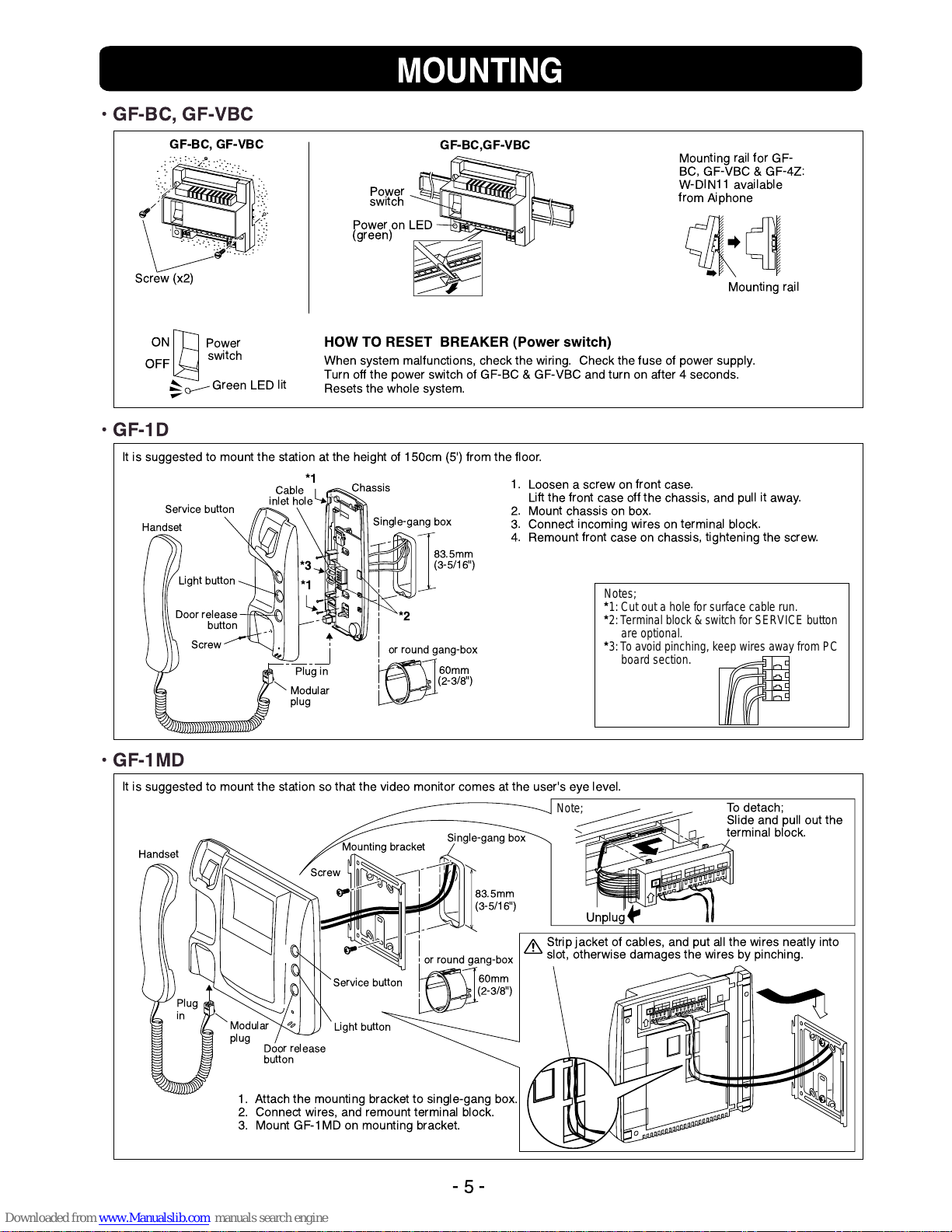

MOUNTING

-5-

¥ GF-BC, GF-VBC

¥ GF-1D

1. Loosen a screw on front case.

Lift the front case off the chassis, and pull it away.

2. Mount chassis on box.

3. Connect incoming wires on terminal block.

4. Remount front case on chassis, tightening the screw.

1. Attach the mounting bracket to single-gang box.

2. Connect wires, and remount terminal block.

3. Mount GF-1MD on mounting bracket.

Handset

Service button

Light button

Door release

button

Service button

Light button

Door release

button

To detach;

Slide and pull out the

terminal block.

Unplug

Cable

inlet hole Chassis

Single-gang box

Single-gang box

Mounting bracket

83.5mm

(3-5/16")

*2

*1

83.5mm

(3-5/16")

60mm

(2-3/8")

Modular

plug

Plug in

or round gang-box

*3

*1

It is suggested to mount the station at the height of 150cm (5') from the floor.

Screw

Notes;

*

1: Cut out a hole for surface cable run.

*

2:Terminal block & switch for SERVICE button

are optional.

*

3:To avoid pinching, keep wires away from PC

board section.

Mounting rail

GF-BC, GF-VBC

Power on LED

(green)

Power

switch

Green LED lit

GF-BC,GF-VBC

Power

switch

Screw (x2)

ON

OFF

HOW TO RESET BREAKER (Power switch)

When system malfunctions, check the wiring. Check the fuse of power supply.

Turn off the power switch of GF-BC & GF-VBC and turn on after 4 seconds.

Resets the whole system.

Handset

Modular

plug

Screw

Plug

in

It is suggested to mount the station so that the video monitor comes at the user's eye level.

¥ GF-1MD

60mm

(2-3/8")

or round gang-box

Mounting rail for GF-

BC, GF-VBC & GF-4Z:

W-DIN11 available

from Aiphone

Note;

Strip jacket of cables, and put all the wires neatly into

slot, otherwise damages the wires by pinching.
