AgfaPhoto Realishot WP8000 User manual
MAIN FEATURES
• Up to 3 meters watertight
• Underwater photo capture and video recording
• Video resolution: 2.7K 2688x1520, FHD 1920x1080, HD 1280x720P
• Maximum image resolution: 48 MP
• Dual screens: a 1.8" front screen and a 2.7" TFT rear screen
• Built-in LED flash
• 16X digital zoom
• High-speed continuous shooting, face detection, image stabilization, multiple scene modes
• Micro SD support up to 128 GB (not included)
PREPARATION BEFORE USE:

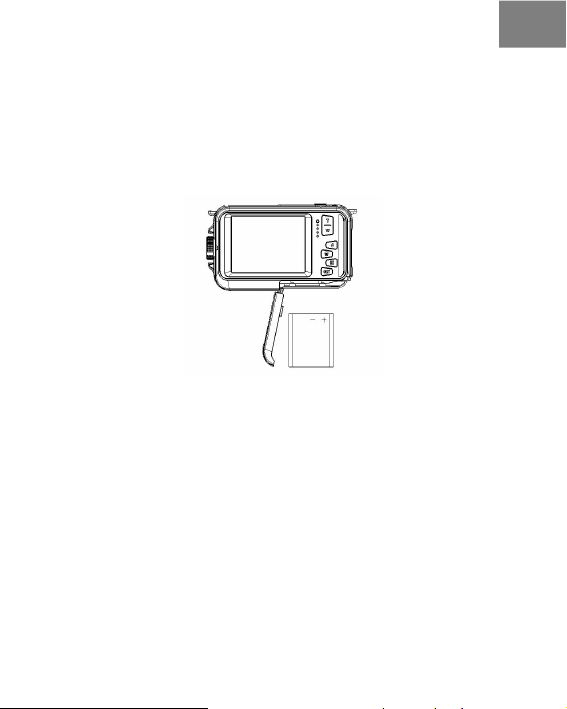

Lithium battery installation
Please install the lithium battery supplied with the camera before using it according to the
following instructions.
1. Slide the battery cover on the bottom of the camera to the left to access the battery
compartment:
2. Install the battery in the correct polarity.
3. Then close the battery cover and slide it to the left to lock it in place.
Note: Please remove the battery if you are not going to use the camera for a while.
Lithium battery charging
To recharge the lithium battery, simply connect the camera (without removing the battery) to
your computer using the USB cable provided in the box. The red LED on the back of the
camera will light up to indicate that the battery is being charged, and will turn off when fully
charged. You can also charge the lithium battery by connecting the camera to AC power if you
have an adapter to which you can connect the USB cable.
Install the lithium
battery as follows:
EN
Computer system requirements - Windows 7/XP3
If you want to transfer photos and videos to a Windows 7/XP3 computer, the computer must
be set up as follows:
Pentium processor compatible with Windows 7/XP3 or higher
RAM of at least 128 MB with at least 150 MB of available disk space
Compatible USB interface
Recommended screen resolution: 1024 x 768 pixels or more / 16-bit color or more
Computer system requirements - Windows Vista
If you want to transfer photos and videos to a Windows Vista computer, the computer must
be set up as follows:
800 MHz processor and 512 MB RAM
20 GB hard disk with at least 16 GB available space
Super VGA Graphics Array Support
Compatible USB interface
Computer system requirements - Macintosh
If you want to transfer photos and videos to a Mac computer, the computer must be set up as
follows:
Macintosh G3 500 MHz processor or higher
Mac OS X or 10.5.X or earlier versions
RAM of at least 256 MB or more with at least 150 MB of available disk space
Recommended screen resolution: 800 x 600 pixels or more
Camera description:
Icons:
Battery charging
Fully charge battery
Medium charged battery
Low battery
Quality
Common
Fine
Super Fine
Flash
Flash on
Auto flash
Flash off
Mode
Video
Playback
Self-timer
Self-timer 10s
Self-timer 5s
Self-timer 2s
Self-timer off
Digital zoom
Protection
Protection on
Anti-shake
Anti-shake on
Anti-Shake off
Scenes
Auto Scenery Portrait
Night scenery Night portrait
High sensitivity Sport Beach
Party
Memory card installation
The camera supports micro SD memory cards up to 128 GB (not included). The internal
memory of the camera can only store one photo for test purposes. It is necessary to insert a
micro SD card into the micro SD card slot before using the camera, which is located below the
lithium battery slot. Make sure that it is inserted correctly by gently sliding it into the slot until
it clicks into place to confirm that it is locked. A micro SD card icon will appear on LCD screen
to indicate that the camera has detected the micro SD card. To remove the card, simply press
it firmly and the card will eject itself from the slot.
Note:
1. All photos and videos will be saved to the micro SD card once it is installed.
2. Formatting will delete all data stored on the memory card.
3. Do not remove the micro SD card during formatting as this may damage the card.
Turning on the camera
Press the power key on the top of the camera to turn it on. The LCD screen will then turn on to
confirm that it is working.
Turning off the camera
Press the power key again to turn off the camera. When the battery power level is insufficient,
the camera will display a red icon on LCD screen and automatically turn off after a few
seconds.
PHOTO MODE:
Once the camera is turned on, the icon will appear on LCD screen indicating that the
photo mode is activated.
Switching between screens
To switch from the front screen to the rear screen, press the screen change key next to the
power key. Each press will alternately activate the 1.8" front screen and the 2.7" rear screen.
Photo shooting
To take a picture, simply press the shutter key on the top of the camera. It then takes a few
seconds to record the photo on the memory card. After each image capture, the number
displayed on the screen indicates how many more photos you can take based on the current
settings and the size of the memory card inserted in the camera. A message appears on the
screen when the memory card is full. To continue, you need to transfer all data on the
memory card to your computer or insert a new memory card.
Digital zoom
You can enlarge the object up to 16 times with the digital zoom. Press the (T) key to zoom in
and press the (W) key to zoom out. The icon W T will be displayed on
LCD screen.
Photo mode settings:
The camera has 18 settings that can be adjusted to improve shooting: Flash, Scenes, Image
resolution, Anti-Shake, Face detection, Continuous shooting, Self-timer, EV, ISO, White balance,
Sharpness, Quality, Effects, auto power off, Sound, Date/Time, Frequency, Memory card
formatting.
1. Press the SET key.
2. Press the Up/ Down keys to select the setting to be changed.
Built-in flash
Press the Flash key on the back of the camera to activate the three flash modes. To activate
Auto Flash, select the icon ; it should turn on automatically if the shooting brightness is
low.
If you select the icon , you activate the flash manually, so it remains active until you turn it
off. Finally turn the Flash off by selecting the icon .
Scenes
The camera has a multiple choice of scenes to adapt the shooting to the environment where
you are: Auto / Scenery / Portrait / Night scenery / Night portrait / High sensitivity / Sport /
Beach / Party.
Press the power key to turn on the camera, the icon will be displayed in the upper
left corner of the LCD screen.
1. Press the SET key.
2. Press the Left / Right keys to select the icon
3. Press the Up / Down keys to select the scene you need.
4. Press the SET key again to confirm.
Image resolution selection
1. Press the SET key.
2. Press the Left / Right keys to select the icon
3. Press the Up / Down keys to select from the following image resolutions: (48M) 8000x6000,
(30M) 6400x4800, (24M) 5600x4200, (20M) 5200x3900, (16M) 4608x3456, (12M)
4000x3000, (8M) 3264x2448, (7MHD) 3648x2048, (5M) 2592x1944, (3M) 2048x1536,
(2MHD) 1920x1080.
4. Press the SET key to confirm your selection.
5. The selected resolution will appear as an icon on LCD screen.
Image quality
This function allows you to adjust the overall quality of your photo.
1. Press the SET key.
2. Press the Left / Right keys to select Image quality.
3. Press the Up / Down keys to select: Normal / Fine / Super fine.
4. Press the SET key again to confirm your selection.
5. The icon corresponding to the selected quality will then be displayed on the LCD screen.
Self-timer
When the self-timer is on, the picture is taken a few seconds after the shutter key is pressed.
Ideal for group shots, we recommend you to use a tripod or to place the camera on a stable
surface if you wish to use the self-timer.
1. Press the SET key.
2. Press the Left / Right keys to select the icon
3. Press the Up / Down keys to select a duration: 2 sec. / 5 sec. / 10 sec. / Off.
4. Press the SET key again to confirm.
5. The icon corresponding to the selected self-timer time will then be displayed on the LCD
screen.
Note: This function switches off automatically after each use.
Anti-shake
This setting allows you to stabilize shooting to avoid taking blurry pictures:
1. Press the SET key.
2. Press the Left / Right keys to select the icon
3. Press the Up / Down keys to choose: On / Off.
4. Press the SET key again to confirm.
5. The icon will be displayed on LCD screen to indicate that the Anti-Shake is activated.
Face detection
Activate face detection as follows:
1. Press the SET key.
2. Press the Left / Right keys to select the icon
3. Press the Up / Down keys to choose: On / Off.
4. Press the SET key again to confirm.
Continuous shooting
With this setting, you can take up to 6 pictures in quick succession (VGA image size only) after
pressing the shutter key once.
1. Press the SET key.
2. Press the Left / Right keys to select the icon
3. Press the Up / Down keys to choose: On / Off.
4. Press the SET key again to confirm.
Note:
When you activate this setting, the image resolution automatically switches to VGA. If it has
been changed, the message "Continue without continuous shooting" will be displayed on the
screen to remind you that this function is only available when the image size is VGA.
White balance
This setting allows you to modify the color of your photos according to the light source.
1. Press the SET key.
2. Press the Left / Right keys to select White balance.
3. Press the Up / Down keys to select: Auto / Daylight / Cloudy / Fluorescent / Incandescent.
4. Press the SET key again to confirm your selection.
