AFINIBOT A1 User manual

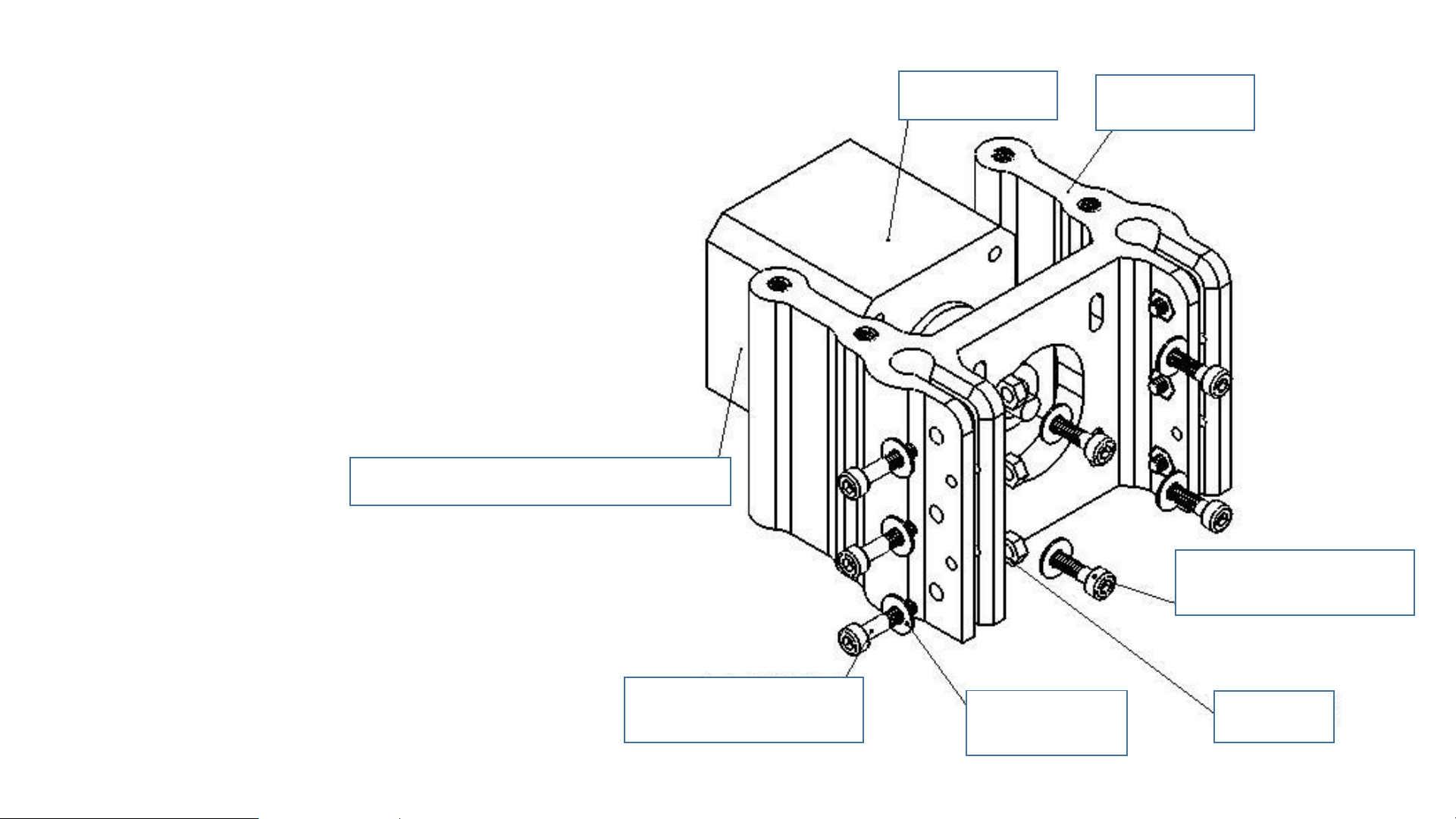

Step 1 Assemble motor_end
M3*14mm inner
hexagon screws*6
Put six M3*14mm inner hexagon screws and
M3 cushion rings into the Motor_end , lock
with M3 nuts but do not tighten ,as picture.
Put the motor on the motor_end , locking
with four M3*10mm and M3 cushion rings.
Another two motor_ends are the same
assembly
M3 cushion
rings*6 M3 nuts
M3*10mm inner
hexagon screws*4
Motor_end
Motor
The motor wires is on this side
M3*14mm inner
hexagon screws
Step 2 Assemble idler_end
Put fouaaaaar M3*14mm inner
hexagon screws and M3 cushion
rings into the idler_end , lock
with M3 nuts but do not
tighten ,as picture.
Put a limit switch on the
idler_end, locking with two black
M2.5*10mm self_tapping screws.
Install Ball bearing , Use 1pcs
M5*25mm inner hexagon
screw ,2pcs M5 Cushion ring ,
3pcs M5 small cushion ring and
1pcs M5 nut.
Another 2pcs idler_ends are the
same assembly .
M5 cushion ring*2
M5 small
cushion ring*3
M5*25mm inner
hexagon screw
M2.5*10mm
self_tapping screws*2
Limit switch
M3 cushion rings
M5 nut
Ball bearing
Idler_end

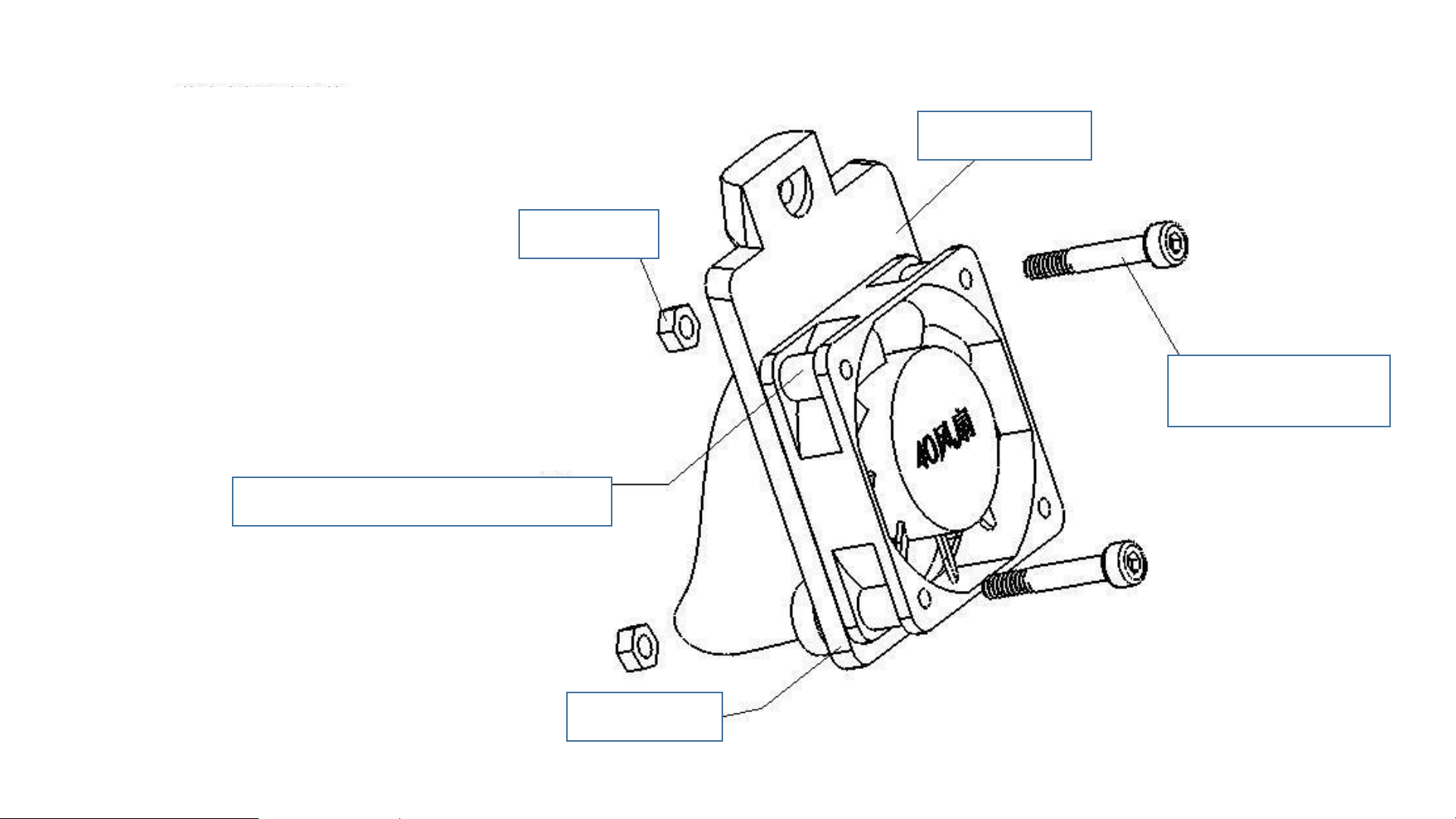

Step 3 Assemble Cooling fan 1
Assemble the Cooling fan and the Fan_mount 1
together, locking with 2pcs M3*14mm inner
hexagon screw and M3 nuts.
M3 nut*2
Fan_mount 1
Cooling fan
M3*14mm Inner
hexagon screw*2
The fan wire is out of this side

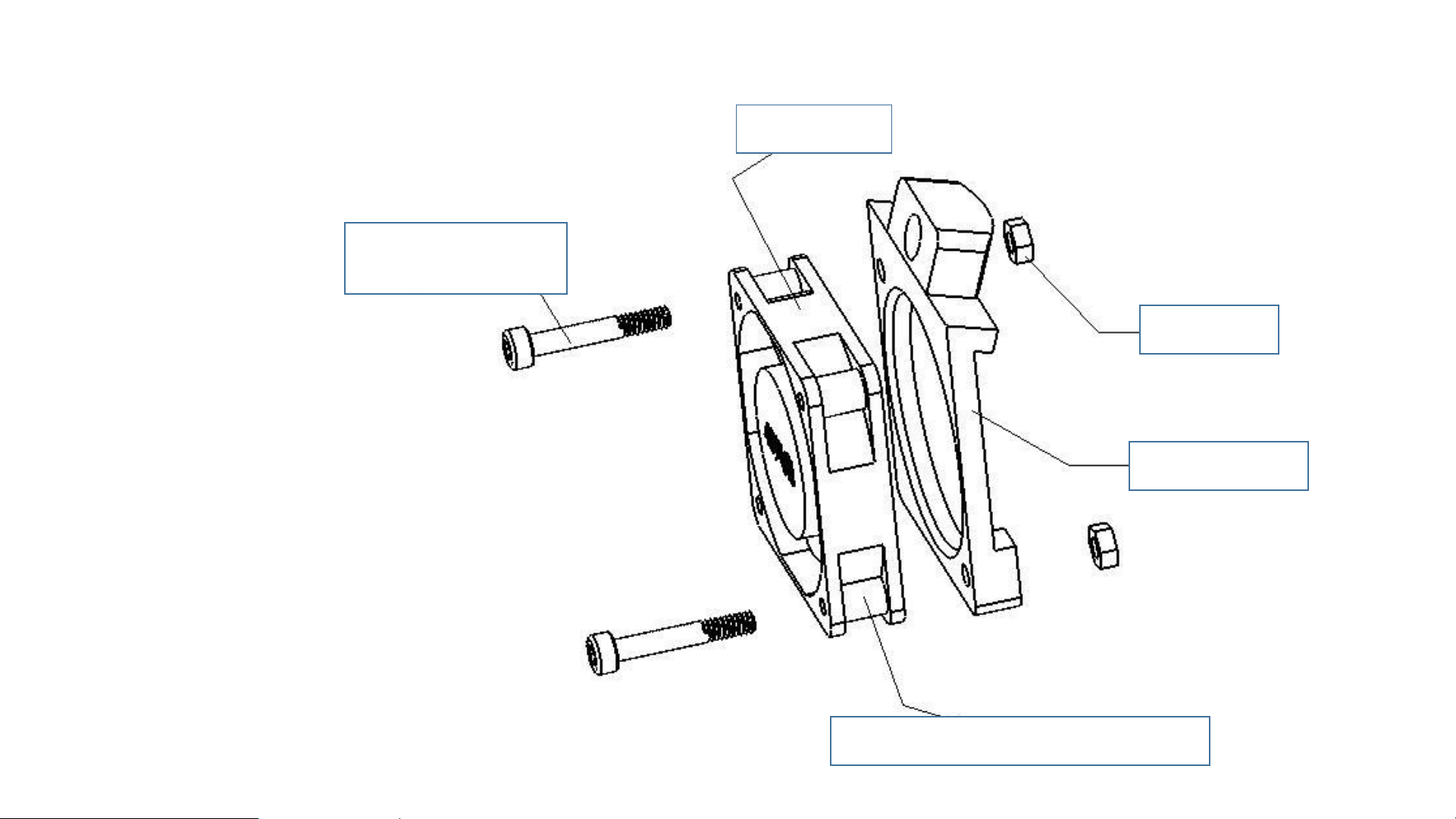

Step 4 Assemble Cooling fan 2
Assemble the Cooling fan and the Fan_mount 2
together, locking with 2pcs M3*14mm inner
hexagon screw and M3 nuts.
M3 nut*2
Fan_mount 2
Cooling fan
M3*14mm Inner
hexagon screw*2
The fan wire is out of this side
Step 5 Assemble Extruder_Mount
Insert Extruder into Extruder_Mount
Assemble Extruder_Buckle with the
extruder as picture , locking with 3ps
M3*14mm inner hexagon screws
and 3pcs nuts.
The fan wire is out of this side Extruder_Mount
Extruder_Buckle
M3*14mm inner
hexagon screws *3
M3 nuts
Extruder

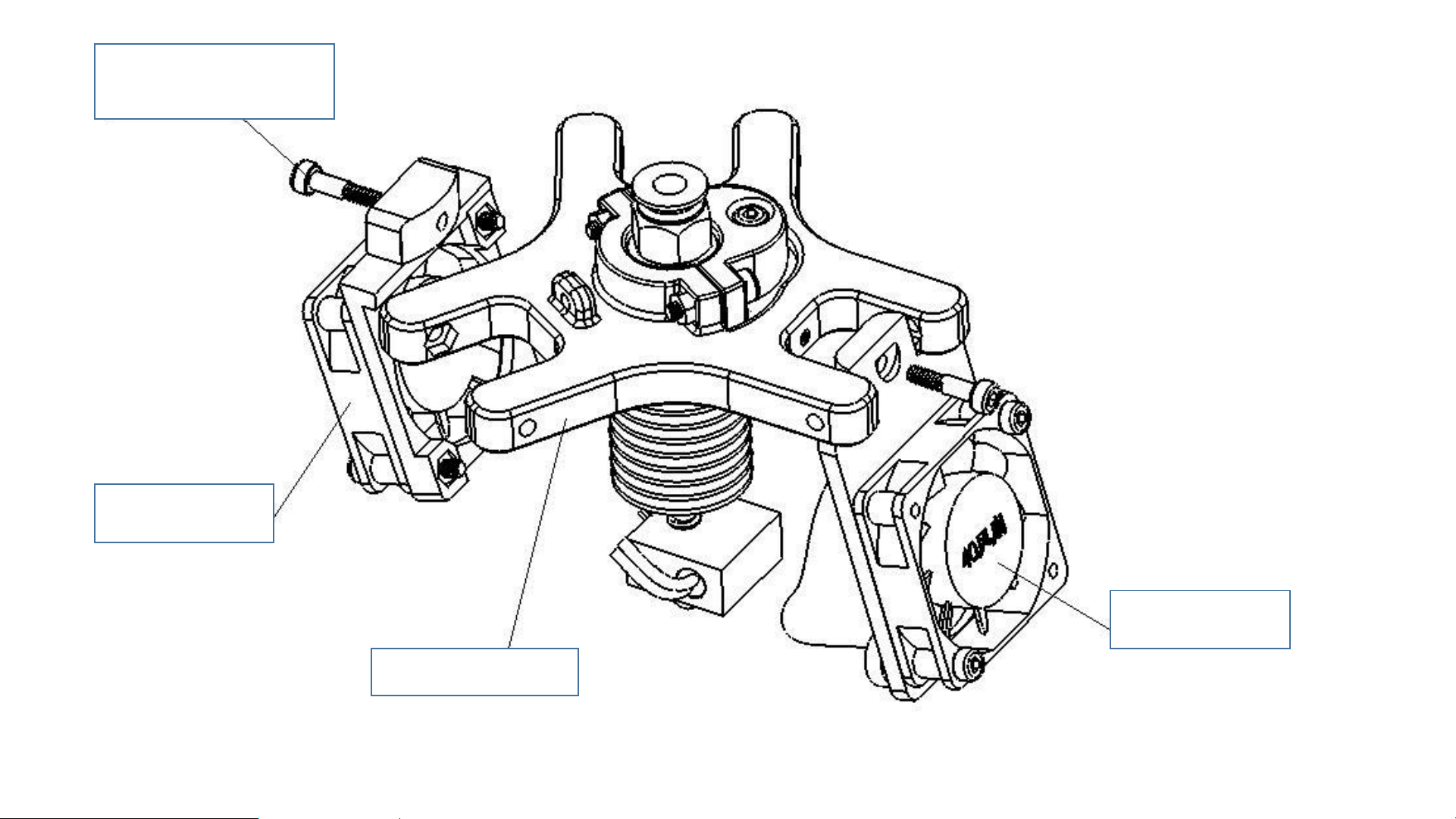

Step 6 Assemble Fan mounts
Put Fan_mount 1 and Fan_mount 2
to the Extruder_mount as picture,
locking with 1pcs M3*14mm inner
screw each
Fan_mount 2
Fan_mount 1
Extruder_mount
M3*14mm inner
hexagon screw
Step 7 Assemble Aluminum plate
Firstly install Copper pillar on the Acrylic
board , locking with 3pcs M3*10mm
Flat_head screws from bottom to up, as
picture.
Through Aluminum plate and Pressure
spring which used M3*14mm flat_head
screws ,locking to the copper pillar.
M3*10mm
Flat_head screws*3
M3*14mm
Flat_head screws*3
Aluminum plate
Acrylic board
Pressure spring
Copper pillar
Step 8 Assemble Base plate
Put 3pcs Motor_ends under
the Base plate, Locking with
M4*30mm inner hexagon
screws and M4 cushion rings
Put LCD display to the Base
plate , locking with 2pcs
M3*16mm Round head cross
screws and M3 nuts
Put control board assembly to
Base plate , locking with 2pcs
M3*16mm round head cross
screws and M3 nuts
LCD display Motor_ends
M4*30mm inner
hexagon screw
M3*16mm round
head cross screws
Control board
assembly
Base plate
M4 cushion ring

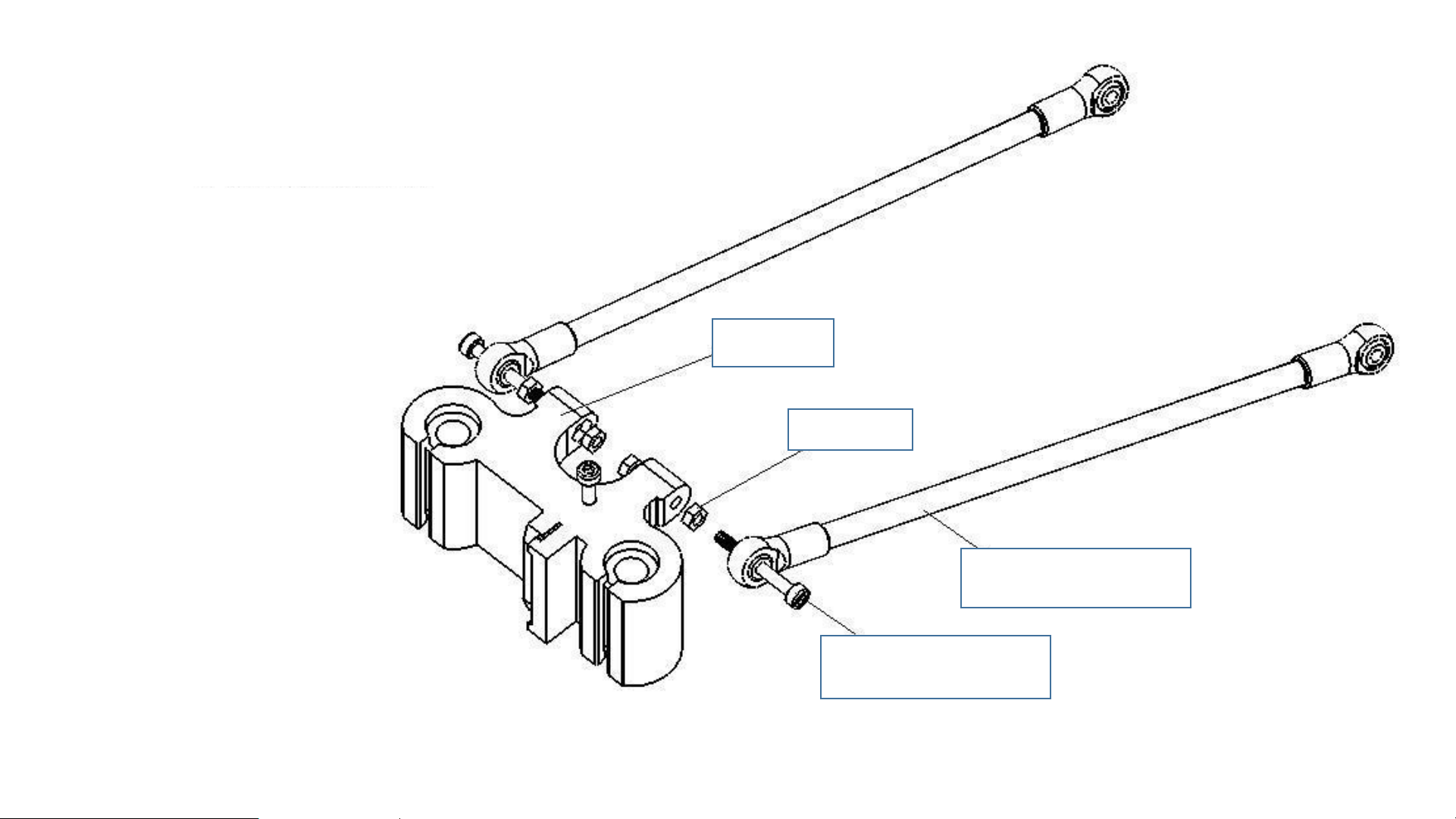

Step 9 Assemble Carbon fibre hollow tubes
Lock one end of the Carbon fibre hollow tube
to the Carriage with 1pcs M3*25mm inner
hexagon screws and 2pcs M3 nuts as picture.
The other two carriage are the same assembly
Carriage
M3 nuts
Carbon fibre
hollow tube
M3*25mm inner
hexagon screws
