AES 705 Instruction Manual

P a g e | 1

Installation & User Manual

For

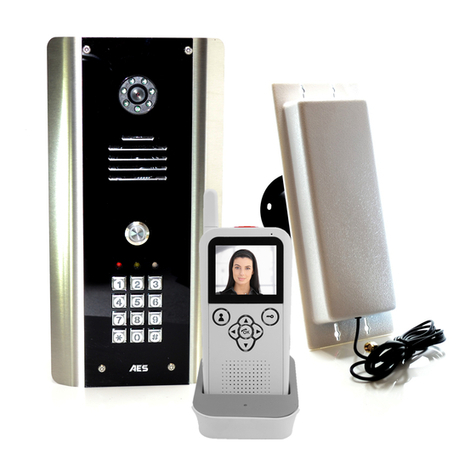

605/ 7 0 5 D E C T + 2 . 4 G I n t e r c o m

Wireless Video Intercom System

Models 605AB, 605ABK,705ABK,705AB

Intelligent Security & Fire Ltd.

P a g e | 2

Contents

Overview of system

…………….Pg 3

Site Survey

…………….Pg 3

605/705 Installs

…………….Pg 3

Installations

…………….Pg 3

Mounting Panels

…………….Pg 4

Power Supply

….………….Pg5

Doorstation Wiring Diagram

….………….Pg5

705 Monitor

.…………….Pg7

605 Handset

...………….Pg7

Answering Calls

…………….Pg8

Setting

…………….Pg8

Optional Audio Handset/Monitor

…………….Pg 9

Recoding

.………….Pg 9

Wiring Tip

.………….Pg 9

Basic Keypad Programming

..………….Pg 10

Full Keypad programming

…………….Pg 11

Testing

.………….Pg 13

Maintenance of the Intercom

.………….Pg 14

Troubleshooting

.………….Pg 14

Intelligent Security & Fire Ltd.

P a g e | 3

Overview of System

Please read this entire manual before attempting to install this system.

This system should only be installed by a professional automatic gate installer or access control

specialist installer.

It is recommended that the system be range tested on site BEFORE being fully installed.

Site Survey

Before installing this system, you need to be sure that the range of the system will be sufficient.

The transmitter and speech unit can be powered up, call button pressed, and then check that the

handset will ring from all areas in which it will be used.

605 Handsets Installations

Tip: For longer range installations, locate the handset close to the front of the property, near a

window if possible. Concrete walls can reduce the open air range of 350 metres by 30-50% per

wall. 705 Monitors Installations

Tip: The 705 monitor has a built-in antenna/receiver, it is best to use this for short range installs.

(see diag.1) For longer range installs, fit an external antenna (see below, check local radio

authority).

Antenna

Intercom

Antenna

External antenna

Intelligent Security & Fire Ltd.

P a g e | 4

Installation

Assuming satisfactory operation at full range, you are ready to fully install the product.

Mount the intercom at the desired height for pedestrian or car users. The camera angle

is wide at 90 degrees to cover most scenarios.

Loosen top 2 screws only

Hinge front door

Side View

Tip: Do not drill holes in the wall with the intercom in position, otherwise dust may get

around the camera window and impair the camera view.

Mounting the Antenna

Mount the antenna as

high as possible to

achieve longest range.

TIP: Antenna beam width is

approximately 40 degrees. For short

range door intercoms, ask your

distributor or dealer for an omni-pole

type antenna with 360 degree beam

angle.

Intelligent Security & Fire Ltd.

P a g e | 5

Power Supply

TIP: Most technical calls received are due to installers using CAT5 or alarm cable

to power the unit. Neither are rated to carry enough power (1.5 amp peak). Please

use following cable sizes…

Up to 2 metres (6 feet) –Use minimum 0.75mm2(18 gauge)

Up to 4 metres (12 feet) –Use minimum 1mm2(16 gauge)

Up to 8 metres (24 feet) –Use minimum 1.5mm2(14 gauge)

Excessively long

cable!!

Power supply

Call point

Mains power Power supply

Call point

Door Station Wiring Diagram

12-24vdc

N/C

COM

N/O

N/C

N/O

egress

N/ON/C

1 2

12-24vdc

N/C

COM

N/O

To antenna

From 24v dc

PSU

Relay output

Optional keypad

module

Relay 3

Relays

Relay 2 select

Intelligent Security & Fire Ltd.

P a g e | 6

705 Video Monitor Wiring and Mounting

705 Video Monitor

The Video Handset

Adjust speaker

ringtone volume

Microphone

Answer

Monitoring

Gate/Door

Trigger

The Video handset

should be charged

for 8 hours before

use. It is

recommended to

give it at least 1

hour charge before

range testing.

Adjust speaker

ringtone volume

Answer

Monitoring

Gate/Door

Trigger

Microphone

Intelligent Security & Fire Ltd.

P a g e | 7

Answering Calls

1. When the intercom calls, identify the visitor on the screen.

40-80cm

2. Press the OK button to answer the call.

3. Speak clearly into the top of the handset at a distance of 10-20cm.

10cm

4. During the call press < or > to increase or decrease volume.

5. Press to activate door or gate release and press OK to end the call.

Note: The video will remain active for 1 minute after the audio call is ended.

Settings

The following settings can be changed on both the video monitor and handset. To change any of

the following settings, put the system into monitoring mode by pressing and holding the key

for a few seconds.

1. Brightness –Adjusts screen brightness.

2. Language –English, French Or German.

3. Messages –Listen to or delete saved or older voicemails. (press KEY to delete any message).

4. Bell –Change ring tone.

5. Colour –Increase or decrease screen colour.

Use up and down arrows to navigate, and OK to select an option. Press right arrow to exit.

Intelligent Security & Fire Ltd.

P a g e | 8

Voicemail

When a call is not answered within 40 seconds, the visitor can leave a message. Once complete,

the handset will display the symbol. The unit can store up to 16 messages.

To listen to voicemail, press MENU to play. If there are more than 1 message, press and

to select the message required and press MENU to play. = Delete. Long press = delete all.

Relay Trigger Time

Press and hold the menu button for 3 seconds and the display will show “ti” .Use the up and down

arrows you can select the relay Latch time 1- 9 seconds. Press “OK” to save and arrow right to

exit Adjusting the Time

Press MENU for more than 2 seconds, and then use up and down arrow keys to set hour. Press

MENU again to cycle to minutes and adjust. Press MENU once more to end the process.

Optional Audio Monitor

Optional Audio Handset

The handset should be charged for 8 hours before use. It is recommended to give it at least 1

hour charge before range testing.

12.21

Charging

base

Power

LED

ON/OFF Vibration

ON/OFF

Voicemail

Symbol

Battery

Level

Reception

indicator

Code

Button

To listen to voicemail, press OK to play. If there are more than 1 message, press and to

select the message required and press OK to play. = Delete (Relay 1). Long press = delete all

Adjust speaker

ringtone volume

Door/gate

release button 2

Microphone

Door/gate

release button 1

Answer

Change Ring Volume

Press and to increase

and decrease ring volume

and press OK to save.

Change Ring Tone

Press and the handset will

ring with its currently selected

tone.

Press and to cycle

through available ring tones

and press OK to select and

save.

Ring Another Handset

Press and the unit will

display HS1-5 depending on

how many handsets are coded.

Press and to select and

then OK to call that handset.

Voicemail

When a call is not answered

within 40 seconds, the visitor

can leave a message. Once

complete, the handset will

display the symbol. The unit

can store up to 16 messages.

Intelligent Security & Fire Ltd.

P a g e | 9

Re-coding the Handsets / Adding an Extra Handset

Occasionally a system may need re-coded when it arrives on site. If the handset does not ring

when the call button is pressed, please perform the following steps..

1. Press and hold the code button on the speech panel as shown for 3 seconds.

2. Press and hold the code button on the handset (use a fine object like ball point pen) for up to 10

seconds.

3. While holding, the handset should bleep once, then bleep again, then emit a melody

confirmation tone.

Once the melody is heard, the handset should then be working. The system should now be ready

for testing. Wiring Tips

Code Button

COM

N/O

COM

N/C

COM

N/O

Intercom board

Keypad board

Electric Gates

Gate

Controller

Magnetic

Lock

N/C

Other control

device

Separate lock

PSU

(Not supplied)

(Back of Monitor)

(Handset)

Intelligent Security & Fire Ltd.

P a g e | 10

Note: The manufacturer can only support the use, operation and functionality of the

intercom and keypad themselves. Professional wiring to door release or automatic gate

systems is the responsibility of the installer. Please consult a security integrator for

further support. Keypad overview

This keypad has 3 outputs. The diagram below shows the LED indicators which indicate

programming and relay status information.

RED when incorrect codes entered and outputs are locked out.

1 2 3

4 5 6

7 8 9

* 0 #

SLOW FLASHING - in normal standby mode.

ON in programming mode.

ON when relay 3 activated.

GREEN when output 1 activated.

RED when output 2 activated.

CLEAR when output 3 activated

FAST FLASHING –Wrong code entered / error.

TIP: After power up, as a security precaution, the keypad cannot be programmed for 60 seconds.

Once this time elapses, you may begin.

TIP: Flashing amber LED is normal standby mode.

Basic Keypad Programming

0 0 0 0 * *

Quick start guide

1) Enter programming mode (amber LED should be ON)

1 0 2 0 0 ? ?? ? #0

2) Enter a new user code...

* *

3) Exit programming mode

4) Enter the new user code to check the relay clicks.

Tip: The engineer code

must be the same length as

user codes. So if using a 6

digit engineers code, then

user codes must also be 6

digits long etc.

Intelligent Security & Fire Ltd.
