Aerservice Equipments ARMOTECH Instruction manual

ARMOTECH

Rev 02.00

Pag. 1 di 24

INSTRUCTION MANUAL

FOR USE

AND MAINTENANCE

ARMOTECH

Rev 02.00

Pag. 2 di 24

CONTENTS

Par

Descrizione

Analytical index of the operating and maintenance manual

CONTENTS.........................................................................................................................2

Analytical index of the operating and maintenance manual ..................................................2

GENERAL INFORMATION.................................................................................................3

Manufacturer’s identification data ...........................................................................................3

Machine identification and data plates (if they are present) ..................................................4

Declarations...............................................................................................................................4

UK Declaration of Conformity (UKCA).....................................................................................6

THE SUCTION ARM ARMOTECH......................................................................................7

Description of the arm ..............................................................................................................7

Technical data ...........................................................................................................................9

ASSEMBLY OF THE ARM ARMOTECH..........................................................................11

Assembly.................................................................................................................................11

TYPES OF WALL BRACKET ...........................................................................................14

Description types of wallbracket:...........................................................................................14

FIRST START ...................................................................................................................18

Recommendations ..................................................................................................................18

Normal use...............................................................................................................................19

MAINTENANCE ................................................................................................................20

Ordinary and extra-ordinary maintenance.............................................................................20

DISASSEMBLY AND DISPOSAL.....................................................................................21

Disassembly and disposal......................................................................................................21

OPERATOR’S NOTES......................................................................................................22

Details of maintenance operations ........................................................................................22

ARMOTECH

Rev 02.00

Pag. 3 di 24

GENERAL INFORMATION

Par

Description

Manufacturer’s identification data

MANUFACTURER

Aerservice Equipments S.r.l.

REGISTERED OFFICE –ADMINISTRATIVE OFFICE

Viale dell’industria 24 –35020 –Legnaro –(PD) –Italy

CONTACTS

Tel. +39 049 641 200

E-mail: info@aerservice.com

ARMOTECH

Rev 02.00

Pag. 4 di 24

GENERAL INFORMATION

Par

Description

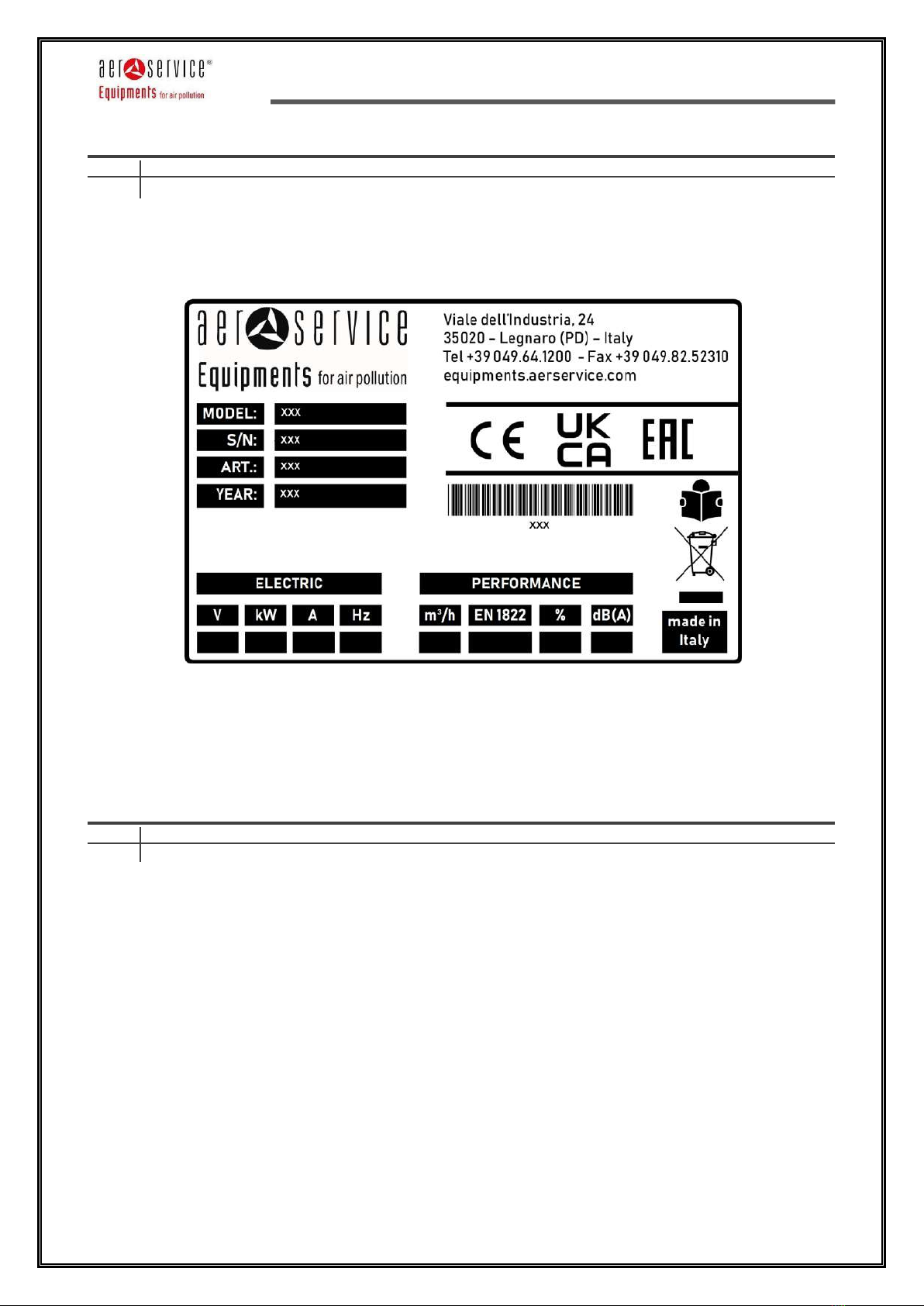

Machine identification and data plates (if they are present)

Each machine is fitted with a CE plate with indelible identification data. All communications with the

manufacturer or technical assistance centres must refer to the said data.

The position of the plate on the machine may vary.

GENERAL INFORMATION

Par

Description

Declarations

The machine is manufactured in conformity with relevant EC Directives applicable when the machine is put

on the market.

ANNEX IV Directive 2006/42/EC

The machine does not belong to the category of machines mentioned in Annex IV to directive 2006/42/EC.

ARMOTECH

Rev 02.00

Pag. 5 di 24

EC DECLARATION OF CONFORMITY

(Annex IIA DIR. 2006/42/EC)

THE MANUFACTURER

Aerservice Equipments S.r.l.

Company

Viale dell’Industria, 24

35020

Padova

Address

Postal code

Province

Legnaro

Italy

City

Country

DECLARES THAT THE PRODUCT

Articulated suction arm with external structure and rigid tubes

Description

Serial number

Year of manufacture

ARMOTECH

Commercial name

Extraction of welding fumes and microparticles from industrial processes

Intended use

IS IN COMPLIANCE WITH THE FOLLOWING DIRECTIVES

Directive 2006/42/EC of the European Parliament and Council, May 17th 2016, on machinery amending directive 95/16/EC.

Directive 2014/30/EU of the European Parliament and Council, February 26th 2014, on the approximation of the laws of the member States relating

to electromagnetic compatibility.

Directive 2014/35/EU of the European Parliament and Council, February 26th 2014, on the approximation of the laws of the member States relating

to electrical equipment destined to be used within certain voltage limits.

Directive 2011/65/EU of the European Parliament and Council, June 8th 2011, on the restriction of the utilization of certain substances in the electric

and electronic devices. The following harmonized standards have been applied

UNI EN ISO 12100:2010: Safety of machinery - General principles for design - Risk assessment and risk reduction.

UNI EN ISO 13849-1:2016: Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design.

UNI EN ISO 13849-2:2013: Safety of machinery - Safety-related parts of control systems - Part 2: Validation.

UNI EN ISO 13857:2020: Safety of machinery - Safety distances to prevent hazard zones being reached by upper and lower limbs.

CEI EN 60204-1:2018: Safety of machinery - Electrical equipment of machines - Part 1: General requirements.

The complete list of applied standards, guidelines and specifications are available at the manufacturer.

Additional information: The declaration of conformity decays in case of non-compliant use and in the event of

non-confirmed construction changes approved by the manufacturer.

DECLARES THAT THE TECHNICAL FILE

Has been compiled, and is kept and available at the registered office of the company.

Place and date of the document

The manufacturer

Legnaro,

Marco Gallerino

ARMOTECH

Rev 02.00

Pag. 6 di 24

UK Declaration of Conformity (UKCA)

THE MANUFACTURER

Aerservice Equipments S.r.l.

Company

Viale dell’Industria, 24

35020

Padova

Address

Postal code

Province

Legnaro

Italy

City

Country

DECLARES THAT THE PRODUCT

Articulated suction arm with external structure and rigid tubes

Description

Serial number

Year of manufacture

ARMOTECH

Commercial name

Extraction of welding fumes and microparticles from industrial processes

Intended use

IS IN COMPLIANCE WITH THE FOLLOWING DIRECTIVES

Machinery: The Supply of Machinery (Safety) Regulations 2008.

EMC: Electromagnetic Compatibility Regulations 2016.

LVD: The Electrical Equipment (Safety) Regulations 2016.

RoHS: Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

The following harmonized standards have been applied

S.I. 2008 No. 1597: Safety of machinery - General principles for design - Risk assessment and risk reduction (ISO 12100:2010)

S.I. 2008 No. 1597: Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design (ISO 13849-1:2015)

S.I. 2008 No. 1597: Safety of machinery - Safety-related parts of control systems - Part 2: Validation (ISO 13849-2:2012)

S.I. 2008 No. 1597: Safety of machinery - Safety distances to prevent hazard zones being reached by upper and lower limbs (ISO 13857:2008)

S.I. 2008 No. 1597: Safety of machinery - Electrical equipment of machines - Part 1: General requirements.

The complete list of applied standards, guidelines and specifications are available at the manufacturer.

Additional information: The declaration of conformity decays in case of non-compliant use and in the event of

non-confirmed construction changes approved by the manufacturer.

DECLARES THAT THE TECHNICAL FILE

Has been compiled, and is kept and available at the registered office of the company.

Place and date of the document

The manufacturer

Legnaro,

Marco Gallerino

ARMOTECH

Rev 02.00

Pag. 7 di 24

THE SUCTION ARM ARMOTECH

Par

Description

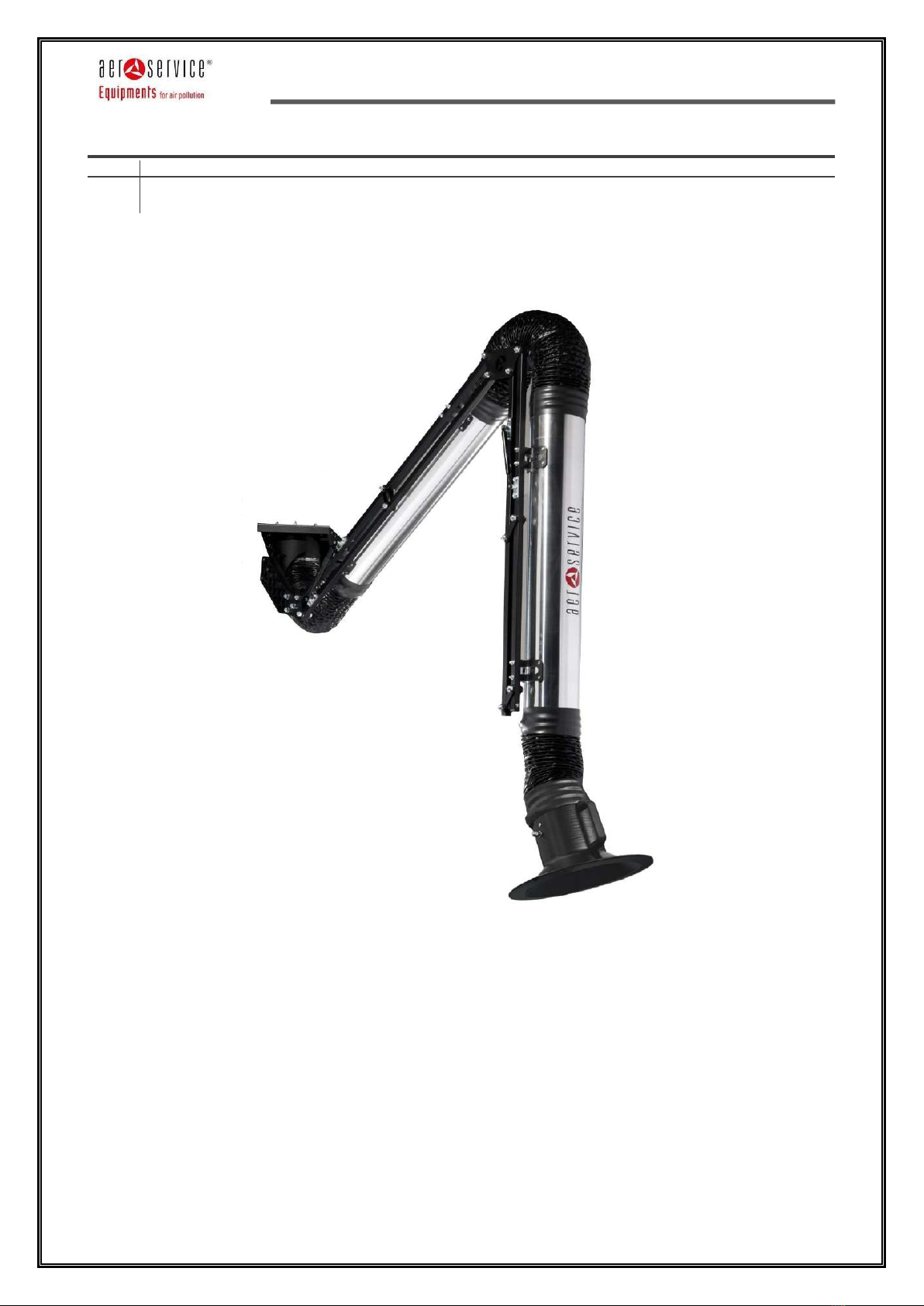

Description of the arm

The new ARMOTECH series, thanks to the materials used and the innovative design, allows the operator to

count on high maneuverability, stable positioning and exceptional robustness, guaranteed by a pantograph

structure that supports the arm.

ARMOTECH arm represents the ideal solution for extracting the fumes produced by the various work

operations, in the metalworking, chemical industry, goldsmith laboratories, electronics industry etc. sectors,

capturing fumes as close as possible to the source of pollutant as required by EU regulations and in line with

international standards.

The reduced air flow rates, optimized by the possibility of choosing the type of ARMOTECH most appropriate

to the customer's needs, ease of installation and reduced maintenance, mean that this product increasingly

meets the favor of operators in the sector.

ARMOTECH

Rev 02.00

Pag. 8 di 24

CAUTION:

During the removal of the packaging, all resulting residues must be disposed of in accordance with

the provisions of the laws in force.

For greater simplicity and better comprehensibility of this manual, some images have been rendered

not exactly in conformity with reality (e.g. dismantled protections).

The installation operations (lifting, fixing, etc.) must be carried out through the use of appropriate

devices and means and in accordance with the Legislative Decree 626/94.

At the end of the installation, it should be checked that there are no exhaust gas leaks in the work

environment. Follow the provisions in force regarding emissions into the atmosphere.

Aerservice Equipments SRL declines all responsibility for damage to persons or things, which could

derive either from an improper use of the appliance or from failure to observe what is prescribed in

this manual.

ARMOTECH

Rev 02.00

Pag. 9 di 24

THE SUCTION ARM ARMOTECH

Par

Description

Technical data

AVAILABLE VERSIONS:

IBSA

LENGTH

AIR FLOW

HEAD LOSS

WEIGHT

TOT.

m³/h

100/2

100

2000

600 - 750

average 700

100/3

3000

125/2

125

2000

800 - 900

average 700

125/3

3000

125/4

4000

160/2

160

2000

1000 - 1200

average 700

160/3

3000

160/4

4000

IBSAV

LENGTH

FAN

POWER

EXTRACTION

CAPACITY

ERSIDUAL

PRESSURE

NOISE

WEIGHT

TOT.

mod.

m³/h

dBA

100/2

100

2000

EV 15

1,1

750

520

100/3

3000

125/2

125

2000

EV 15

1,1

900

520

125/3

3000

125/4

4000

160/2

160

2000

EV 18

1,5

1200

520

160/3

3000

160/4

4000

IBSAC

LENGTH

AIR FLOW

HEAD LOSS

WEIGHT

TOT.

m³/h

100/2

100

2000

600 - 750

average 700

100/3

3000

125/2

125

2000

800 - 900

average 700

125/3

3000

125/4

4000

160/2

160

2000

1000 - 1200

average 700

160/3

3000

160/4

4000

ARMOTECH

Rev 02.00

Pag. 10 di 24

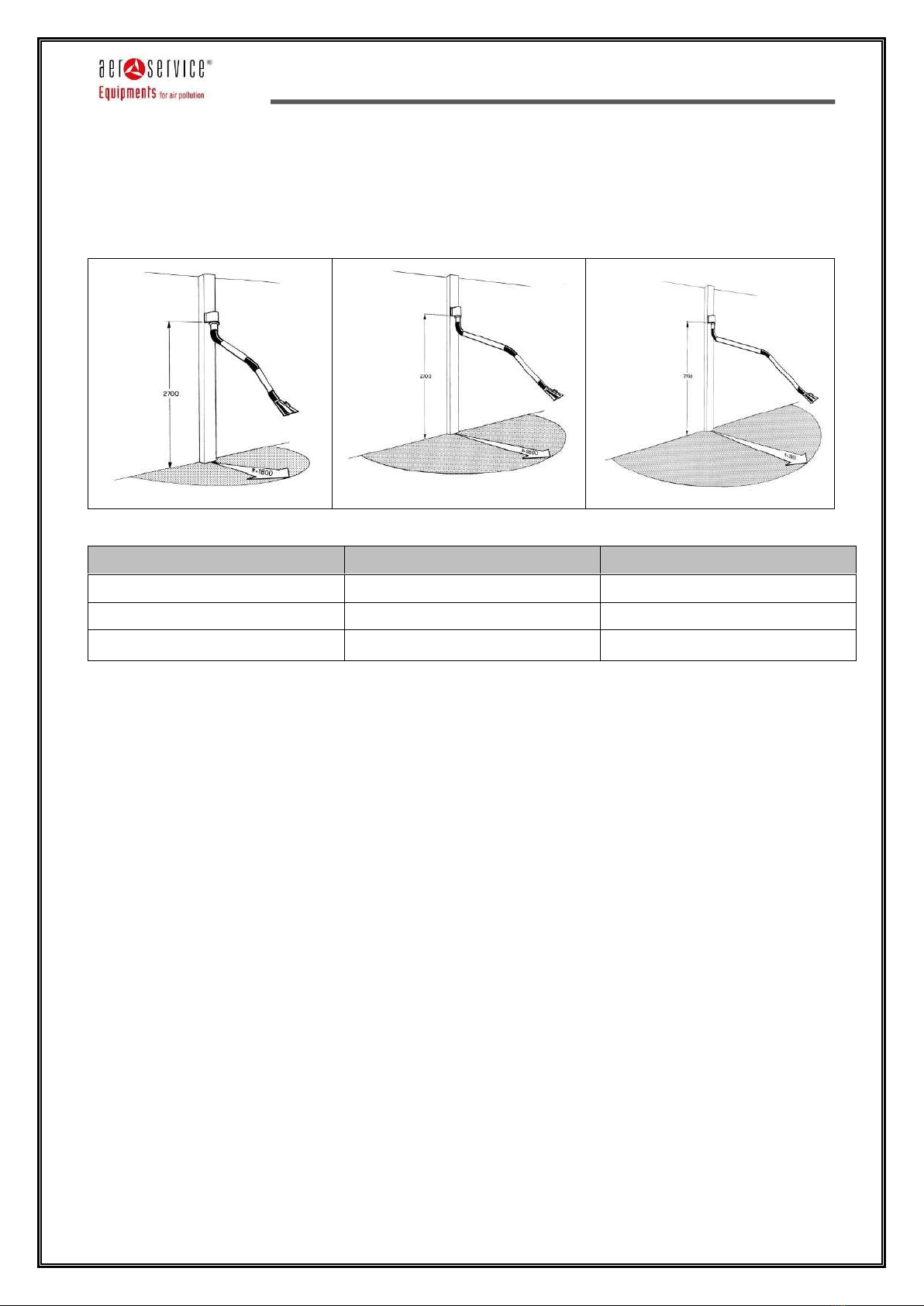

For arms with a length of 2, 3, 4 m, the table shows the range of action (corresponding to the maximum

extension of the arm), installation height, figure and diagram.

Mod.

Height of installation (m)

Radius of action (m)

ARMOTECH L = 2000

2,40

2,25

ARMOTECH L = 3000

2,40

3,25

ARMOTECH L = 4000

2,70 - 3,80

4,25
