Aereco VCZ Series Installation instructions
Non contractual document. Aereco reserve the right to make changes to the construction and to the technical data of the fan.
Disassembly Instructions
VCZ
Identification of plastic parts and electronics parts
FLY637_B
ENGLISH
2/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
Summary
1. Introduction...................................................................................................................................... 3
1.1. Information....................................................................................................................................... 3
1.2. Warnings.......................................................................................................................................... 3
2. Overview.......................................................................................................................................... 4
3. Required tools.................................................................................................................................. 4
4. Dissassembly manipulations........................................................................................................... 5
4.1. Preparations..................................................................................................................................... 5
4.2. Disassembly of the Pressure Control Unit....................................................................................... 6
4.3. Component Parts: Pressure Control Unit...................................................................................... 11
4.4. Disassembling the Proximity Switch.............................................................................................. 12
4.5. Component Parts: Proximity Switch .............................................................................................. 19
4.6. Disassembly of the fan (internal fan housing) ............................................................................... 20
4.7. Component Parts: Fan................................................................................................................... 25
5. Legal notice ................................................................................................................................... 26
3/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
1. INTRODUCTION
1.1. Information
ZLT GmbH Company ensures the total manufacture of VCZ fans. All the VCZ fans are then sold through
Aereco Group.
1.2. Warnings
BEFORE DISASSEMBLING THE APPLIANCE, PLEASE READ THESE
INSTRUCTIONS CAREFULLY.
The manufacturer cannot be held liable for irreversible damage caused by
disassembling the product in the aim at recycling the product.
This manual describes the required tools for the manual disassembly of electronics
parts (printed wiring boards/ printed circuit boards and displays > 10 g or > 10 cm2),
batteries and larger plastic parts (> 100 g) for the purpose of efficient materials recycling.
Wearing suitable gloves while handling the product is strongly recommended (some
of the metal parts may have sharp edges).
Reminders of elementary safety rules:
The disassembling of an electrical appliance requires observance of the following
elementary rules:
Do not touch the appliance, even if it is earthed, if your body is moist or wet (hands,
feet, etc.);
This system is not designed to be disassembled by persons whose intellectual and/or
mental faculties are impaired, or who lack experience and knowledge (including
children), unless they have been trained and are supervised by a person responsible for
their safety during disassembling. To eliminate any risk of an accident, keep them away
from the appliance;
The electrical disassemble must be done by a qualified technician, in accordance with
the manufacturer's recommendations and in a manner consistent with the characteristics
of the product;
Before doing any work on the appliance, unplug it or otherwise disconnect it from its
power supply and make sure that the power cannot be restored accidentally while the
work is being done;
Young children must be kept far away from the appliance in order to ensure that they
do not play with it.
Before starting the disassembling procedure, ensure that the appliance is
disconnected from the electric circuit and volt-free. Secure against unintentional
restart. Do not open the housing before the complete stop of the fan impeller.
4/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de

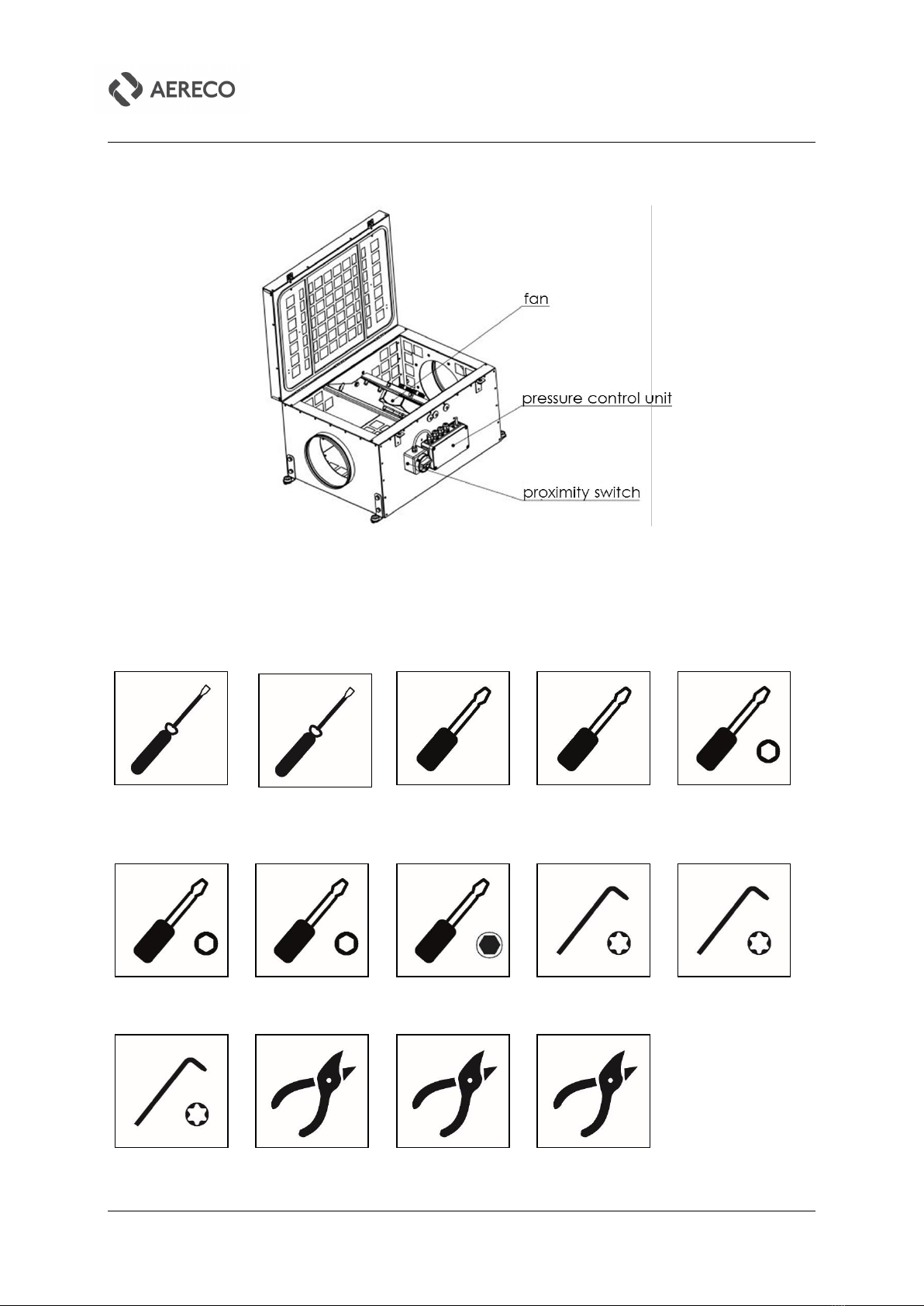

2.OVERVIEW
3. REQUIRED TOOLS
The following tools are required to disassemble the fan:
Screwdriver
3.5 mm
Screwdriver
5.5 mm
Screwdriver PZ2
Screwdriver PH0
Wrench AF13
Wrench AF22
Wrench AF27
Allen Key AF5
Torx T10
Torx T20
Combination
pliers
Needle nose
pliers
Side cutting pliers
Wire cutter
5/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
4. DISSASSEMBLY MANIPULATIONS
In the aim at recycling the product, the disassembling of the different plastic parts and electronic parts
has to be done in accordance with the following steps:
4.1. Preparations
First of all, disconnect the fan power supply.
4.1.1. Loosen the screw connection of the cover
Unscrew the hexagon socket head cap screws M6 x 16 (depending on model) using an Allen
key AF 5.
Allen Key
AF 5
6/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
4.2. Disassembly of the Pressure Control Unit
4.2.1. Removing the Cover
Unscrew the cover screw connections (4x) using a screwdriver 1.0 x 5.5.
Remove the cover from the casing.
Screwdriver
1.0 x 5.5
7/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
4.2.2. Removing the electrical wiring
Loosen the head of the cable gland (3x) using a wrench AF 27.
Screwdriver
0.6 x 3.5
Wrench
AF 27
Needle nose pliers
Universal
8/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
Loosen the screw connection (6x) of the screw terminals (green) using a screwdriver 0.6 x 3.5.
Pull the wires out of the socket using needle nose pliers until all wires are loose.
The remaining cables can be declamped using a screwdriver 0.6 x 3.5 pressing down the spring
connector while simultaneously pulling on the cable using needle nose
pliers.
Remove all cables by pulling them through the cable glands.
Pull off all pneumatic hoses from the hose nipples.
9/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
4.2.3. Removing the pressure control unit from the fan casing
Remove the self-tapping screws ST 4.2 x 13 (4x) using a screwdriver TX 20.
Screwdriver
TX 20
10/26
FLY637_B
Aereco S.A. –62 rue de Lamirault –Collégien 77615 MARNE
LA VALLEE CEDEX 3
FRANCE
Tel. +33 1 60 06 26 63 –fax +33 1 64 80 47 26
www.aereco.com
ZLT Lüftungs- & Brandschutztechnik GmbH
Wilhermsdorfer Str. 28 - 09387 JAHNSDORF
GERMANY
Tel. +49 37296 / 93620 –Fax: 037296 / 936250
www.zlt.de
4.2.4. Removing the circuit board from the control unit
Remove the fixing screws M6 x 10 (4x) of the circuit board using a screwdriver PZ 2.
Screwdriver
PZ 2
