Aerauliqa QR100M User manual

Installation Manual (installer & user)

QR100M

Heat Recovery Ventilation Unit

Read this manual carefully before using the product and keep it in a safe place for reference as necessary.

This product was constructed up to standard and in compliance with regulations relating to electrical equipment

and must be installed by technically qualiﬁed personnel.

The manufacturer assumes no responsibility for damage to persons or property resulting from failure to observe the instructions contained in this manual.

1 Index 1

2 Precautions 2

3 Product information 2

3.1 General 2

3.2 Dimensions and Weight 3

3.3 Connections 3

3.4 Space required 3

3.5 Rating Label 4

4 Transport and Storage 4

5 Installation 4

5.1 Unpacking 4

5.2 Where/how to install 4

5.3 Installation 5

5.4 Electric Connections 6

6 Commissioning 8

6.1 Setting Fan speed 8

6.2 Before Starting the System 9

7 Operation 9

7.1 Single speed operation 9

7.2 Two speed operation 9

7.3 Variable speed operation with CTRL-M remote manual controller (accessory on request) 9

7.4 Variable speed operation through external domotic (BMS) system or ballast potentiometer 9

7.5 Three speed operation with SEL-3V speed selector (accessory on request) 9

7.6 Three speed operation with CTRL-S remote controller (accessory on request) 9

7.7 Anti-frost functionality 9

8 Maintenance and service 10

8.1 Components list 10

8.2 Description of Components 10

8.3 Maintenance 11

8.4 Service 12

8.5 Trouble shooting 13

1 INDEX

2 PRECAUTIONS

WARNING

Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work!

WARNING

The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and

regulations.

TRANSPORT AND STORAGE

• Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).

• The front cover in ABS must be covered during storage and installation.

INSTALLATION

• After removing the product from its packaging, verify its conditions. Do not leave packaging within the reach of children or people with disabilities.

• Beware of sharp edges. Use protective gloves.

• The device should not be used as an activator for water heaters, stoves, etc., nor should it discharge into hot air/fume vent ducts deriving from any type of

combustion unit or tumble dryer. It must expel air outside via its own special duct.

• If the environment in which the product is installed also houses a fuel-operating device (water heater, methane stove etc., that is not a “sealed chamber”

type), it is essential to ensure adequate air intake, to ensure good combustion and proper equipment operation.

• The electrical system to which the device is connected must comply with local regulations.

• Before connecting the product to the power supply or the power outlet, ensure that:

- the data plate (voltage and frequency) correspond to those of the electrical mains

- the electrical power supply/socket is adequate for maximum device power

• For installation an omnipolar switch should be incorporated in the xed wiring, in accordance with the wiring rules, to provide a full disconnection under

overvoltage category III conditions (contact opening distance equal to or greater than 3mm).

USE

• The device should not be used for applications other than those specied in this manual.

• The device is not intended for use by persons (including children) with reduced physical, sensory or mental capacities or those with a lack of experience and

knowledge, unless they have been given supervision or instruction concerning use of the device from a person responsible for their safety. Children should

be supervised to ensure that they do not play with the device.

• Do not touch the appliance with wet or damp hands/feet.

• The device is designed to extract clean air only, i.e. without grease, soot, chemical or corrosive agents, or ammable or explosive mixtures.

• Do not use the product in the presence of inammable vapours, such as alcohol, insecticides, gasoline, etc.

• The system should operate continuously, and only be stopped for maintenance/service.

• Do not obstruct grilles to ensure optimum air passage.

• Do not immerse the device or its parts in water or other liquids.

• Operating temperature: 0°C up to +40 °C.

SERVICE

• Although the mains supply to the unit has been disconnected there is still risk for injury due to rotating parts that have not come to a complete standstill.

• Beware of sharp edges. Use protective gloves.

• Use original spare parts only for repairs.

3 PRODUCT INFORMATION

3.1 General

This is the Installation Manual of QR100M decentralised heat recovery ventilation unit.

This manual consists of basic information and recommendations concerning installation, commissioning, use and service operations to ensure a proper

fail-free operation of the unit.

The key to proper, safe and smooth operation of the unit is to read this manual thoroughly, use the unit according to given guidelines and follow all safety

requirements.

The QR100M is supplied with 2 condensation elbows, 1 plug, 2xØ98mm spigots for air intake and exhaust and 1 installation template.

WARNING

If any abnormality in operation is detected, disconnect the device from the mains supply and contact a qualiﬁed technician immediately.

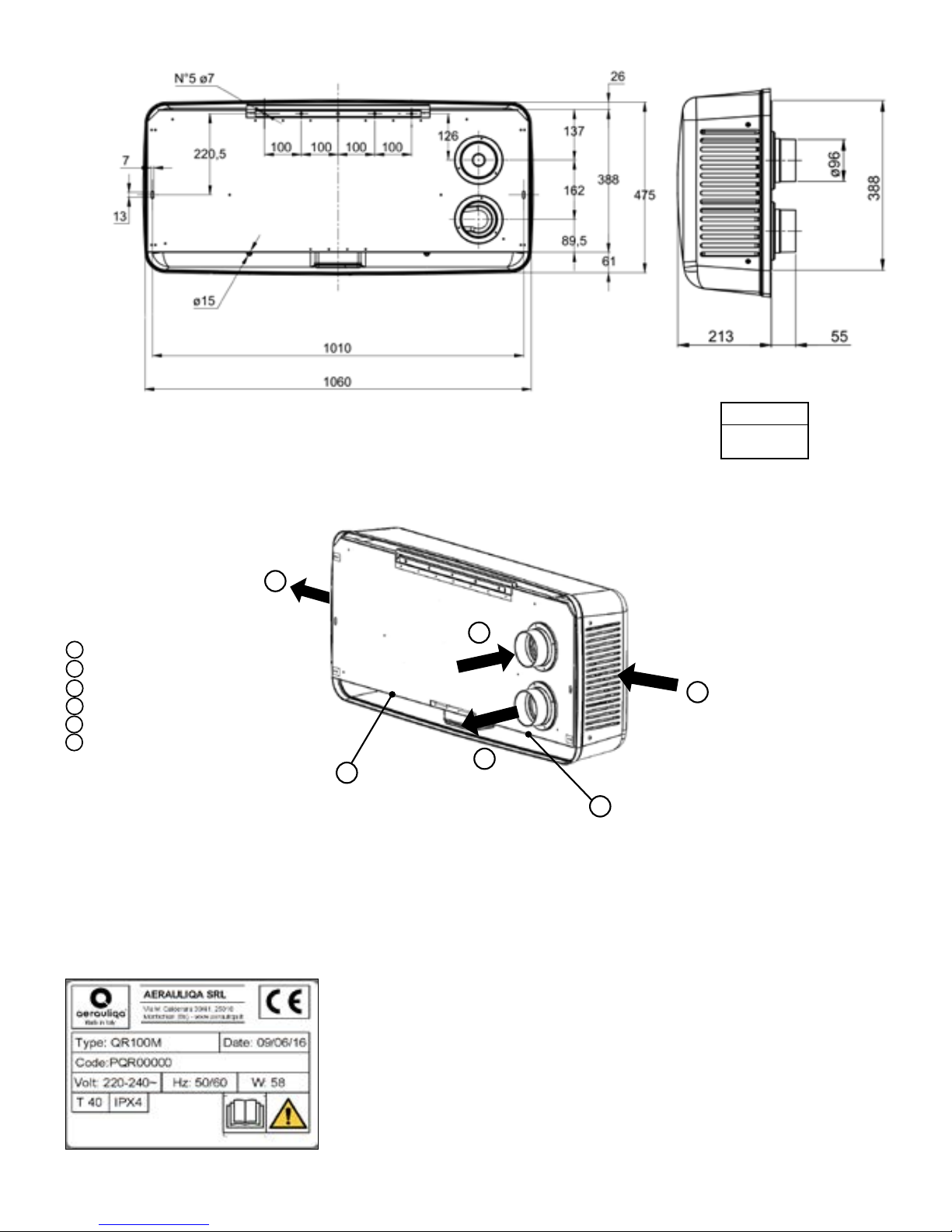

3.5 Rating label

Fig.3.c Rating label

Fig. 3.b Connections

Intake air from outiside

Exhaust air to outside

Supply air to inside

Extract air from inside

Winter condensation drainage

Summer condensation drainage

Fig. 3.a Weight Kg

12,5

3.2 Dimensions (mm) and Weight

3.3 Connections

3.4 Space required

Make sure that enough space is left around the unit to allow easy maintenance (removal of the front cover for access to ﬁlters and terminal box).

It is recommended to leave at least 1m distance between the side grilles (supply and extract) and the perpendicular walls.

4 TRANSPORT AND STORAGE

The appliance is delivered in one carton box.

The appliance should be stored and transported in such a way that it is protected against physical damage that can harm spigots, casing etc.

It should be covered so that dust, rain and snow cannot enter and damage the unit and its components.

5 INSTALLATION

This section describes how to install the unit correctly.

The unit must be installed according to these instructions.

5.1 Unpacking

Verify that the unit (and eventual accessories) delivered is according to order before starting the installation. Any discrepancies from the ordered equipment

must be reported to the supplier.

5.2 Where/how to install

• All QR units are meant for indoor installation in a heated space.

• The unit must be installed on an external wall. The external grilles are visibile from outside.

• The unit must always be mounted horizontally.

• Mount the unit on flat surface (wall).

• It’s important that the unit is completely leveled before it is put into operation.

• Place the unit preferably in the middle of the area to be ventilated.

• When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspection door should be easily accessible.

• Leave free space for opening the removable panel and for removal of the main components (see 3.4).

• The outdoor air grilles should if possible be put in the northern or eastern side of the building and away from other exhaust outlets like kitchen fan exhausts

or laundry room outlets.

• Install the unit in a position where the condensation drainage can be carried out easily.

WARNING

Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!

WARNING

Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!

5.3 Installation

The unit must be installed in the following position.

It is important that the unit is completely ﬂat in order for the condensation drainage to work properly.

5.a Prepare the surface where the unit is to be mounted. Make sure that the surface is at, leveled and that it supports the weight of the unit. Perform the

installation in accordance with local rules and regulations.

5.b Use the supplied template to mark the right positions of the air intake and exhaust holes, of the ﬁxing screws of the mounting bracket, of the hole for the

electrical cable and of the condensation drains. Make sure that the template is at spirit level.

5.c Drill the holes in the external wall.

5.d Use the appropriate fasteners (not supplied) to x safely the mounting bracket on the wall: make sure that the bracket is properly installed to support the

unit weight.

5.e Fix the spigots in the wall safely.

5.f Hook the main body of the unit at the bracket, making sure that the two holes on the rear side of the casing are in line with the spigots ﬁxed at the wall.

5.g Fix the main body to the wall by means of screws (not supplied).

5.h Make sure that the unit is completely at once installed.

5.i Connect the condensation elbow(s) to the drainage hole(s) at the bottom of the casing: in case one hole is not used, close and seal it with the supplied plug.

Make sure of water and air tightness of all connections. It is necessary to use a U-bend (or similar) in the condensation drainage pipe. Connect the unit

electrically according to point 5.5. Check that it starts up correctly.

5.j Fix the ABS cover to the main body by means of the supplied screws.

Fig. 5.a,b,c

Fig. 5.d Fig. 5.e Fig. 5.f Fig. 5.g

Fig. 5.h Fig. 5.i Fig. 5.j

H=min. 60mm

Spirit level

WARNING

Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work!

WARNING

The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and

regulations.

5.4 Electric Connections

The unit must be earthed.

The QR100M is wired internally from factory.

Figures below show the wiring diagrams.

5.k Single speed operation

1 2 3 4

S1 S2 S3 GND

N L

CTRL-S

GND POT +10

S1 S2 S3

5.l Two speed operation

S1 S2 S3 GND 1 2 3 4 GND POT +10

N L

CTRL-M

N L

5.m Variable speed operation with CTRL-M remote manual controller

S1 S2 S3 GND 1 2 3 4 GND POT +10

N L

1-10V

BALLAST

5.n Variable speed operation through external domotic (BMS) system

or ballast potentiometer

5.o Three speed operation with SEL-3V speed selector

1 2 3 4

S1 S2 S3 GND

N L

CTRL-S

GND POT +10

S1 S2 S3

5.p Three speed operation with CTRL-S controller

Fig. 5.r CTRL-M

(accessory on request)

Fig. 5.t CTRL-S

(accessory on request)

Fig. 5.s SEL-3V

(accessory on request)

5.q

1 2 3 4 Operation

0 0 0 0 Single speed

1 0 0 0 Two speed

0 1 0 0 Variable speed with CTRL-M remote manual controller

0 1 1 0 Variable speed throught external domotic (BMS) system or ballast potentiometer

1 0 0 0 Three speed with SEL-3V

1 1 0 0 Three speed with CTRL-S

Dip switch

1 2 3 4

III

ESTERNO INTERNO

T R. H. T R. H. ᶯᶯᶯᶯ

°C % °C % % kg/h % kg/h % kg/h % kg/h

-18 60 20 30 96,6 0,08 93,5 0,15 90,6 0,21 88 0,27

-18 70 20 40 97 0,11 94,3 0,21 91,9 0,31 89,6 0,4

-18 80 20 50 97,4 0,14 95,1 0,28 92,9 0,41 91 0,53

-10 60 20 30 96,4 0,05 93,1 0,09 89,9 0,13 87 0,16

-10 70 20 40 96,9 0,08 94,1 0,15 91,4 0,22 89 0,28

-10 80 20 50 97,4 0,11 94,9 0,21 92,7 0,3 90,6 0,39

0 50 20 30 95,6 0,01 91,3 0 87,5 0 84,1 0

0 60 20 40 96,3 0,03 92,8 0,05 89,5 0,07 86,3 0,08

0 70 20 50 96,9 0,05 94,1 0,1 91,4 0,14 88,9 0,18

10 50 20 40 95,4 0 91,3 0 87,5 0 84,1 0

10 60 20 50 95,4 0 91,3 0 87,5 0 84,1 0

10 70 20 60 96,1 0,01 92,3 0,02 88,6 0,02 84,9 0,01

35 60 26 50 95,5 0 91,4 0 87,7 0 84,3 0

35 70 26 55 96,9 0,02 93,9 0,04 91 0,05 88,1 0,06

35 80 26 60 98,1 0,05 96,4 0,09 94,7 0,13 93,1 0,17

40 60 26 50 97,1 0,04 94,4 0,08 91,7 0,1 89 0,12

40 70 26 55 98,1 0,07 96,3 0,14 94,5 0,2 92,9 0,26

40 80 26 60 98,8 0,1 97,6 0,19 96,6 0,29 95,6 0,37

25 m³/h 50 m³/h 75 m³/h 100 m³/h

Fig. 6.b Thermal efﬁciency of the heat exchanger and average production of condensation water. Data supplied by the manufacturer of the heat exchanger.

The heat exchanger is tested at the University of Luzern (Hochschule Lezern).

EXTERNAL INTERNAL

Curve Speed

max

m3/h

max

A (min) 24 8 19

B 30 9 24

C 43 13 40

D 61 22 57

E 75 34 71

F 93 51 88

G (max) 100 58 100

Working point W m3/h SPI (W/m3/h) ɳt %(1)

I 8,3 21 0,395 93

II 13 37 0,351 91

III 21,8 54 0,404 89

IV 33,1 66 0,5015 87

V 50,2 82 0,6122 85

VI 57,5 93 0,6183 84

(1) Termal efﬁciency of the unit.

Fig. 6.a Intake curve according to Reg. 1253/2014 (ErP).

Product tested without ﬁlter F7.

Airow - m3/h

TRIMMER V1- V2

160

240

320

400

480

0 20 40 60 80 100 120

III III IV VVI

6 COMMISSIONING

6.1 Setting Fan speed

The speed of the unit can be adjusted during installation according to required ventilation rate.

Figure 6.a below shows performance curves (for supply air and extract air) at different settings of the 0-10V signal to the motors. Airow and consumption

refer to the 2 motors.

Table 6.b indicates the efﬁciency of the heat exchanger and of the condensation produced in different climatic conditions, to help the installer or the designer

of the ventilation system to decide if to connect one or both condensation drainages.

High production of condensation is the direct consequence of a high efﬁciency level as well as of the humidity rate.

Static Pressure - Pa

7.1 Single speed operation

The unit runs at the speed set by turning the integral trimmer “V1” in the terminal box.

This is the default factory setting.

Wiring diagram: Fig.5.k – Dip switch conguration: 0000 (Fig. 5.q)

7.2 Two speed operation

The unit runs continuously at the speed set by turning the integral trimmer “V1” in the terminal box and can be boosted at high speed, which is set by turning

the integral trimmer “V2” in the terminal box. Boost is activated, when needed, by means of a remote two-position switch (not supplied) or by means of remote

sensors (SEN-HY, SEN-CO2 or SEN-PIR), which are accessories on request.

Wiring diagram: Fig.5.l – Dip switch conguration: 1000 (Fig. 5.q)

7.3 Variable speed operation with CTRL-M remote manual controller (accessory on request)

The unit runs at the speed set by turning the knob of the CTRL-M remote manual control panel (accessory, Fig.5.r).

Wiring diagram: Fig.5.m – Dip switch conguration: 0100 (Fig. 5.q)

7.4 Variable speed operation through external domotic (BMS) system or ballast potentiometer

The unit runs at the speed set by turning the knob of an external 1-10V ballast potentiometer or set by an external 1-10V signal from a domotic (BMS) system.

Wiring diagram: Fig.5.n – Dip switch conguration: 0110 (Fig. 5.q)

7 OPERATION

WARNING

Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!

6.2 Before Starting the System

When the installation is nished , check that:

• Filters are mounted correctly

• The unit is installed in accordance with the instructions

• The unit is correctly wired

• Outdoor air intake is positioned with sufcient distance to pollution sources (kitchen ventilator exhaust, central vacuum system exhaust or similar)

• The unit is correctly set and commissioned.

7.5 Three speed operation with SEL-3V speed selector (accessory on request)

The unit runs at the speed selected by turning the knob of the SEL-3V speed selector (accessory, Fig.5.s).

Speed 1 is set by turning the integral trimmer “V1” in the terminal box.

Speed 2 is set by turning the integral trimmer “V2” in the terminal box.

Speed 3 is the maximum speed achievable by the unit.

Wiring diagram: Fig.5o – Dip switch conguration: 1000 (Fig. 5.q)

7.6 Three speed operation with CTRL-S controller (accessory on request)

The unit runs at the speed selected by activating the two-position switches “S1”, “S2” and “S3” of the CTRL-S (accessory Fig. 5.t)

Speed 1 is set by turning the integral trimmer “V1” in the terminal box.

Speed 2 is set by turning the integral trimmer “V2” in the terminal box.

Speed 3 is the maximum speed achievable by the unit.

S3 switch allows to activate the “free cooling “ operation (bypass) by reducing the intake airow, so to mitigate the heat exchange when necessary.

Wiring diagram: Fig.5.p – Dip switch conguration: 1100 (Fig. 5.q)

7.7 Anti-frost functionality

The unit is equipped with a thermostat which, when necessary, reduces the speed of the intake fan to prevent the freezing of the heat exchanger, which could

get damaged irreparably.

“S1” “S2” Operation

O O OFF

I O Speed 1

O II Speed 2

I II Speed 3

S1 S2 S3

“S3” Operation

Heat recovery

Free cooling

7 8

FILTER G4, EXTRACT AIR

FILTER G4, INTAKE AIR

HEAT EXCHANGER

CONDENSATION DRAINS

THERMISTOR

FAN, INTAKE AIR

FAN, EXHAUST AIR

CONDENSATION TRAY

TERMINAL BOX

FILTER F7 (ON REQUEST)

Maintenance can be carried out by the user.

Service must be performed only by an authorized installer and in accordance with local rules and regulations .

Questions regarding installation, use, maintenance and service of the unit should be answered by your installer or place of purchase!

8 MAINTENANCE AND SERVICE

WARNING

Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!

8.1 Components list

Fig. 8.a Internal components

8.2 Description of Components

Fans

The fans have external rotor motors of EC type which can be steplessly controlled individually between 10–100%. The motor bearings are life time lubricated

and maintenance free.

Filters

The ﬁlters are of ﬁlter quality G4 for both the supply air and extract air ﬁlter. The ﬁlters need to be cleaned regularly (and replaced when polluted) during

maintenance. New sets of ﬁlters can be acquired from your installer or wholesaler.

Heat exchanger

The unit is equipped with a highly efcient, counter-ow plate heat exchanger. Supply air temperature is therefore normally maintained without adding

additional heat. The heat exchanger is removable for cleaning and maintenance during service.

Condensation drainage

Depending on the relative humidity in the extract air, condensation may occur on the cold surfaces of the heat exchanger, on one side in winter time, on the

other side in summer time (ﬁg.6.b).

The condensate water is led out through drain plugs.

Thermostat

If external temperature is too low, the heat exchanger might get frosted, and therefore damaged. To avoid this, dedicated thermostat switches off the supply

fan if and when needed.

Other manuals for QR100M

Table of contents
