Advantech DVP-7020BE User manual

DVP-7020BE

16 Channel PCI-bus

Surveillance

Capture card

DVP-7020BE User’s Manual

This documentation and the software included with this product

are copyrighted in 2006 by Advantech Co., Ltd. All rights are

reserved. Advantech Co., Ltd. reserves the right to make

improvements in the products described in this manual at any time

without notice. No part of this manual may be reproduced, copied,

translated or transmitted in any form or by any means without the

prior written permission of Advantech Co., Ltd. Information

provided in this manual is intended to be accurate and reliable.

ADVANTECH CO., LTD. assumes no responsibility for its use, nor

for any infringements of the rights of third parties which may result

from its use.

Acknowledgments

IBM and PC are trademarks of International Business Machines

Corporation. MS-DOS, Windows, Microsoft Visual C++ and Visual

BASIC are trade-marks of Microsoft Corporation. Intel and Pentium

are trademarks of Intel Corporation. Delphi and C++ Builder are

trademarks of Inprise Corporation.

CE notification

The DVP-7020BE, developed by ADVANTECH CO., LTD., has

passed the CE test for environmental specifications when shielded

cables are used for external wiring. We recommend the use of

shielded cables. This kind of cable is available from Advantech.

Please contact your local supplier for ordering information

On-line Technical Support

For technical support and service, please visit our support website

at: http://www.advantech.com/support

PartNo.2062702010 1st Edition

Printed in Taiwan July. 2006

Rev. 1.00

CHAPTER

General Information

DVP-7020BE User’s Manual

Chapter 1 General Information

DVP-7020BE is 16 channel input, PCI-bus video capture card. It supports

up to 16 channel input by share-frame technology and captures up to D1

resolution at 120/100 fps frame rate. DVP-7020BE supports NTSC/PAL

composite video input through BNC connectors and digitizes the data to

PC through PCI bus. The DVP-7020BE is a digital video surveillance card

with SDK (software develop kit).

1.1 HardwareRequirement

Intel Pentium III 1GHz or above (CPU speed depends on

video frame rate, channels and resolution)

256 MB RAM or above

Free PCI slot(s)

CD-ROM

Hard disk with 1G free space

1.2 Software Requirement

Microsoft Windows XP with DirectX 9.0 or above

1.3 BlockDiagram

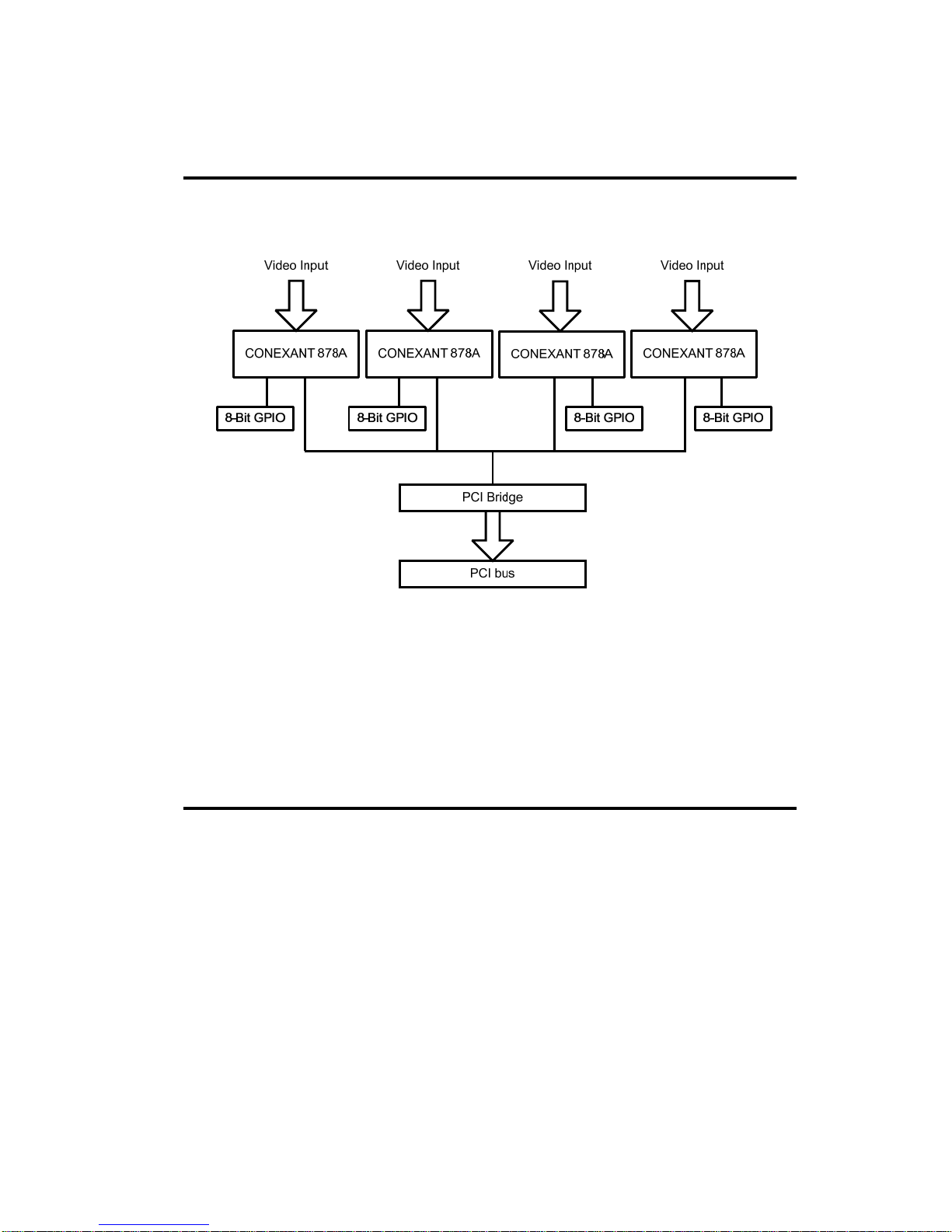

Figure 1.1 System diagram

1.4 Packing List

DVP-7020BE PCI capture card X 1

Utility CD (Driver, Manual, SDK, Sample, Sample source code) X 1

Connection cable for WDT X 1

DVA-210 (4 Channel expand board) X 3

DVP-7020BE User’s Manual

1.5 Dimensions

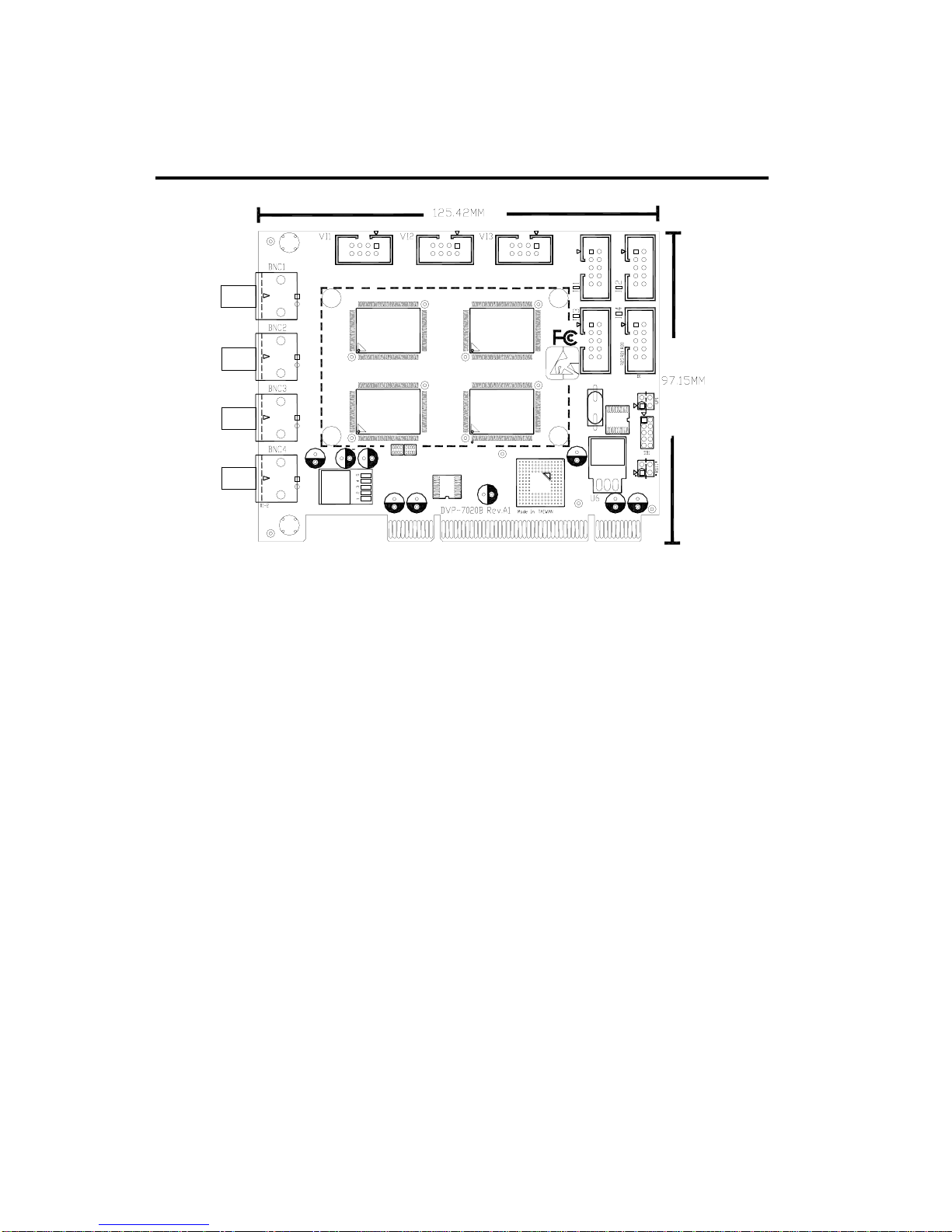

Figure 1.2 Dimensions

1.6 Connector location

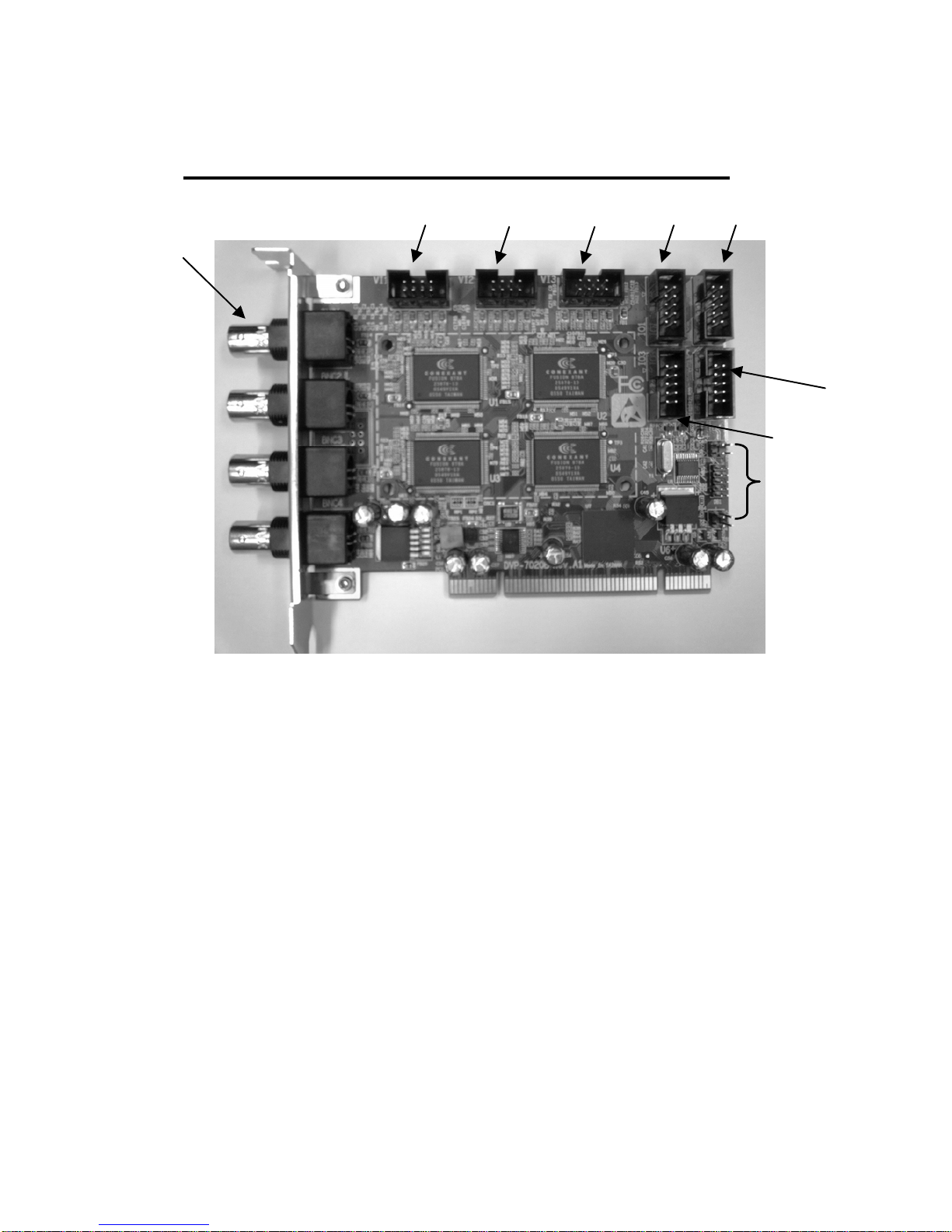

Figure 1.3 Connector location

VI 1 VI 2 VI 3 GPIO: J1 GPIO: J2

Video input

VI 4

GPIO: J3

GPIO: J4

for ODM

customer only

DVP-7020BE User’s Manual

1.7 Pin definition

1.7.1 GPIO: J1

•8 bit TTL/CMOS level Digital I/O.

GPIO (J1) Pin define

Pin no. Description

Pin 1 OUT0

Pin 2 OUT1

Pin 3 OUT2

Pin 4 OUT3

Pin 5 IN0

Pin 6 IN1

Pin 7 IN2

Pin 8 IN3

Pin 9 VCC

Pin 10 GND

Table 1.1 GPIO J1 pin definition

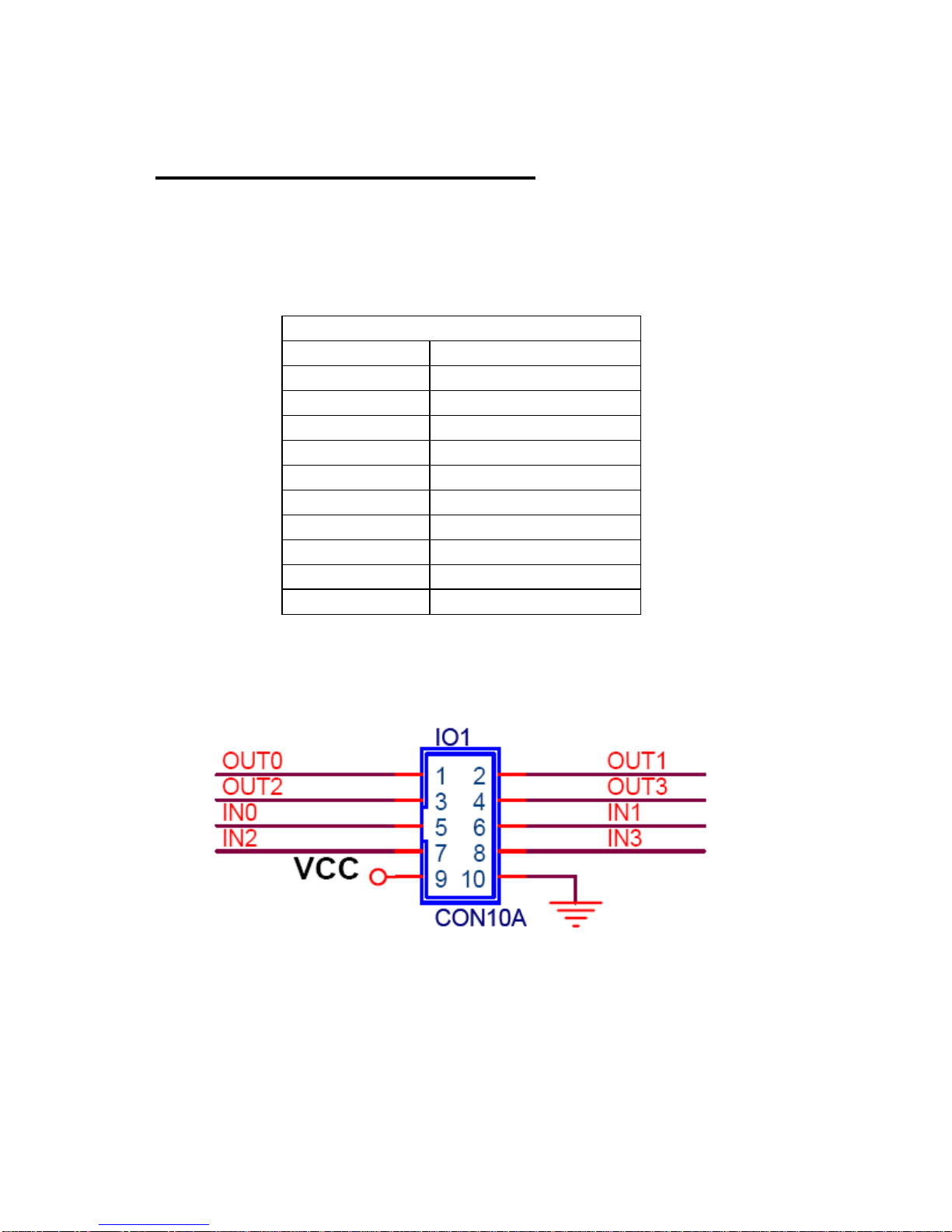

Figure 1.4 GPIO(J1) pin definition

1.7.2 GPIO: J2

•8 bit TTL/CMOS level Digital I/O.

GPIO (J2) Pin define

Pin no. Description

Pin 1 OUT4

Pin 2 OUT5

Pin 3 OUT6

Pin 4 OUT7

Pin 5 IN4

Pin 6 IN5

Pin 7 IN6

Pin 8 IN7

Pin 9 VCC

Pin 10 GND

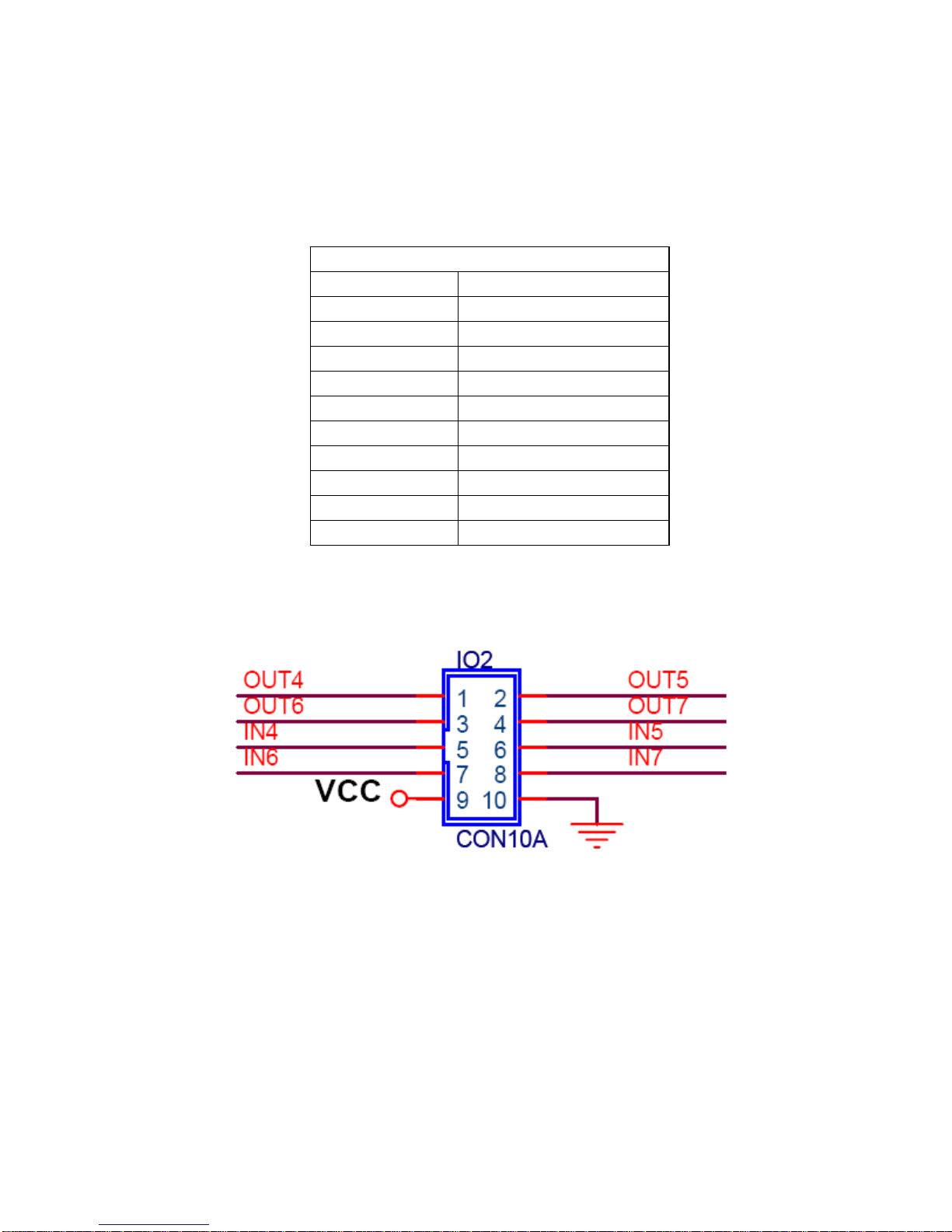

Table 1.2 GPIO J2 pin definition

Figure 1.5 GPIO(J2) pin definition

DVP-7020BE User’s Manual

1.7.3 GPIO: J3

•8 bit TTL/CMOS level Digital I/O.

GPIO (J3) Pin define

Pin no. Description

Pin 1 OUT8

Pin 2 OUT9

Pin 3 OUT10

Pin 4 OUT11

Pin 5 IN8

Pin 6 IN9

Pin 7 IN10

Pin 8 IN11

Pin 9 VCC

Pin 10 GND

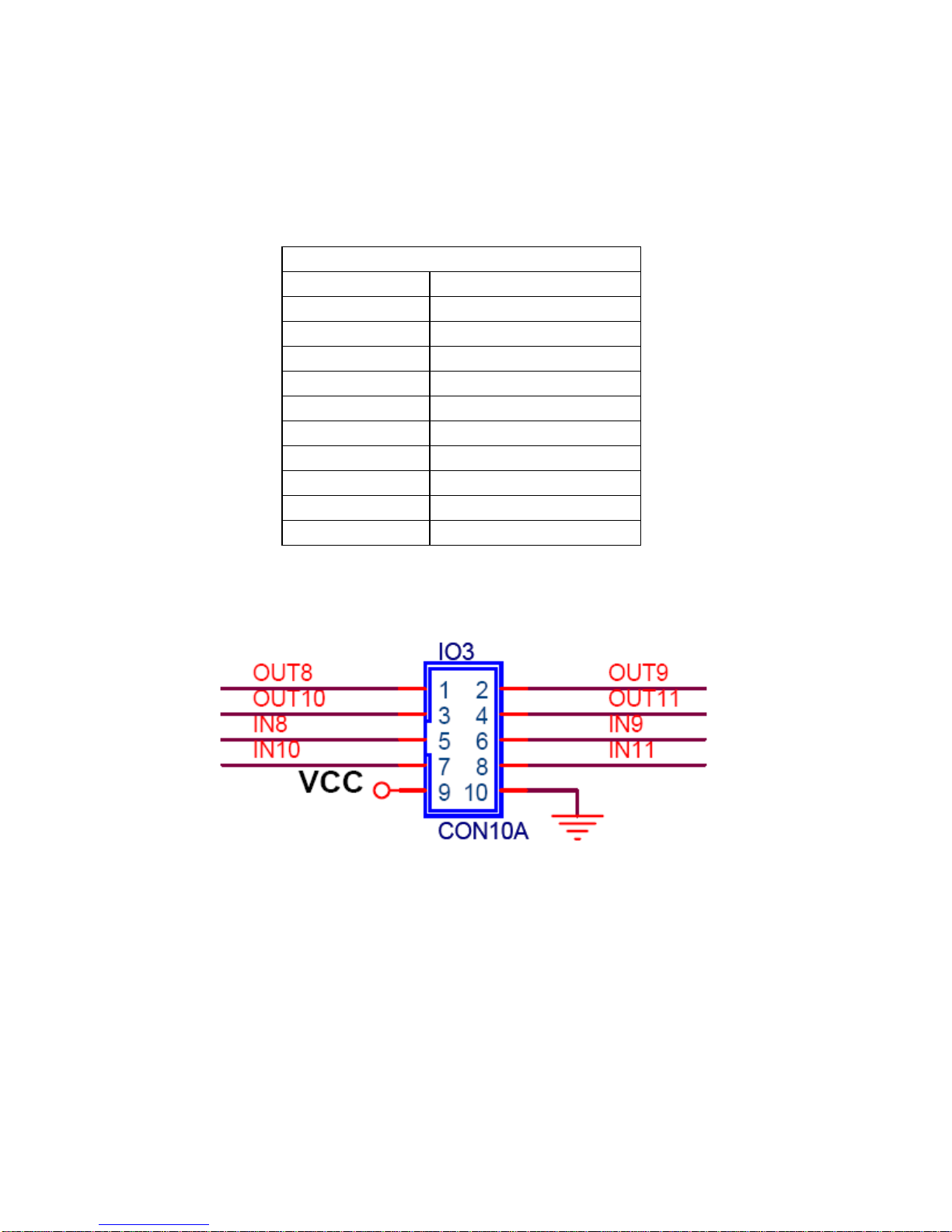

Table 1.3 GPIO J3 pin definition

Figure 1.6 GPIO(3) pin definition
