Advantech PCM-3643 User manual

Installation Instruction for PCM-3643.

Purpose: Setup 8 COM ports sharing IRQ5 &10 start with I/O Address=208H

Procedures:

ConfirmIRQ5&10isavailable.

BIOSsetting:SetIRQ5&10as"LegacyISA"

SetasEnhancemodeandset8COMportssharing2IRQ.

**RefertoHardwarePhotoforjumperandswitchsettings.



1. Entertocontrolpanelanddoubleclick"Add/RemoveHardware"

2. ClickNexttoenter"ChooseaHardwareTask"andchoose"Add/Troubleshootadevice"andclickNext.

3. Choose"Addanewdevice"andclickNext

4. Choose"No,Iwanttoselectthehardwarefromalist"andclicknext

5. Choose"Ports(COM&LPT)andclicknext

6. Choose"CommunicationPort"inModelswindowandclickNext

7. ClickOKwhenpopawarningmessage.

8. Choose"Basicconfiguration0008"inSettingbasedwindowandthenchoose"Input/OutputRange"in 

Resourcesettingswindowandthenclick"ChangeSetting"Itisnotrestrictedto"Basicconfiguration0008"

9. Settingtheaddressas0208-020FinValuewindowandclick"OK"

10. Choose"InterruptRequest"inResourcesettingwindowandthenclick"ChangeSetting"

11. SettingtheIRQas05inValuewindowandclickOK

12. Click"OK"toenter"StartHardwareInstallation"andclickNextandthenClick"Finish"tofinishoneport

setting.

13. Don'trestartthecomputeruntilallportsareset.Repeatto1.

14. Pleasedonotethatfirst4COMportssharesIRQ5andtheother4COMportssharesIRQ10.Therefore,set

IRQas10for“InterruptRequest”forthelast4COMports.



Note 1: Step 9: 0208-020F and Step11: 05 for first setting

Step 9: 0210-0217 and Step 11: 05 for second setting

Step 9: 0218-021F and Step 11: 05 for third setting

Step 9: 0220-0227 and Step 11: 05 for fourth setting

Step 9: 0228-022F and Step 11: 10 for fifth setting

Step 9: 0230-0237 and Step 11: 10 for sixth setting

Step 9: 0238-023F and Step 11: 10 for seventh setting

Step 9: 0240-0247 and Step 11: 10 for eighth setting

Note 2: Please do remember that I/O Range and IRQ setting should not have conflicts with any

device on you system. Moreover, jumper and switch setting must be corresponding to your I/O

Range and IRQ. Once again, please consult user’s manual for detail jumper/switch setting.

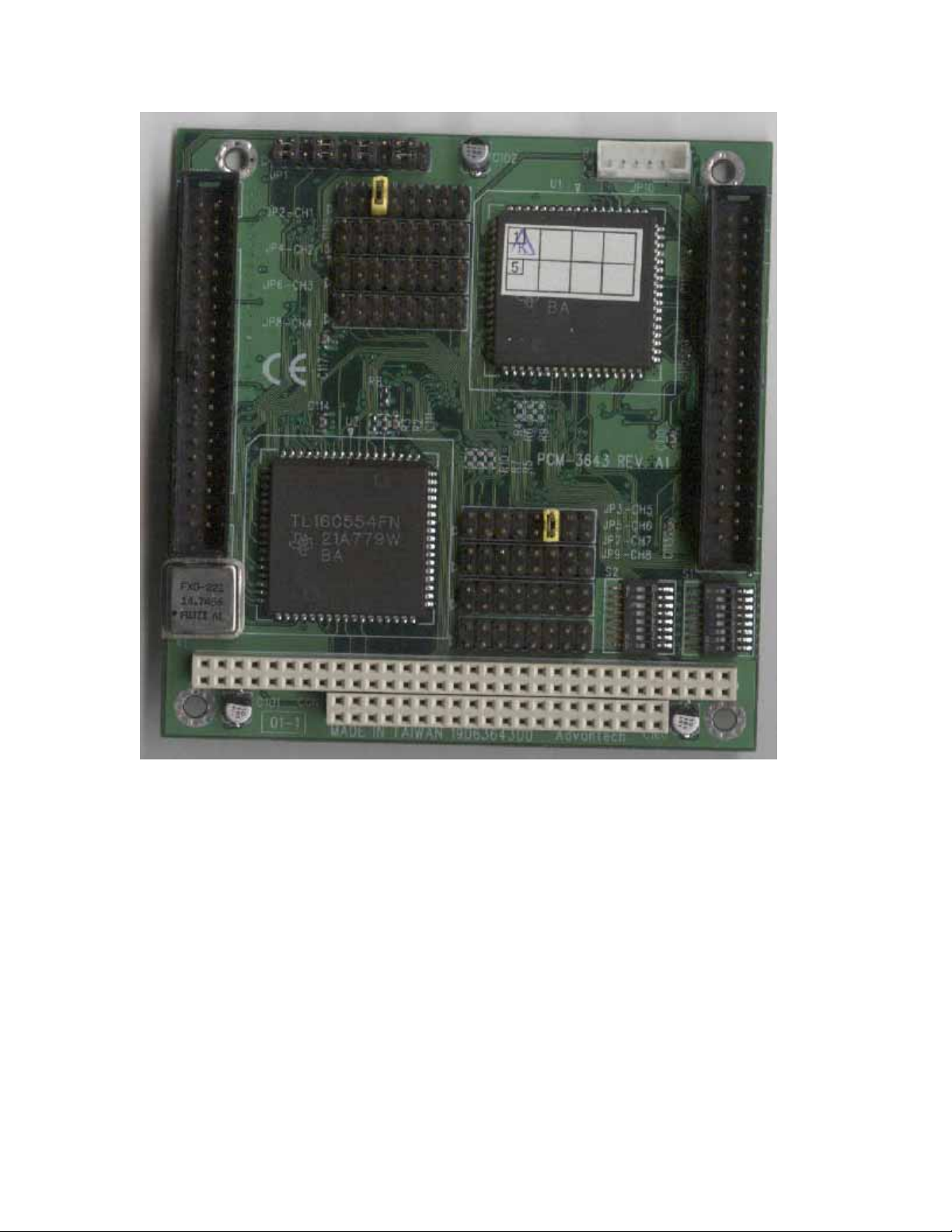

Photo of Hardware Setting:



Advantech Technique Support Team
