ADTRAN SMART/RG SR555ac User manual
SR555ac
Quick Start Guide

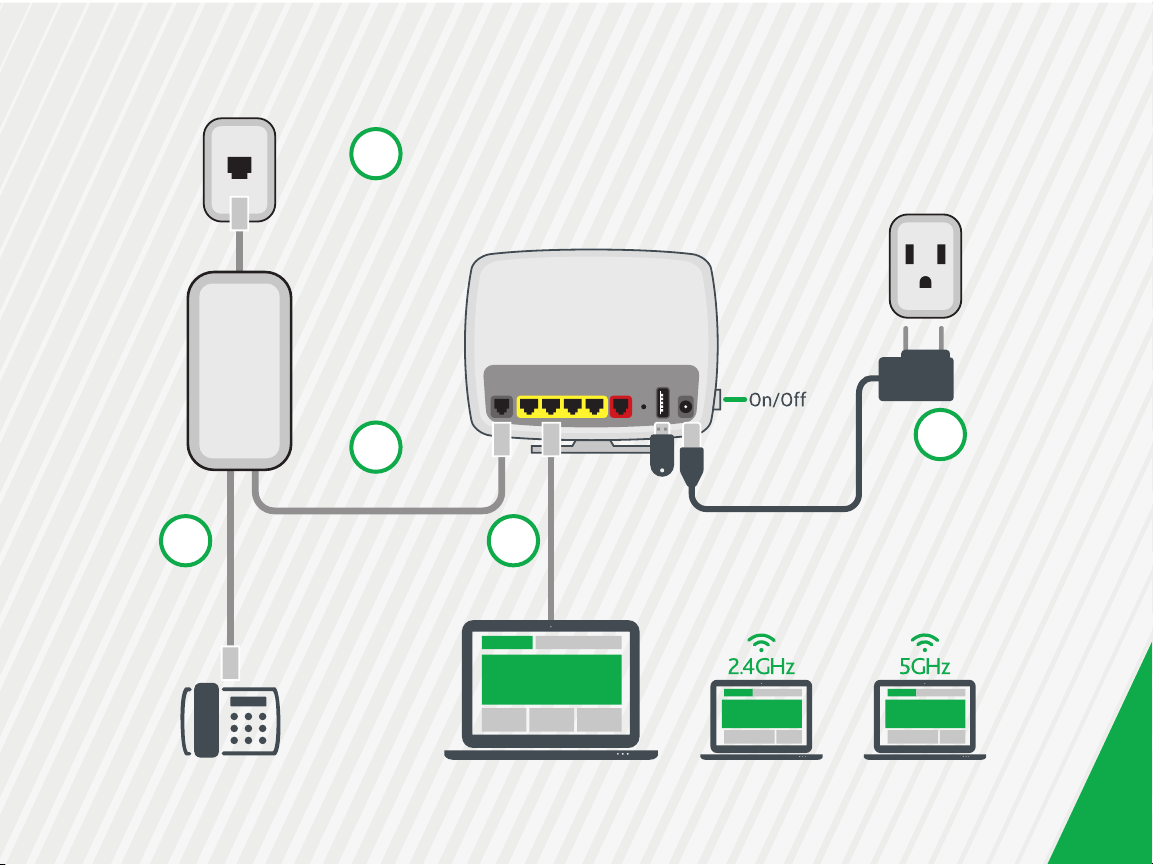

Installation
Locate the splitter cable that is included with your SmartRG gateway. It has three ports.
1. Connect the splitter as follows:
a. Connect the DSL port of the gateway and the Modem port of the splitter with a telephone cable
b. Connect the phone to the Phone port of the splitter with a telephone cable
c. Connect the incoming line to the Line port of the splitter.
2. Connect a LAN port of the gateway to the network card of the PC using an Ethernet cable.
3. Plug the power adapter to the wall outlet and then connect the other end of it to the Power port of the gate-
way. Turn on the unit by pressing the On/Off button on the side of the gateway.
Note: If you use 3G WAN service, connect the 3G USB data card to the USB port of the gateway. If you use the Ethernet
uplink, connect to the WAN interface using an Ethernet cable. You cannot use the xDSL uplink, 3G WAN service, and Eth-
ernet uplink at the same time.
Your gateway is now automatically being set up to connect to the Internet. This process may take a few minutes to com-
plete before you can begin using your Internet applications (browser, email, etc.). If you are unable to connect to the Inter-
net, confirm that all cable connections are in place and the gateway’s power is turned on.
WAN
Modem
Line
RJ11
Phone
Phone
DSL USB
RESET
DC/
IN
LAN
3G USB Data
Card / LTE
RJ45
1a
1c
1b
2
3
3
LED Indicators
The indicator lights (LEDs) on the front of the SR555ac gateway
can help you understand the state of your gateway.
Legend: Green Green Blinking Red Lt. Blue Lt. Blue Blinking Dk Blue Dk. Blue Blinking
LED Action Explanation
All LEDs
except
those listed below Feature enabled &/or working correctly
Data being transferred
POWER Device in CFE mode
Device powered on and ready for use
DSL For VDSL only /WAN service
(Single Line -
Inner or Outer Pair)
For VDSL only WAN service (Bonded Line)
DSL line
0
acquiring sync
DSL line
0
(inner pair) connected DSL Line 0 (Inner pair) is active; DSL line 1 (Outer pair) is not
active.
DSL line
1
(outer pair) acquiring sync and con-
nected
DSL Line 1 (Outer pair) is active; DSL line 0 (Inner pair) is not
active
DSL connected Both DSL lines connected
LED Action Explanation
DSL down By default, this LED will blink when the DSL connection goes
down. You can modify this setting on the Advanced Settings >
DSL page.
Not lit No lines connected
Note: This LEDmay flash green briefly on startup.
INTERNET DSL sync acquired and gateway on line
Data being transferred
Internet authentication / connection has failed
5
Quick Gateway Configuration
Warning: Do not press the Reset button unless you want to clear the current settings. The Reset button is in a small cir-
cular hole on the rear panel. If you want to restore the default settings, insert a thin wire (such as a paper clip) into the
hole, press gently for 1 second, and then release the button. The system reboots and returns to the factory defaults.
Logging in to your gateway
To change the settings on your gateway, you must log in the gateway's interface. Make sure that you have completed the
steps in "Installation" before you begin.
1. Open your internet browser application and type 192.168.1.1 into the address line. The login dialog appears.
2. Enter the factory default credentials shown below and click OK. The Device Info summary page appears.
User Name: admin Password: admin
Note: Your service provider may use other settings. Contact your provider for details.
Configuring the WAN manually
If the automatic connect process is unsuccessful, refer to the Advanced Setup >Layer 2 Interface and WAN Services sec-
tions of the SmartRG SR555ac Gateway User Manual to manually establish a connection.
7
WiFi Setup
Two methods, WPS and Manual, are available for WiFi setup. Perform the steps on this page first, and then follow the
instructions for the applicable method.
1. In the left navigation bar, click Wireless. The Basic page appears.
2. If the Enable Wireles checkbox is not already selected, click it to enable wireless.
3. If desired, in the SSID field, enter the network name to which you want your client devices connected. Continue
with the steps for the method you prefer.
WPS Method
If the device you wish to connect to the Internet via your gateway supports the WPS secure WiFi connection method, follow
these steps.
1. In the left navigation bar, click Wireless. Then click Security for the wireless band that you want to configure.
2. Select Enable WPS and click Apply/Save to commit your selection.
9
3. Within 2 minutes, activate WPS on the 3rd party device to which you wish to connect. The device may have a push-
button on its exterior or a software interface is used to initiate WPS connection. To learn how to use the WPS feature
on your client device, refer to its documentation.
Your device should now be connected to your gateway wirelessly using WPS. If you encounter problems with the WPS setup
such as connection failure, refer to your client device for further instructions.
