Adonis MFL-10 User manual
ADONIS
ALTERNATOR NOISE FILTER MFL-10
INSTRUCTION MANUAL
Space Electric Corporation
OSAKA, JAPAN
SEC
- 2 -
ALTERNATOR NOISE FILTER MFL-10
INSTRUCTION
Thank you for your purchasing ADONIS Alternator Noise Filter Model MFL-10. Before using this unit,
please read this instruction manual carefully and hope you can enjoy this unit for a long time.
By using this filter, the alternator noise almost out and it improves the S/N value.
Available for using with 25W output transceivers.
Easy mounting design.
HOW TO MOUNT:
1. Mount the model MFL-10 with the accessory screw (2pieces) or other screw onto the space not
having the Water-splash.
2. Connect the power cords from transceivers to the red and black cords from MFL-10 correctly.

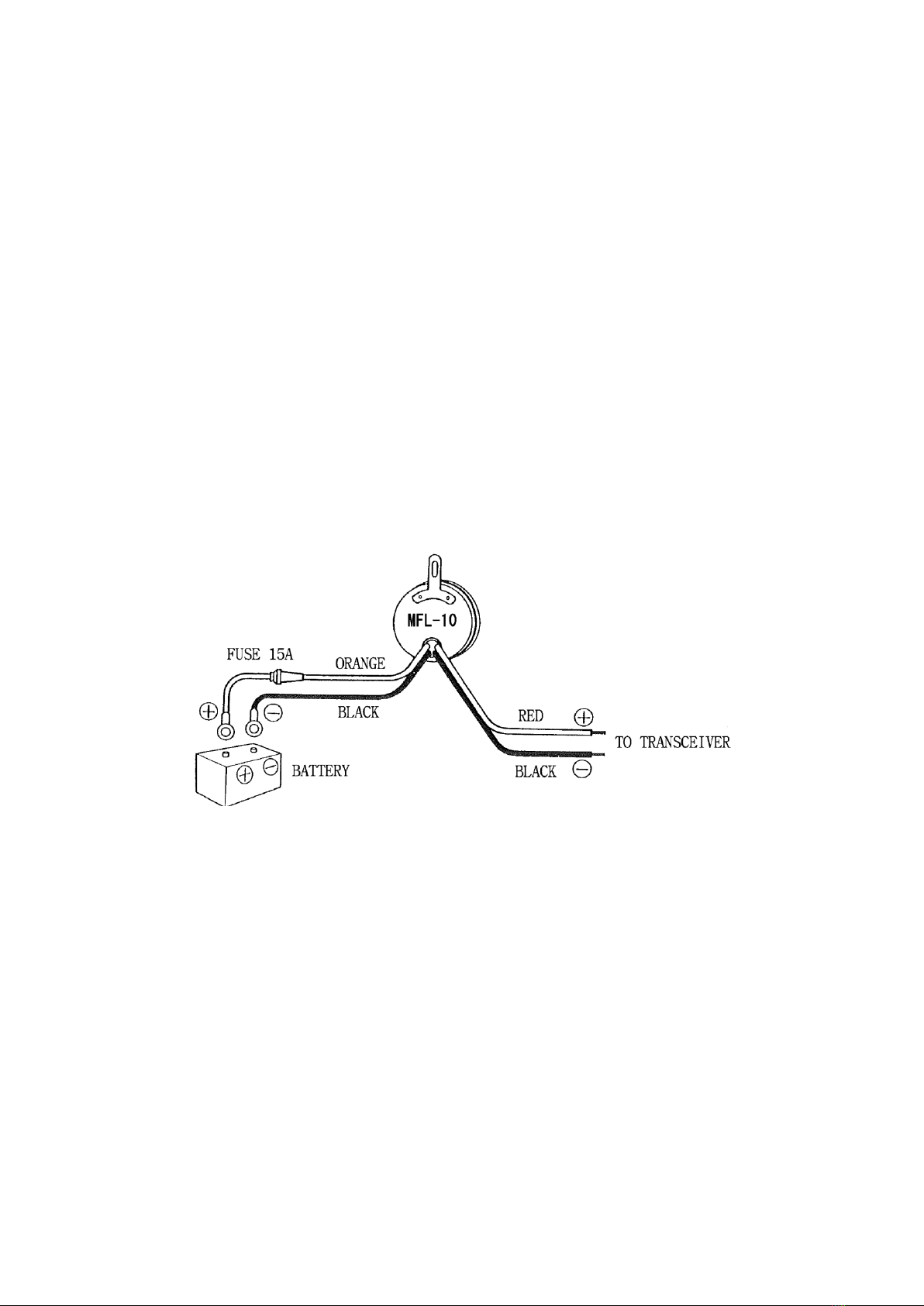

The Red line is (+) side and black line should be connect to the (-) side. Please refer to
the sketch below.
3. Then, Finally. Connect the Orange colored Cord and Black colored cord to the battery. The
Black colored cord (-) should be connected at first. and then. The orange colored cord (+)
should be connected to the (+) side of Battery. Be careful about the polarity.
SPECIFICATIONS:
1. Rated Voltage: 13.8V DC
2. Rated Current: 10A
3. Cord Length: 1.8m
4. Filter: Un-Balanced choke Method
5. Fuse Capacity: 15A
