ADF Web HD67589-A1 User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 1 di 25

User Manual

Revision 1 002

English

EtherNet/IP / NMEA 2000 - Converter

(Order Code: HD67589-A1)

for Website information:

www adfweb com?Product=HD67589

for Price information:

www adfweb com?Price=HD67589-A1

Benefits and Main Features:

Very easy to configure

Electrical isolation

Two EtherNet/IP ports

Temperature range: -40°C/85°C (-40°F/185°F)

For others Ethernet/IP products see also the following link:

Converter EtherNet/IP to

www adfweb com?Product=HD67077 (M-Bus)

www adfweb com?Product=HD67595 (CAN)

www adfweb com?Product=HD67597 (Devi eNet Master)

www adfweb com?Product=HD67598 (Devi eNet Slave)

www adfweb com?Product=HD67599 (J1939)

www adfweb com?Product=HD67590 (Serial RS232)

www adfweb com?Product=HD67590 (Serial RS485)

www adfweb com?Product=HD67591 (Modbus Master RS232)

www adfweb com?Product=HD67591 (Modbus Master RS485)

www adfweb com?Product=HD67592 (Modbus Slave RS232)

www adfweb com?Product=HD67592 (Modbus Slave RS485)

Do you have an your customer protocol?

www adfweb com?Product=HD67003

Do you need to choose a device? do you want help?

www adfweb com?Cmd=helpme

Other

Products

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 2 di 25

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERNET/IP 10

NMEA 2000 11

USE OF COMPOSITOR SW67589 12

NEW PROJECT / OPEN PROJECT 12

SET COMMUNICATION 13

RECEIVE FRAMES 14

SEND FRAMES 15

UPDATE DEVICE VIA UDP 16

MECHANICAL DIMENSIONS 18

ORDERING INFORMATIONS 19

ACCESSORIES 19

PLC CONFIGURATION 20

DISCLAIMER 24

OTHER REGULATIONS AND STANDARDS 24

WARRANTIES AND TECHNICAL SUPPORT 25

RETURN POLICY 25

PRODUCTS AND RELATED DOCUMENTS 25

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/

and search for the corresponding code on the page Click on the proper

“Document Code” and download the updates

To obtain the updated documentation for the product that you own, note

the “Document Code” (Abbreviated written "Doc Code" on the label on the

product) and download the updated from our web site

www adfweb com/download/

REVISION LIST:

WARNING:

ADFweb com reserves the right to change information in this manual about

our product without warning

ADFweb com is not responsible for any error this manual may contain

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners

Revision

Date Author Chapter

Des ription

1 000 21/06/2012

Fl All First release version

1 001 12/03/2013

Dp All Add new chapters

1 002 09/04/2013

Fl All Revision

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 3 di 25

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual When using the device are required for

each individual application, legal and safety regulation The same applies also when using accessories

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e independent limit

switches, mechanical interlocks, etc )

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who

have appropriate qualifications for their job

ESIDUAL

ISKS

The device is state of the art and is safe The instrument can represent a potential hazard if they are inappropriately installed and operated

by personnel untrained These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the

possibility of damage

CONFORMITY

The declaration is made by us You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 4 di 25

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 5 di 25

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67589-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 6 di 25

CHARACTERISTICS:

The HD67589-A1 is a EtherNet/IP / NMEA 2000 Converter

It allows the following characteristics:

Up to 500 bytes in reading and 500 bytes in writing;

Two-directional information between NMEA 2000 bus and EtherNet/IP bus;

Mountable on 35mm Rail DIN;

Power Supply 8…24V AC or 12…35V DC;

Temperature range -40°C to 85°C

CONFIGURATION:

You need Compositor SW67589 software on your PC in order to perform the following:

Define the parameter of EtherNet/IP line;

Define the parameter of NMEA 2000 line;

Determinate which EtherNet/IP byte transfer in NMEA 2000 and vice versa;

Update the device

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 7 di 25

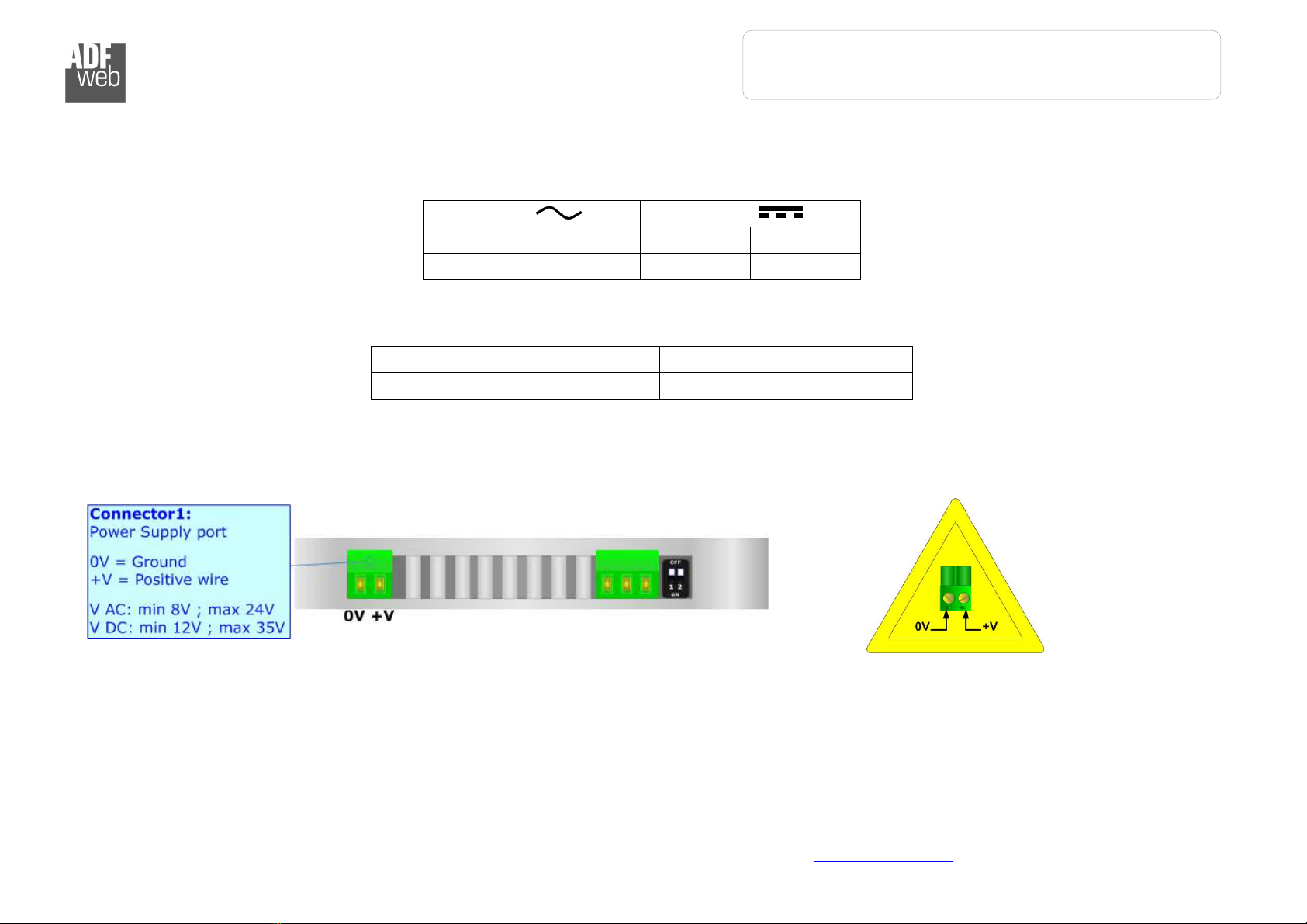

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Devi e Consumption [W/VA]

HD67589-A1 3 5

HD67589

Caution: Not reverse the polarity power

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 8 di 25

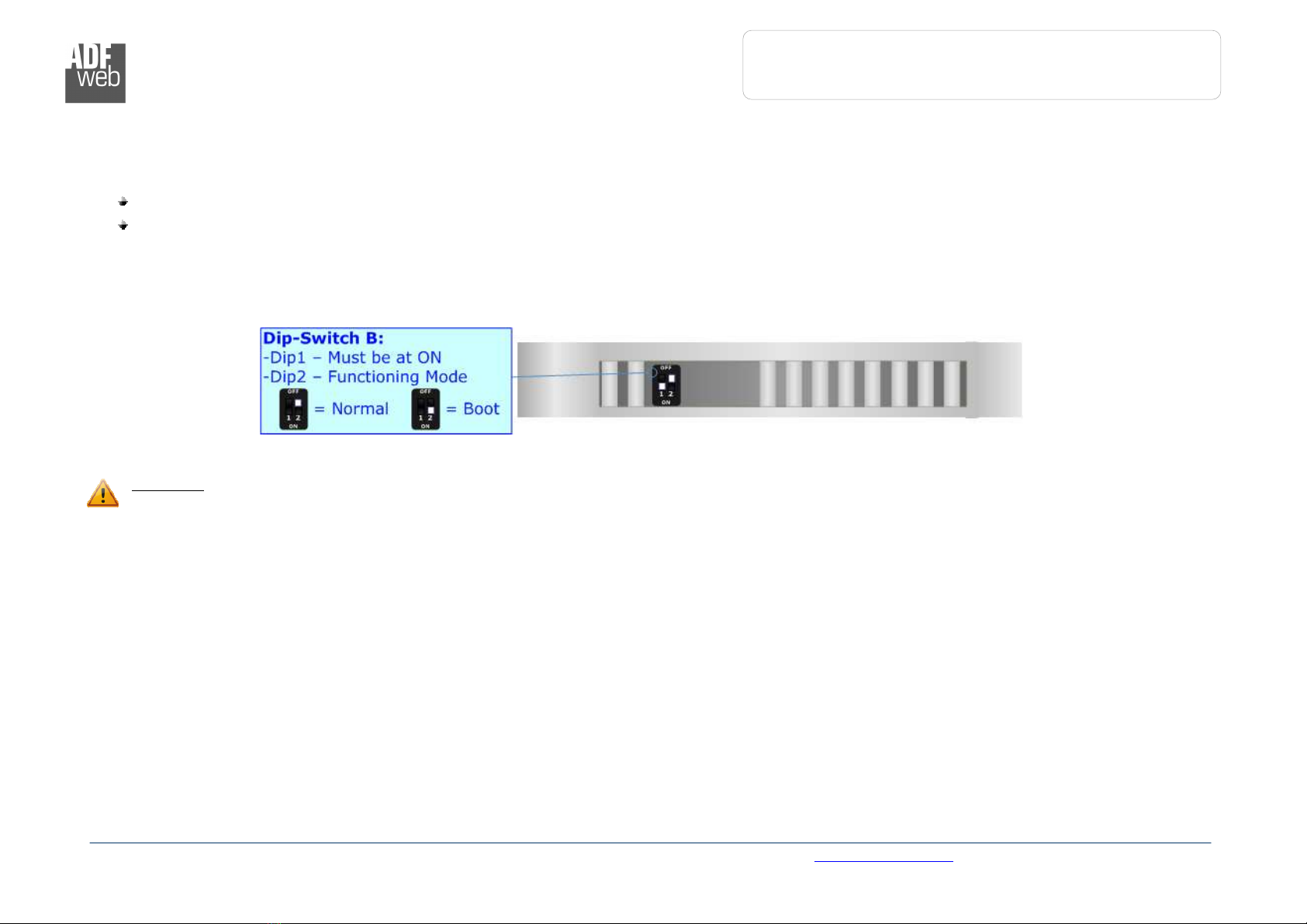

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch B’:

The first, with ‘Dip2 of Dip-Switch B’ at “OFF” position, is used for the normal working of the device

The second, with ‘Dip2 of Dip-Switch B’ at “ON” position, is used for upload the Project and/or Firmware

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Warning:

Dip1 of ‘Dip-Switch B’ must be at ON position for working even if the Ethernet cable isn’t inserted

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 9 di 25

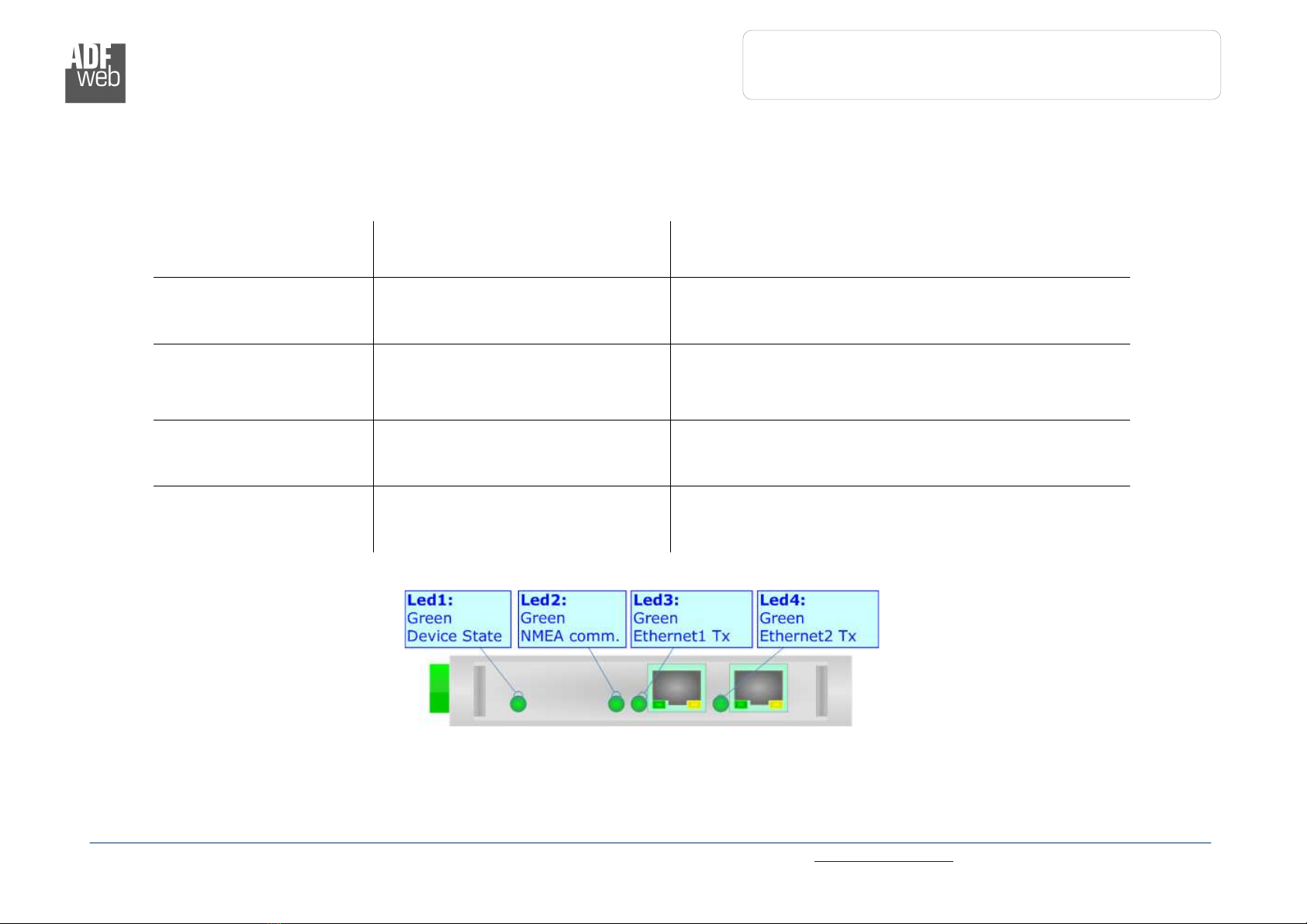

LEDS:

The device has got four LEDs that are used to give information of the functioning status

The various meanings of the LEDs are described in the table below

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: NMEA comm (green)

Change state when receive a NMEA

2000 frame defined in the

Compositor

Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: Ethernet1 Tx (green) Blinks quickly for a short time

when sends Ethernet frames

Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: Ethernet2 Tx (green) Blinks quickly for a short time

when sends Ethernet frames

Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

EtherNet/IP / NMEA 2000

Document code: MN67589_ENG Revision 1 002 Pagina 10 di 25

ETHERNET/IP:

The EtherNet/IP connection must be made using Connector3 and/or Connector4 of HD67589-A1 with at least a Category 5E cable The

maximum length of the cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to

100 Mbps To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is

recommended the use of a cross cable
